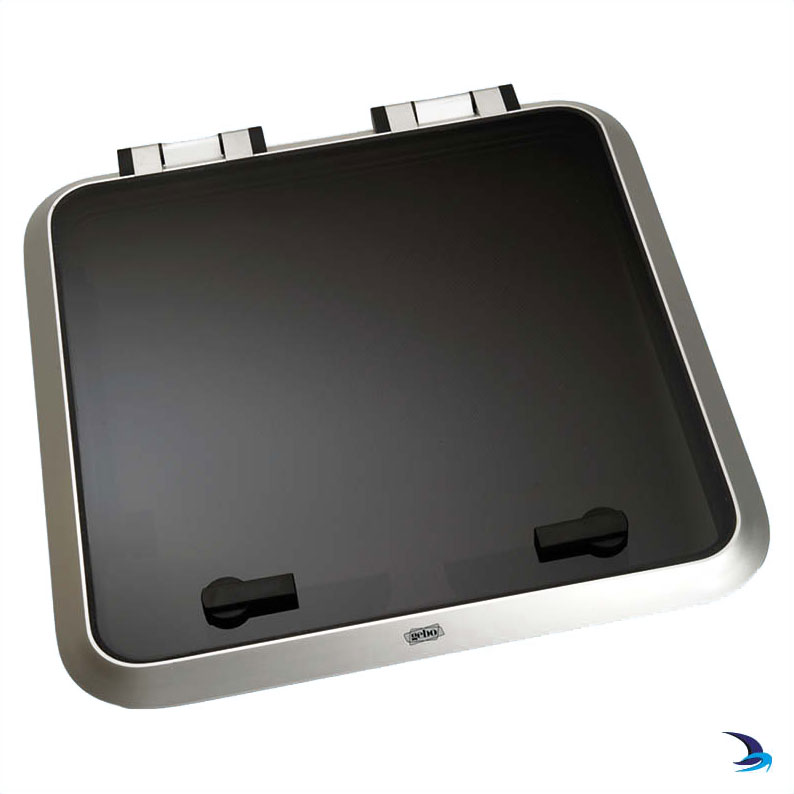

Gebo - Flushline Deck Hatches

Gebo

Gebo Flushline deckhatch offers exciting options for sailing craft, their sleek low-profile looks work perfectly with the smooth, flowing lines of today's boat designs.

Price:  £129.00
RRP:  £242.00
Save:  £113.00 (47%)
(Inc. VAT @ 20%)
+
Hatch cut-out:

Article Number:  80.50.26.00

Gebo - Inner rims (aluminium) (for Gebo Flushline deckhatches)Gebo - Inner rims (aluminium) (for Gebo Flushline deckhatches)
Gebo - Inner rims (ABS) (for Gebo Flushline deckhatches)Gebo - Inner rims (ABS) (for Gebo Flushline deckhatches)
Oceanair - SKYSHADE HatchshadesOceanair - SKYSHADE Hatchshades
ARBO - Arbokol 1000 Polysulphide SealantARBO - Arbokol 1000 Polysulphide Sealant

With the Gebo Flushline hatches you get the best of everything: a beautiful design and full flexibility in colour and finish.

Just like other Gebo deckhatches and portlights, the Flushline hatches are made from finest quality seawater resistant anodised aluminium.  All other parts, including hinges and handles are also constructed from noncorrosive materials.  The sealing is made of silicone rubber.

Adjustable friction hinges hold the hatch open in any position up to 180°, including a fully locked ventilation position.  For maximum security the handles incorporate a sturdy, easy-to-use blue locking button.

Gebo Flushline hatches are CE Approved for Category A, Areas 2, 3 & 4.

Gebo - Flushline deckhatches (rectangular / square hatches)

Cut-out size Overall size
Dimensions (X x Y) Acrylic (Z) Radius
(R)
Dimensions (X x Y) Radius
(R 1)
260 x 260mm 8mm 42mm 315 x 315mm 70mm
275 x 275mm 8mm 42mm 330 x 330mm 70mm
310 x 310mm 8mm 42mm 365 x 365mm 70mm
325 x 185mm 8mm 42mm 380 x 240mm 70mm
420 x 420mm 8mm 42mm 475 x 475mm 70mm
440 x 440mm 8mm 42mm 495 x 495mm 70mm
450 x 320mm 8mm 42mm 505 x 375mm 70mm
470 x 470mm 8mm 42mm 525 x 525mm 70mm
495 x 495mm 10mm 95mm 550 x 550mm 123mm
500 x 370mm 8mm 42mm 555 x 425mm 70mm
510 x 510mm 10mm 42mm 565 x 565mm 70mm
510 x 510mm (with stay) 10mm 42mm 565 x 565mm (with stay) 70mm
620 x 620mm 10mm 42mm 675 x 675mm 70mm
620 x 620mm (with stay) 10mm 42mm 675 x 675mm (with stay) 70mm



Gebo - Flushline deckhatches (round hatches)

Cut-out size Overall size
Dimensions (X x Y) Acrylic (Z) Radius
(R)
Dimensions (X x Y) Radius
(R 1)
277mm Ø 10mm n/a 282mm Ø n/a
420mm Ø  10mm n/a 475mm Ø n/a
518mm Ø 10mm n/a 573mm Ø n/a



Gebo - Flushline deckhatches (delta ('D') hatches)

Cut-out size Overall size
Dimensions (X x Y) Acrylic (Z) Radius
(R)
Dimensions (X x Y) Radius
(R 1)
530 x 435mm 8mm 42mm 585 x 495mm 70mm

CE Regulations Explained

The letters CE (Conformité Européenne) appear on many products that are traded on the single market in the European Economic Area (EEA).

The CE marking is required for many products. It:

  • shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
  • is an indicator of a product’s compliance with EU legislation
  • allows the free movement of products within the European market

By placing the CE marking on a product a manufacturer is declaring, on his sole responsibility, conformity with all of the legal requirements to achieve CE marking. The manufacturer is thus ensuring validity for that product to be sold throughout the EEA. This also applies to products made in third countries which are sold in the EEA and Turkey.

The CE Regulations apply to craft up to 24m in length that are sold in the European Union. Although the regulations may not apply to your boat, they are a useful guide for small craft throughout the world.

The regulations have Design Categories for boats based on their intended use and propulsion (sail or power). They are as follows -

A. OCEAN: Designed for extended voyages where conditions may exceed wind force 8 (Beaufort scale) and significant wave heights of 4m and above and vessels largely self-sufficient.

B. OFFSHORE: Designed for offshore voyages where conditions up to and including wind force 8 and significant wave heights up to and including 4m may be experienced.

C. INSHORE: Designed for voyages in coastal waters, large bays, estuaries, lakes and rivers where conditions up to and including wind force 6 and significant wave heights up to and including 2m may be experienced.

D. SHELTERED WATERS: Designed for voyages on small lakes rivers and canals where conditions up to and including wind force 4 and significant wave heights up to and including 0,5m may be experienced.

The Regulations divide up the boats hull and deck into four specific Areas. A product, which is suitable for fitting to an area for which it is approved, is suitable for all the areas below its category. For example, a portlight, which is approved for Area 2 may also be fitted to Areas 3 and 4, but not Area 1.

CE Area diagrams courtesy of Lewmar Hatch and Portlight fitting guide.
