Icom IC-M93D Product Leaflet
2.3 inch Large High Visibility LCD
The large 2.3 inch (W×H: 35.5×47.0 mm), full dot-matrix (123×160 dots) displays all information clearly. The high contrast display is visible even under direct sunlight.
Slimmest* Buoyant DSC Radio
The IC-M93D EURO has the slimmest* body for a floating VHF/DSC marine handheld transceiver. Body depth has been reduced from 43.2mm (IC-M91D) to 38.5mm (IC-M93DEURO) by implementing a flat sheet keypad. This feature allows the radio to be firmly yet comfortably gripped in the palm of your hand.
*As of July 2016, researched by Icom Inc.
Meets ITU-R M.493-13 Class D DSC with a Dedicated DSC Receiver for CH70

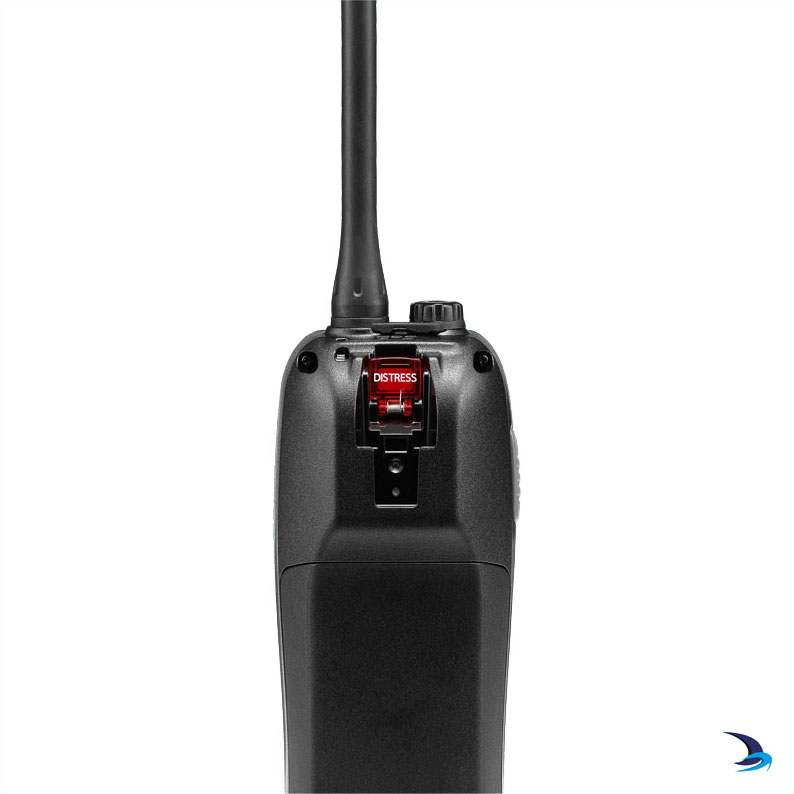

The IC-M93D EURO has a dedicated DSC receiver which continuously monitors CH70 and is independent of the main receiver and other operation. The distress button is located on the rear panel and protected against accidental operation with a spring cover.
Intuitive User Interface
A flat sheet keypad not only makes the radio slim, but also provides positive click action. Icom’s common Marine Family User Interface provides consistent and intuitive operation. You can quickly access the required function by using the radios’ soft keys. The most often-used 19 functions can be assigned at the bottom of the display and toggled with the left and right keys.
Float’n Flash and MOB Auto Set Function
If the IC-M93D EURO falls into the water, the radio floats and an emergency LED light is automatically activated, even when the unit is turned OFF. In addition, the MOB auto set function automatically sets the nature of distress to “Man Overboard” allowing for an immediate distress call to be made by the operator (by pushing the Distress button). The position and time* of the radio/person in the water is transmitted.
*If the GNSS position data has not been fixed when the Distress button is pushed, another distress call will be automatically sent after the position data is received.
Rapid Charger and Li-ion battery pack as standard
The IC-M93D EURO includes the BC-220 rapid charger which charges the standard Li-ion battery pack in just 2.5 hours. The IC-M93D EURO allows 9 hours* of battery life while continuously monitoring CH70. * Typical operation with Tx: Rx: standby = 5: 5: 90 (Power save: ON)
Active Noise Cancelling Technology
Active noise cancelling technology removes background noise from both transmitted and received audio. This function makes communication clearer in noisy maritime environments.
Integrated GNSS Receiver
The integrated GNSS (Global Navigation Satellite System) receiver provides your location, bearing and speed with fast-setup time and pinpoint accuracy by using information from GPS, GLONASS, QZSS and SBAS (WAAS/EGNOS/MSAS). Using GNSS memory data, the IC-M93D EURO can fix positioning within 8–12 seconds after the radio is powered ON. Acquired position information can be used for DSC calls and navigation to waypoints.
- IPX7 submersible (1m depth of water for 30 minutes)
- Navigation function from current position to specified waypoint
- 50 waypoint memories with alphanumeric names for navigation
- Dual/Tri-watch function for monitoring CH16 and /or call channel
- Battery indicator shows remaining battery power in four levels
- Favourite channel function allows quick channel selection by setting the “Tag” channel to channels used most often
- AquaQuake draining function emits a vibrating sound and clears water away from the speaker grill
