Lewmar - DC2 Rope Clutches
Lewmar - DC2 Rope ClutchesLewmar - DC2 Rope ClutchesLewmar - DC2 Rope ClutchesLewmar - DC2 Rope Clutches

Lewmar - DC2 Rope Clutches

Lewmar



Manufacturer #:  29101410BK

£130.99    (Inc. UK VAT @ 20%)RRP:  £146.52Save:  £15.53 (11%)(£109.16 Exc. VAT)

Lewmar continues to define rope clutch technology with a variable geometry handle and unique grip pattern of dominos that prevent rope fray. This revolutionary system has been independently tested time and again and has won awards for its innovative framework.

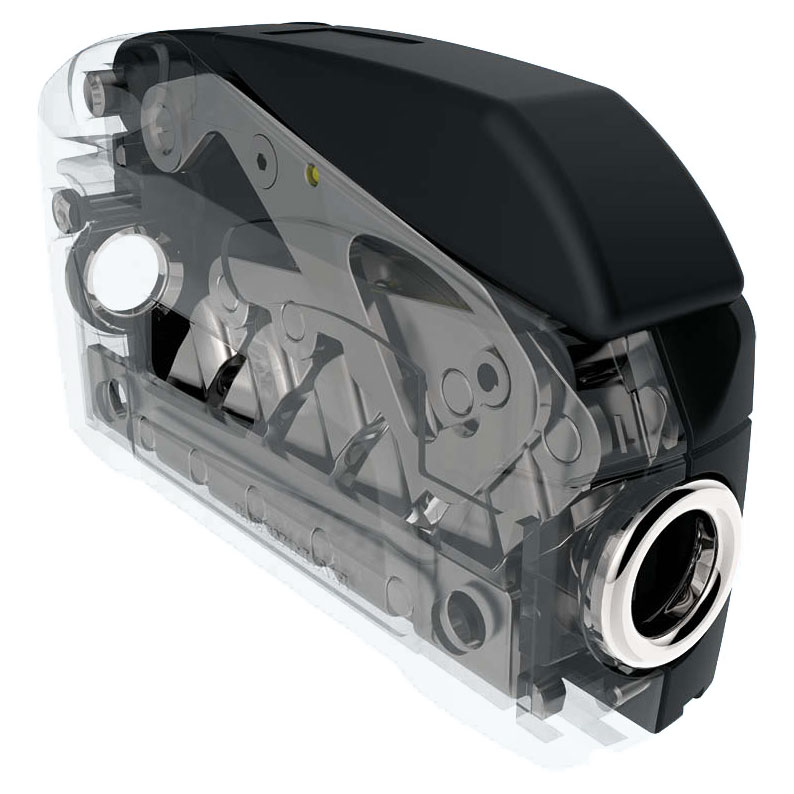

Instead of just jamming the rope, the domino mechanism flexes it for better grip and reduced rope wear.

Line entry and exit angle should not exceed 15° from the rope clutch centre line.

Use pan head M8 fixings, do not tighten beyond 22Nm torque.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Lewmar DC2 Clutch Specifications

Clutch Line Size Holding Load Length Height Width Weight WLL

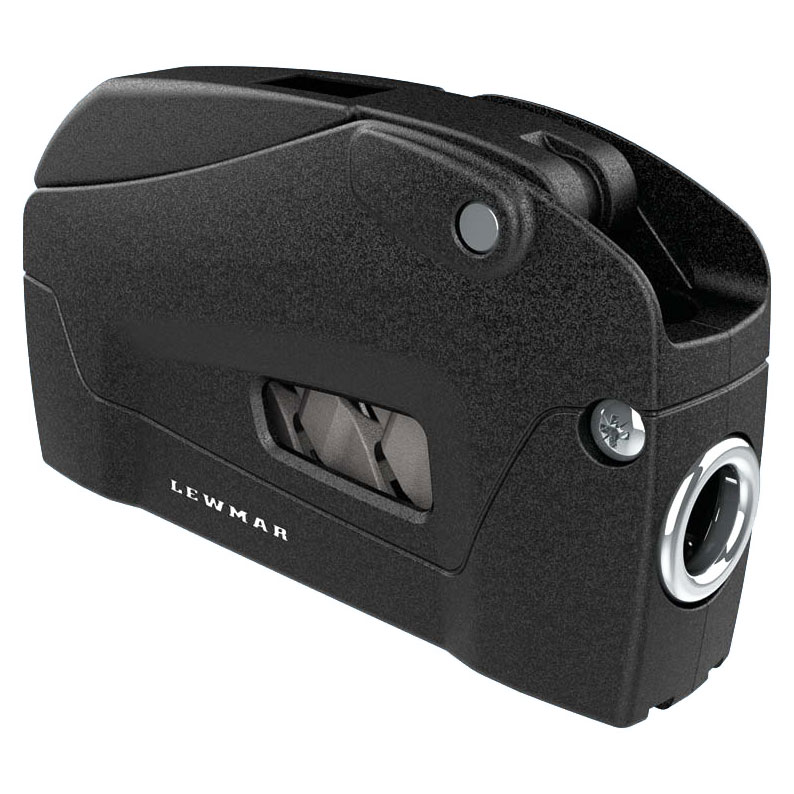

DC2 Single 6-8mm
8-10mm
10-12mm
500kg 156mm 88mm 38mm 650g 1200kg

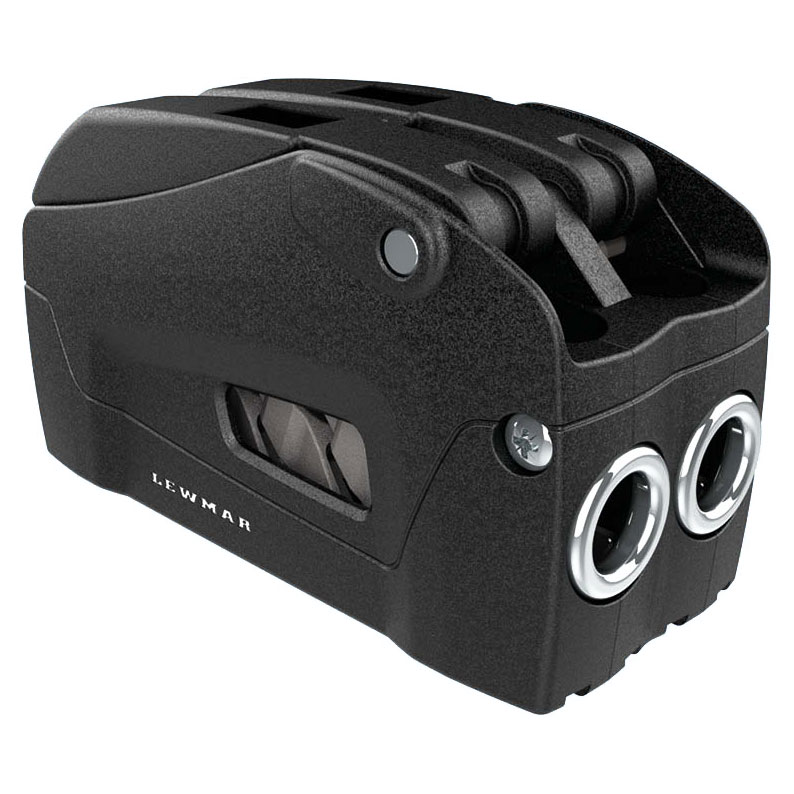

DC2 Double 6-8mm
8-10mm
10-12mm
700kg 156mm 88mm 68.5mm 1216g 1200kg

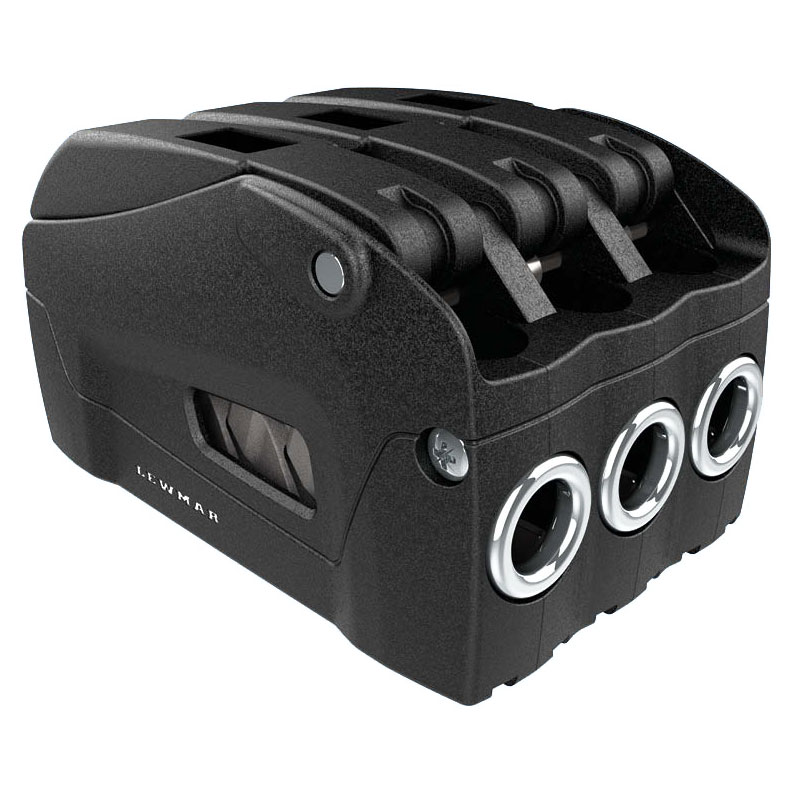

DC2 Triple 6-8mm
8-10mm
10-12mm
1000kg 156mm 88mm 99mm   1200kg


Why Lewmar DC Clutches?

Instead of just jamming the rope...
...Lewmar's Domino Mechanism flexes it for better grip and less rope wear.

  A   - Domino Cluster and longer holding pattern holds line under load without fraying the rope

  B   - Controlled Release – Pull back handle combined with patented clutch and release mechanism provides controlled release even at full holding load

  C   - Handle has a solid link to the domino cluster

  D   - Line Size – Clutches capable of holding lines from 6mm (1∕4”) to 14mm (9∕16”)



Lewmar Clutch Selection Guide
