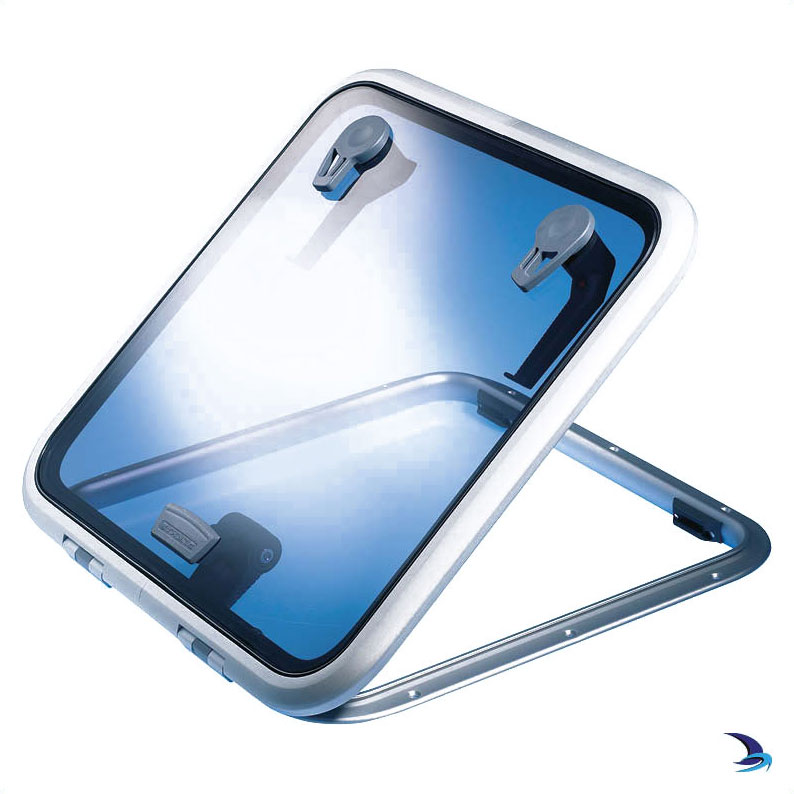

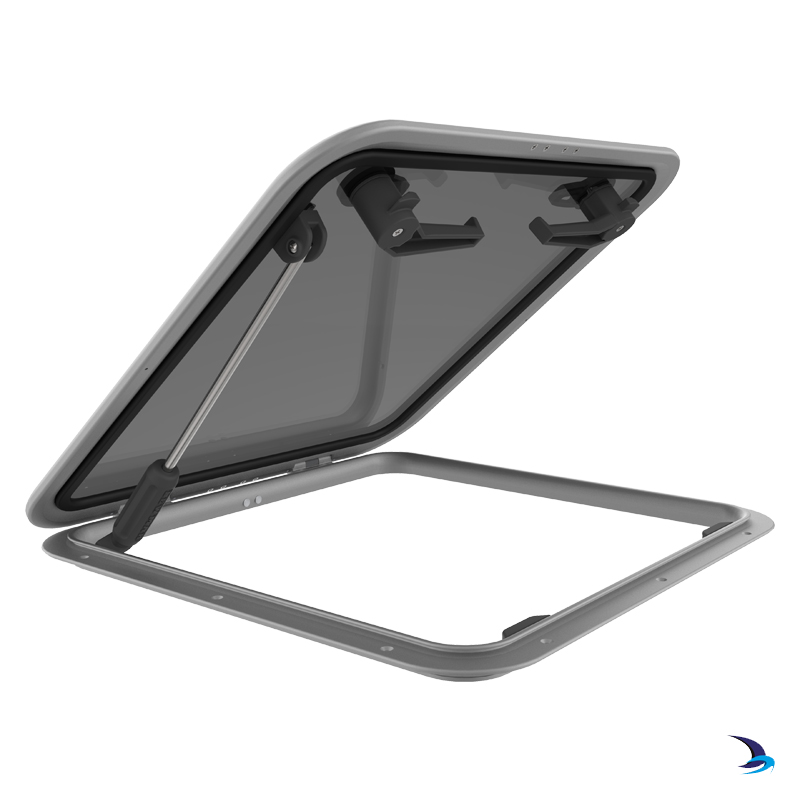

Lewmar - Hatches for Bavaria Yachts

Lewmar

Sleekly designed Lewmar Medium and Low Profile Hatches are the choice of Bavaria Yachts for most of their extensive range of sailing and power craft. They are mostly unique to Bavaria Yachts and differ to the general range of hatches found in the Lewmar retail catalogue. All sizes certified for CE Category A, Areas 2, 3 & 4.

Bavaria Yachts Logo

Price:  £399.95
RRP:  £414.45
Save:  £14.50 (3%)
(Inc. VAT @ 20%)
+
Low Profile:

Article Number:  30081900

ARBO - Arbokol 1000 Polysulphide SealantARBO - Arbokol 1000 Polysulphide Sealant
Oceanair - SKYSHADE CabinshadeOceanair - SKYSHADE Cabinshade
Blue Performance - Hatch CoversBlue Performance - Hatch Covers

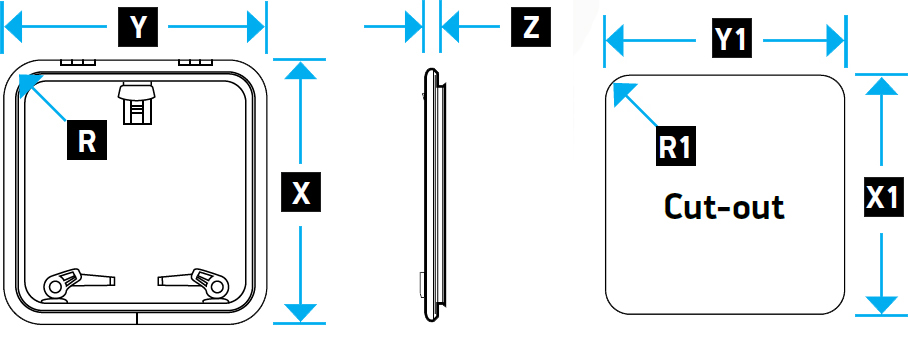

Lewmar Hatches for Bavaria Yachts
 Overall sizeCut out size*
SizeBavaria StyleWidth
(X)
Height
(Y)
Depth
(Z)
Radius
(R)
Width
(X1)
Height
(Y1)
Depth
(Z1)
10Small Square330mm330mm25mm72.5mm260mm260mm42.5mm
22Circular537mm Ø25mm 467mm Øn/a
51D hatch568mm362mm25mm 498mm292mm42.5mm
54Rectangular556mm276mm25mm72.5mm486mm206mm42.5mm
60Large Square556mm556mm25mm72.5mm486mm486mm42.5mm
70MP 70 with stays698mm698mm32mm72.5mm628mm628mm49.5mm

CE Regulations Explained

The letters CE (Conformité Européenne) appear on many products that are traded on the single market in the European Economic Area (EEA).

The CE marking is required for many products. It:

  • shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
  • is an indicator of a product’s compliance with EU legislation
  • allows the free movement of products within the European market

By placing the CE marking on a product a manufacturer is declaring, on his sole responsibility, conformity with all of the legal requirements to achieve CE marking. The manufacturer is thus ensuring validity for that product to be sold throughout the EEA. This also applies to products made in third countries which are sold in the EEA and Turkey.

The CE Regulations apply to craft up to 24m in length that are sold in the European Union. Although the regulations may not apply to your boat, they are a useful guide for small craft throughout the world.

The regulations have Design Categories for boats based on their intended use and propulsion (sail or power). They are as follows -

A. OCEAN: Designed for extended voyages where conditions may exceed wind force 8 (Beaufort scale) and significant wave heights of 4m and above and vessels largely self-sufficient.

B. OFFSHORE: Designed for offshore voyages where conditions up to and including wind force 8 and significant wave heights up to and including 4m may be experienced.

C. INSHORE: Designed for voyages in coastal waters, large bays, estuaries, lakes and rivers where conditions up to and including wind force 6 and significant wave heights up to and including 2m may be experienced.

D. SHELTERED WATERS: Designed for voyages on small lakes rivers and canals where conditions up to and including wind force 4 and significant wave heights up to and including 0,5m may be experienced.

The Regulations divide up the boats hull and deck into four specific Areas. A product, which is suitable for fitting to an area for which it is approved, is suitable for all the areas below its category. For example, a portlight, which is approved for Area 2 may also be fitted to Areas 3 and 4, but not Area 1.

CE Area diagrams courtesy of Lewmar Hatch and Portlight fitting guide.
