Lewmar - Ocean Hatch

Lewmar

The Lewmar Ocean hatch is fitted to thousands of boats around the world.  Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.  It is the direct replacement for the long discontinued Rollstop Hatch.

Price:  £299.00
RRP:  £362.90
Save:  £63.90 (18%)
(Inc. VAT @ 20%)
+
Ocean Hatch:
Flange:
Acrylic colour:

Article Number:  39610070

ARBO - Arbokol 1000 Polysulphide SealantARBO - Arbokol 1000 Polysulphide Sealant
Oceanair - SKYSHADE HatchshadesOceanair - SKYSHADE Hatchshades
Blue Performance - Hatch CoversBlue Performance - Hatch Covers
  (2 Reviews)

Features

  • Friction hinges
  • Lockable
  • Can be closed and locked, even in vent position
  • Heavy duty seal
  • CE approved for Category A, areas 2, 3 & 4 (all sizes)
  • CE approved for Area 2a: deck, coachroof, cockpit and transom

Acrylics

  • 10mm acrylic lid (sizes 10 - 40)
  • 12mm acrylic lid (sizes 44 and larger)

Flanges

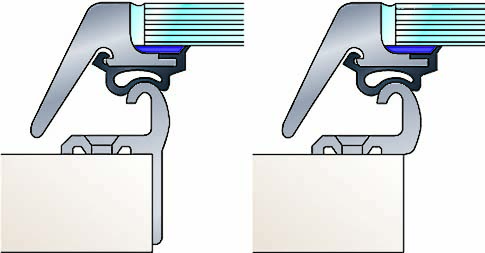

  • Ocean hatches are available with a choice of a 25mm flange (below left) or flat / flush (below right)

By its design this equipment is suitable for use in areas where the above directive applies, provided that its integration or built-in or assembly be correctly reaslied by the installer to the manufacturers specifications and information provided for in the equipment manual.

Lewmar - Ocean hatches

Size Style Overall size Cut-out size*
Width
(X)
Height
(Y)
Depth
(Z)
Radius
(R)
Width
(X 1)
Height
(Y 1)
Radius
(R 1)
10 Square
(no flange)
324mm 324mm 39.5mm 75mm 255mm 255mm 40mm
Square
(with 25mm flange)
324mm 324mm 39.5mm 75mm 260mm 260mm 42.5mm
20 Rectangular
(no flange)
411mm 266mm 39.5mm 75mm 342mm 197mm 40mm
Rectangular
(with 25mm flange)
411mm 266mm 39.5mm 75mm 347mm 202mm 42.5mm
30 Square
(no flange)
521mm 391mm 39.5mm 75mm 452mm 322mm 40mm
Square
(with 25mm flange)
521mm 391mm 39.5mm 75mm 457mm 327mm 42.5mm
40 Square
(no flange)
485mm 485mm 39.5mm 75mm 416mm 416mm 40mm
Square
(with 25mm flange)
485mm 485mm 39.5mm 75mm 421mm 421mm 42.5mm
44 Square
(no flange)
509mm 509mm 43mm 76mm 437mm 437mm 40mm
Square
(with 25mm flange)
509mm 509mm 43mm 76mm 442mm 442mm 42.5mm
50 Rectangular
(no flange)
574mm 444mm 43mm 76mm 502mm 372mm 40mm
Rectangular
(with 25mm flange)
574mm 444mm 43mm 76mm 507mm 377mm 42.5mm
60 Square
(no flange)
574mm 574mm 43mm 76mm 502mm 502mm 40mm
Square
(with 25mm flange)
574mm 574mm 43mm 76mm 507mm 507mm 42.5mm
70

Square
(no flange)
694mm 694mm 43mm 76mm 622mm 622mm 40mm
Square
(with 25mm flange)
694mm 694mm 43mm 76mm 627mm 627mm 42.5mm


* Cut-Out sizes will change when Trim Kits are used.

  • Hatches should be fitted to a flat surface with a maximum tolerance of ± 1mm
  • Fastening size for lower frame sections use 5mm CSK screws No. 10 UNC 2BA
  • Fastening size at the hinge section use M6 (¼") screws

Lewmar Hatch & Portlight Fitting Guide (PDF)

CE Regulations Explained

The letters CE (Conformité Européenne) appear on many products that are traded on the single market in the European Economic Area (EEA).

The CE marking is required for many products. It:

  • shows that the manufacturer has checked that these products meet EU safety, health or environmental requirements
  • is an indicator of a product’s compliance with EU legislation
  • allows the free movement of products within the European market

By placing the CE marking on a product a manufacturer is declaring, on his sole responsibility, conformity with all of the legal requirements to achieve CE marking. The manufacturer is thus ensuring validity for that product to be sold throughout the EEA. This also applies to products made in third countries which are sold in the EEA and Turkey.

The CE Regulations apply to craft up to 24m in length that are sold in the European Union. Although the regulations may not apply to your boat, they are a useful guide for small craft throughout the world.

The regulations have Design Categories for boats based on their intended use and propulsion (sail or power). They are as follows -

A. OCEAN: Designed for extended voyages where conditions may exceed wind force 8 (Beaufort scale) and significant wave heights of 4m and above and vessels largely self-sufficient.

B. OFFSHORE: Designed for offshore voyages where conditions up to and including wind force 8 and significant wave heights up to and including 4m may be experienced.

C. INSHORE: Designed for voyages in coastal waters, large bays, estuaries, lakes and rivers where conditions up to and including wind force 6 and significant wave heights up to and including 2m may be experienced.

D. SHELTERED WATERS: Designed for voyages on small lakes rivers and canals where conditions up to and including wind force 4 and significant wave heights up to and including 0,5m may be experienced.

The Regulations divide up the boats hull and deck into four specific Areas. A product, which is suitable for fitting to an area for which it is approved, is suitable for all the areas below its category. For example, a portlight, which is approved for Area 2 may also be fitted to Areas 3 and 4, but not Area 1.

CE Area diagrams courtesy of Lewmar Hatch and Portlight fitting guide.
