Lewmar - Ocean Winch Spares
(Sizes 24, 30 & 40)

Lewmar

As with any precision engineered assembly, Lewmar winches need regular maintenance to operate at peak efficiency. Without this attention, permanent damage and premature wear can result.

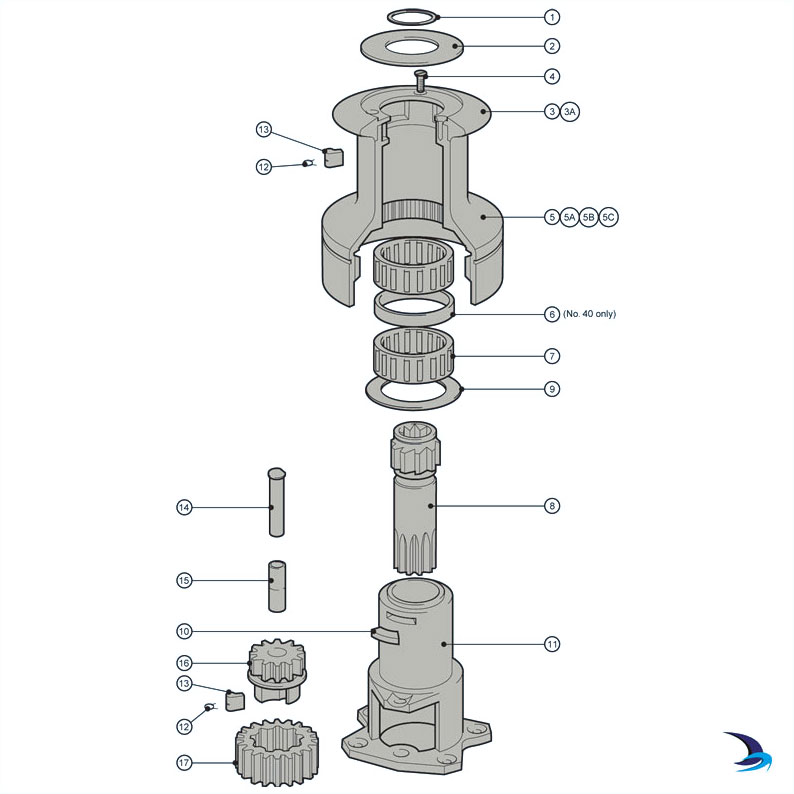

Lewmar winches are simple to dismantle and are designed for easy maintenance. The exploded view drawing shows how the component parts can be removed easily from each winch.

Price:  £14.95
RRP:  £45.00
Save:  £30.05 (67%)
(Inc. VAT @ 20%)
+
Ocean Winch Size:
Ocean 24-40 Winch Spares:

Article Number:  19700100-24

Lewmar - Gear GreaseLewmar - Gear Grease
Lewmar - Race LubeLewmar - Race Lube

Winch Service Notes

For satisfactory long term performance and product life these winches must be given the routine and full maintenance procedure described below.

  • Monthly – All Lewmar winches should be hosed down with fresh water then lightly oiled and greased.
  • Two or three times during active sailing season – All Lewmar winches should be stripped, cleaned and lubricated.
  • At the end of each sailing season or before starting the new season – All Lewmar winches should be completely stripped, cleaned, thoroughly checked for damage, lubricated and reassembled as detailed in the service manual.

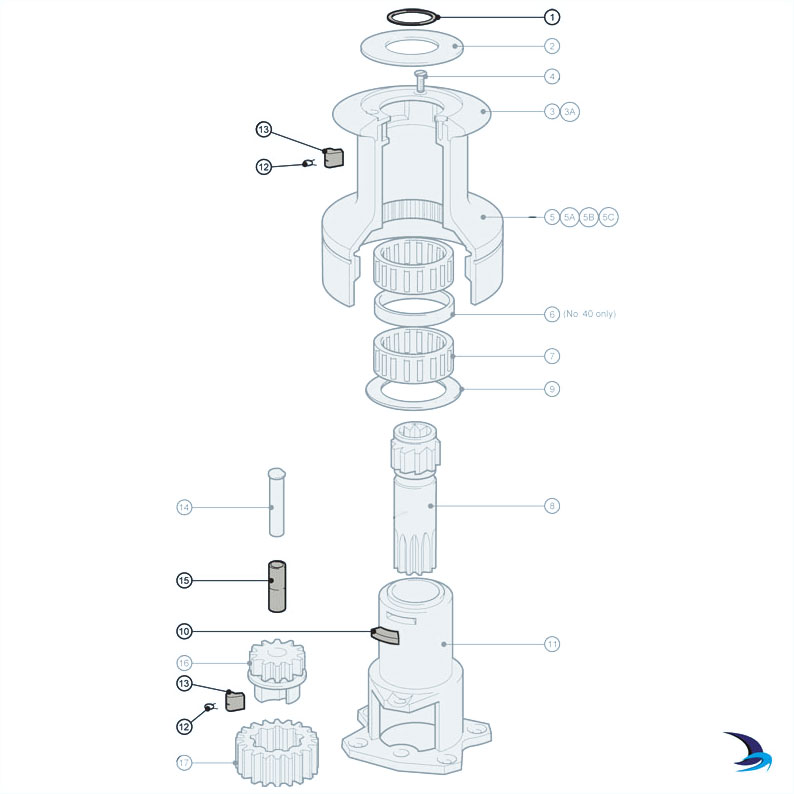

Size 24, 30 & 40 spares kits include the following -

  • 4 x standard small pawls and springs
  • 4 x gear spindle sleeves
  • 1 x key
  • 1 x circlip
  • 1 x gear spindle sleeve

Please note that these spares are for Ocean winches from 1992 onwards. If your winch is an older model then please call us on +44(0) 1243 375774 and we will try to help you identify your winch.

Item Part description Size 24 Size 30 Size 40 Quantity in winch
1 Circlip B2075 1

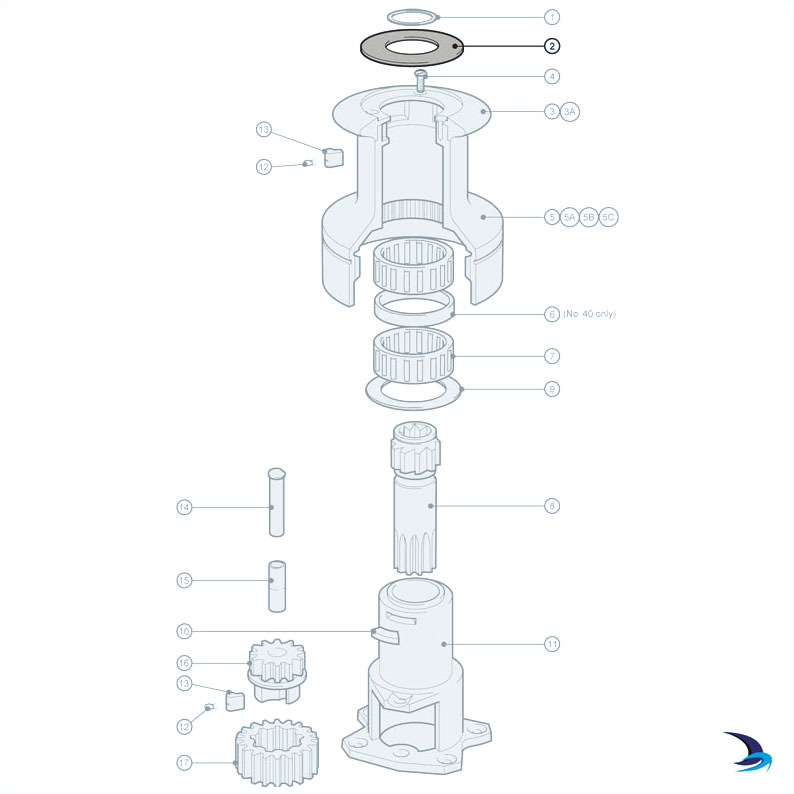

2 Top cap 45001400 45001500 45001600 1

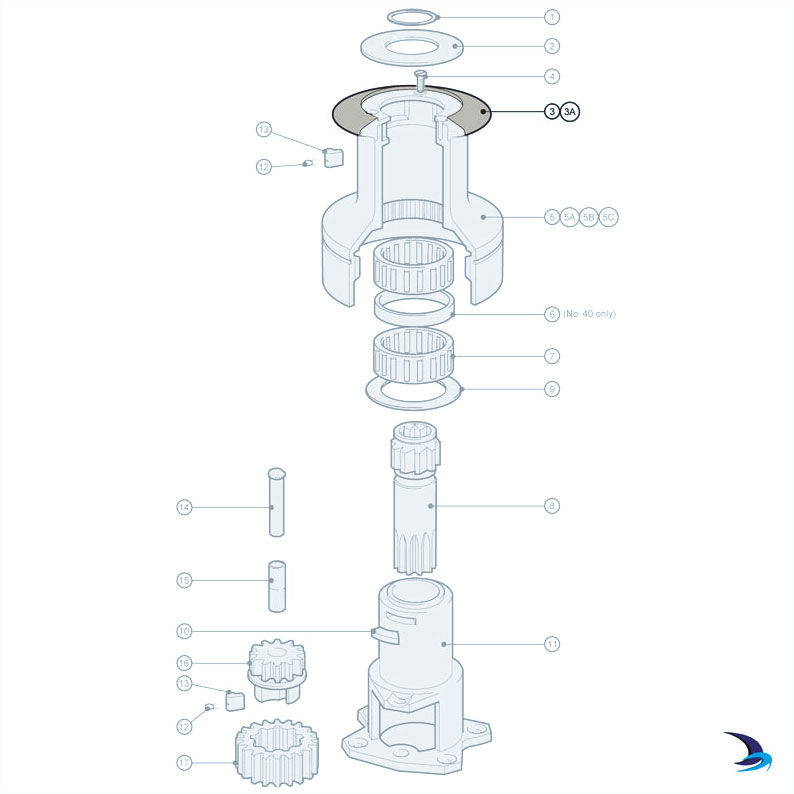

3 Crown (grey) 45001109 45001509 1
3a Crown (black) 45001108 45001508 1

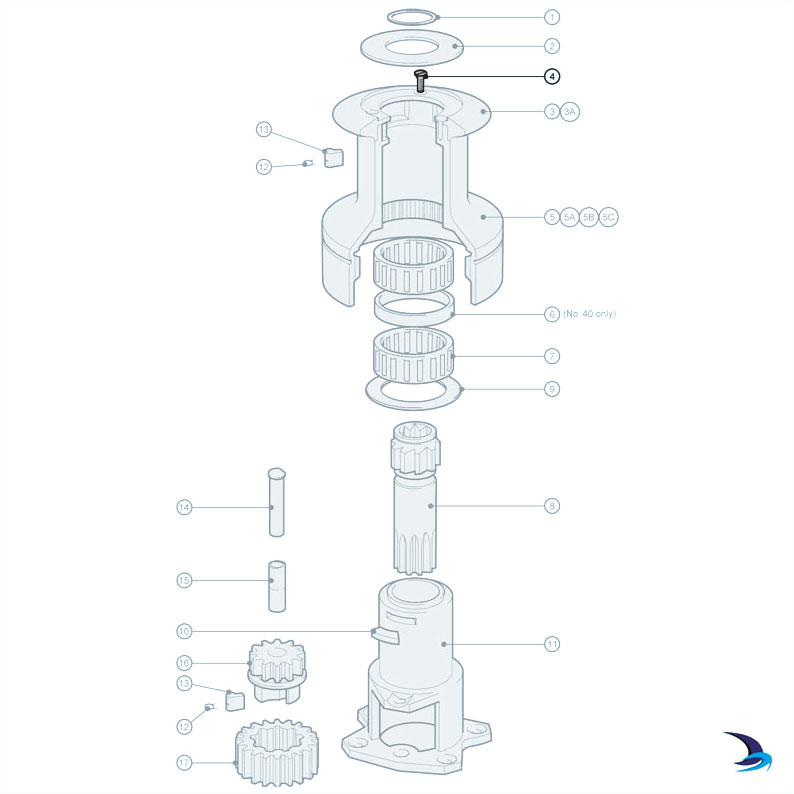

4 CSK HD posidrive screw M5x12mm 15000527 3

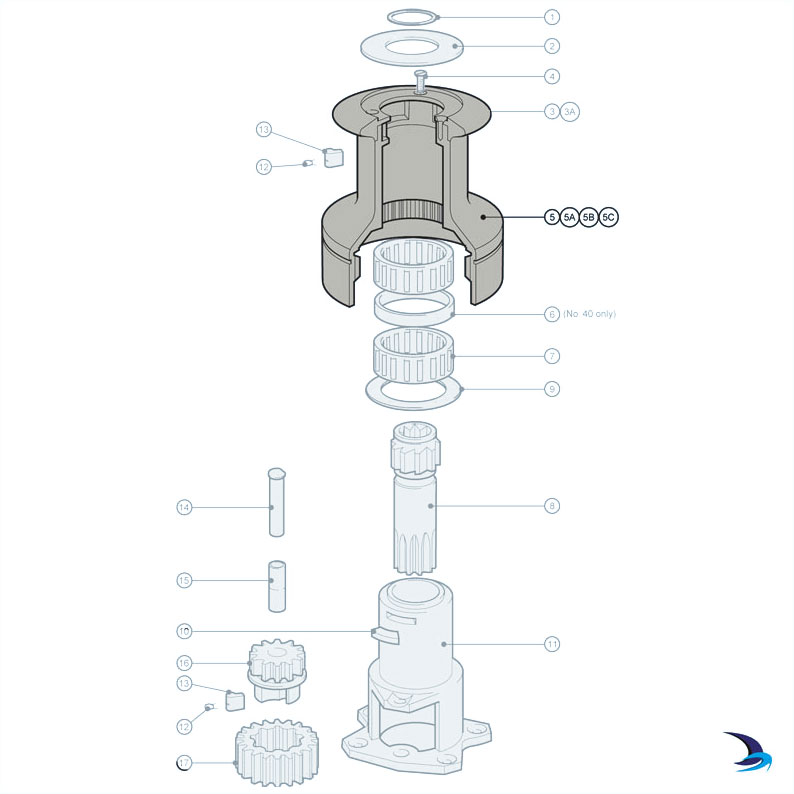

5 Drum alloy (grey) 45001414 45001514 45001614 1
5a Drum alloy (black) 45000472 15000447 15000493 1
5b Drum bronze 15000663 15000664 15000665 1
5c Drum chome 15000471 15000448 15000492 1

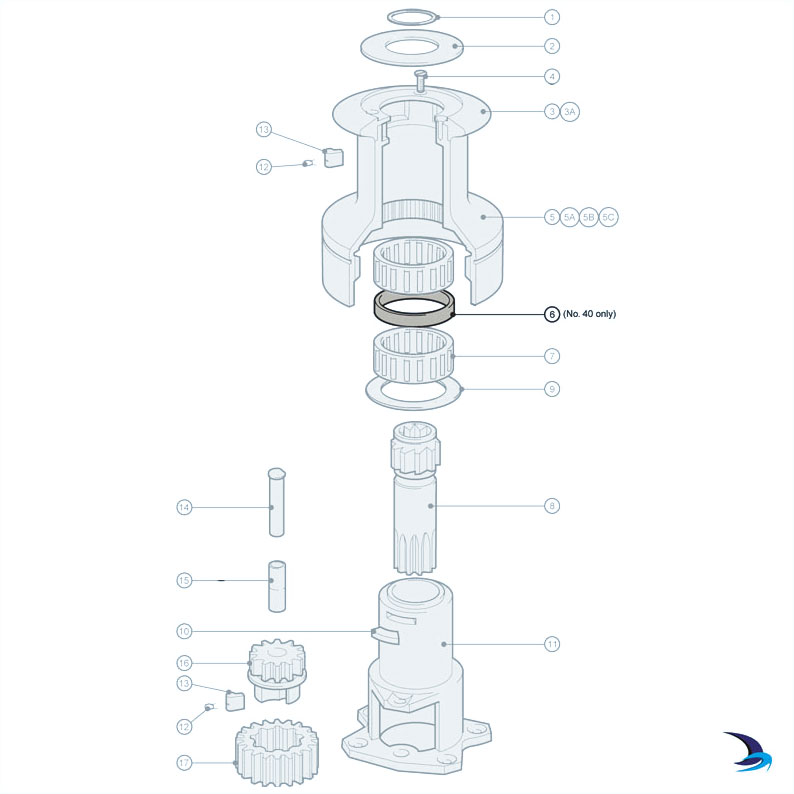

6 Spacer - 15000491 1

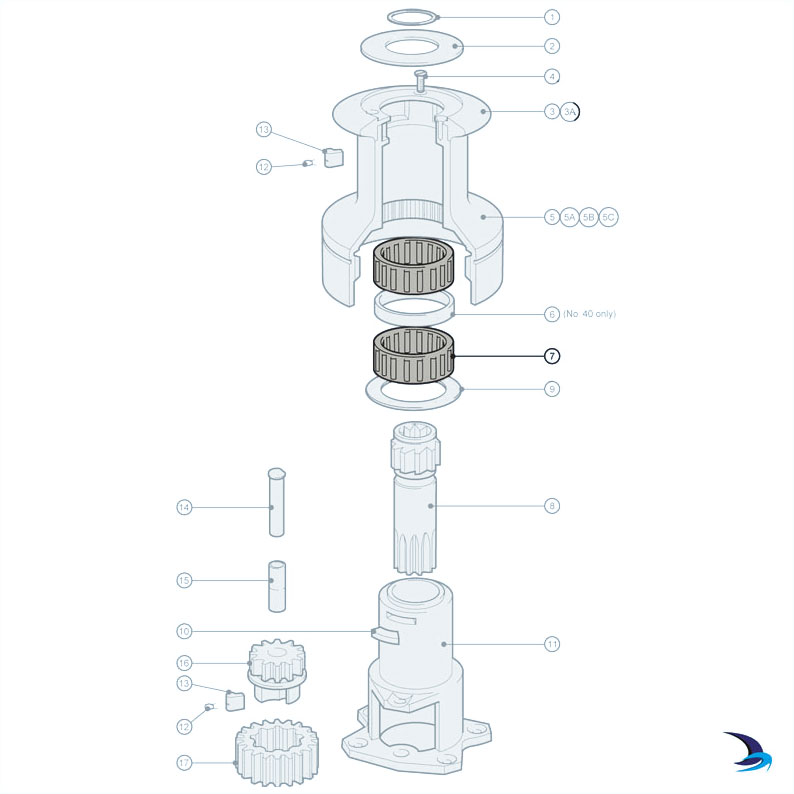

7 Roller bearing assembly 15008007 2

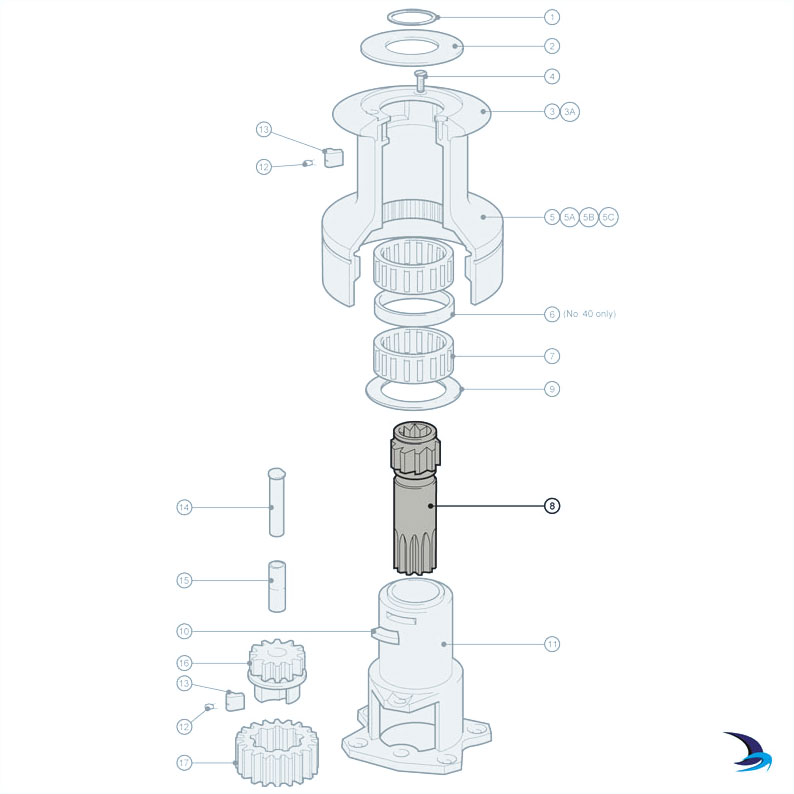

8 Main spindle 15000830 15000831 1

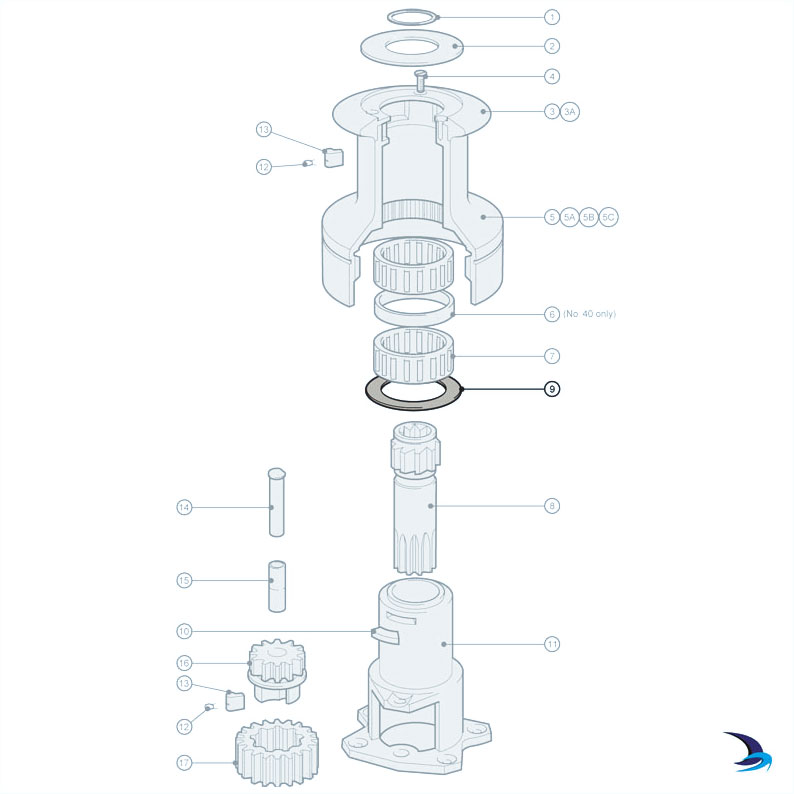

9 Drum washer 15000376 15000466 1
10 Key 15008005 1

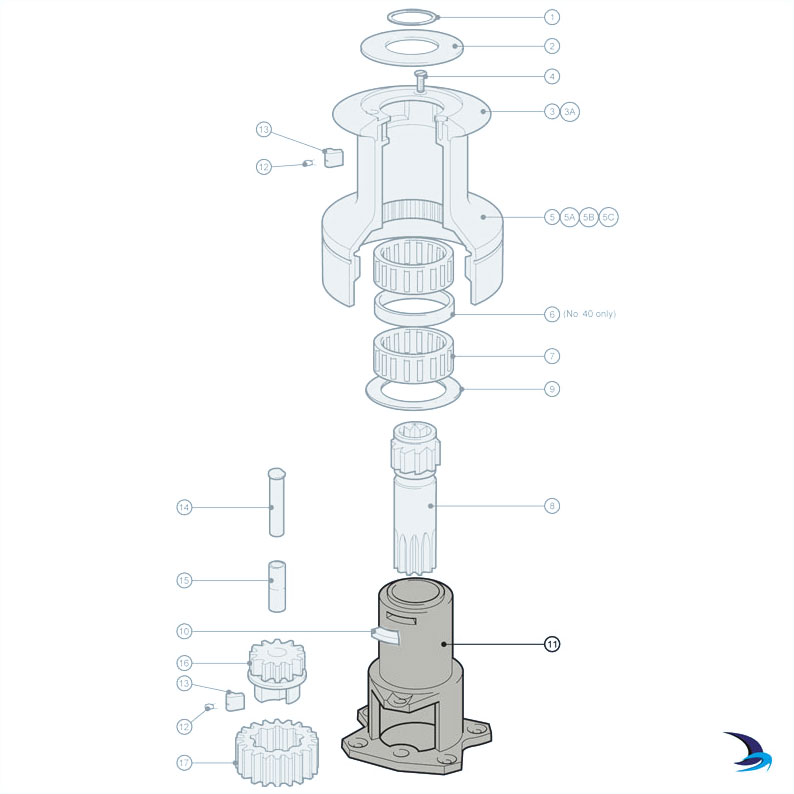

11 Centre stem (15000473/67/94) UNAVAILABLE 18000531 18000532 15000533 1
Item 11 is factory fitted with 15000377 main spindle sleeve
12 Pawl spring 1260/7 4
13 Pawl 1260/8 4

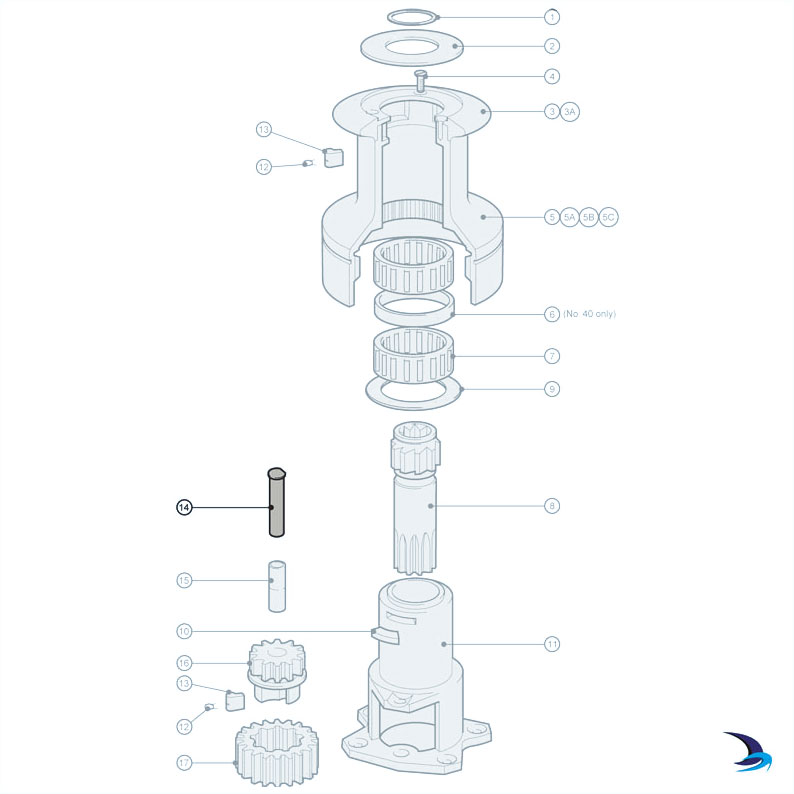

14 Gear spindle 15000423 15000358 15000486 1
15 Gear spindle sleeve 15000378 2

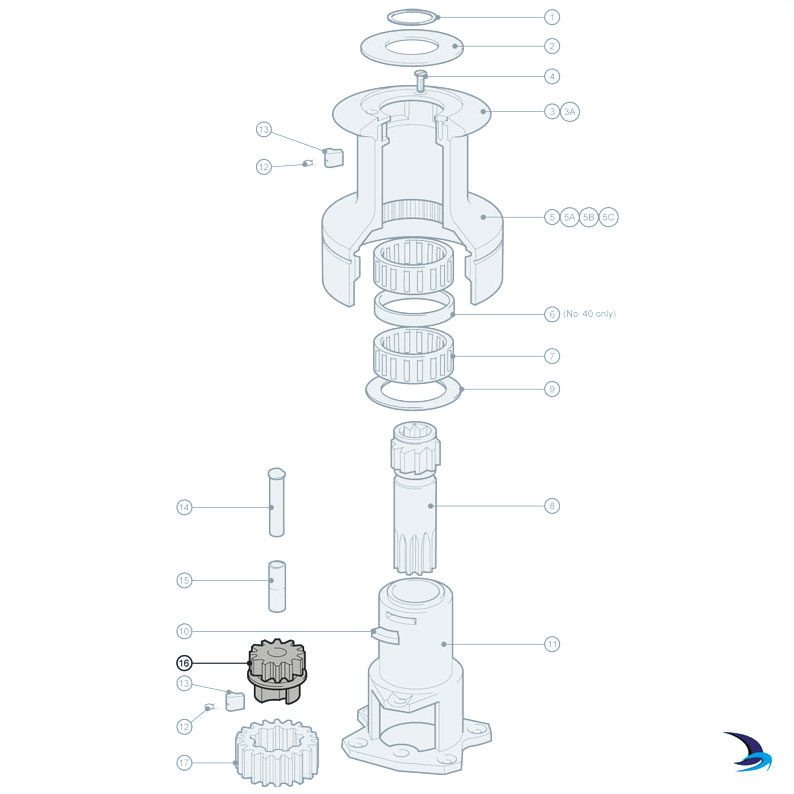

16 Pawl gear 15000477 15000470 15000490 1

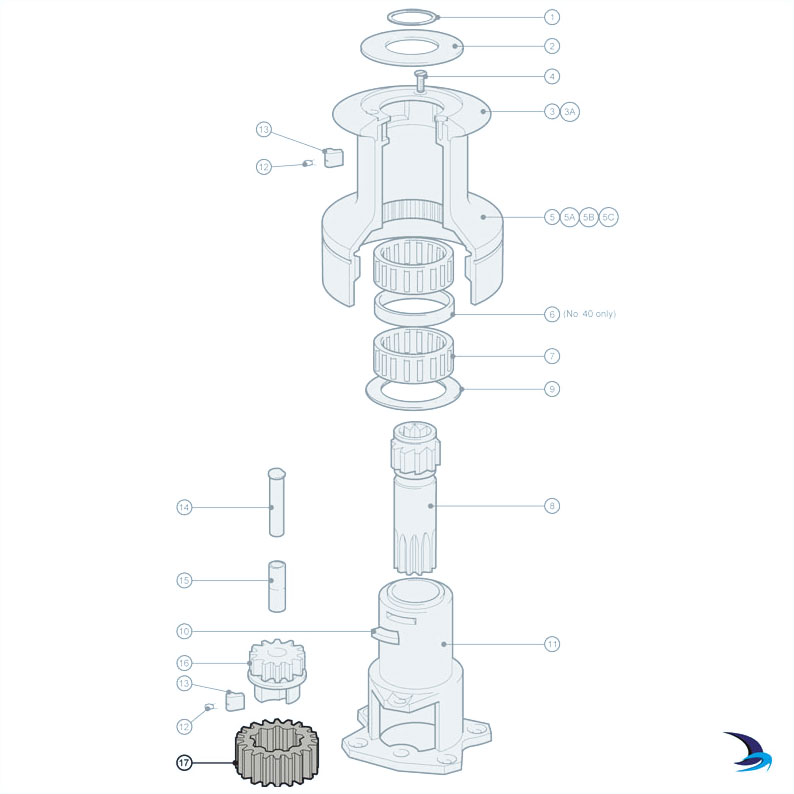

17 Ratchet gear 15000476 15000469 15000496 1

*NOTE: Item 11 Centre Stem WITHOUT sleeve shown in brackets
