NASA - Clipper compass system

Nasa

Price:  £179.95
RRP:  £205.00
Save:  £25.05 (12%)
(Inc. VAT @ 20%)
+

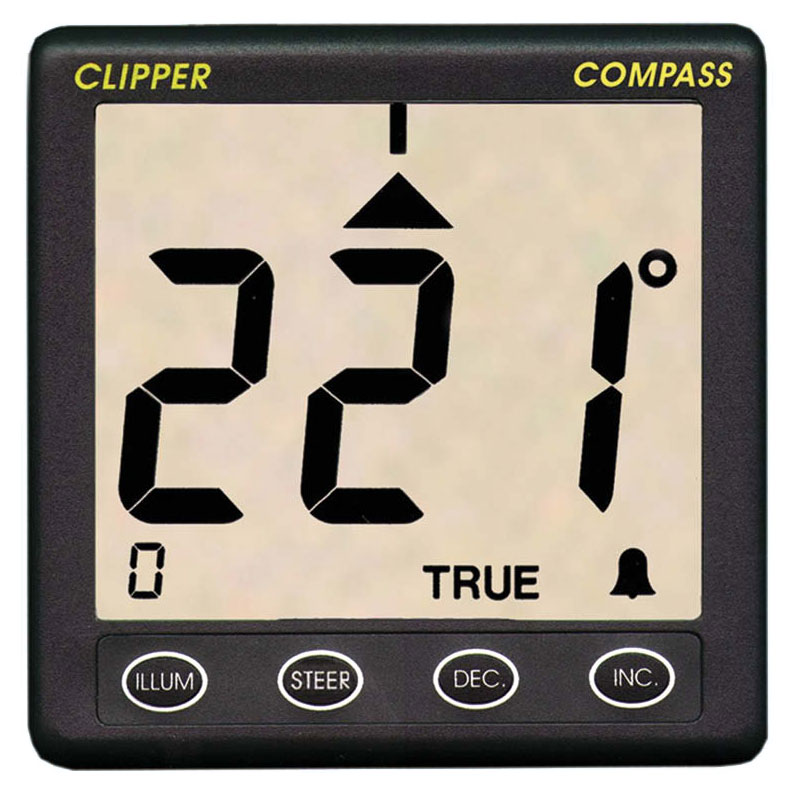

The Clipper Compass is a fully electronic compass with remote fluxgate sensor. The large clear display has 7 levels of illumination and gives True or magnetic heading. The sensor which is gimballed for plus/minus 45 degrees of pitch and roll, is mounted in a position where stray magnetic fields are at a minimum. An electronic auto calibration then cancels out small errors.
Steer to course function When the steering function is selected a series of chevrons accumulate showing the magnitude and direction of the steering error. To stay on course simply turn the wheel in the direction of the chevrons until they are extinguished. The steering sensitivity can be preset by the user. An off course alarm provides a safety feature when not at the helm. If the heading deviates by more than a preset amount then the alarm will sound.
Supply voltage Nominal 12v
DC Consumption 40mA + 10 m
A max for full level display illumination
Fluxgate accuracy +/- 1 degree
Adjustable Damping
1 degree display resolution
Display case size 110 x 110mm
Depth behind panel 30mm
Fluxgate Dimensions 72mm x 68mm x 40mm
Fluxgate Weight 475 grams including 10 metre cable
sensor supplied with 10 metres of cable
