Profurl



Manufacturer #:  C48018

£6,549.99    (Inc. UK VAT @ 20%)RRP:  £0.00Save:  0(£5,458.33 Exc. VAT)

The Profurl C480 system was designed for boats between 14.5m and 18.5m (52 ft to 65 ft). Reliability, toughness and long-life: Profurl's Cruising range of reefing-furling systems are designed for coastal or blue water sailing. Cruising reefing systems are designed to last and integrate the best of Profurl's proven technology to guarantee both your safety and your sailing pleasure.

The C480 System is supplied with short link plates as standard. See below for further information.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Profurl C480 Furling System Specifications

Name C480
Range Cruising
Max forestay diameter 14.3mm (9/16") - rod 48
Boat length From 14.5 to 18.5m  (52 to 65ft)
Standard furling length (others) 18m (20 and 22m)
Extrusion length 2m (6' 6")

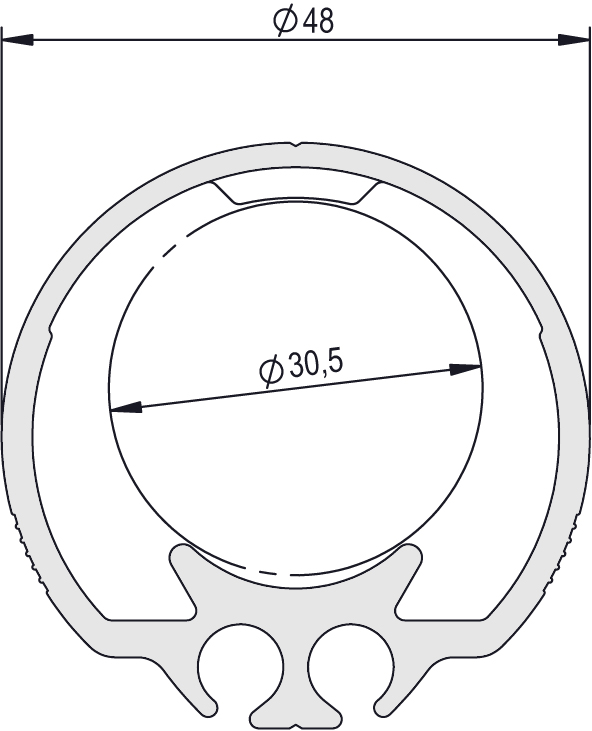

Extrusion shape and colour Round and silver anodised (see below)
Clevis pin diameter 16/18/19/22/25/28 mm
Feeder Yes
Luff line diameter 6mm (15/64")
Double luff groove Yes
Removable drum Yes
Furling line diameter 10 or 12mm (3/8" or 1/2")
Drum capacity 30m with 10mm furling line
22m with 12mm furling line
Max LP 26.5m with 10mm furling line
14.5m with 12mm furling line
Max genoa area 120 sqm
Standard fitting Closed to the deck
Warranty 10 years

Profurl C480 Furling System Dimensions

Dimensions of the standard model (mm)
A 68

B 14
C 28
ØD 250
ØD1 276
E 146
F 535
G 170.5
H max 205
I 194
J 84
K 47
L 319
L1 27
M 100
N 23.5
P 250
Q 125
R 101
T max 52
U 342
ØV 116
W 146
X -
Y 48
Z 18287


 Why Choose Profurl Cruising Manual Furling?

  • Large range of 10 models for boats from 5 to 26 m.
  • Round and silver anodised profile.
  • Light and robust extrusions
  • Maintenance free ball bearings
  • Several fitting possibilities: adjustment plates, long link plates, turnbuckle cylinder, below the deck fitting, stainless steel locking devices
  • Additional option: opening pre-feeder, stainless steel locking devices
  • 10-year worldwide limited warranty.
  • New: the C290, C320, C350, C420 and C520 models can hold an increased forestay diameter. For example: for an 8mm forestay, you can choose a C320 instead of a C350. If using a swageless eye, you must take both the maximum sail surface area and the drum capacity into consideration.


Choosing your Profurl Cruising Furling System

    Boat length (metres) and max sail area
Model Max Forestay Ø mm 5-7 7-9 9.5 10 11 12 13 14 16 18 26+
C260 5 15m2
C290 6.35 / 7*   30m2
C320 7 / 8*         40m2
C350 8 / 10*             55m2
C420 10 / 12.7*             80m2
C430 12.7               100m2
C480 14.3                   120m2
C520 16 / 19                     140m2
C530 19                       220m2
C700 25.4                     300m2



Profurl Cruising Systems Specifications

Cruising Range C260 C290 C320 C350 C420 C430 C480 C520 C530 C700
  Self-contained
halyard
Halyard swivel systems On demand
Max forestay Ø
(mm)
5 6.35 / 7* 7 / 8* 8 / 10* 10 / 12.7* 12.7 14.3 16 / 19* 19 25.4
Equivalent in # rod - # 10 # 12 # 17 # 22 # 40 # 48 # 60 # 76 # 150
Clevis pin Ø
(mm)
-
Furling standard length
(m)
8.5 10 12 14 16 18 18 20 22 ND
Extrusion length
(m)
2 2 2 2 2 2 2 2 2

2.5

Weight/metre
(kg)
0.408 0.557 0.661 0.728 0.933 0.933 1.2 1.46 1.46 2.8
Removable drum
Feeder
Double luff groove
Luff line Ø
(mm)
6 5 5 5 5 5 6 6 6 6
Luff rope pre-feeder Optional
Long link plates Optional
Turnbuckle cylinder Optional
Stainless steel
locking devices
Optional Optional
Warranty 10-year worldwide warranty

*If using a swageless eye, you must take both the maximum sail surface area and the drum capacity into consideration.



What kind of fitting for my Profurl furling system?

  1. Standard fitting with short link plates -  Type of locking devices: standard and threaded pin for a stay eye fitting
  • Raise the drum mechanism in order to clear the deck in case of obstacles (bow roller etc.).
  • Fitting with adjustment plates is also possible.
  1. Fitting with long link plates - Type of locking devices: standard
  • The drum can be lifted to avoid interference with the anchor and to reduce the sail chafe of the lifelines.
  • The forestay length is still adjustable.
  1. Fitting close to the deck -  Type of locking devices: stainless steel and smooth pin
  • Increase the luff length.
  1. Fitting with a turnbuckle cylinder - The rigging screw goes into the turnbuckle cylinder
  • The furler can be fitted lower to the deck.
  • It is also possible to use a combination of a turnbuckle cylinder and long link plates.
  1. Below the deck fitting
  • An aesthetic solution chosen by some boatbuilders (Beneteau, X-Yacht), contact for more information.
  • Adjustable tack fitting.
