The Profurl R350 system was designed for boats between 9.5m and 12.5m (31 ft to 41 ft). Reliability, high performance and long-life: Profurl's Racing range of reefing-furling systems are designed for cruising/racing, regattas, blue water sailing or even offshore racing. Designed to last, Racing reefing-furling systems integrate the best of Profurl's proven technology to guarantee safe, enjoyable, high-performance sailing.

The R350 System is supplied with Short Link Plates as standard. See below for further information.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Profurl R350 Furling System Specifications

Name R350
Range Cruising, Racing
Max forestay diameter 8mm (5/16") - rod 17
Boat length From 9.5 to 12.5m  (31 to 41ft)
Standard furling length (others) 12m (14 and 16m)
Extrusion length 2m (6' 6")

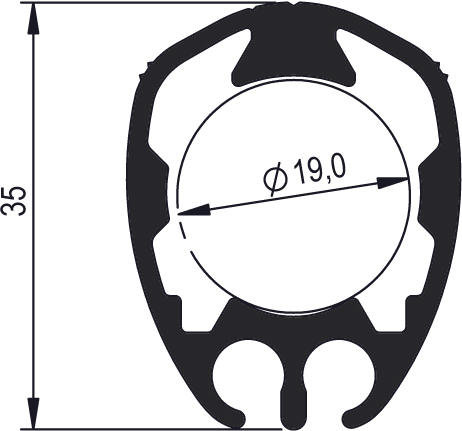

Extrusion shape and colour Oval & black (see below)
Clevis pin diameter 8/10/12/14/16 mm
Feeder Yes
Luff line diameter 5mm (13/64")
Double luff groove Yes
Removable drum Yes
Furling line diameter 6 or 8mm (15/64" or 5/16")
Drum capacity 26.2m with 6mm furling line
14.7m with 8mm furling line
Max LP 17m with 6mm furling line
7m with 8mm furling line
Max genoa area 45 sqm
Standard fitting Closed to the deck
Warranty 10 years

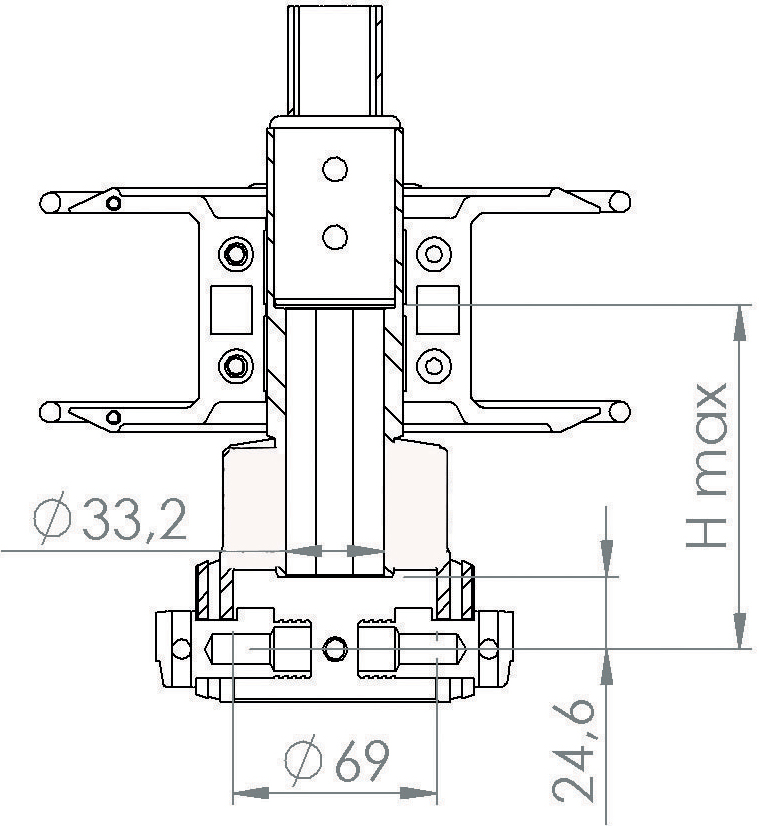

Profurl R350 Furling System Dimensions

Dimensions of the standard model (mm)
A 44

B 10
C 22
D 180
ØD1 200
E 103
F 461
G 125
H max 110
I 142
J 72
K 33
L 181
L1 18
M 64
N 15
O
P 157
Q 88
R 66
S
T max 32
U 199
V 92
W 97
X
Y 35
Z 12160


 Why Choose Profurl Racing Manual Furling?

  • Range of 5 models for boats from 6 to 20 m.
  • Black anodised aerofoil profile.
  • Light and robust extrusions
  • Maintenance free ball bearings
  • Several fitting possibilities: adjustment plates, long link plates, turnbuckle cylinder, below the deck fitting, stainless steel locking devices
  • Additional option: stainless steel locking devices or turnbuckle cylinder
  • 10-year worldwide limited warranty.


Choosing your Profurl Racing Furling System

    Boat length (metres) and max sail area
Model Max Forestay Ø mm 6 7 8 9 10 11 12 13 14 16 19
R250 6.35 30m2
R350 8           45m2
R420 10               70m2
R430 11.1               90m2
R480 12.7/14*                     100m2



Profurl Racing Systems Specifications

Racing Range R250 R350 R420 R430 R480
  Halyard swivel systems
Max forestay Ø
(mm)
6.35 8 10 11.1 12.7/14*
Equivalent in # rod # 10 # 17 # 22 # 30 # 40
Clevis pin Ø
(mm)
8-10-12-14-16 10-12-14-16-19-22-25 16-18-19-22-25-28
Furling standard length
(m)
8 12 14 16 18
Extrusion length
(m)
2 2 2 2 2
Weight/metre
(kg)
0.383 0.638 0.835 0.835 1.2
Removable drum
Feeder
Opening pre-feeder
Double luff groove
Luff line Ø
(mm)
5 5 5 5 6
Luff rope pre-feeder Optional
Long link plates Optional
Turnbuckle cylinder Optional
Stainless steel
locking devices
Optional Specific locking device
Warranty 10-year worldwide warranty

*If using a swageless eye, you must take both the maximum sail surface area and the drum capacity into consideration.



What kind of fitting for my Profurl furling system?

  1. Standard fitting with short link plates -  Type of locking devices: standard and threaded pin for a stay eye fitting
  • Raise the drum mechanism in order to clear the deck in case of obstacles (bow roller etc.).
  • Fitting with adjustment plates is also possible.
  1. Fitting with long link plates - Type of locking devices: standard
  • The drum can be lifted to avoid interference with the anchor and to reduce the sail chafe of the lifelines.
  • The forestay length is still adjustable.
  1. Fitting close to the deck -  Type of locking devices: stainless steel and smooth pin
  • Increase the luff length.
  1. Fitting with a turnbuckle cylinder - The rigging screw goes into the turnbuckle cylinder
  • The furler can be fitted lower to the deck.
  • It is also possible to use a combination of a turnbuckle cylinder and long link plates.
  1. Below the deck fitting
  • An aesthetic solution chosen by some boatbuilders (Beneteau, X-Yacht), contact for more information.
  • Adjustable tack fitting.
