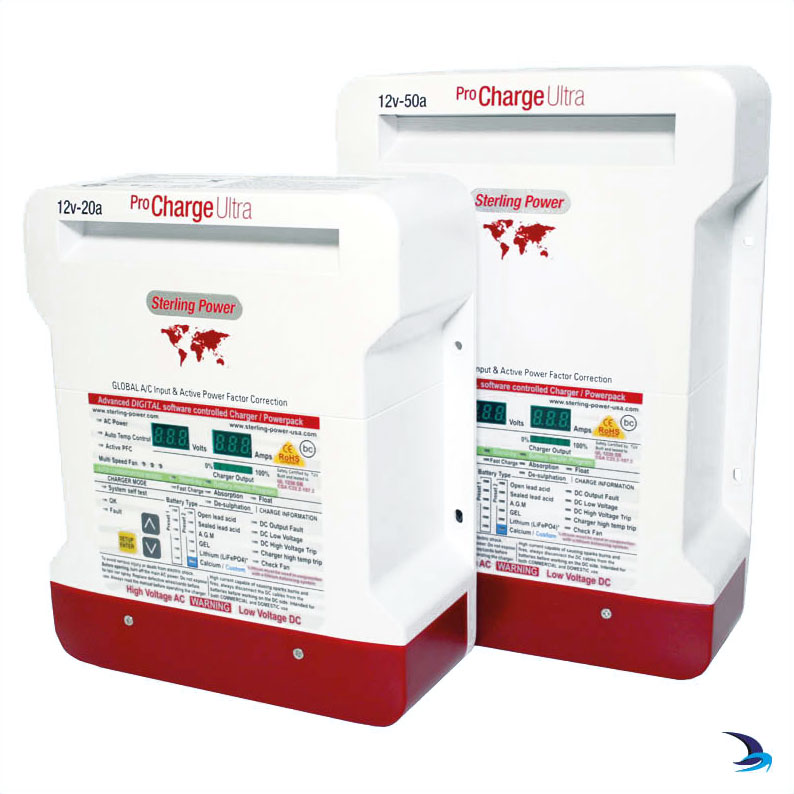

Sterling - Pro Charger Ultra 10A - 60A

Sterling

The Sterling Pro Charge Ultra is one of the world’s most efficient battery chargers.  This is courtesy of active power factor correction (PFC 0.99-1).

The Pro Charge Ultra is rated at over 90% efficient.
Non-active PFC chargers can be as little as 65% efficient.

Price:  £196.00
RRP:  £245.00
Save:  £49.00 (20%)
(Inc. VAT @ 20%)
+
Charger voltage:
Charger Amps:

Article Number:  PCU1210


World’s Best Seller
This charger’s design is the charger of choice by the world’s largest production boat builders. It is fitted to more new boats than any other charger in the world.

Power pack / power supply
This charger works effortlessly as a power supply to DC loads to prevent depletion of your battery copacity.

Battery temperature compensation sensor
Included as standard.

Perfect for generator use
Due to its active PFC tolerance of AC input it shall run from crude sine wave forms - typical from generators. Also, % Power Reduction you can set the charger to run at lower power outputs to complement a wider range of generators and low shore power connections.

Larger voltage / current requirements?
The Pro Charge Ultra series can be put in series or parallel with other Pro Charge Ultras. This is enabled by the chargers have dynamic charging ability.

Charging profiles
11 pre-programmed charging profiles for AGM, Gel, sealed/flooded and calcium batteries. We also include a customizable option to allow the user to programme their own profile via the front panel.

Multi Lingual
The Pro Charge Ultra now comes with front labels , Remote control and instructions in different languages: English, French, German and Spanish.

Comprehensive 32 LED front panel
The user is provided with a voltmeter, ammeter and output power display . The panel also includes charging profile statuses and warning statuses.

Truly Global Application....
....and perfect for generators. The Pro Charge Ultra shall work at AC voltages (80-270V AC and 40- 70Hz) and DC voltages (130-320V).

Sterling - Pro ultra charger features
1 11 pre-programmed battery curves including: Open/Sealed lead acid, AGM, Gel, LiFePO4.
2 1 custom set, can be set from charger, unlike our competitors there is no need for a computer to do this operation, all can be done from the front panel.
3 2 x digital meters for current and voltage measurement and a 32 LED information display.
4 1 x power meter to show what reserve power left in the unit.
5 PFC, active, up to 0.99 PF, ensuring efficient power conversion, up to almost 90% as opposed to about 60% for older, non-PFC technology.
6 % power reduction to allow unit to work with restricted power available (available on local control or remote control panel).
7 De-sulphation auto cycle built in to software.
8 New, low activity, standby mode to increase battery life.
9 Battery health program every 7-10 days .
10 Multiple speed fan control. This reduces unnecessary fan noise experienced by the customer, even though the new extreme efficiency reduces the need for fans. At high ambient temperatures (40-50 deg C), however, fans would still be required to ensure operation.
11 Primary (processor digitally controlled) and an emergency backup secondary (analogue controlled) high voltage trip.
12 32 LED information panel to ensure maximum information transmitted to owner.
13 Internal scan and systems check to ensure product is okay.
14 Remote control option.
15 Small footprint and light weight.
16 Include battery temperature sensor to give temperature compensation and high temp trip.
17 As with all our marine chargers all metals used are non-ferrous or heavily protected, so no corrosion.
18 New synchronised rectification output as opposed to diode output, giving up to an extra 9% efficiency.
19 Conforms to ABYC drip test, is waterproof from water directly dropped on to the top of the unit (+/ - 17 deg) if installed correctly (vertically). 20) Thermostatically controlled force draft cooling. 21) The printed circuit boards are conformal coated for high humidity and salt air operations.
Pro charger ultra specifcations
 Model D/C Voltage AMPs No.  of outputs Size L x W x D mm  Weight KG
PCU1210 12 10 2 260 x 215 x 90 2.0
PCU1220 12 20 3 260 x 215 x 90 2.0
PCU1230 12 30 3 260 x 215 x 90 2.0
PCU1240 12 40 3 260 x 215 x 90 2.0
PCU1250 12 50 3 315 x 215 x 90 3.0
PCU1260 12 60 3 315 x 215 x 90 3.0
PCU2420 24 20 3 260 x 215 x 90 2.0
PCU2430 24 30 3 315 x 215 x 90 3.0
