Lewmar - Epsilon Anchor Galvanised 20KG

Lewmar - Epsilon Anchor Galvanised 20KG

Lewmar

Manufacturer #:  57620

£389.99    (Inc. UK VAT @ 20%)RRP:  £442.22Save:  £52.23 (12%)(£324.99 Exc. VAT)

The Epsilon super-high holding power anchor builds upon the legendary Delta anchor's robustness and quality. Its concave fluke and ballast keel ensure market-leading holding power and rapid setting, while maintaining self-launching characteristics with Lewmar bow rollers and retaining the same shank geometry as the original Delta.

Time proven materials are used throughout the range: manganese steel or 316 stainless steel for maximums strength.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Lewmar Epsilon Anchor Features

  • Super-high holding power
  • Available in galvanised and stainless steel
  • Anti-snagging design
  • Optional roll bar for sailboat application (please contact us)
  • Full range from 6kg - 63kg
  • Ballasted tip for fast setting
  • Fully compatible with Lewmar bow rollers
  • ABS and Lloyds approved

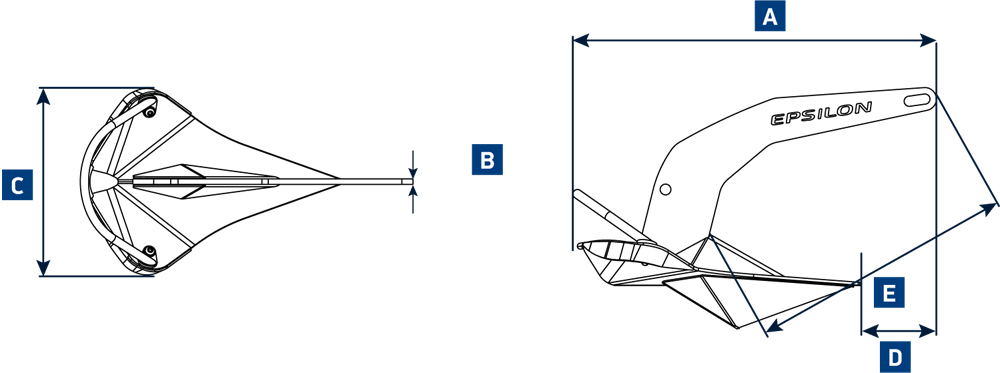

Lewmar Epsilon Anchor Specifications

Weight Recommended Chain Size A B C D E
6kg | 14lbs 6-7mm 483mm 8mm 271mm 258mm 337mm
10kg | 22lbs 8mm 573mm 10mm 332mm 306mm 401mm
16kg | 35lbs 8mm 670mm 12mm 376mm 358mm 469mm
20kg | 44lbs 10mm 720mm 12mm 406mm 387mm 505mm
25kg | 55lbs 10mm 778mm 16mm 438mm 417mm 545mm
32kg | 70lbs 10mm 839mm 16mm 474mm 452mm 590mm
40kg | 88lbs 10mm 907mm 20mm 512mm 486mm 636mm
50kg | 110lbs 12mm 974mm 20mm 550mm 519mm 680mm
63kg | 140lbs 12mm 1049mm 22mm 595mm 562mm 736mm

Dimensions are subject to change

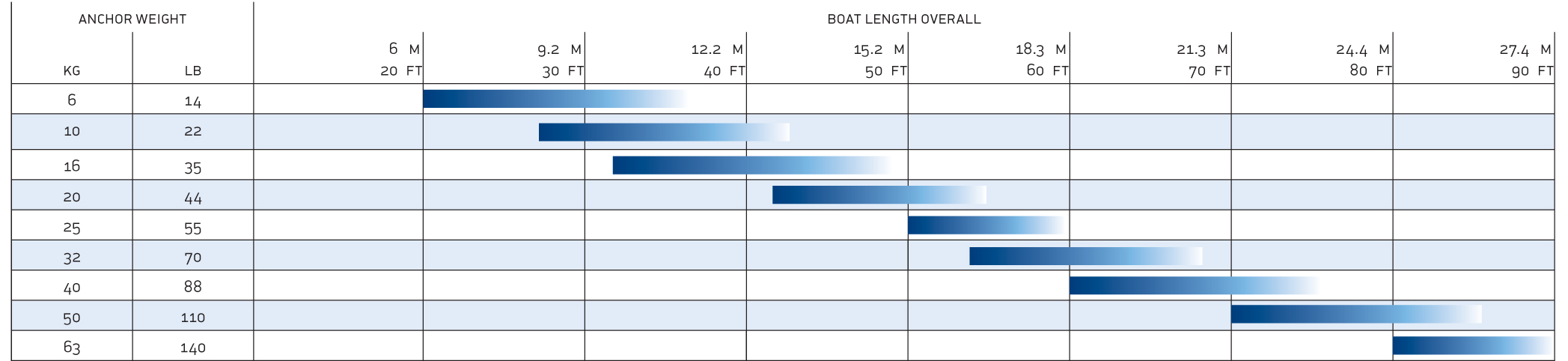

Lewmar Epsilon Anchor Selection Guide

Lighter shading represents the upper limit of model. If in doubt, move up a model.

This information is for guide purposes only, please consult the relevant Classification Society for specific certification requirements.
