Allen




Manufacturer #:  A..87-15-BK

£9.09    (Inc. UK VAT @ 20%)(£7.58 Exc. VAT)

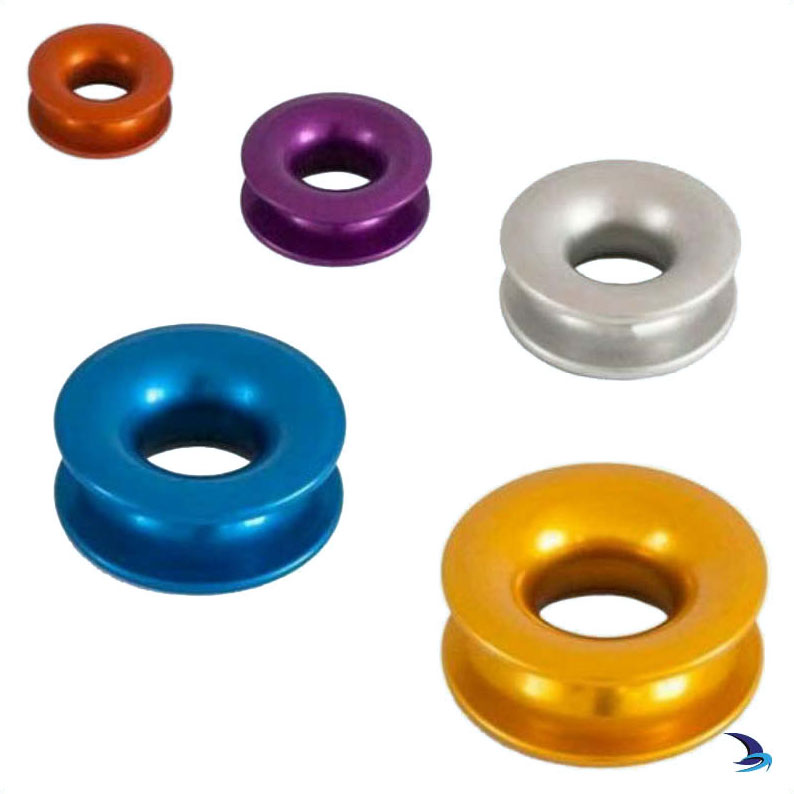

High load thimbles - Teflon coated, anodised, machined aluminium - alternative to blocks where static load is applied.  All sizes are available in black, blue, silver, purple, gold and orange.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Part number Description Outside Ø Inside Ø Max working laod Weight Depth
A..87-15

Aluminium thimble

15mm 6mm 300kg 1g 6mm
A..87-20 Aluminium thimble 20mm 8mm 400kg 2g 8mm
A..87-25 Aluminium thimble 25mm 10mm 800kg 5g 10mm
A..87-30 Aluminium thimble 30mm 12mm 1000kg 7g 12mm
A..87-35 Aluminium thimble 35mm 14mm 1500kg 11g 14mm
A..82-8 Aluminium thimble 10mm 8mm 150kg 0.5g 5mm
A..82-10 Aluminium thimble 11mm 10mm 250kg 1g 6mm
A..82-14 Aluminium thimble 15mm 14mm 300kg 1.5g 8mm
