Andersen - Self Tailing Winch Spares (Size 28ST Pre 2006)

Andersen - Self Tailing Winch Spares (Size 28ST Pre 2006)

Andersen

28ST Spares:

Manufacturer #:  710001

Price:  £24.99(Inc. VAT @ 20%)
+

Regular maintenance is important for smooth and trouble-free operation of your winches. ANDERSEN Winch Service Kits use authentic factory replacement parts and include all the crucial spare parts necessary to ensure perfect performance from your winch every time.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Winch Service Notes

In normal recreational use, ANDERSEN recommend cleaning, greasing and inspection of all moving parts every 2 years for extending winch life. Under extensive use, such as racing, charter or blue water sailing, they recommend more regular maintenance procedures; at least once every year.

Size 28ST spares kit (ANDERSEN Service Kit 1) includes the following -

  • 1 x M6x12 screw
  • 1 x M6x10 screw
  • 4 x spring
  • 2 x pawl
  • 2 x pawl
  • 4 x armspring
  • 2 x ball, stainless steel
  • 2 x ball POM
  • 1 x retaining ring
  • 1 x locking pin
  • 1 x circlip
  • 1 x circlip

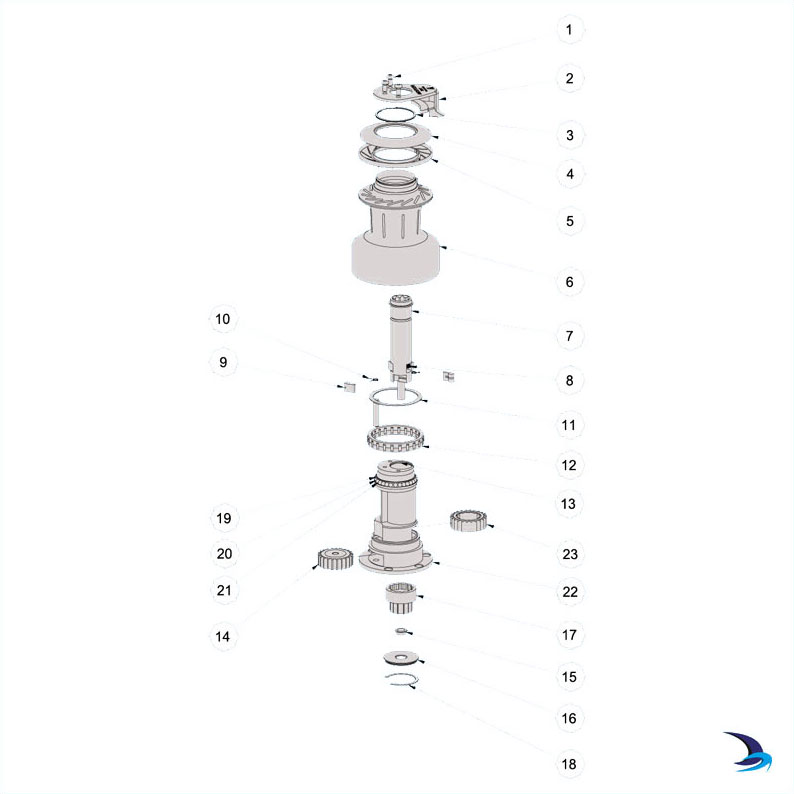

Item Description Part Number No in Winch
1 Screw ISO 7380-A4-M6x12 3
2 Self-tailing arm 747802 1
3 Circlip 726400U 1
4 Disc spring 726300 1
5 Driving plate 726500 1
6 Drum complete 729104 1
7 Drive shaft complete 729000 1
8 Spring 533500 2
9 Pawl 713200 2
10 Arm spring 713300 2
11 Shaft ring 729700 1
12 Roller bearing complete 727400 1
13 Bushing not removable 716501 2
14 Gear wheel complete 729600 1
15 Bushing 729501 1
16 Insert plate 729503 1
17 Ratchet gear 729400 1
18 Circlip 729502U 1
19 Retaining ring not removable 726600 1
20 Ball bearing, stainless steel 724900 14
21 Ball bearing, POM 724902 15
22 Base 731800 1
23 Ratchet gear 711701 1
