Barton



Manufacturer #:  82100

£75.99    (Inc. UK VAT @ 20%)(£63.33 Exc. VAT)

Manufactured from marine grade aluminium and 'Spectro' grey anodised for high UV stability and durability.

These Barton blocks and foot blocks are designed to cope with high loads.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

High Load Blocks

Manufactured from marine grade aluminium and 'Spectro' grey anodised for high UV stability and durability.

  • Sheaves are precision turned from solid 'Ertalyte' bar with a profile that is kind to modern ropes.
  • Running on a large diameter centre bearing for easy running under high loads.
  • Fitted with a stainless steel bow shackle to allow for snag-free operation.
  • Bolt-together construction not only adds to good looks, but allows for easy dismantling should servicing become necessary.
  • Available in three sizes, these blocks are compatible with the toggle connections on Barton's ball bearing mainsheet travellers.

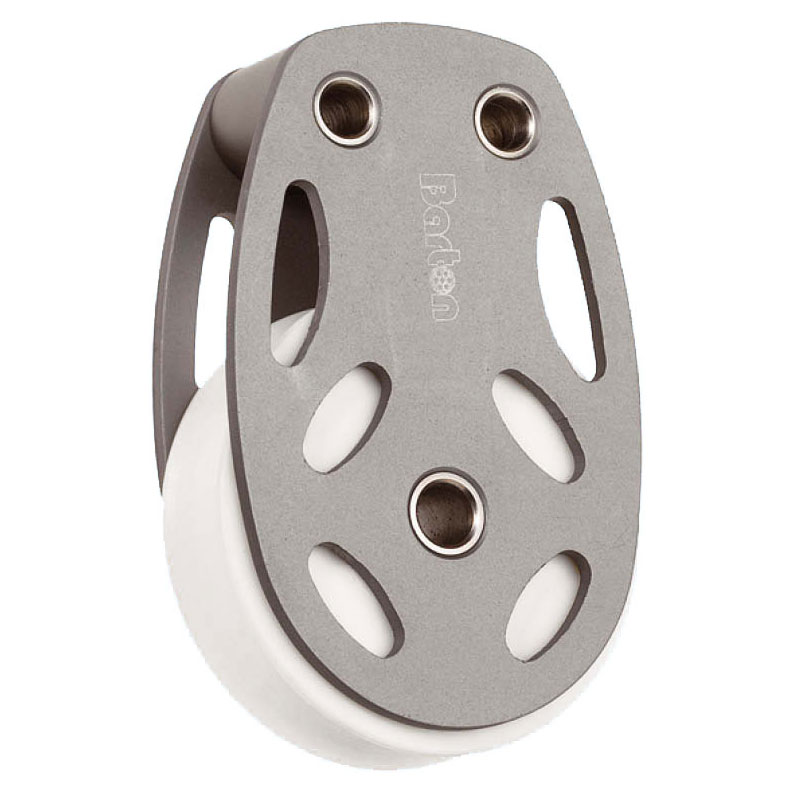

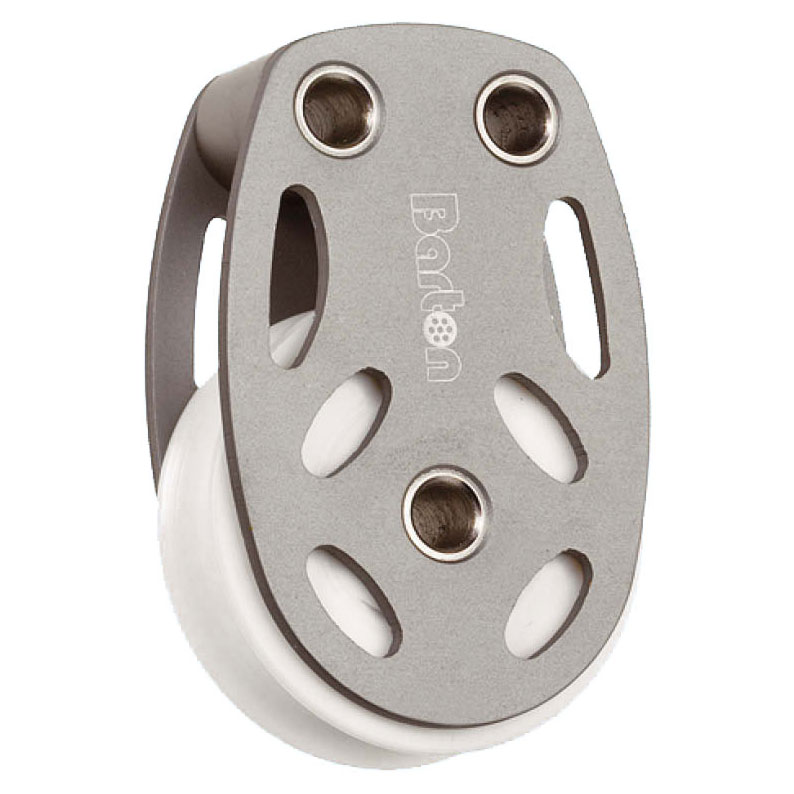

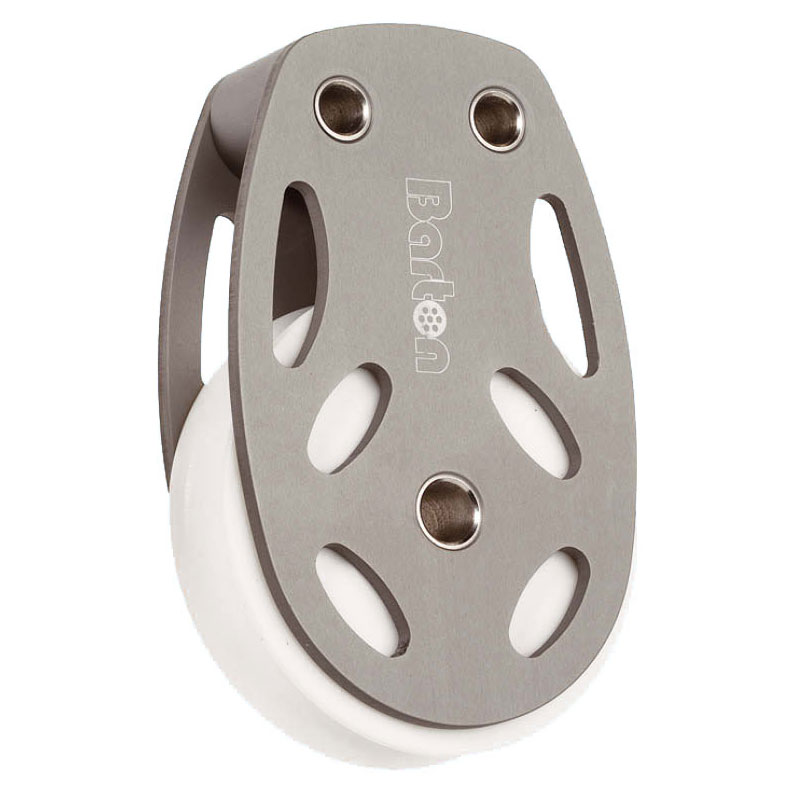

Foot blocks

Featuring the same side plate and sheave construction as the high load blocks.

  • Hollow stainless steel rivets allow for through-bolt fastening, giving added strength.
  • Through-bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities. Note; stacking blocks will reduce working loads.
  • Fastenings of the minimum diameter suggested should be used to gain full load capability
  • Ensure that suitable mounting pads are used under deck.

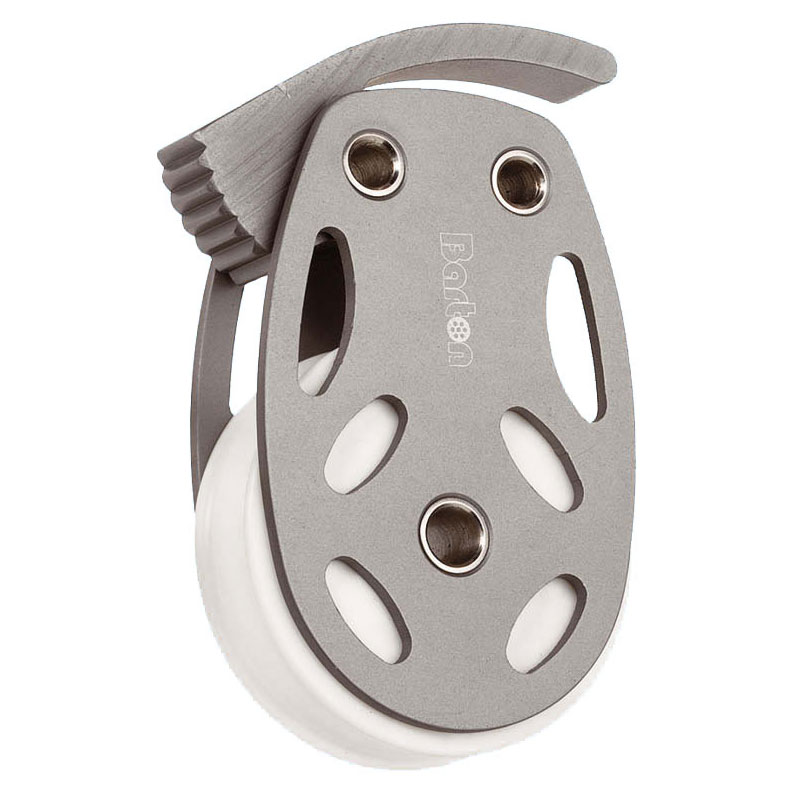

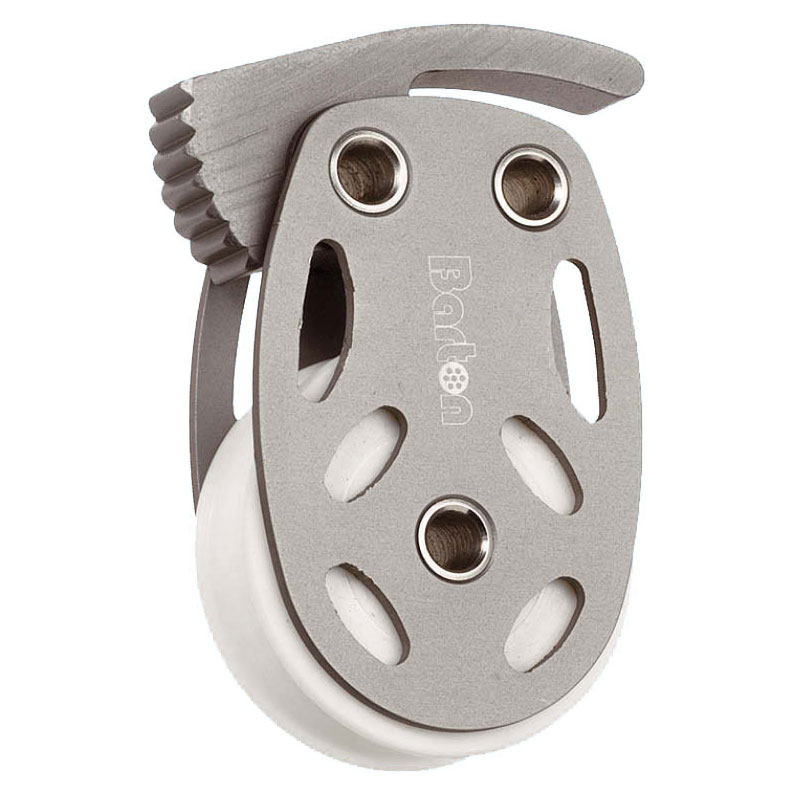

Foot blocks with cam

Available in two sizes; specifications as per Barton's high load foot block range. Suitable for a multitude of uses, including locking control lines on headsail furling gear.

Max holding power of cams: 50mm – 250kg; 65mm – 300kg.

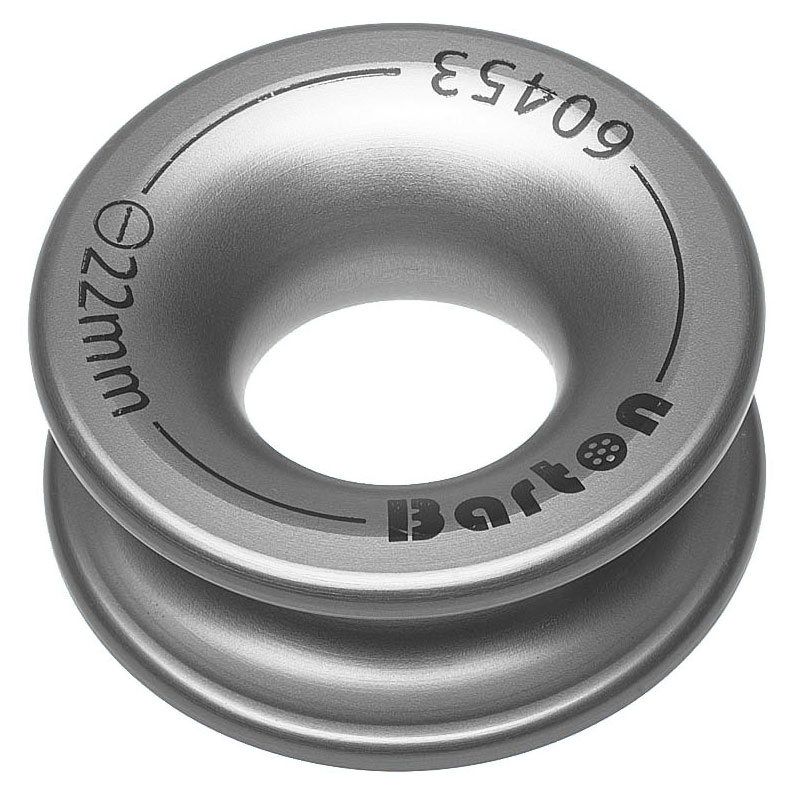

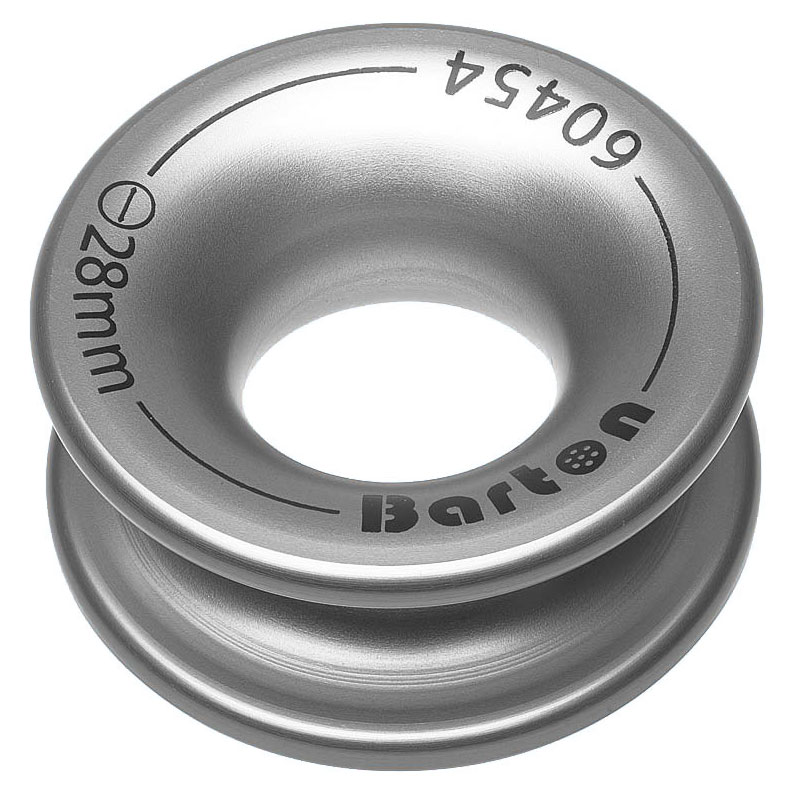

High load eyes

Available in 5 sizes. Manufactured in marine grade aluminium and finished in Barton's unique hard 'Spectro' grey anodising. These lightweight high load eyes are suitable for a variety of uses on board, from lazy jacks, barber haulers, mast base tidies to stanchion lead eyes. The smallest size can be attached using a 3mm line with a bullseye diameter of 6mm. The largest size can be attached using a 16mm line with a bullseye diameter of 28mm.

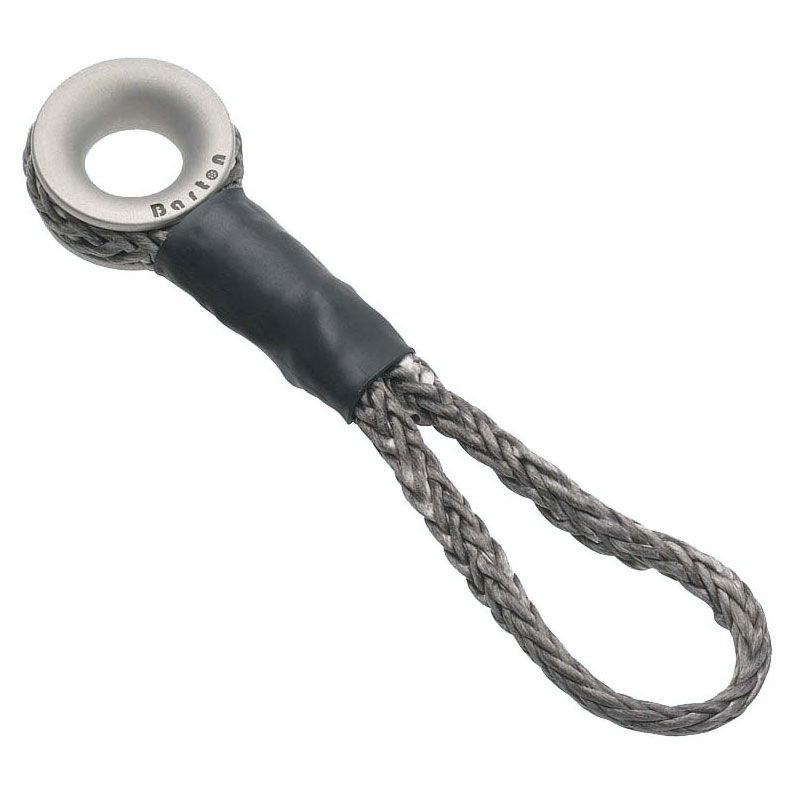

High load eye with Dyneema™ loop

The Barton High load eye with loop is available in 3 sizes and can be used in various applications on board including barber hauler, preventers, mast base block tidies, emergency blocks, occasional blocks and toe rail blocks etc. The High load eye combined with the Dyneema™ loop gives you a fast, efficient, simple and extremely strong solution to changing the direction of any line. The 'Spectro' anodised aluminium eye is designed to have very good wear resistant properties with low friction, this combined with the Dyneema™ loop gives you exceptional low weight to very high performance load ratio.





High load blocks
Block type Part No. Sheave Ø  Sheave width Rope Ø Break load Working load Length Weight

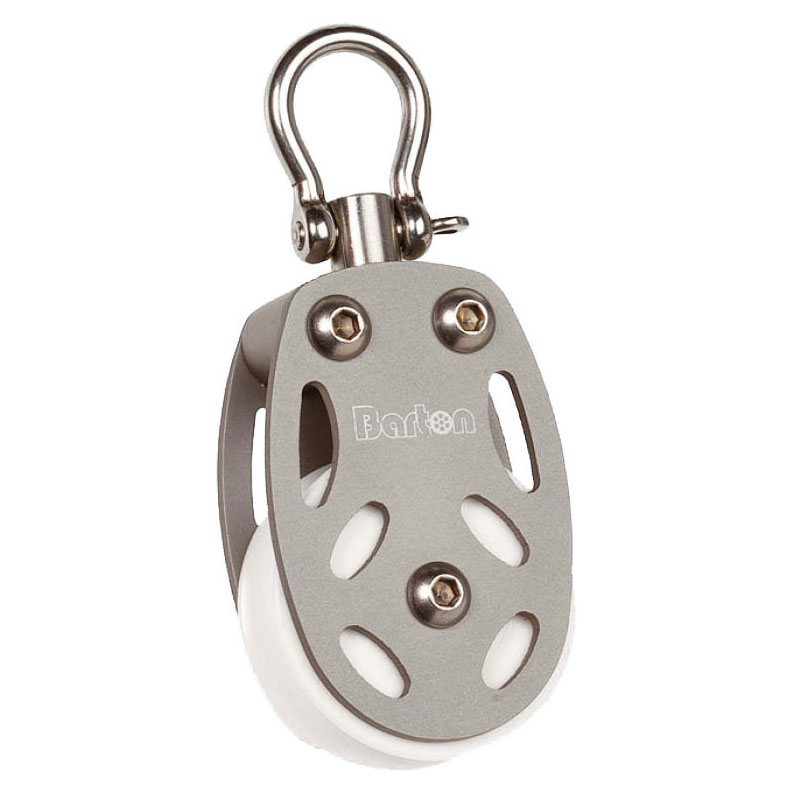

High load - 50mm 82100 50mm 15mm 12mm 1000kg 500kg 116mm 146g

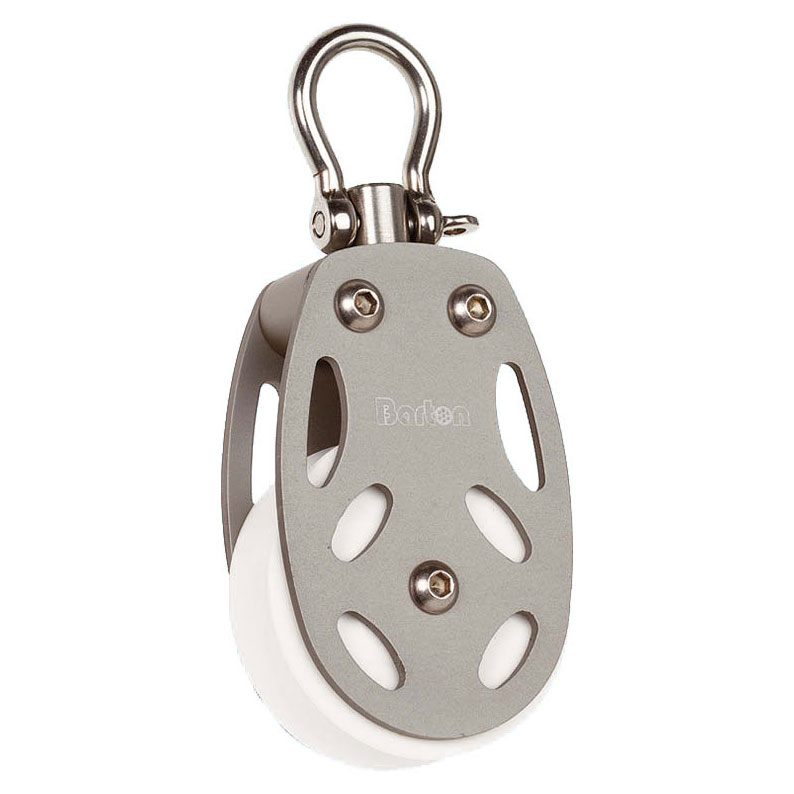

High load - 65mm 82200 65mm 18mm 16mm 1600kg 800kg 142mm 267g

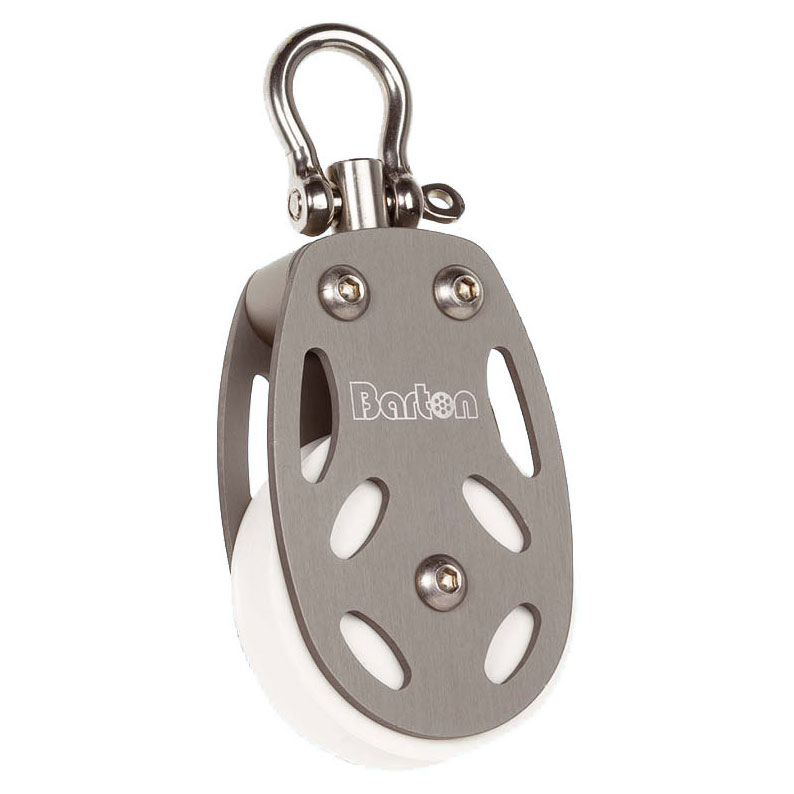

High load - 85mm 82300 85mm 21mm 18mm 3000kg 1500kg 185mm 551g
Foot blocks
Block type Part No. Sheave Ø  Sheave width Rope Ø Break load Working load Length Weight
Foot block - 50mm 82995 50mm 15mm 12mm 1000kg 500kg 79mm 114g
Foot block - 65mm 82996 65mm 18mm 16mm 1600kg 800kg 100mm 211g
Foot block - 85mm 82997 85mm 21mm 18mm 3000kg 1500kg 132mm 427g
Foot blocks with cams
Block type Part No. Sheave Ø  Sheave width Rope Ø Break load Working load Length Weight
Foot block
with cam - 50mm
82998 50mm 15mm 12mm 1000kg 500kg 84mm 130g
Foot block
with cam - 65mm
82999 65mm 18mm 16mm 1600kg 800kg 105mm 230g
High load eye
Block type Part No.  Sheave Ø  Internal rope Ø Bore Ø  Length Working load Weight

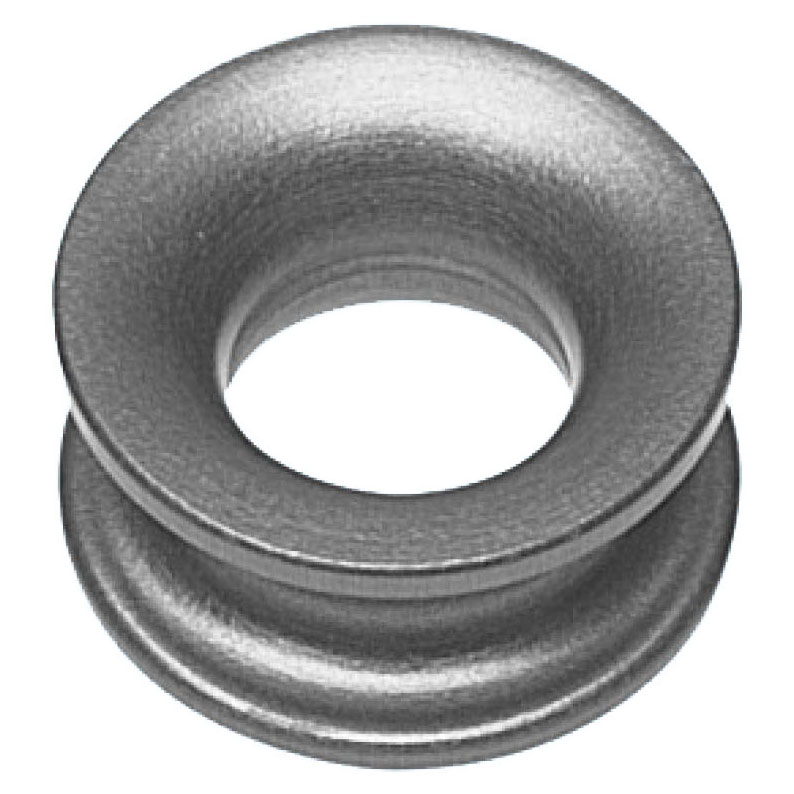

High load eye - 12mm 60450 12mm 3mm 6mm - - 0.8g

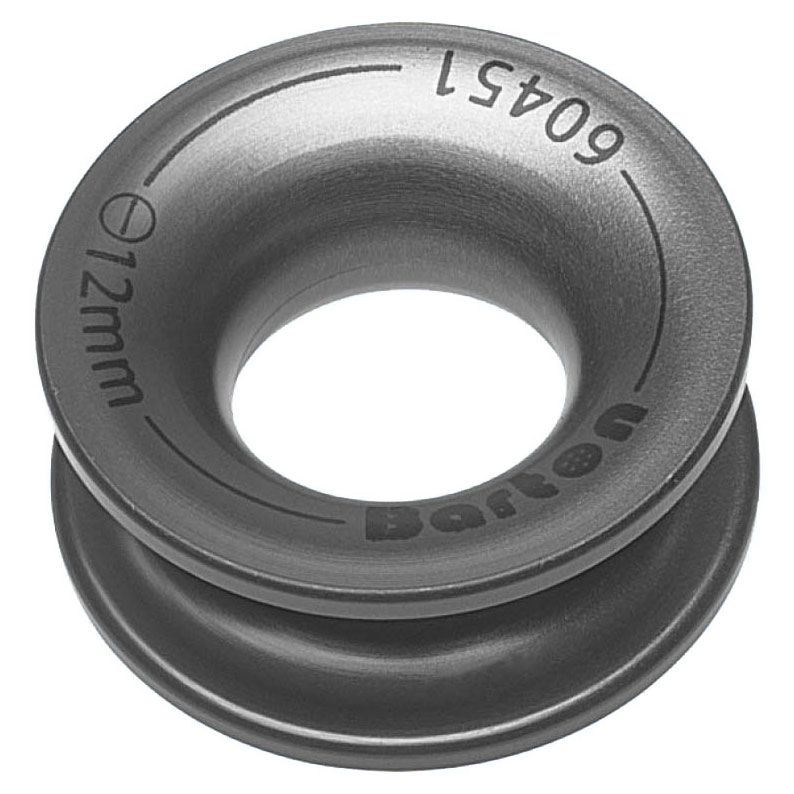

High load eye - 26mm 60451 26mm 6mm 12mm - - 5g

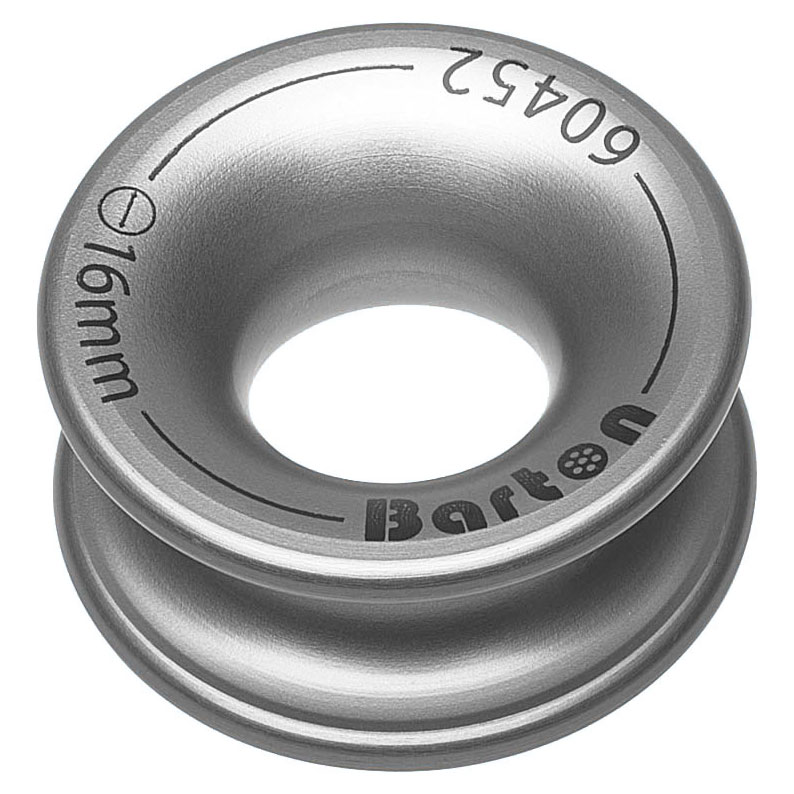

High load eye - 38mm 60452 38mm 10mm 16mm - - 24g
High load eye - 52mm 60453 52mm 12mm 22mm - - 52g
High load eye - 65mm 60454 65mm 16mm 28mm - - 104g
High load eye with Dyneema™ loop
Block type Part No. Sheave Ø  Internal rope Ø Bore Ø  Length Working load Weight
High load eye
with Dyneema™ loop- 12mm
60460 - - 12mm 100mm 750kg 11g
High load eye
with Dyneema™ loop- 22mm

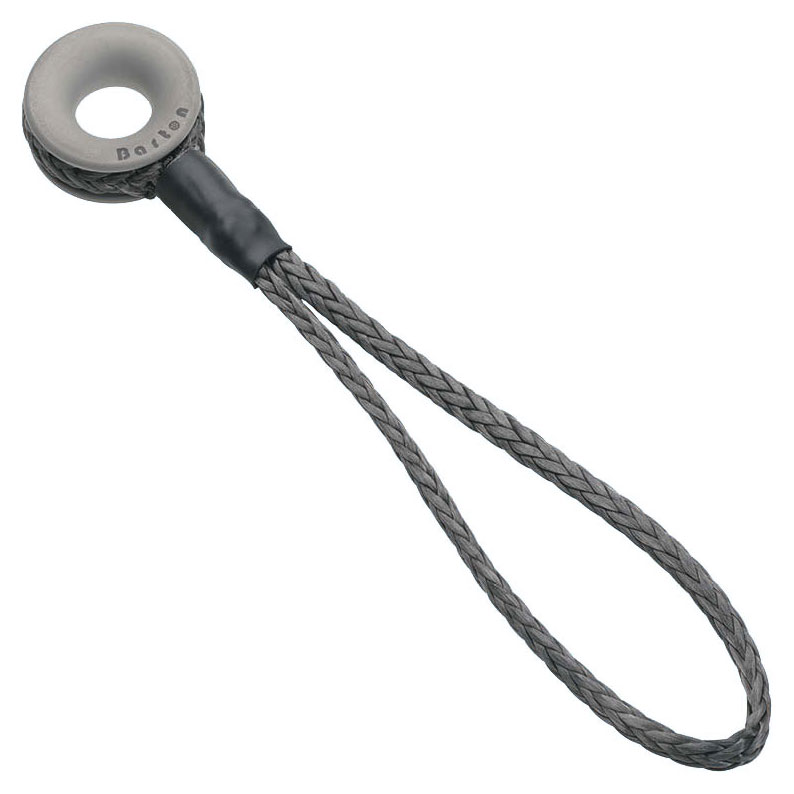

60461 - - 22mm 230mm 2400kg 91g
High load eye
with Dyneema™ loop- 28mm

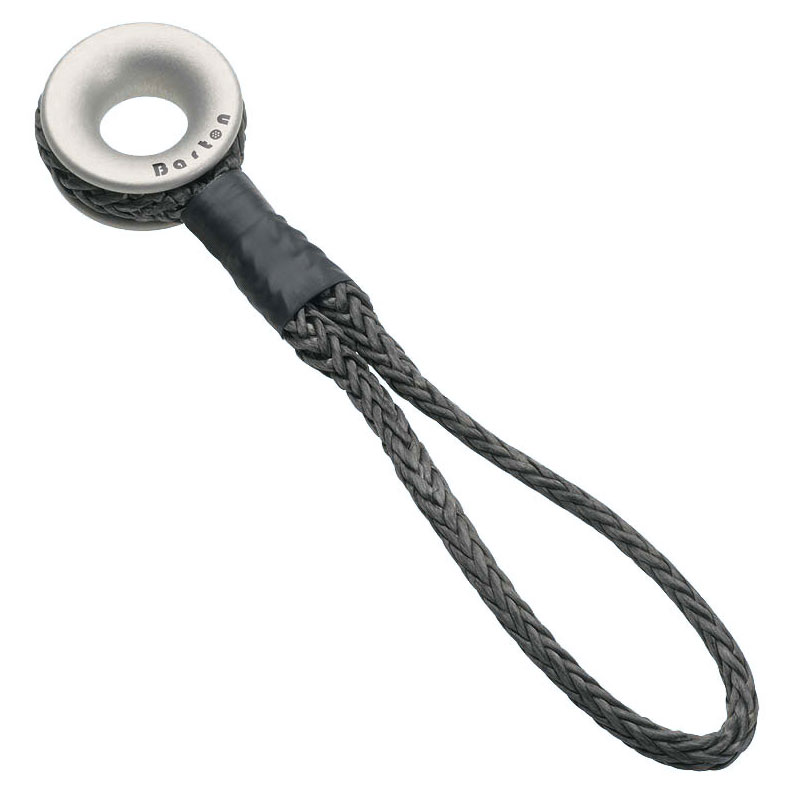

60462 - - 28mm 310mm 3600kg 152g
