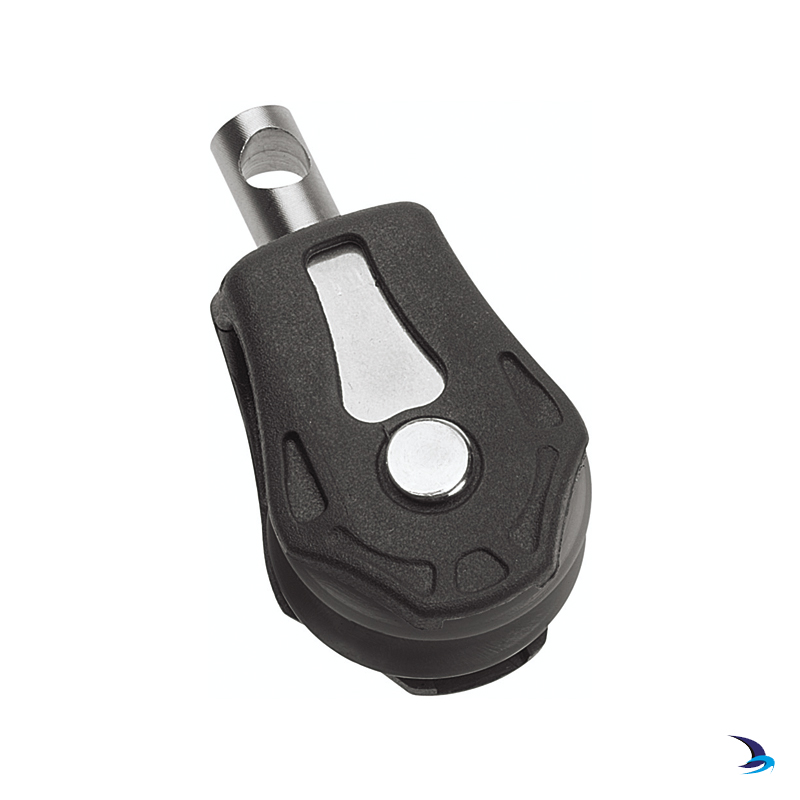

Barton - Series 0 Block Plain Bearing Single Swivel No Shackle

Barton - Series 0 Block Plain Bearing Single Swivel No Shackle


Manufacturer #:  N00190

£10.59    (Inc. UK VAT @ 20%)(£8.83 Exc. VAT)

Engineered for dinghy sailors and small craft enthusiasts, the Barton Series 0 block range defines high strength, keen performance and lightweight design for racing and day boats. Also ideal for lead blocks, flag pennants and small line systems on larger yachts.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Barton Size 0 Block Specifications

Sheave Ø Sheave Width Max Rope Ø Safe Working Load Break Load Length Weight
20mm 8mm 5mm 275kg 550kg 39.6mm 16g

Barton Sheaves

Barton Plain Bearing Blocks

All Barton plain bearing blocks have a precision moulded, Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

The Barton Ball Bearing Option

All Barton blocks from series 0 to size 7 offer the option of a high performance, low friction ball bearing sheave.

Friction is reduced by 23% when using a Barton ball bearing sheave compared to a plain sheave.

Plain bearing versus ball bearing sheaves

Use a plain bearing sheave for a high static load; for example mast base, (main and genoa) mast head and kicker or when the sheave will be under a high load and the sheave will turn infrequently. Use a ball bearing sheave where fast, constant adjustment is required, for example mainsheets or spinnaker sheets.
