B&G - Vulcan 9'' Chartplotter with Global Basemap
B&G - Vulcan 9'' Chartplotter with Global BasemapB&G - Vulcan 9'' Chartplotter with Global BasemapB&G - Vulcan 9'' Chartplotter with Global BasemapB&G - Vulcan 9'' Chartplotter with Global BasemapB&G - Vulcan 9'' Chartplotter with Global BasemapB&G - Vulcan 9'' Chartplotter with Global Basemap

B&G - Vulcan 9" Chartplotter with Global Basemap


Manufacturer #:  000-13214-001

£999.99    (Inc. UK VAT @ 20%)RRP:  £1,209.60Save:  £209.61 (17%)(£833.33 Exc. VAT)

With it's easy-to-use, intuitive 9-inch touch-screen display, the B&G Vulcan 9 is a great value chartplotter packed with B&G's unique sailing features including SailSteer and RacePanel. The Vulcan 7 can be easily integrated into your existing system allowing for easy expansion as it is NMEA 2000®, Broadband Radar™, ForwardScan™ and autopilot ready; and features built-in 10Hz GPS and Wi-Fi.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

The B&G Vulcan Range

B&G's Vulcan range of sailing chartplotters take the guesswork out of sailing. Whether you’re an experienced sailor or just starting out, Vulcan is packed with features that will help you get the most from your time on the water.

Easy to use Touch Screen

B&G have designed their Vulcan chartplotters to be as intuitive as a tablet or smartphone. The low-profile, super-bright display is visible even in direct sunlight, and the responsive touch screen gives fingertip control, even in flying spray and a rough sea state. Pinch-to-zoom, swipe and tap controls let you input waypoints and routes and view chart details with ease.

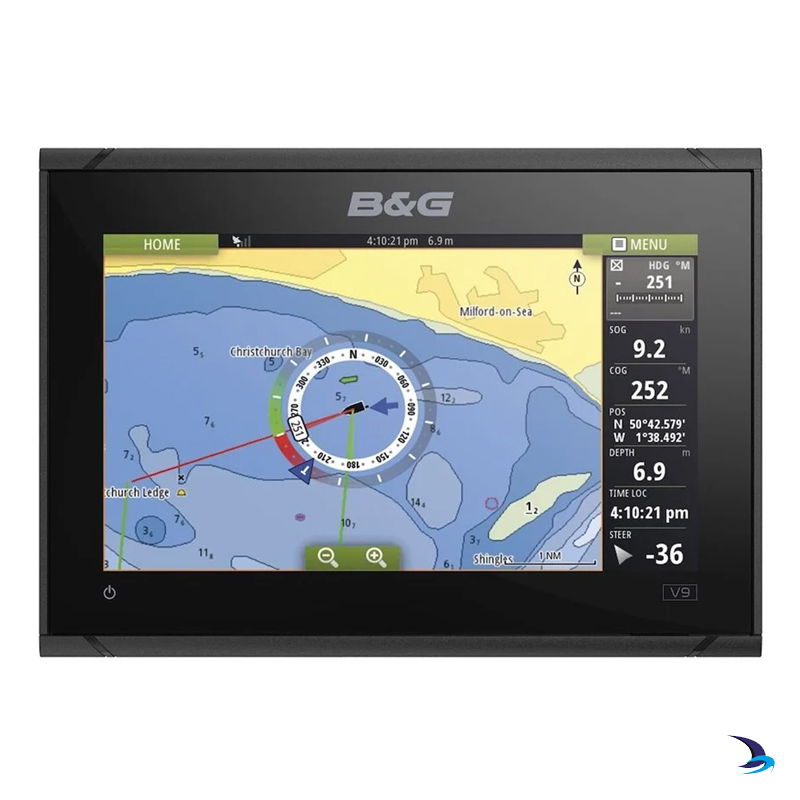

Simple to add Waypoints and Routes

Let Vulcan guide you safely to your destination: place waypoints and routes with a single tap on the chart and let Vulcan take you there with clear, intuitive graphics and data for guidance. Add a compatible chart card to benefit from autorouting and let Vulcan’s intelligent software choose the best and safest route to your destination.

Dedicated Sailing Features for Cruising and Racing

You can use Vulcan as a simple chartplotter as soon as you connect it to power, or for more advanced features, add to speed, depth and wind instruments. Let Vulcan take care of the complex calculations – leaving you free to relax and enjoy the sailing.

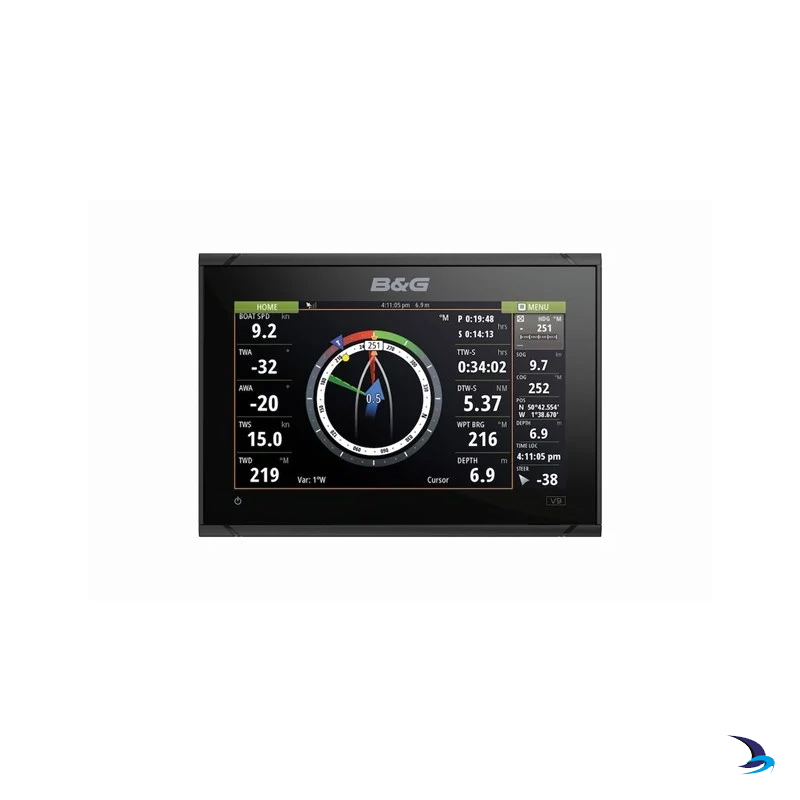

  • SailSteer
    See all the data you need at a glance on one easy-to-read display with SailSteer. See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen to ensure you have the information you need at your fingertips.



  • Laylines
    Let Vulcan do the hard work: See your course and minimise your time spent beating with Laylines overlaid on your chart. See which way is best and ensure you tack in the right place to help you get to windward as efficiently as possible. Laylines even take into account tidal effects and wind shifts to plot the quickest course to the next waypoint.



  • SailingTime
    Plan effectively with SailingTime and know how long it will take to get to a waypoint, even if it’s dead upwind. SailingTime calculates the time you’ll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination.



  • RacePanel
    Be on the line when the gun goes with RacePanel. Enjoy easy-to-use features previously only enjoyed by Pro navigators to ensure you get the best start in the fleet, with time, distance and positioning information on a single clear display.

Autopilot Control

Put Vulcan at the heart of your boat and take control of your B&G autopilot from your Vulcan’s touchscreen. With an installed controller elsewhere, the intuitive controls can be accessed from any screen with a simple tap and allow you to alter course, tack, gybe, sail to wind or compass. Take advantage of the advanced sailing algorithms that make B&G Pilots as good as the best helmsman – all from your Vulcan’s touch screen.

A Range of Mounting Options

Get up and running quickly: Vulcan chartplotters are optimised for sleek flush mounting, standing only 8mm proud of the bulkhead for a low-profile ‘glass helm’ look. Alternatively, mount in minutes using the supplied bracket on horizontal, vertical or overhead surfaces.

B&G Vulcan 7 Features

  • Easy to use multi-touch display
  • Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
  • Easy to integrate – Connect Vulcan to an existing system and add basic sailing components

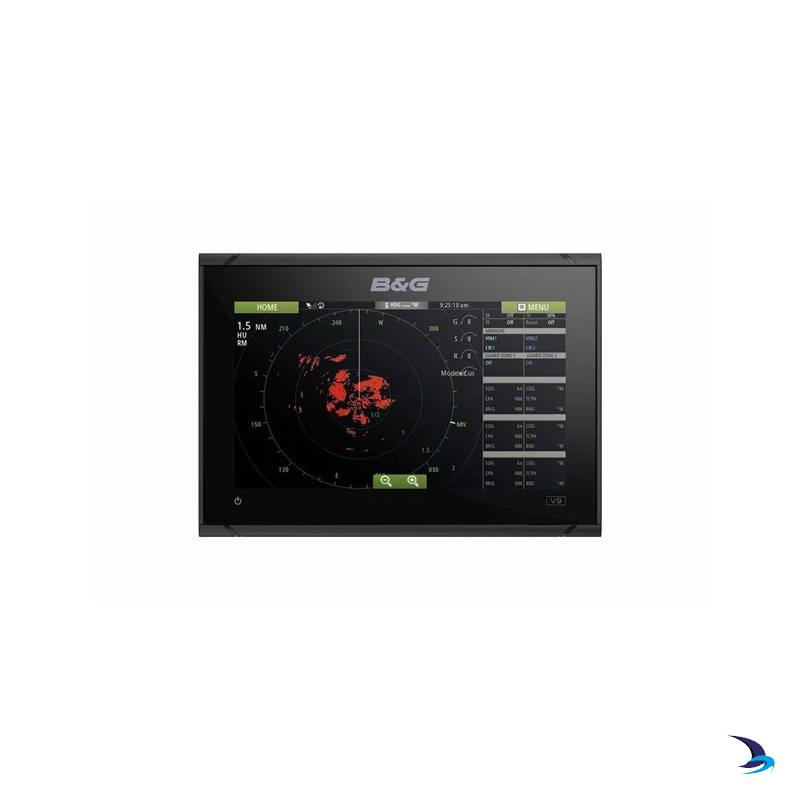

  • Broadband Radar™ and ForwardScan™ ready
  • Integrated Wi-Fi
  • Control your B&G Pilot
  • Instrument data display

B&G Vulcan 9 Specifications

Display
Backlight colour White
Display resolution 800x480
Display size 9 inches
Screen brightness 1200 nits
Viewing angles 80° top/bottom, 80° left/right
Connectivity
Bluetooth Internal
Ethernet ports 1x 5 pin yellow connector x 100 Mbits/s. Radar and Sirius (USA only) connectivity only
Connectivity Wi-Fi Internal
N2K PG Ns Receive 59392, 59904, 60928, 126208, 126992, 126996, 127237, 127245, 127250, 127251, 127257, 127258, 127488, 127489, 127493, 127503, 127504, 127505, 127506, 127507, 127508, 127509, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129038, 129039, 129040, 129041, 129283, 129284, 129539, 129540, 129794, 129801, 129283, 129284, 129539, 129540, 129794, 129801, 129802, 129808, 129809, 129810, 130074, 130306, 130310, 130311, 130312, 130313, 130314, 130576, 130577, Transmit 126208, 126992, 126996,127237, 127250, 127258, 128259, 128267, 128275, 129025, 129026, 129029, 129283, 129284, 129285, 129539, 129540, 130074, 130306, 130310, 130311, 130312, 130577
NMEA 0183 Sentences supported Exports NMEA0183 over WiFi
NMEA 2000 Connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity None
SD Card Storage 2 Micro SD slot, max. 32GB each. >32 GB format to NTFS
Video None
Cartography
Charts Supported Insight, Navionics (Gold, NAV+, Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Autopilot
Manouevres Turn Patterns Tack / Gybe, Depth contour tracking
Steering Modes Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail)
Approvals
Approvals Compliance CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Electrical
Power Consumption max 20 W
Power Consumption typical 12 W
Recommended Fuse Rating 3A
Supply Voltage 12V (10 – 17V)
Environment
Operating Temperature Range "-15°C to +55°C (5° F to 131° F)
Shock Vibration CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range "-20°C to +60°C (4°F to 140°F)
Waterproofrating IPX6 & 7
GPS
Correction WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels 32 Channels
Position Accuracy Horizontal Accuracy 3 m (9.8 ft.)
Time to First Fix Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
Update rate 10 Hz
MFD
AIS Receive AIS data over NMEA 2000 only
Autopilot Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included TBD
Digital Switching BEP C-Zone, NaviOP
GPS Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage 90MB
Multimedia via SonicHub2, Fusion Link, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only)
Sonar Compatibility Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Weather Sirius XM WM-3 (USA only), GRIB
Physical
Dimensions W x H x D 243 mm x 171 mm x 83 mm (9.56" x 6.71" x 3.26") (no bracket)
Mounting Type Bracket or Panel
Weight 1.320 kg (2.91lb)
Other
Interface Touch screen, ZC1 or ZC2 controller via NMEA 2003
Languages Standard Language Pack: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocks: Asian Language Pack: English (US), Japanese, Korean, Thai, Chinese. Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish. Russia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian. Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
Warranty Period 2 Years
