Harken - 16mm Blocks

Harken - 16mm Blocks

Harken

Block:

Article Number:  442

Price:  £19.00
RRP:  £20.37
Save:  £1.37
(Inc. VAT @ 20%)
+

The 16mm is Harken's smallest block.  It is perfect for small synthetic control lines, found on high-tech dinghies.  The bearing system uses stainless steel balls in a captive grooved race and has the highest maximum working load (113kg / 250 lb) of any similarly sized blocks currently on the market.

The 442 block uses a spacer, and the 404 uses an O-ring to keep the line in the sheave during intermittent loading.  The 467 and 484 use a narrow sheave for extremely small control lines and have a ferrule head for soft attachments.  They use the same high load ball system.  The 484 features a bronze sheave for added durability.

Perfect to be used for

  • Dinghy control lines
  • Spinnaker pole trip lines
  • Big boat leech lines
  • Outhauls



  • Downhauls
  • Cunninghams
  • Traveller controls
  • Halyards on prams

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Harken - Single 16mm Blocks

Part No. Single Block Length Weight Max. Line Fasteners Max Working / Break Load

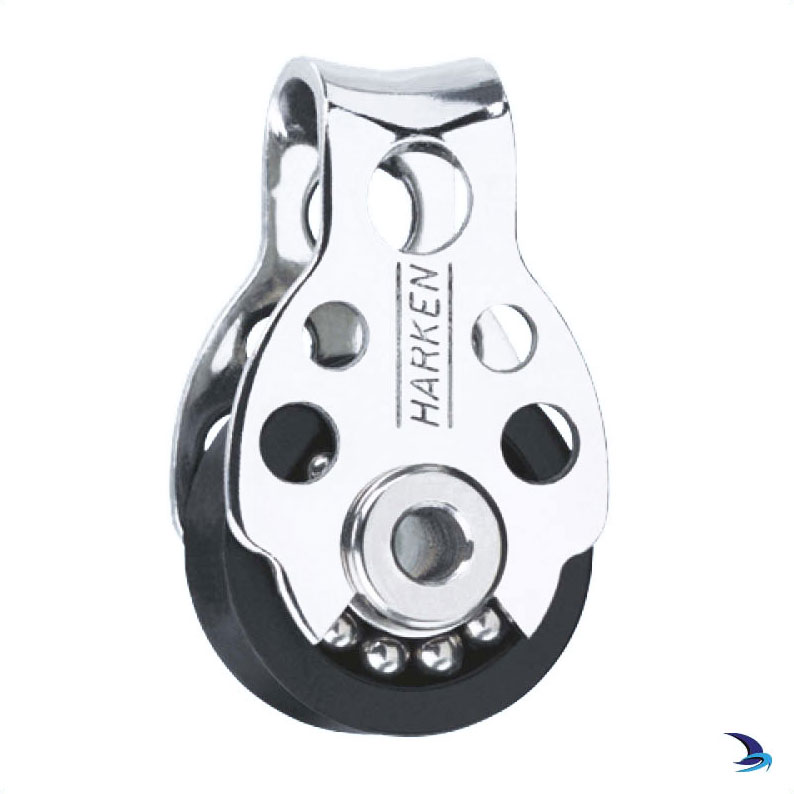

404 Block 29 mm 10 g 5 mm Ø - 133 kg / 544 kg
405 Block + Becket 38 mm 12 g 5 mm Ø - 133 kg / 544 kg

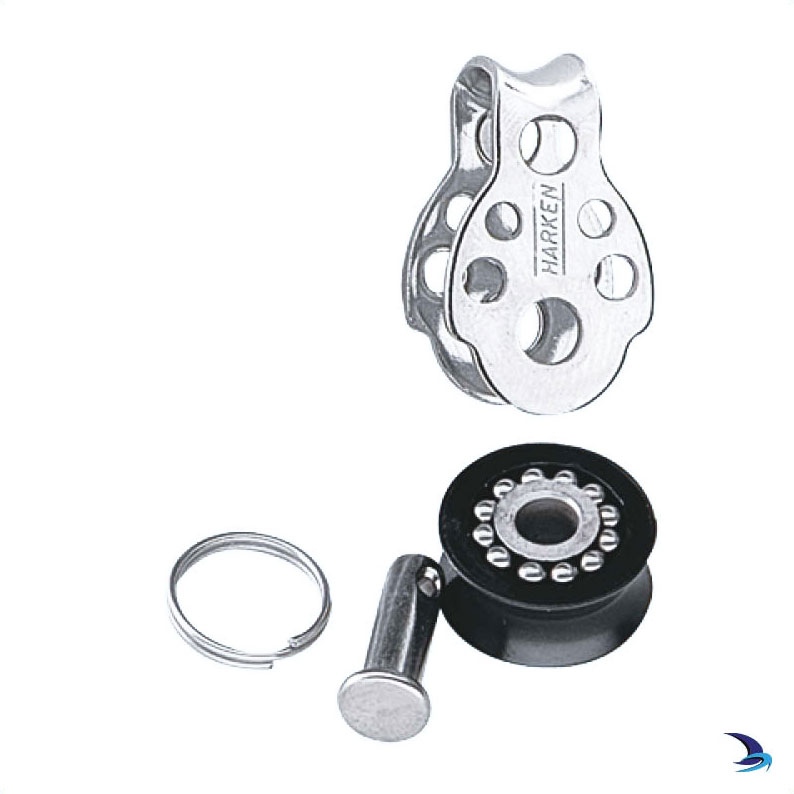

HSB294 Removable Becket 29 mm 5 g 5 mm Ø - 133 kg / 544 kg
416 Cheek Block 46 mm 12 g 5 mm Ø 4 RH mm 133 kg / 544 kg

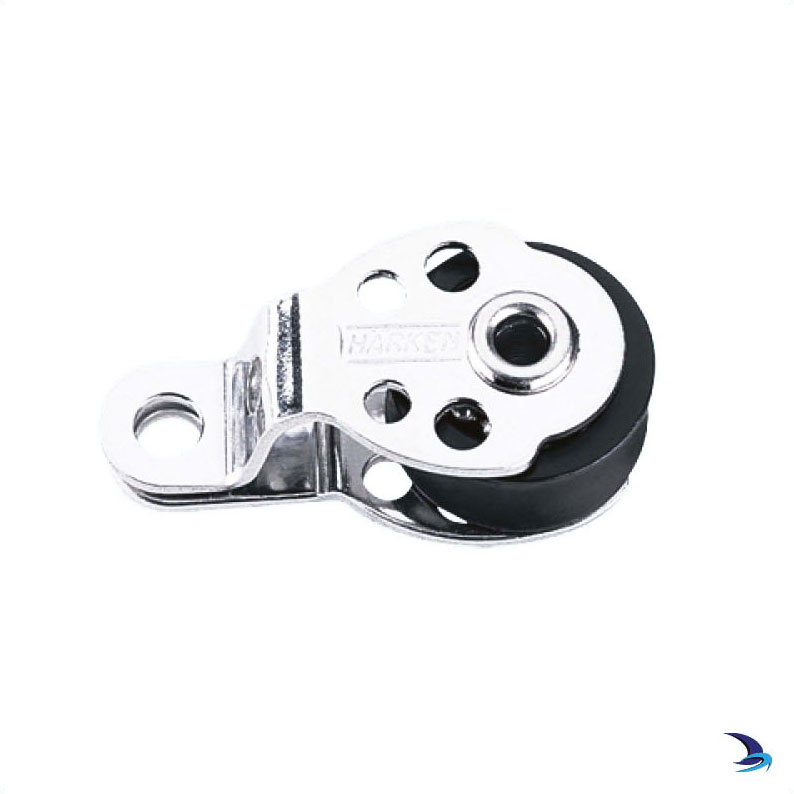

432 Cheek Pivot Block 35 mm 11 g 5 mm Ø - 133 kg / 544 kg

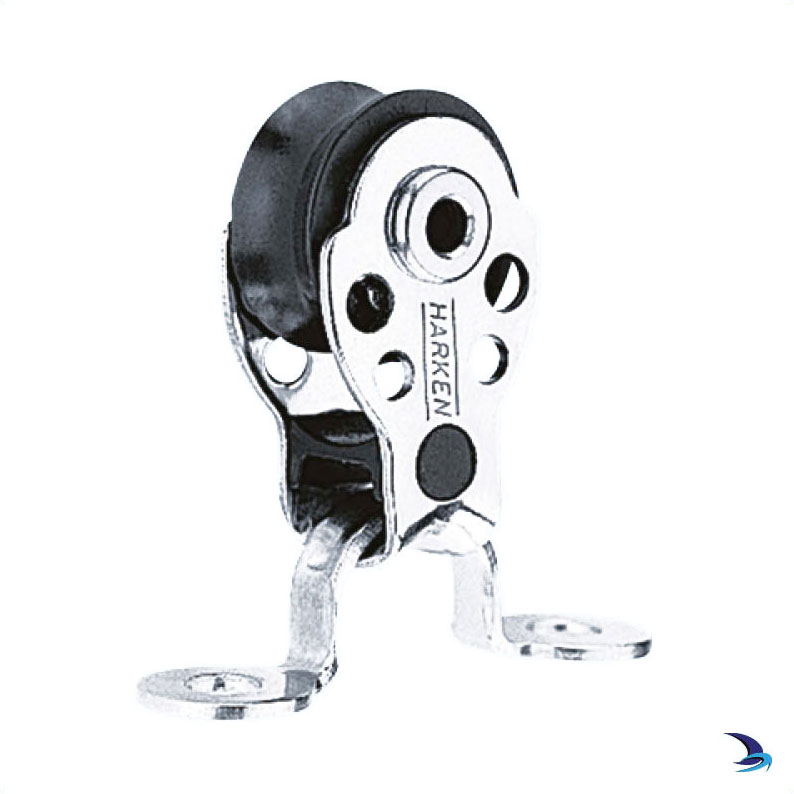

442 Eyestrap Block 35 mm 12 g 5 mm Ø 4 RH mm 133 kg / 544 kg

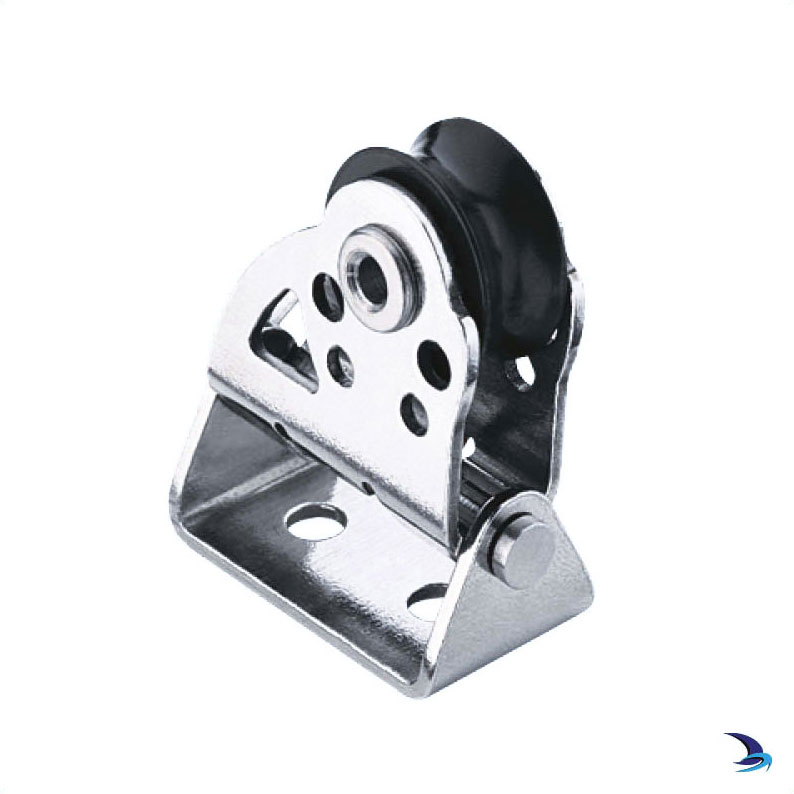

437 Flip-Flop Block 34 mm 21 g 5 mm Ø 4 RH mm 133 kg / 544 kg

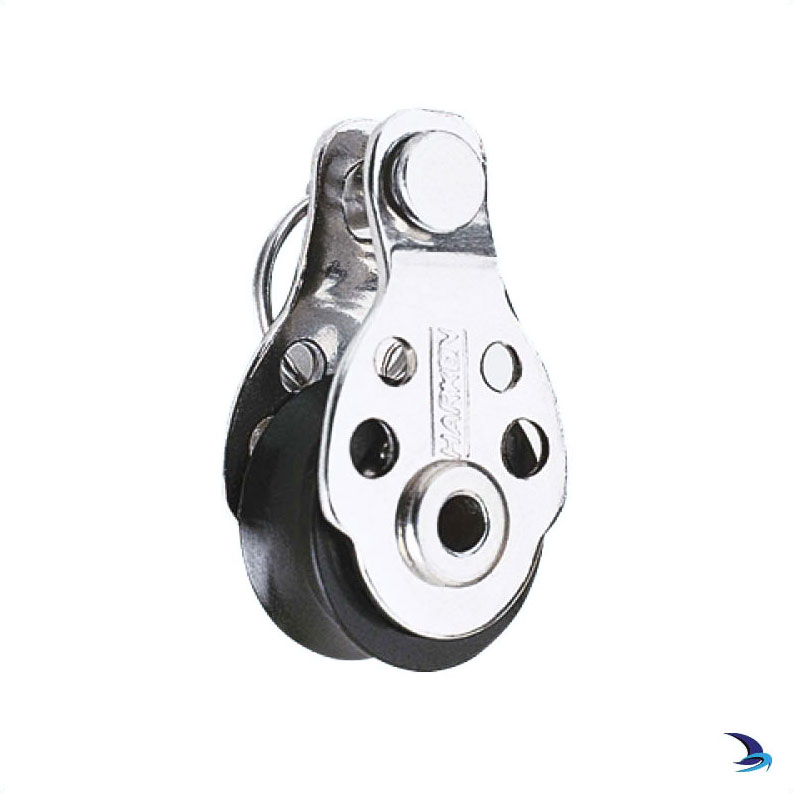

376 Forkhead Block 29 mm 11 g 5 mm Ø - 133 kg / 544 kg

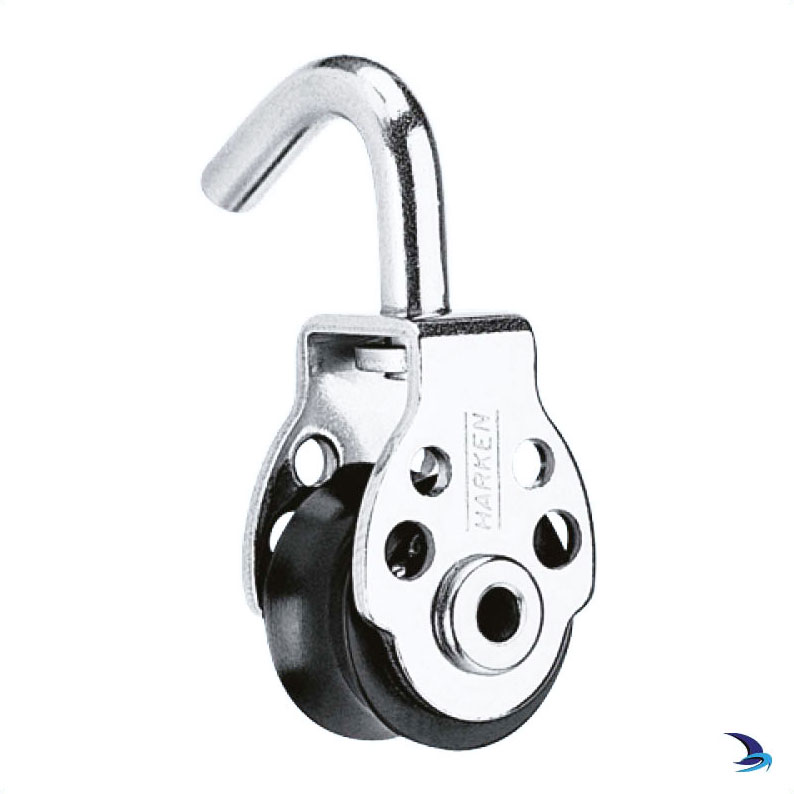

391 Hook-In Halyard Block 41 mm 13 g 5 mm Ø - 133 kg / 544 kg

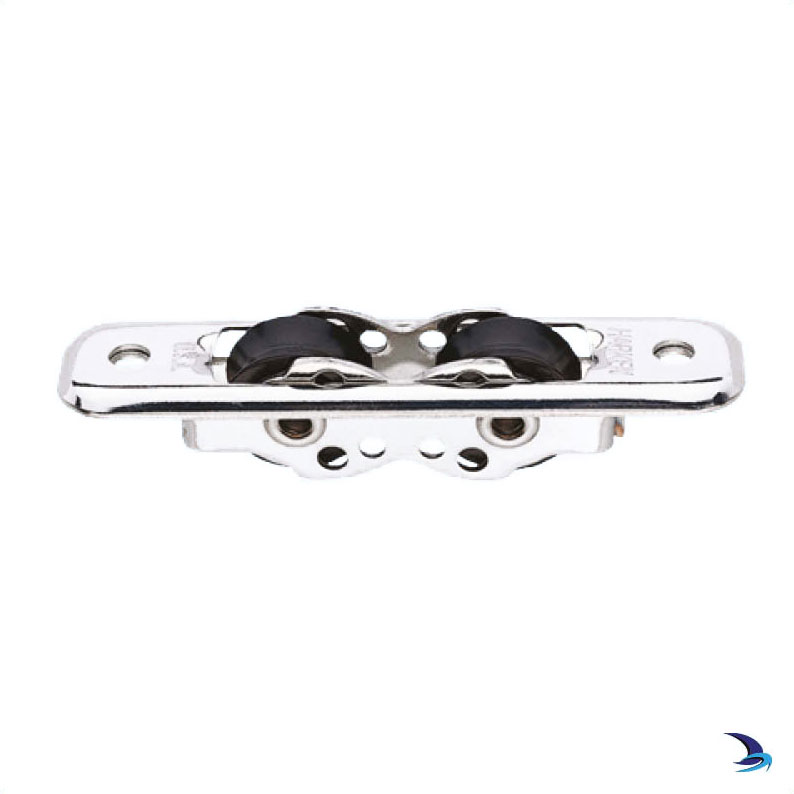

368 In-Line Exit Block 76 mm 27 g 5 mm Ø 4 RH mm 133 kg / 544 kg

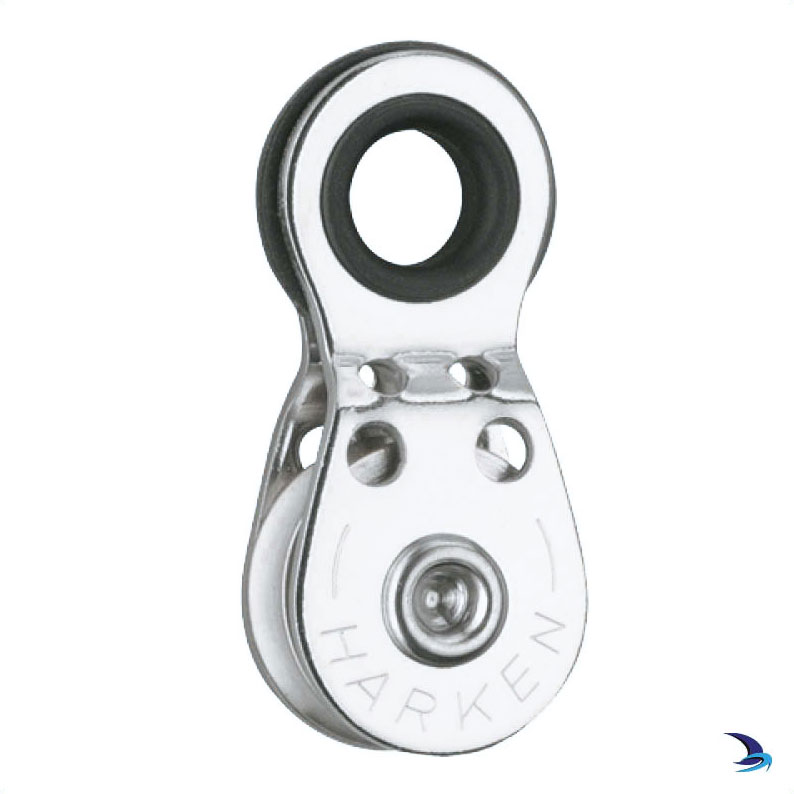

484 Narrow Block
with Bronze Sheave
37 mm 15 g 5 mm Ø - 133 kg / 544 kg
467 Narrow Ferrule Head Block 37 mm 12 g 5 mm Ø - 133 kg / 544 kg

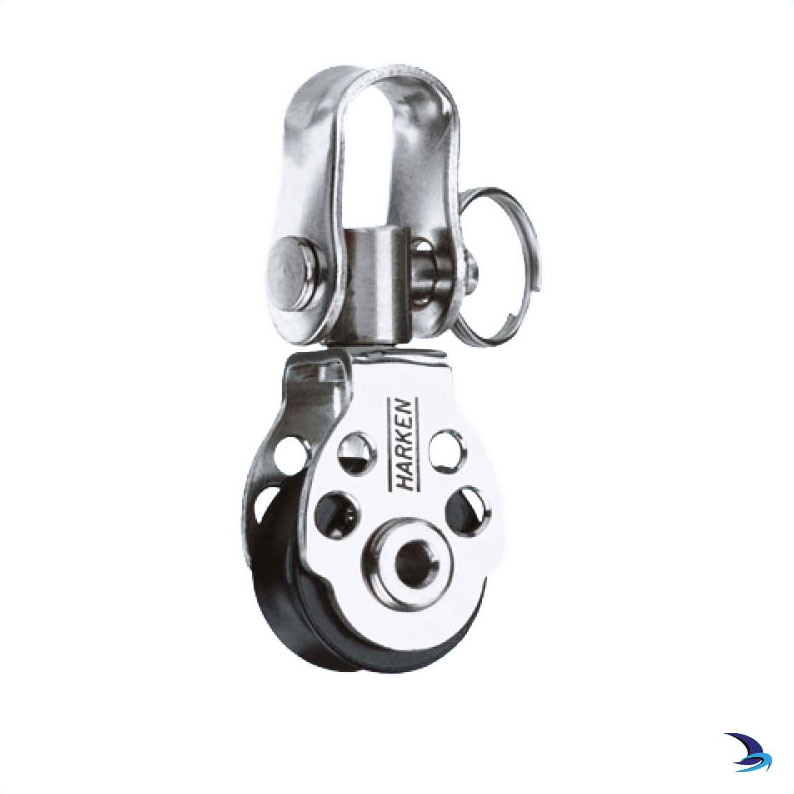

417 Swivel Block
(4 mm Ø shackle pin)
46 mm 18 g 5 mm Ø - 133 kg / 544 kg
421 Through-Deck Block 60 mm 18 g 5 mm Ø 4 RH mm 133 kg / 544 kg

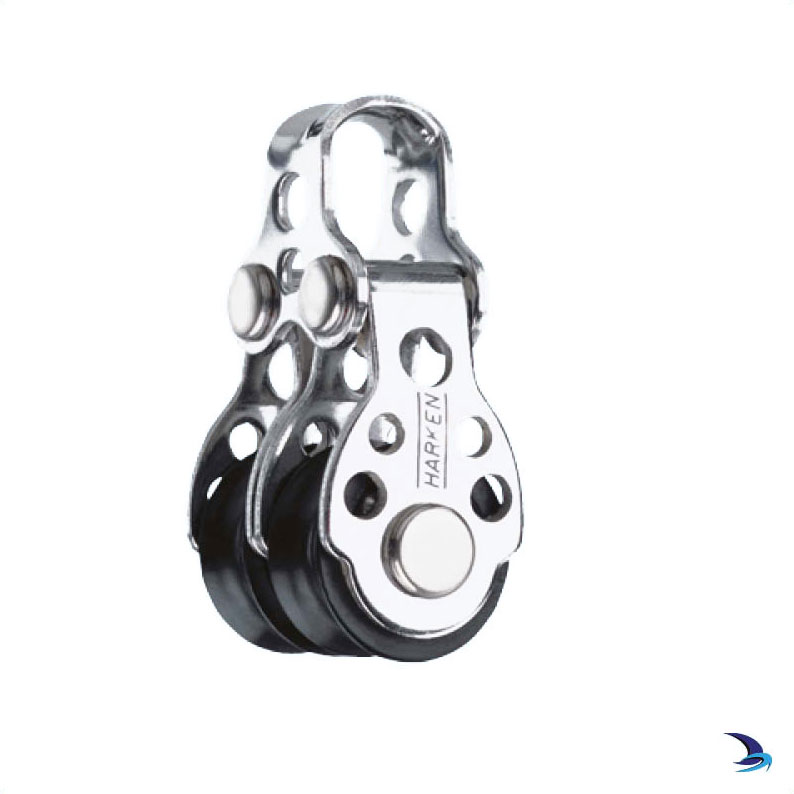

Double Blocks

Part No. Double Block Length Weight Max. Line Fasteners Max Working / Break Load
406 Block 43 mm 27 g 5 mm Ø - 204 kg / 544 kg

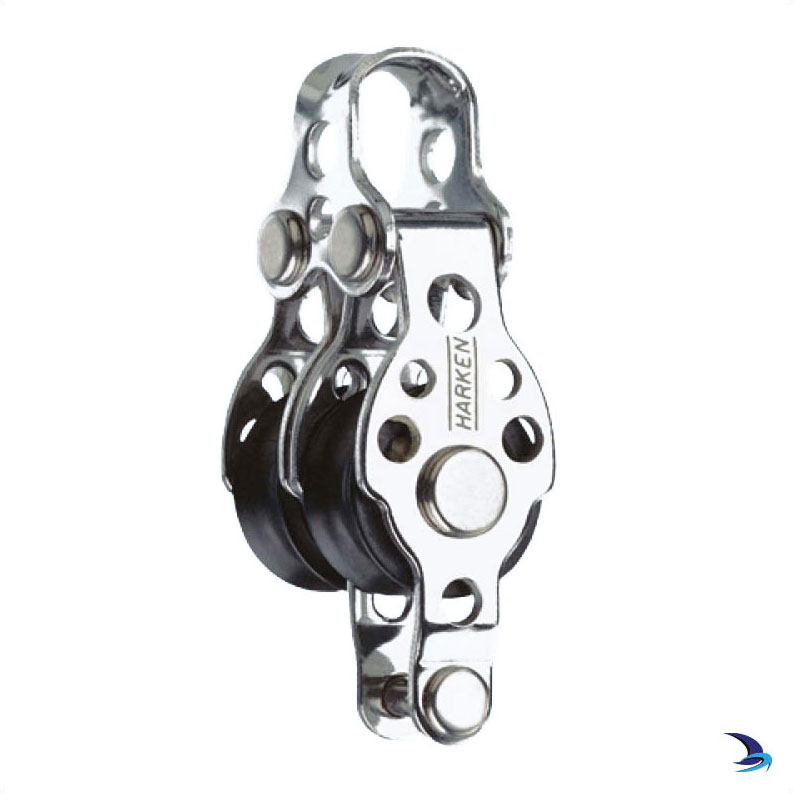

407 Block + Becket 54 mm 28 g 5 mm Ø - 204 kg / 544 kg

Triple Blocks

Part No. Triple Block Length Weight Max. Line Fasteners Max Working / Break Load

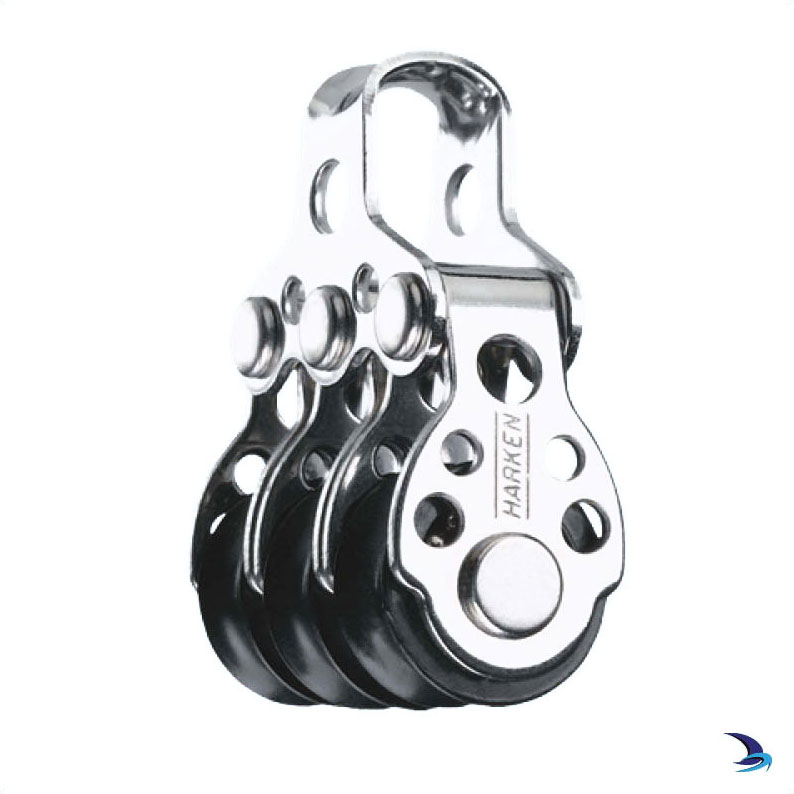

408 Block 46 mm 41 g 5 mm Ø - 318 kg / 544 kg

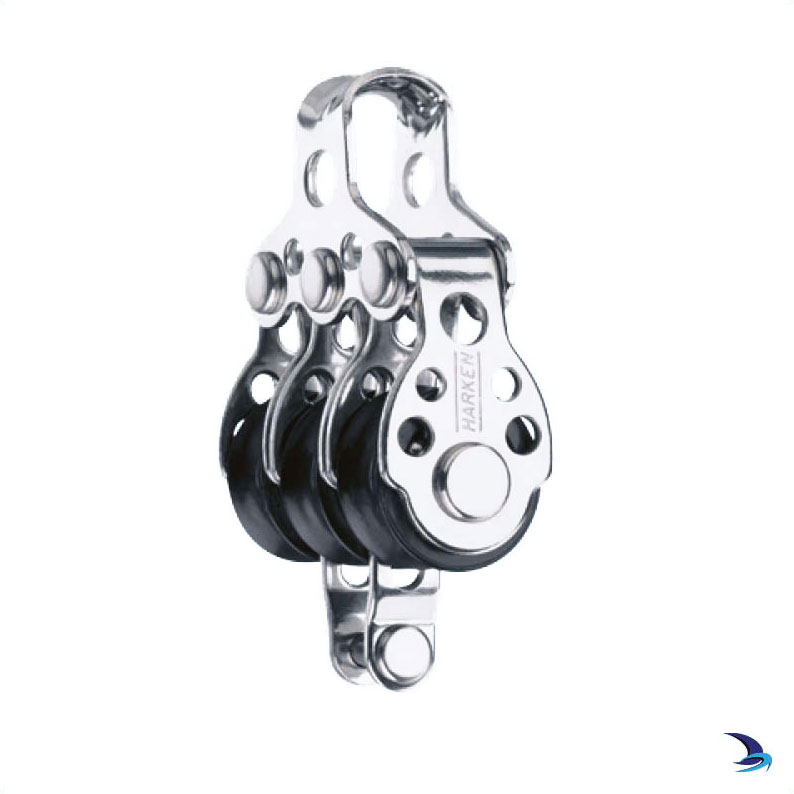

409 Block + Becket 57 mm 43 g 5 mm Ø - 318 kg / 544 kg
