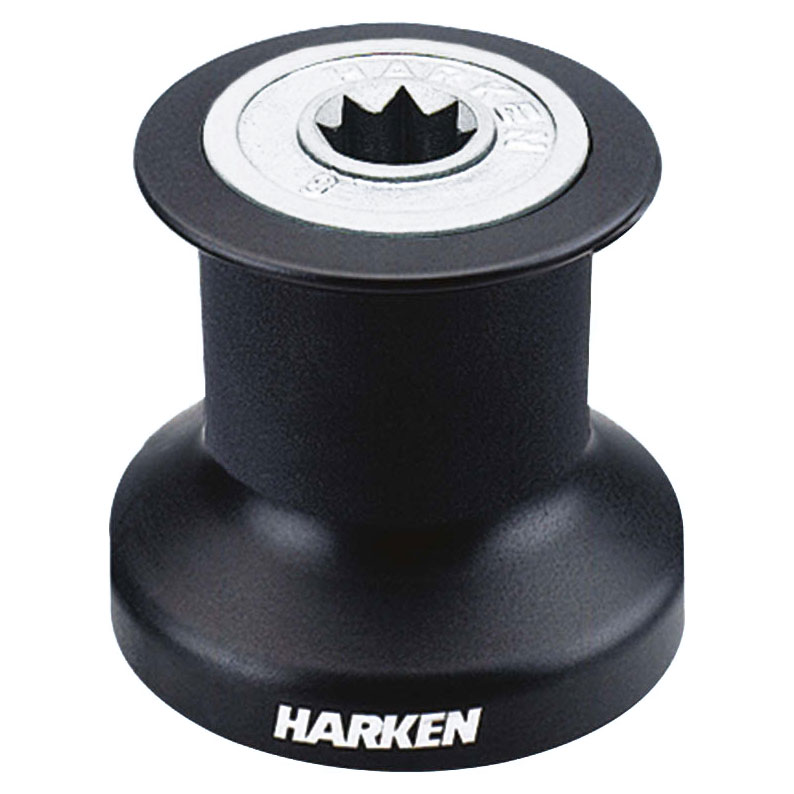

Harken - Classic Plain Top Winches

Harken - Classic Plain Top Winches

Harken
  (1 Review)



Manufacturer #:  B6A

Price:  £149.99
RRP:  £177.86
Save:  £27.87
   (£124.99 Exc. VAT)

Harken® offers a wide range of manual winches for racers and cruisers. Single-speed, plain-top winches use Delrin® bearing sleeves, have a sand-blasted grip and complement the look of the larger Harken Radial Winches.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
Excellent service & product
Monday, 3 April 2017  |

Friendly and efficient service. The winches seem to be solid and well made. Good price.

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Harken Classic Plain-Top Specifications

Size Dimensions Weight Line Ø LE Gear Ratio (:1) Power ratios (:1)
15 D - 60mm
B - 90mm
H - 82mm
Aluminium - 0.7kg 6mm (min)
10mm (max)
33mm 1 8.40
20 D - 68mm
B - 115mm
H - 90mm
Aluminium - 2.4kg
Chrome - 3.4kg
6mm (min)
12mm (max)
38mm 1 7.50


Harken Winch Selection Guide

Definitions

I Height of the foretriangle measured from the top of the highest sheave to the sheerline
I2 Height of the staysail halyard above deck
J Base of the foretriangle measured from the front of the mast to the intersection of the forestay and deck
J2 Base of the staysail triangle
P Luff length of the mainsail
E Foot length of the mainsail
Winch
Size
Genoa Mainsail Staysail Spinnaker
  Sheet Halyard End-boom
Mainsheet
Halyard Reef Halyard Sheet Halyard Topping Lift/
Foreguy

Max sail area 100%
foretriangle (IxJx0.5)
Max I
4:1 sheet max sail
area (PxEx0.5)
Max P
Max P
Max I2
Max sail area
(IxJx1.8)
Max I
Max I
6 7 m2 7.6 m - 7.6 m 10.4 m 7.6 m 46.5 m2 7.6 m 10.7 m
8 10.5 m2 11 m 14 m2 9.8 m 12.2 m 11.3 m 74 m2 11 m 13.4 m
16* 14.5 m2 12.8 m 21 m2 11.6 m 14 m 12.8 m 91 m2 12.8 m 15.2 m
20 14.5 m2 12.8 m 21 m2 11.6 m 14 m 12.8 m 91 m2 12.8 m 15.2 m
32* 21 m2 14.6 m 30 m2 13.1 m 16.2 m 14.6 m 105 m2 14.6 m 17 m
35 21 m2 14.6 m 30 m2 13.1 m 16.2 m 14.6 m 105 m2 14.6 m 17 m
40 35 m2 16.5 m 38 m2 14.9 m 17.4 m 16.5 m 115 m2 16.5 m 18.6 m
44* 31.5 m2 19.5 m 52 m2 18 m 20.7 m 19.5 m 130 m2 19.5 m 22.2 m
46 34 m2 21 m 58 m2 19.5 m 22.2 m 21 m 142 m2 20.7 m 23.8 m
48* 36 m2 22.2 m 65 m2 20.7 m 23.8 m 22.2 m 162 m2 22.5 m 25 m
50 36 m2 22.2 m 65 m2 20.7 m 23.8 m 22.2 m 162 m2 22.5 m 25 m
53* 40 m2 23.5 m 72 m2 22.2 m 25.9 m 23.5 m 182 m2 24 m 27.4 m
60 49 m2 25 m 79 m2 24.4 m 28 m 25 m 204 m2 25.9 m 29.9 m
70 55 m2 26.2 m 93 m2 25.9 m 29.6 m 26.2 m 279 m2 27.7 m 33 m
74* 88 m2 30.5 m 125 m2 31.1 m - - - 32 m -
80 88 m2 30.5 m 125 m2 31.1 m - - - 32 m -

*Available in stainless steel, all-chrome, or bronze only. Material availability varies by winch size. Contact us to request quote and lead time.
