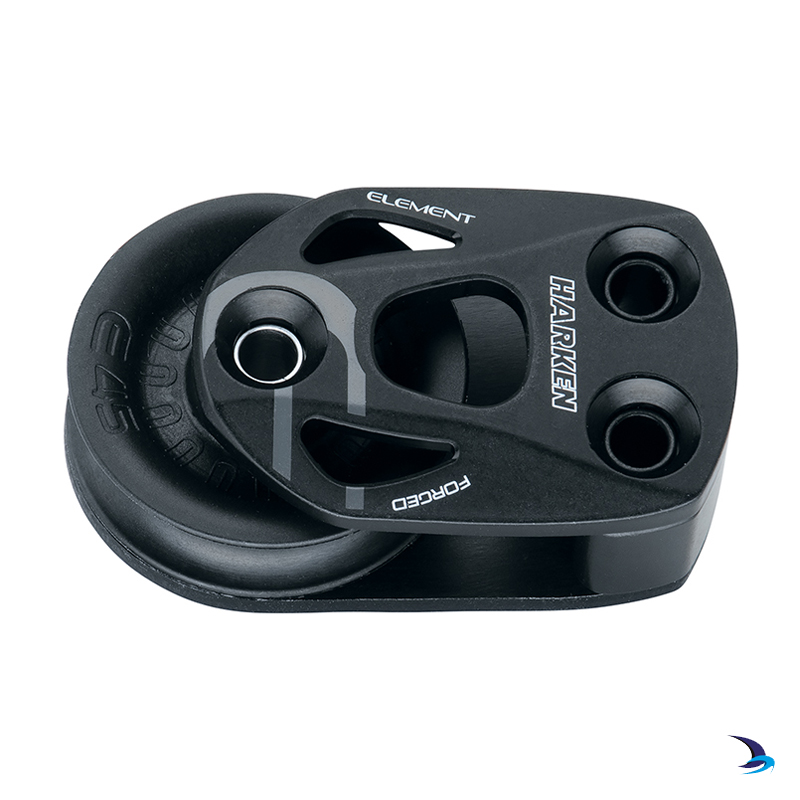

Harken - Element Single Footblock 45mm

Harken - Element Single Footblock 45mm


Manufacturer #:  6237

£59.99    (Inc. UK VAT @ 20%)RRP:  £67.68Save:  £7.69 (11%)(£49.99 Exc. VAT)

In the Harken Element block, everything that doesn’t contribute durability or strength is stripped away. The result is an economical block that does a Harken job.

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than Harken's previously least expensive blocks.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Harken Element Block Features

  • Aluminium sideplates are forged for strength and sheave protection
  • Sideplates are hardcoat-anodised to resist corrosion
  • Bearing sheave of tough composite resist corrosion for long service life

Harken Element Footblock Specifications

Sheave Ø Length Height Weight Max Line Ø Max Working Load Breaking Load Fasteners
45mm 76mm 25mm 100g 12mm 700kg 1400kg 6mm
60mm 102mm 30mm 160g 14mm 1100kg 2200kg 8mm
80mm 114mm 36mm 310g 16mm 2200kg 4400kg 10mm

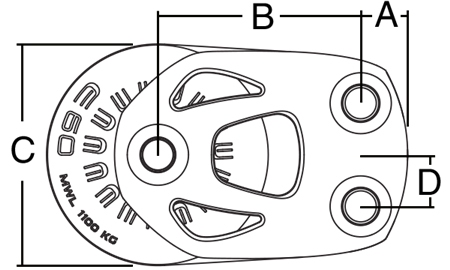

Harken Element Footblock Dimensions

Sheave Ø A B C D
45mm 11mm 41.5mm 45mm 9.5mm
60mm 12.5mm 54.5mm 60mm 14mm
80mm 19.5mm 61mm 80mm 19.8mm
