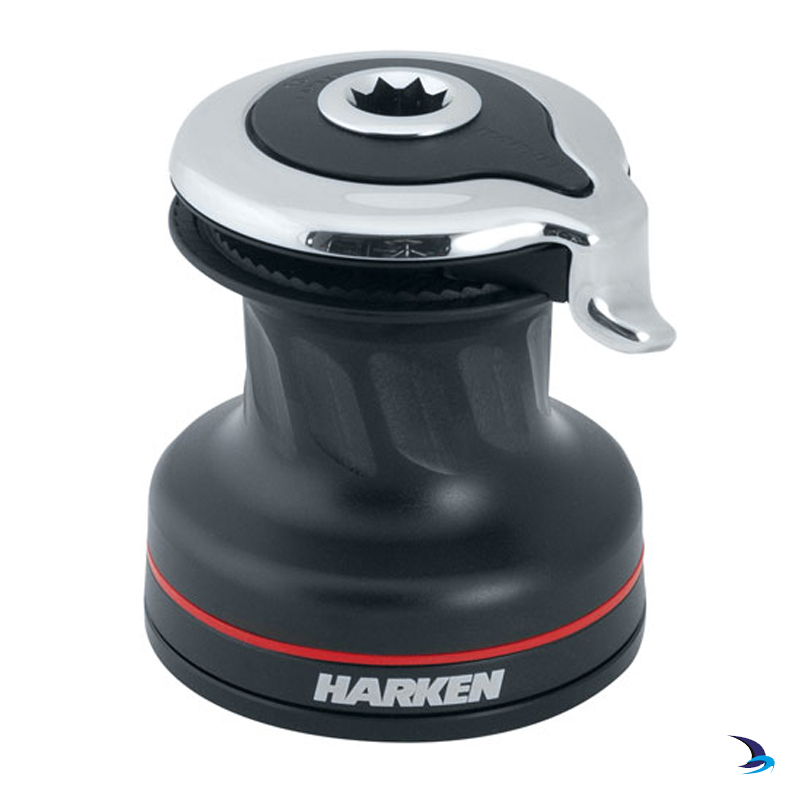

Harken - Radial® Self-Tailing Winches (Single Speed)

Harken - Radial® Self-Tailing Winches (Single Speed)

Harken




Manufacturer #:  15STA

£449.99    (Inc. UK VAT @ 20%)RRP:  £636.41Save:  £186.42 (29%)(£374.99 Exc. VAT)

Harken Radial Winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load.

Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation with easy upgrades to power.

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The ribs on chrome winches are spaced closer together than on the aluminium winches to increase friction as the chrome finish is more slippery. This optimizes your grip for trimming as well as for easing the sail in a smooth, controlled manner.

Size 15 and 20 winches use composite bushings to handle high loads in a small package.

3 year warranty

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Harken Radial Winch Features

Maximum holding power with minimum line wear

  • Nonabrasive diagonal ribs on gripping surface hold line securely and reduce line wear; ribs shaped for each winch size and drum material.

Smooth, controlled easing

  • Patented angle of ribs drives line wraps down when easing to keep them on area of drum that provides best control.

High-strength, lightweight

  • Weight savings of 25 to 50 percent compared to Harken Classic winch line.
  • High-strength composite roller bearings and bushings reduce friction under load.
  • Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.

Adjustable stripper arm integrated into winch top for safer operation

  • Stripper arm completely covers rotating winch top, preventing fingers and clothing from catching in moving parts.
  • Adjusts to multiple positions after the winch is mounted to optimize line exit.
  • Shaped to smoothly feed line in and out of self-tailing jaws.

Power-grip jaws shaped for easy line entry, optimum hold

  • Upper jaw adjusts under line pressure; accepts a variety of line sizes.
  • Teeth grip evenly with or without load.

Simple to install, easy maintenance

  • Patented mounting system for fast, one-person installation without removing drum.
    1. Snap off the skirt at the base of the winch.
    2. Slide bolts through the slots in the winch base and snap the plastic skirt back on.
    3. Place the stud bolts into the predrilled holes on the deck and tighten from belowdeck.
  • Snap-fit design keeps bearings captive when drum is removed for maintenance.
  • Easy to disassemble for service on deck; socket, washer, and screw-top snap-fit together for mistake-free reassembly.
  • Composite roller bearings don’t require lubrication.

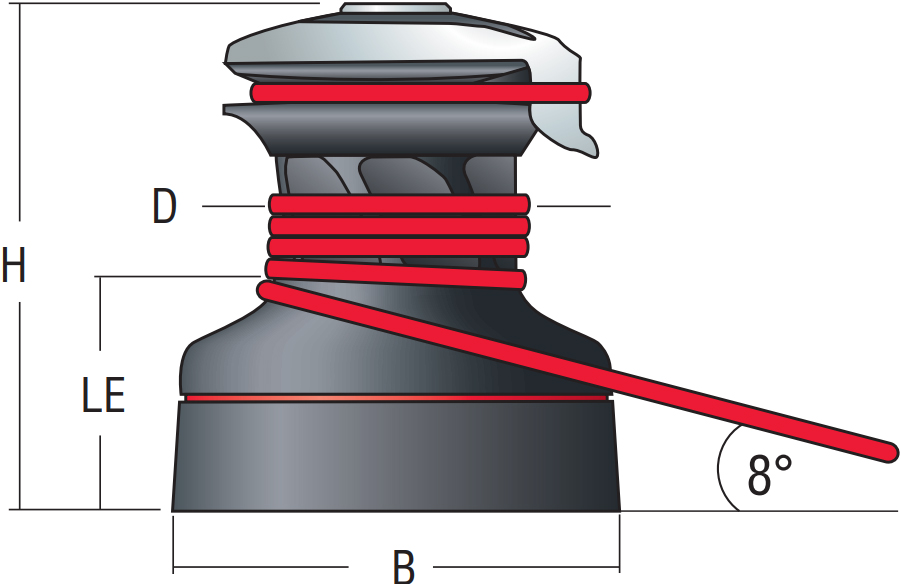

Harken Single Speed Radial Winch Specifications

Size Dimensions Weight Line Ø LE Gear Ratio (:1) Power ratios (:1)
15 D - 73mm
B - 120mm
H - 139mm
Aluminium - 2.1kg 6mm (min)
10mm (max)
58mm 2.43 16.9
20 D - 73mm
B - 137mm
H - 148mm
Aluminium - 2.4kg
Chrome - 3.4kg
6mm (min)
12mm (max)
61mm 2.76 19.2


Harken Winch Selection Guide

Definitions

I Height of the foretriangle measured from the top of the highest sheave to the sheerline
I2 Height of the staysail halyard above deck
J Base of the foretriangle measured from the front of the mast to the intersection of the forestay and deck
J2 Base of the staysail triangle
P Luff length of the mainsail
E Foot length of the mainsail
Winch
Size
Genoa Mainsail Staysail Spinnaker
  Sheet Halyard End-boom
Mainsheet
Halyard Reef Halyard Sheet Halyard Topping Lift/
Foreguy

Max sail area 100%
foretriangle (IxJx0.5)
Max I
4:1 sheet max sail
area (PxEx0.5)
Max P
Max P
Max I2
Max sail area
(IxJx1.8)
Max I
Max I
6 7 m2 7.6 m - 7.6 m 10.4 m 7.6 m 46.5 m2 7.6 m 10.7 m
8 10.5 m2 11 m 14 m2 9.8 m 12.2 m 11.3 m 74 m2 11 m 13.4 m
16* 14.5 m2 12.8 m 21 m2 11.6 m 14 m 12.8 m 91 m2 12.8 m 15.2 m
20 14.5 m2 12.8 m 21 m2 11.6 m 14 m 12.8 m 91 m2 12.8 m 15.2 m
32* 21 m2 14.6 m 30 m2 13.1 m 16.2 m 14.6 m 105 m2 14.6 m 17 m
35 21 m2 14.6 m 30 m2 13.1 m 16.2 m 14.6 m 105 m2 14.6 m 17 m
40 35 m2 16.5 m 38 m2 14.9 m 17.4 m 16.5 m 115 m2 16.5 m 18.6 m
44* 31.5 m2 19.5 m 52 m2 18 m 20.7 m 19.5 m 130 m2 19.5 m 22.2 m
46 34 m2 21 m 58 m2 19.5 m 22.2 m 21 m 142 m2 20.7 m 23.8 m
48* 36 m2 22.2 m 65 m2 20.7 m 23.8 m 22.2 m 162 m2 22.5 m 25 m
50 36 m2 22.2 m 65 m2 20.7 m 23.8 m 22.2 m 162 m2 22.5 m 25 m
53* 40 m2 23.5 m 72 m2 22.2 m 25.9 m 23.5 m 182 m2 24 m 27.4 m
60 49 m2 25 m 79 m2 24.4 m 28 m 25 m 204 m2 25.9 m 29.9 m
70 55 m2 26.2 m 93 m2 25.9 m 29.6 m 26.2 m 279 m2 27.7 m 33 m
74* 88 m2 30.5 m 125 m2 31.1 m - - - 32 m -
80 88 m2 30.5 m 125 m2 31.1 m - - - 32 m -

*Available in stainless steel, all-chrome, or bronze only. Material availability varies by winch size. Contact us to request quote and lead time.
