Index Marine - Busbars
Busbar: F-2241Busbar: F-2242Busbar: F-2243Busbar: F-2244

Index Marine - Busbars

Index Marine
  (1 Review)


Manufacturer #:  F-2241

£17.59    (Inc. UK VAT @ 20%)(£14.66 Exc. VAT)

A range of high quality nickel plated brass busbars manufactured by Index Marine.  They are available in 6 or 12 way and as an 8mm commoning post.  All models are supplied with plastic feet and come complete with the necessary fittings.

Busbars are also available mounted in plastic enclosures - see Junction boxes.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Good product
12 January 2016  |

Not much to say as what I expected. It does come as a box of bits rather than having the screws in the holes which was a surprise, but a couple of minutes to screw them in and all bits were there.

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Product Information

Part Description Dimensions Cable entry Amperage rating Material Fixings

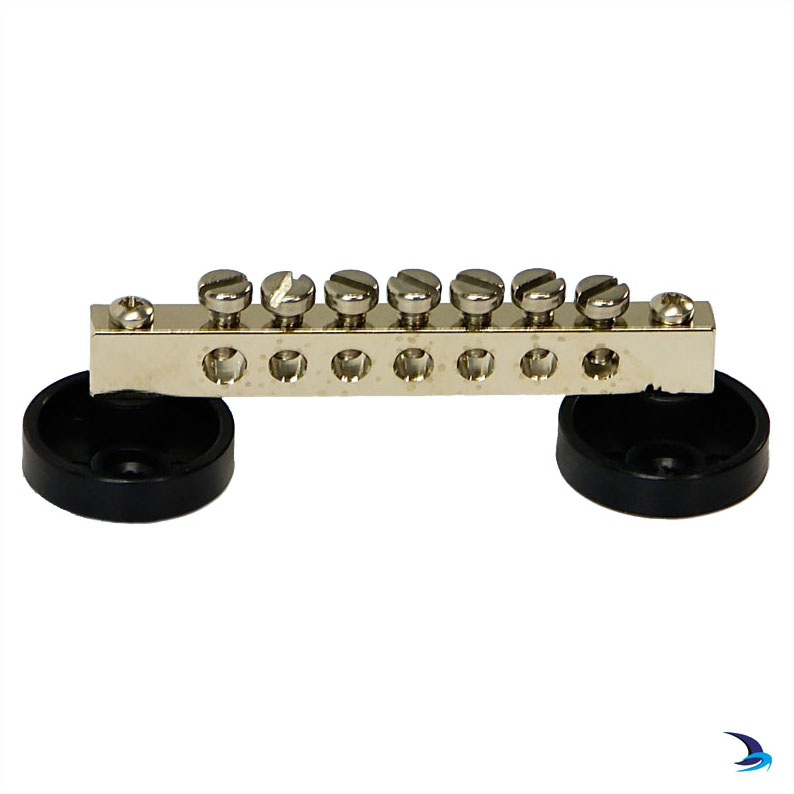

F-2241 6-way cable entry 75 x 20mm (1 x) 5mm
(6 x) 4mm
100 Amps Nickel-plated brass Stainless steel

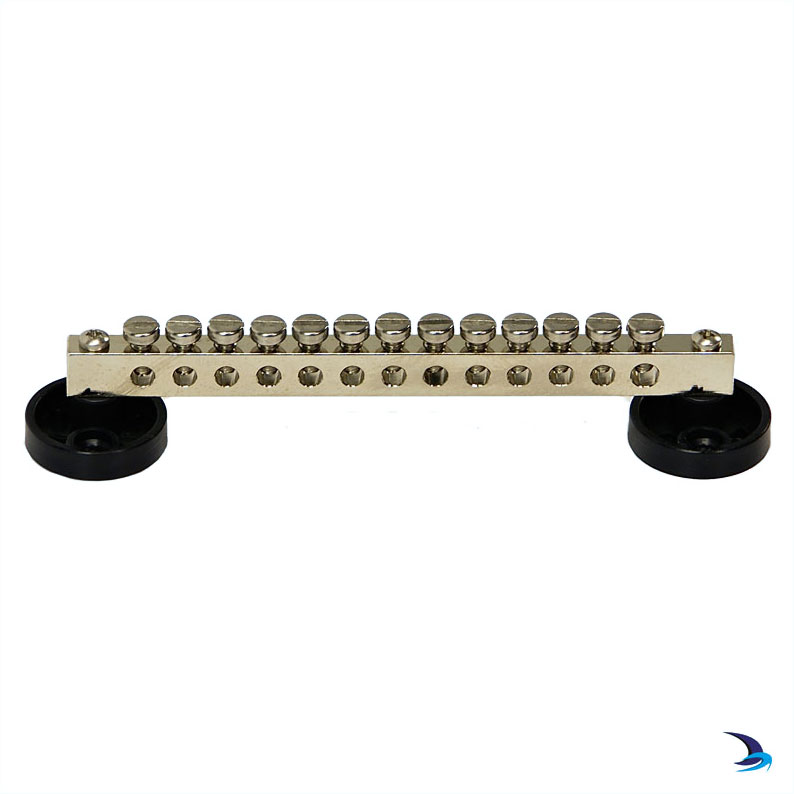

F-2242 12-way cable entry 116 x 20mm (1 x) 5mm
(12 x) 4mm
100 Amps Nickel-plated brass Stainless steel

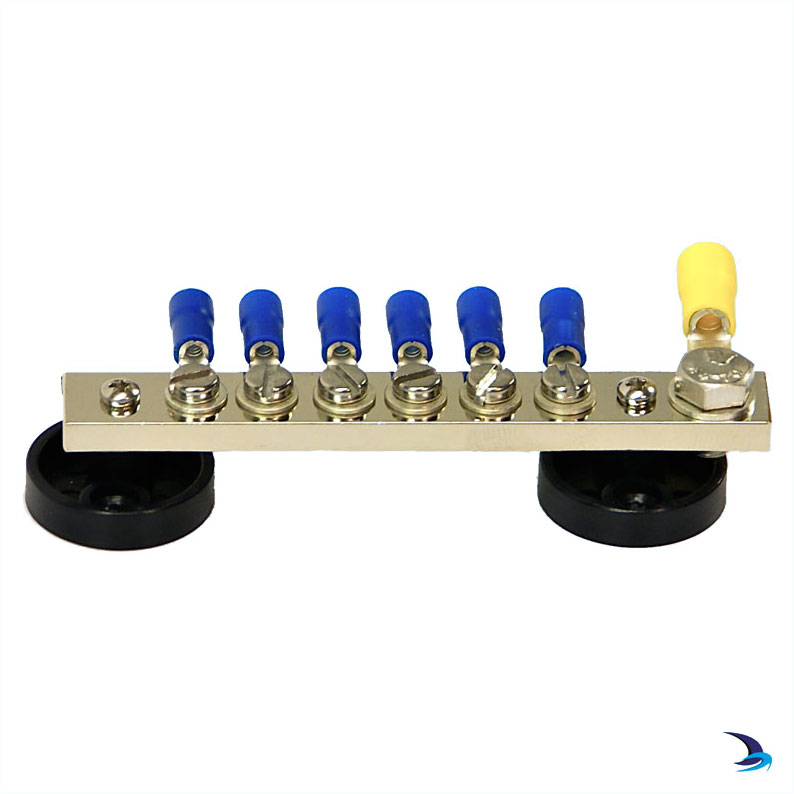

6-way ring terminal

95 x 17mm (1 x) yellow
(6 x) blue
100 Amps Nickel-plated brass Stainless steel

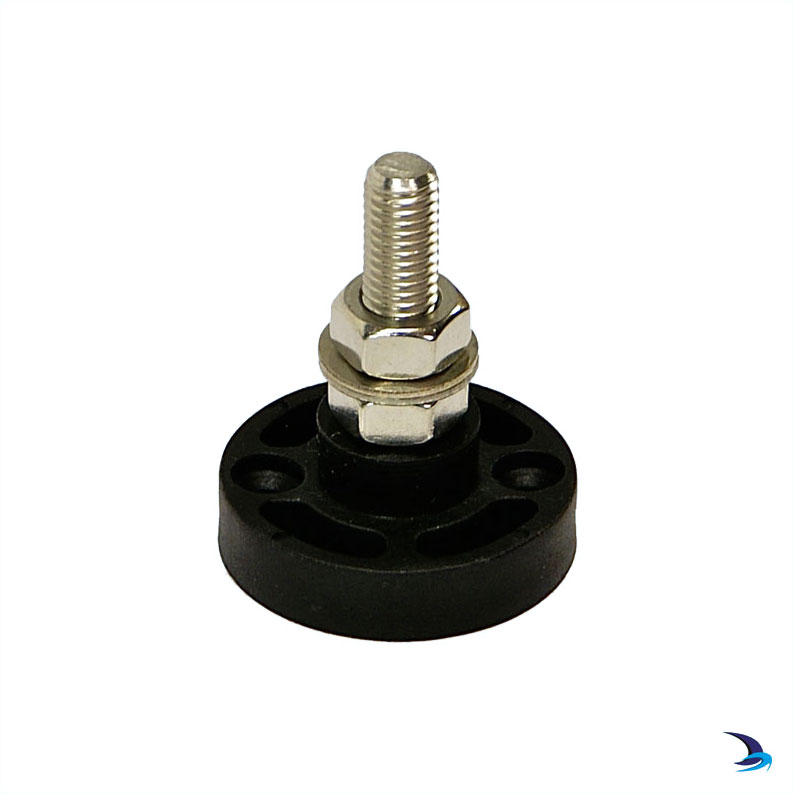

F-2244 Commoning post 48 x 35mm Suitable for
(8 x) rings
- Stainless steel Stainless steel
