Lewmar - Atlantic Portlight

Lewmar - Atlantic Portlight

Lewmar

Port size:
Window tint:
Trim colour:
Valance:

Article Number:  39110090

Price:  £376.99
RRP:  £377.92
Save:  £0.93
(Inc. VAT @ 20%)
+

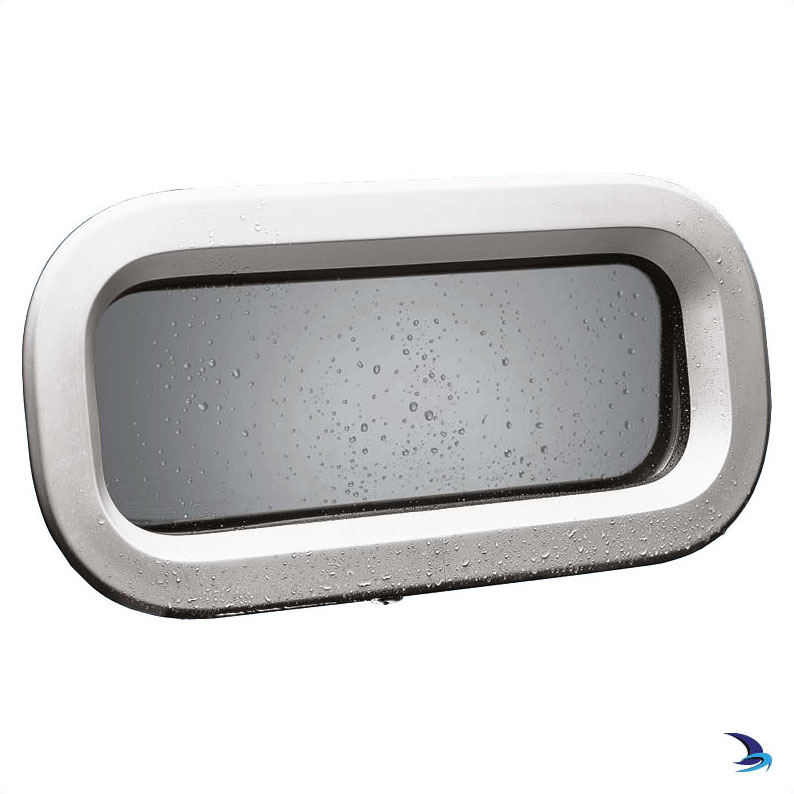

The Lewmar Atlantic Portlight has clean lines and a clear, acrylic window housed in an attractive aluminium frame. Portlight inner and outer frames are made from aluminium extrusion, deep anodised for maximum corrosion resistance. All sizes CE Approved for Category A, Areas 2, 3 & 4 - sizes 10, 30 & 32 approved for Area 1 also.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Anodised Extruded Alloy Frame
Portlight inner and outer frames are made from aluminium extrusion, deep anodised for maximum corrosion resistance.

Quick Action Handles
Portlight handles apply the correct pressure evenly onto the seal in the closed position. Portlight handles are unable to vibrate open when in the closed position.

Water Drainage
The portlight outside frame is designed to allow water to drain away even when mounted on an angled coachroof side preventing water entering the boat when opening the portlight.

Friction Hinges
Lewmar's revolutionary hinges provide a choice of open positions with no knobs, stays or straps. Hinges and other moving parts are corrosion free.

Flyscreen
The flyscreen is made from nylon mesh with a moulded frame which clips onto the portlight outer frame. Flyscreen can be left in position when the window is closed. Supplied as standard.


Notes:

  • Portlights and fixed lights should be fitted to a flat surface with a maximum tolerance 1mm
  • Smoke grey acrylic and silver anodized frames
  • Portlight opening is restricted on very thick hulls. At 24mm hull thickness, opening angle is 115

Thick Hull Valance Requirement

  • Hull thickness 8-15mm - a thin valance is required
  • Hull thickness 16-24mm - a thick valance is required

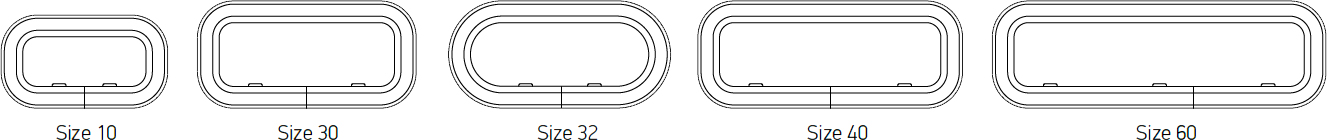

Lewmar - Atlantic portlights

Size Style Overall size Cut-out size*
Width
(X)
Height
(Y)
Depth
(Z)
Radius
(R)
Width
(X 1)
Height
(Y 1)
Radius
(R 1)
10 Opening 304mm 174mm 6mm 71mm 284mm 154mm 61mm
30 Opening 400mm 200mm 6mm 71mm 380mm 180mm 61mm
32 Opening 400mm 200mm 6mm 100mm 380mm 180mm 90mm
40 Opening 480mm 200mm 6mm 71mm 460mm 180mm 61mm
60 Opening 600mm 200mm 6mm 71mm 580mm 180mm 61mm

  • Maximum hull thickness 34mm, minimum hull thickness 7mm
  • All portlights are supplied with 12 M5 x 25 screws for hull thickness 7-25mm
  • Porlights should be fitted to a flat surface ± 1mm

Lewmar Hatch & Portlight Fitting Guide (PDF)
