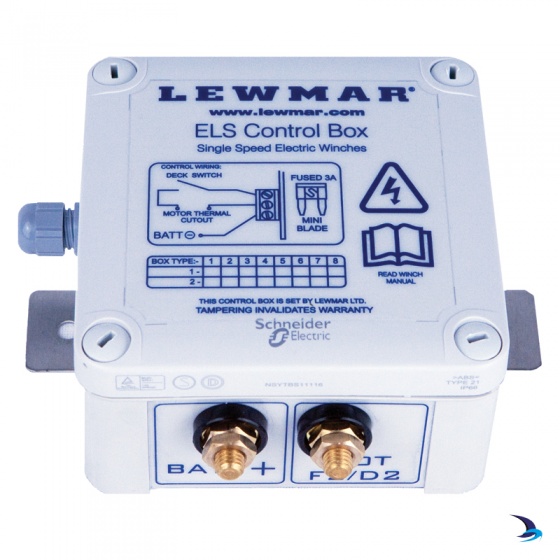

Lewmar - ELS Control Boxes for Electric Winches

Lewmar - ELS Control Boxes for Electric Winches

Lewmar

ELS Version:

Manufacturer #:  48000217

Price:  £609.99(Inc. VAT @ 20%)
+

Pioneered by Lewmar, ELS electric winches are controlled by an Overload Protection Control Box, which allows the winch to be operated up to a set current relative to the working load limit of the specific winch. Once this current is exceeded, the winch automatically cuts out prior to the circuit breaker tripping. The ELS is simply reset by releasing the deck switch and the winch can be restarted. ELS is supplied as standard with EVO™ Electric winches sizes 55 and over and Ocean Winches sizes 50 and over, but can also be fitted to smaller sizes as an optional upgrade.

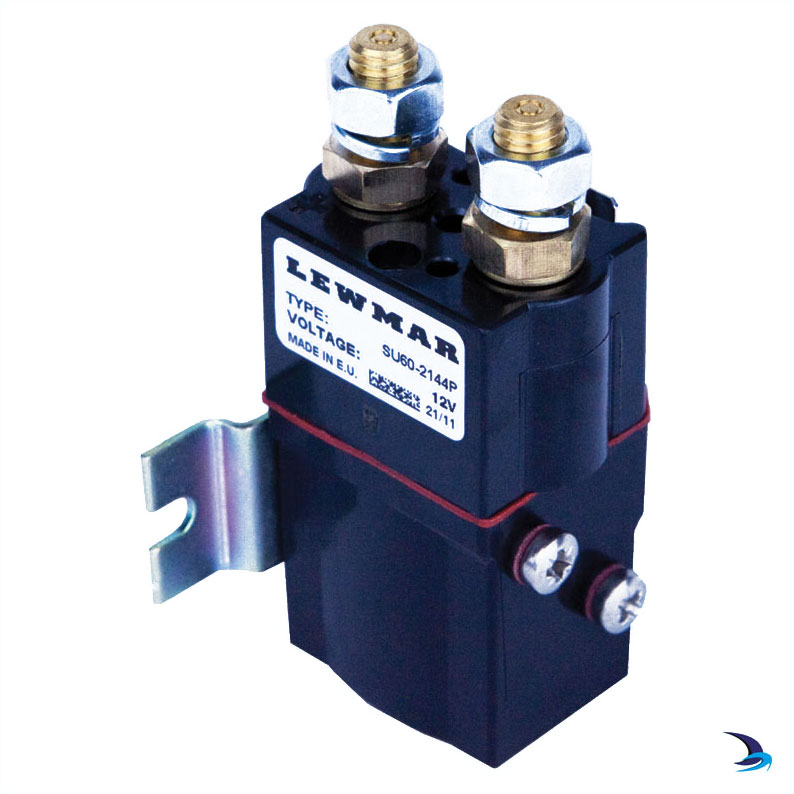

Both the E-Series and ELS contactors are equipped with a thermal trip to monitor the motor temperature, which ensures a cut-out if the heat builds up to an unacceptable level.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Lewmar Contactor and Control Box Selection Guide

Part no. Description EVO Size: 40ST - 45ST 50ST - 55ST - 65ST
Ocean Size: 40ST 44ST 46ST 48ST 50ST 54ST 58ST 6ST
68000933 E-Series 12V
68000934 E-Series 24V
18000301 E-Series 12V in waterproof box
18000302 E-Series 24V in waterproof box
48000217 ELS Control Box Type 1-3 24V
48000220 ELS Control Box Type 1-6   24V 24V
48000221 ELS Control Box Type 1-7       24V 24V 24V
48000222 ELS Control Box Type 1-8 12V           24V 24V
48000224 ELS Control Box Type 2-2   12V 12V
48000225 ELS Control Box Type 2-3       12V 12V
48000227 ELS Control Box Type 2-5           12V
48000229 ELS Control Box Type 2-7             12V 12V
