Lewmar - EVO® Self-Tailing Winch
 Winch finish: Alloy blackWinch finish: Alloy greyWinch finish: Chrome bronze

Lewmar - EVO® Self-Tailing Winch

  (2 Reviews)


Manufacturer #:  49515055

£529.99    (Inc. UK VAT @ 20%)RRP:  £673.07Save:  £143.08 (21%)(£441.66 Exc. VAT)

Lewmar fuses its legendary quality with state of the art technology to offer the most advanced winch range ever; the EVO®. Lewmar believes in evolution not revolution – they have been evolving and improving winch technology for almost half a century.

Since the 1960’s Lewmar has developed winch solutions for the world’s leading boat-builders, custom yards and race teams. No other company in the leisure marine market has the same level of heritage and expertise when it comes to building reliable, high quality, easy to fit and easily serviceable winches.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Please add the two numbers

Average Rating (2 Reviews):
Write a Review and share your opinions!

best price
13 March 2020  |

quality speed and price.. the top

Was this helpful to you?  Yes  /  No

This review has not been appraised.

25 February 2018  |

I' do not feel very confident with the plastic cap at the top of the winch because of the tread who seems to be undersized. The material of the cap seems to be not rigid enough.
I will pay attention in particular to this part in the future.
Best regards.
Thierry Troadec

Was this helpful to you?  Yes  /  No

1 of 1 people found this review helpful.

Product Information

Lewmar EVO® Winch Features

An EVOlution of the renowned Lewmar Ocean Winch, the EVO® Self-Tailing winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch. With a wide choice of sizes and styles, there is a versatile EVO® for any application.

  • Simple Servicing - No tools are required to service a Lewmar EVO® winch. Simply unscrew the top cap with your fingers to remove the drum and provide access to the proven gear chain.

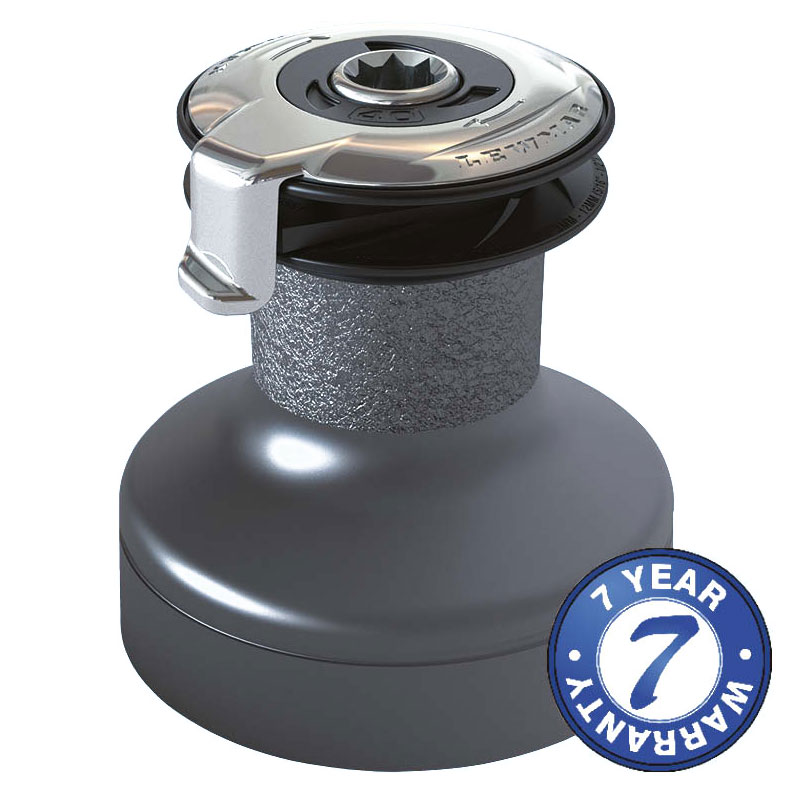

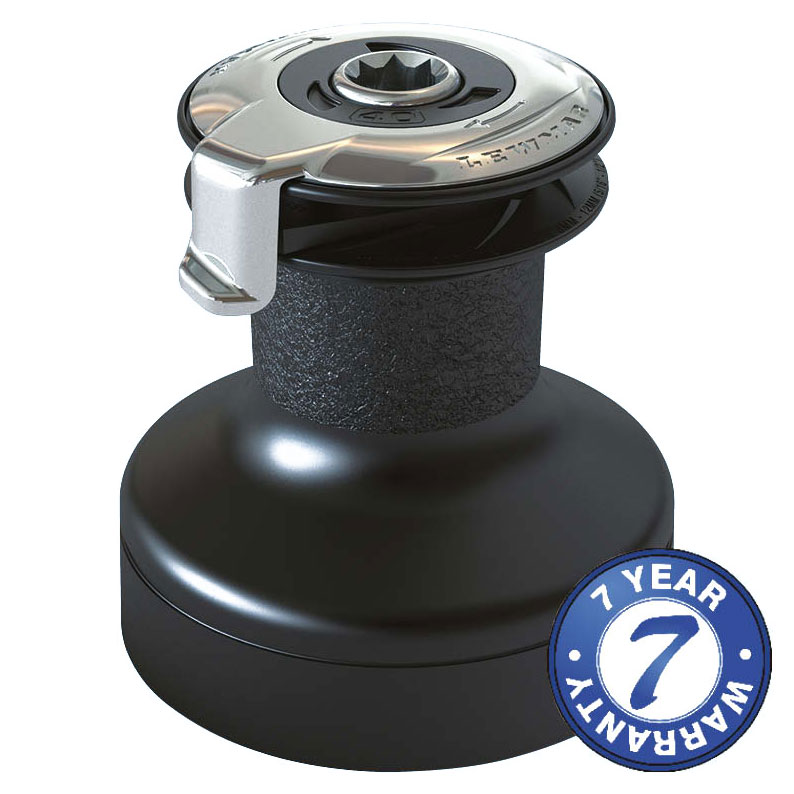

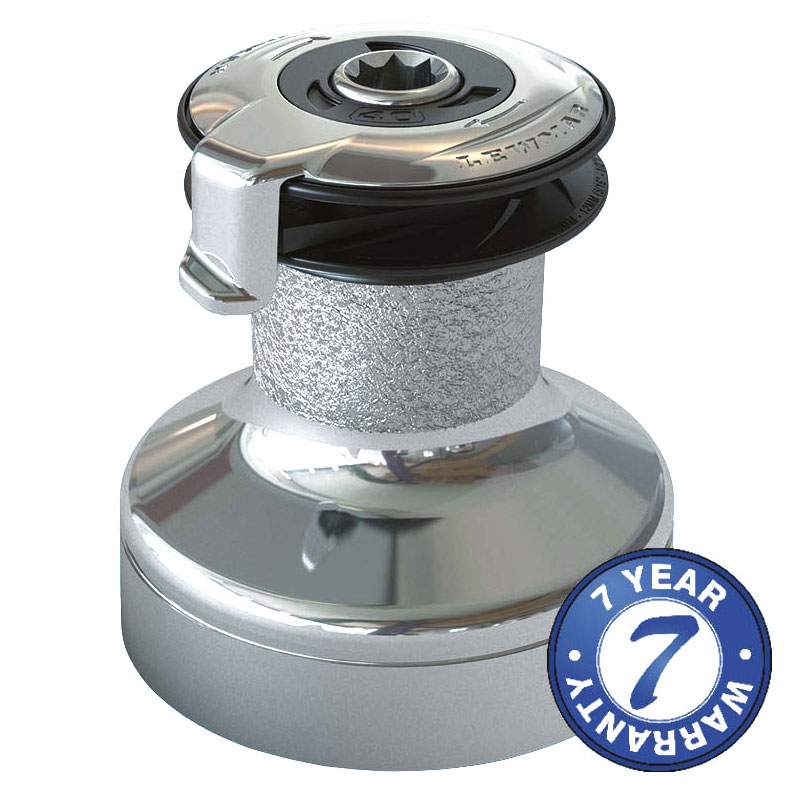

  • Multiple Styles & Finishes - EVO® winches are available in black or grey alloy and chrome bronze for the cruising sailor. Manual winches feature single speed or two speed, while sizes 40 to 80 are available with electric or hydraulic operation.
  • Wavespring Jaw and Feeder Arm - The integrated investment cast stainless steel feeder arm completely covers the top of the winch, preventing a rope trap above the Wavespring jaws. The feeder arm position can be adjusted to smoothly feed the rope out of the jaws and into the cockpit.
  • Engineering Excellence - For Lewmar customers, there is no such thing as "just a winch". That's because inside every winch you will find materials developed over many years, designed using the latest techniques and machined using CNC equipment. When Lewmar machine the winches, they are looking for the maximum in efficiency, durability, and strength to weight ratio.​
  • 7-Year Warranty - Lewmar are so confident about the quality of the EVO winch that they are backing this up with a 7-year warranty.

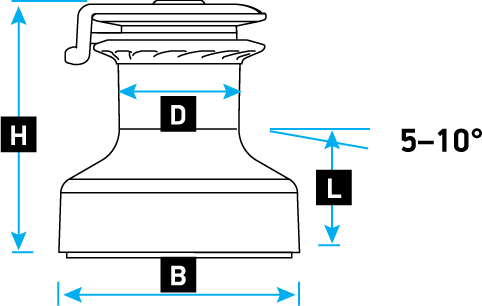

Lewmar EVO® Self-Tailing Winch Specifications

Model Gear Ratio Power Ratio WLL
Drum Ø (D) mm Base Ø (B) mm Height (H) mm Line Entry (L) mm Line Size mm
1st 2nd 1st 2nd
15ST 2:1 - 15.8:1 - 570 2.6 Alloy
3.9 Chrome
66.8 121 119 58 8-12
30ST 2:1 4.2:1 13.8:1 29.2:1 685 4 Alloy
5.4 Chrome
74 138 145.85 69 8-12
40ST 1.9:1 5.8:1 13.2:1 40.2:1 795 4.9 Alloy
6.5 Chrome
74 148 158.5 79 8-12
45ST 2.4:1 7.6:1 13.9:1 44.8:1 1200 7.1 Alloy
9.7 Chrome
87 168 177.7 84 8-14
50ST 2.6:1 9:1 13.9:1 48.6:1 1250 9 Alloy
12.3 Chrome
93 181 197 90 8-14
55ST 2.8:1 11.2:1 13.8:1 54:1 1480 12.2 Alloy
18 Chrome
105 205 233 115 8-16
65ST 3.1:1 14.8:1 13.4:1 64:1 1700 16.6 Alloy
23.8 Chrome
118 228 251 119 8-18

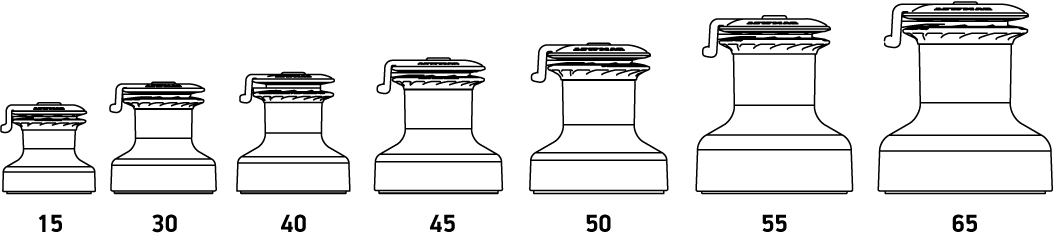

Lewmar EVO® Self-Tailing Winch Sizes

Lewmar Winch Selection Guide
