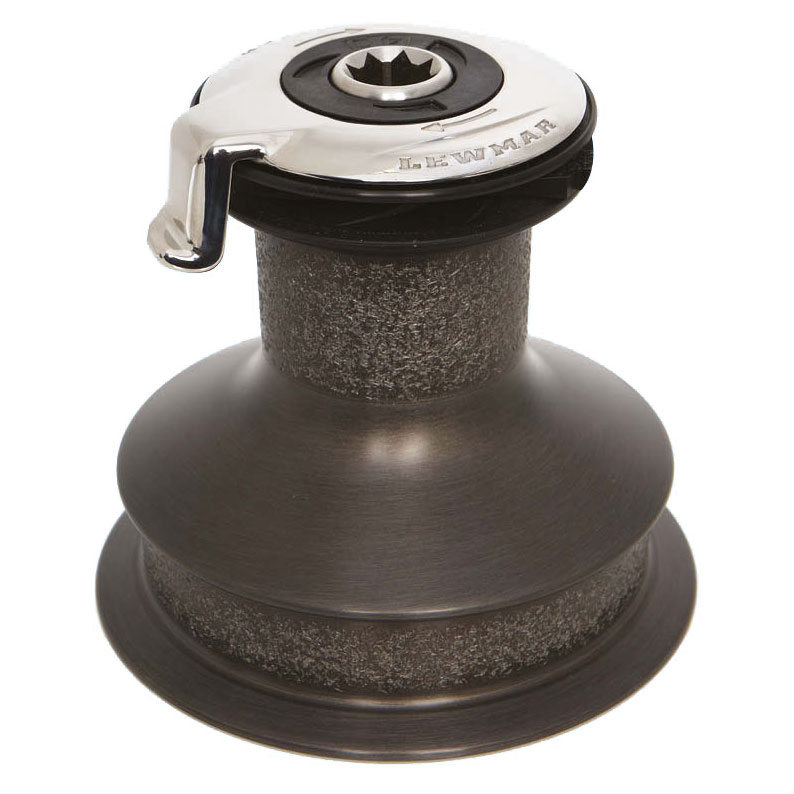

Lewmar - EVO® Speed Ring Winch

Lewmar - EVO® Speed Ring Winch

Lewmar

Winch finish:
Winch size:

Article Number:  49540085

Price:  £1,139.99
RRP:  £1,532.95
Save:  £392.96
(Inc. VAT @ 20%)
+

EVO® Speed Ring racing winches offer all the features of the EVO® Range with the additional benefit of two drum diameters. The larger drum is used for fast asymmetric spinnaker gybes or hoists while the standard size drum allows fine tuning, removing the need for additional winches.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Product Information

  • Easy Servicing – No tools required
  • Two drum diameters for greater control
  • Choice of 2 finishes: Black or Grey Alloy

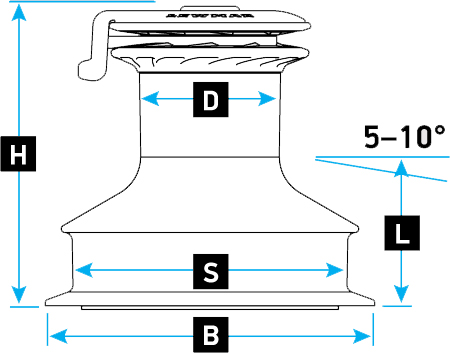

Lewmar EVO® Speed Ring Winch Specifications

Size Gear Ratio Power Ratio Speed Ring WLL
kg
Weight
kg
Drum Ø
mm
Speed Ring Ø
mm
Base Ø
mm
Height
mm
Line Entry
mm
Line Size
mm
1st 2nd 1st 2nd 1st 2nd
40 1.9:11 5.8:1 13.2:1 40.2:1 6.6:1 20.3:1 795 4.9 74 145.5 148 158.5 79 8-12
45 2.36:1 8:1 13.86:1 46.8:1 7:1 22.6:1 1200 7.6 86.8 170.5 205 177.5 84.5 8-12
