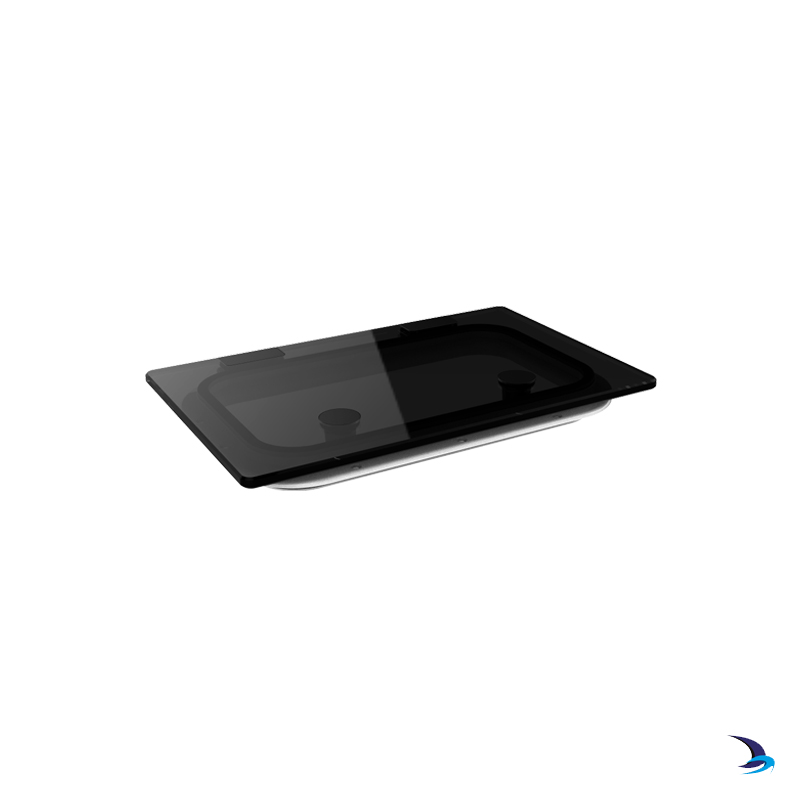

Lewmar - Flush Hatch 3G Size 20 417 x 272mm

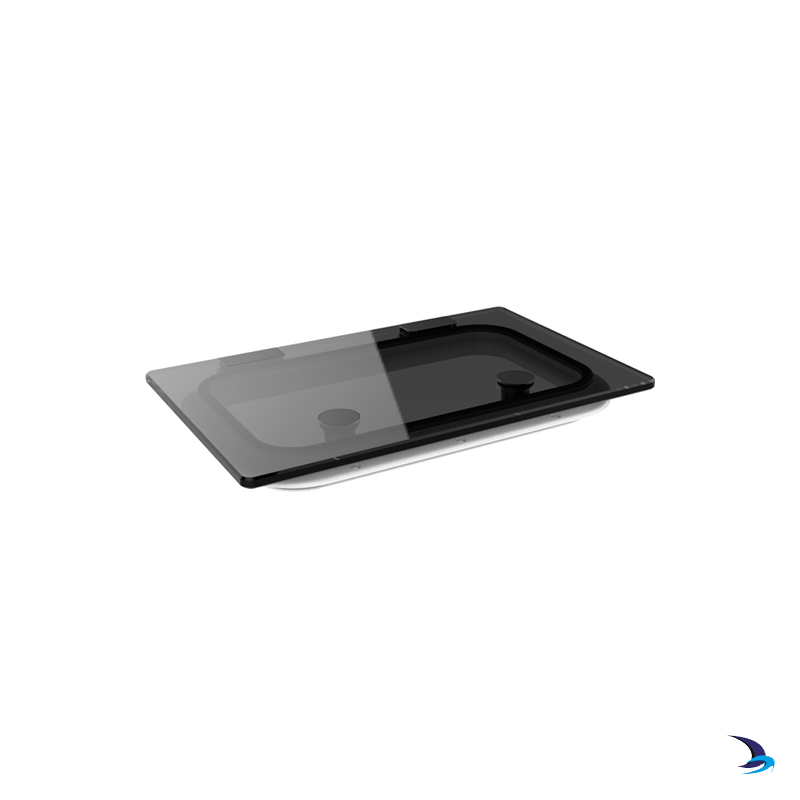

 Acrylic colour: Dark greyAcrylic colour: Smoke Grey

Lewmar - Flush Hatch 3G Size 20 417 x 272mm



Manufacturer #:  399204924

£389.99    (Inc. UK VAT @ 20%)RRP:  £489.42Save:  £99.43 (20%)(£324.99 Exc. VAT)

Lewmar pioneered the high-volume Flush hatch platform back in 2006, bringing what was then Superyacht styling into mainstream boat production. The precision of the fit makes for a sleek, modern look and means no more stubbed toes for boat owners!

2013 saw the launch of the new version of this successful product offering an even smaller profile and cleaner aesthetic plus improved manufacturing techniques. The tough, tinted acrylic panel is all that can be seen on deck.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Flush Hatch 3G Features

  • Lower frame mounted seal
  • Strengthened, extruded aluminium frame hidden discreetly below deck
  • Completely flush fittings
  • Exterior handle available for foredeck use
  • Interchangeable with the Flush 2G product
  • Built in locking mechanism

Flush Hatch 3G Standard Specifications

  • White lower frame
  • Black mouldings
  • Acrylic colours grey or dark grey
  • Size 10, 20 and 41 supplied with friction hinges and plain flush exterior handle caps
  • Sizes 30, 44, 54, 60 and 70 supplied with 1 or 2 stays and winch handle opening handles

Lewmar Flush Hatch 3G Specifications


Size Overall Size Cut-Out Size
Hinge gap
(X 1)
(Y 1)
(R 1)
10 330m 330mm 31mm 10mm 11mm 260mm 260mm 42.5mm
20 417mm 272mm 31mm 10mm 11mm 347mm 202mm 42.5mm
30 527mm 397mm 31mm 10mm 11mm 457mm 327mm 42.5mm
41 491mm 246mm 31mm 10mm 11mm 421mm 176mm 42.5mm
44 512mm 512mm 31mm 10mm 11mm 442mm 442mm 42.5mm
54 577mm 462mm 31mm 10mm 11mm 507mm 392mm 42.5mm
60 577mm 577mm 31mm 10mm 11mm 507mm 507mm 42.5mm
70 697mm 697mm 31mm 10mm 11mm 627mm 627mm 42.5mm

Lewmar Flush Hatch 3G Size Range
