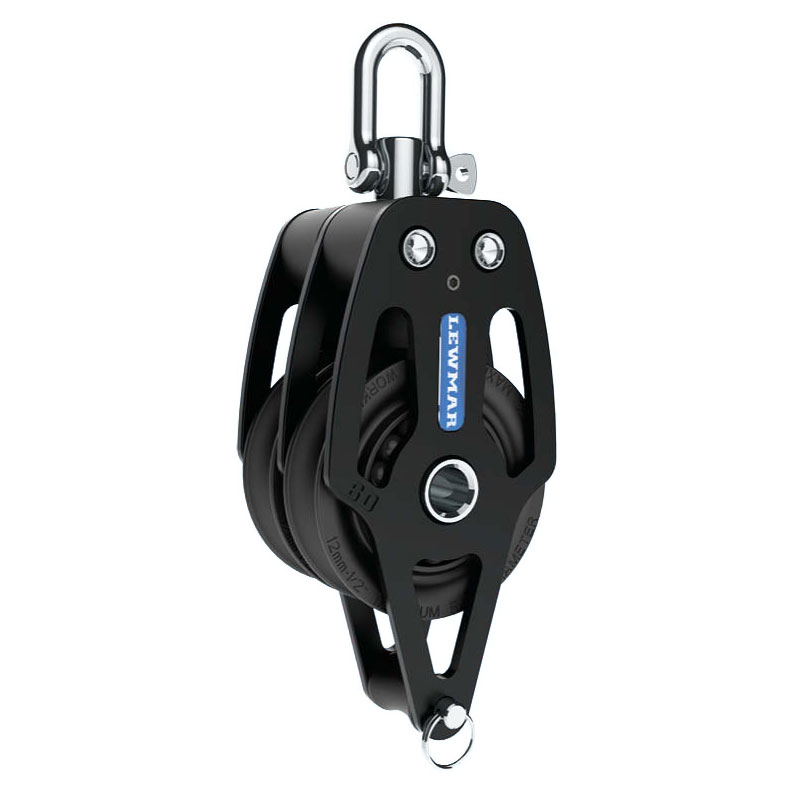

Lewmar - HTX Block Double + Becket 50mm

Lewmar - HTX Block Double + Becket 50mm

Lewmar

Manufacturer #:  29195005

£146.99    (Inc. UK VAT @ 20%)RRP:  £154.76Save:  £7.77 (5%)(£122.49 Exc. VAT)

Drawing upon the design of the racing range the Lewmar HTX blocks are constructed from a minimal number of alloy parts, providing enhanced reliability. Ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Higher efficiency - for faster sail handling and less rope wear

HTX blocks are more efficient then alternative brands using similar materials due to the machined bearing pin surface. HTX block efficiency improves above 450kg as acetal sheaves become self-lubricating at this point.

Features

  • Strong aluminium side cheeks
  • Central plain bearing for efficiency at high loads
  • Side thrust Delrin ball bearings
  • Head design inspired by the Lewmar Racing Range, complete with grub screw swivel head locking mechanism


Lewmar HTX Block Specifications

Sheave Working Load Limit Maximum Line Ø Shackle Post Ø Fits Max Pin Ø
50mmØ 800kg 10mm 9.4mm 5mm
60mmØ 1,100kg 12mm 11.9mm 6mm
72mmØ 2,000kg 14mm 16.5mm 9.8mm
90mmØ 3,500kg 16mm 19.8mm 10mm


  A   - Alloy cheeks

  B   - Side thrust ball bearings

  C   - Central plain bearing

  D   - Head pin design inspired by Lewmar Racing series block

  E   - High Load capacity and large line size



Lewmar Block Selection Guide
