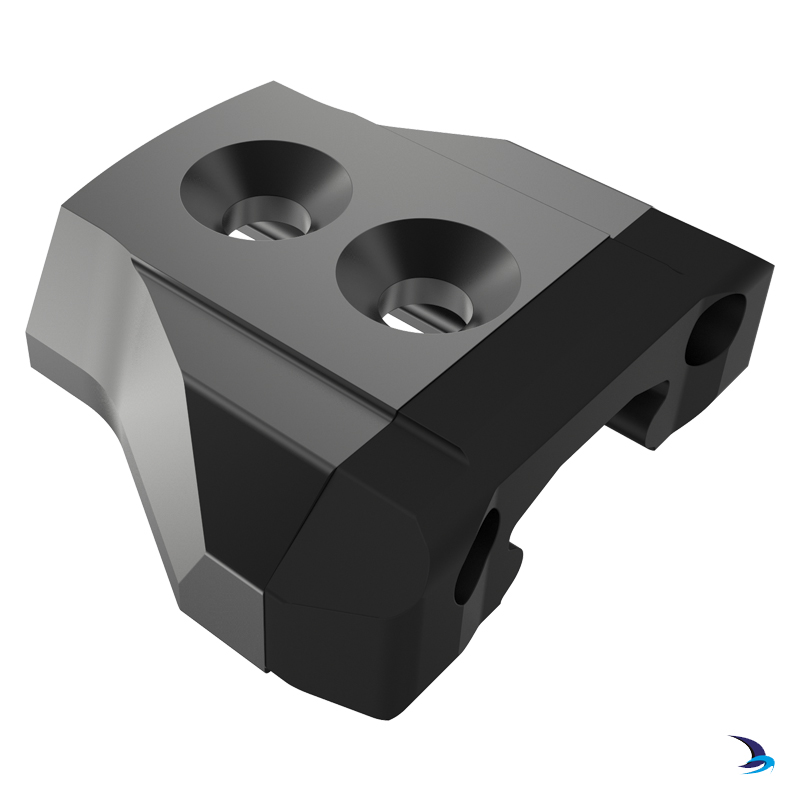

Lewmar - NTR Impact End Stop Size 2

Lewmar - NTR Impact End Stop Size 2

Lewmar

Manufacturer #:  29905200BK

Price:  £70.99
RRP:  £75.32
Save:  £4.33
(Inc. VAT @ 20%)
+

The Lewmar NTR range of cars are popular for cruising and racing yachts. The modular system suits any configuration and larger sheaves result in efficient rope handling.

Please see the Lewmar Cars Selection Guide below if you are unsure of the size you need.

(Please note we have used the abbreviation 'CL' for Control Line.)

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

NTR Range Features

  • Broad range - suitable for craft from 6m (20ft) - 30m (100ft)
  • Re-circulating ball bearing cars and slide rod cap options
  • Short cars for radiused tracks and long cars for compact multiple block attachment
  • Two style of car links for short and standard length cars
  • Modular system creates multiple options and creative solutions
  • Ball bearing control line options on size 2 and 3
  • Lock-on alloy plate cam plate extrusions on size 1 and 2 end stops
  • Cam cleat on car available in size 1 and 2
  • Surface mounted end stops eliminate leakage
  • Mainsheet kits provide a complete system in one package


Lewmar NTR End Stops Size 2 Specifications

Lewmar NTR End Stops size 2 fit on the corresponding size of Lewmar track which is 30mm in width.

End Stop Working
Load Limit
Length Width Weight
  kg lb mm in mm  in  g oz
Track End - - - - - - 30 1.1
Impact End Stop 1250 2755 114 4 1/2 - - 158 5.6
Bare End Stop 750 1650 105 4 1/8 65 2 5/8 238 8.4
Single CL Sheave 750 1650 105 4 1/8 65 2 5/8 301 10.6
Single CL Sheave - Becket 750 1650 105 4 1/8 65 2 5/8 331 11.7
Double CL Sheave 750 1650 105 4 1/8 65 2 5/8 363 12.8
Double CL Sheave - Becket 750 1650 105 4 1/8 65 2 5/8 393 13.8
Double CL Sheave - Becket - Cam 750 1650 105 4 1/8 112 4 5/8 602 21.2
Sheet Lead 1800 3960 194 7 5/8 65 2 5/8 1134 40
Plunger Stop 975 2145 87 3 3/8 65 2 5/8 261 9.2


Lewmar Car Selection Guide

The selection guide is designed for be used as a quick reference only. Calculations are based on the average modern cruising yacht. Sail area, different rigs, heavy or light displacement, multihull or monohull, are all factors which affect a yacht's specifications. Loadings should be obtained from the designer and matched to the safe working load of the hardware. Please contact us if you have any questions regarding the correct hardware for your boat.
