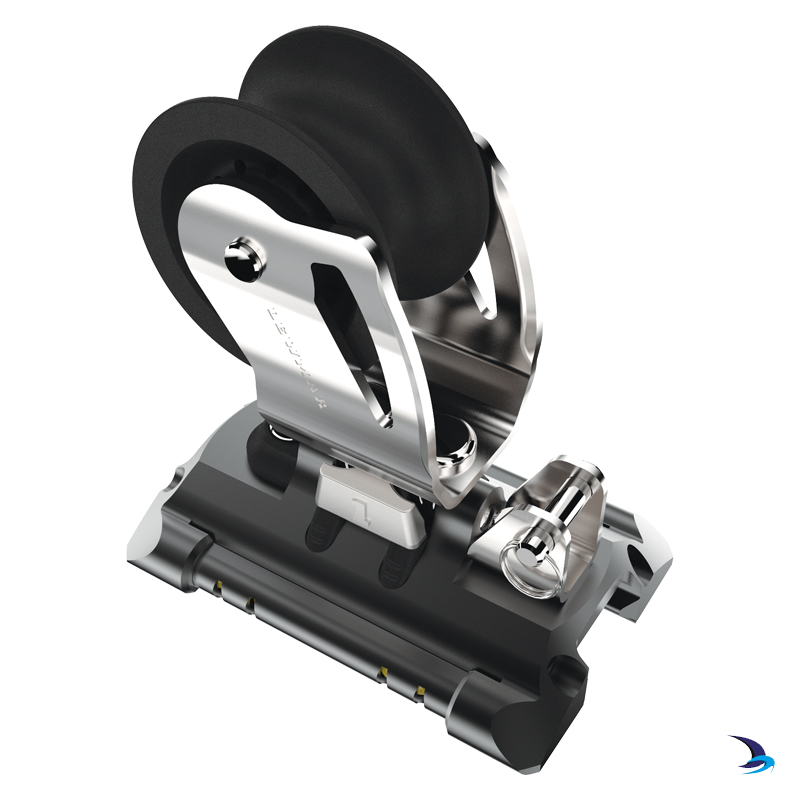

Lewmar - NTR Torlon Ball (TB) Short Genoa Car with Tow Point Size 1

Lewmar - NTR Torlon Ball (TB) Short Genoa Car with Tow Point Size 1

Lewmar

Article Number:  29421366BK

Price:  POA(Inc. VAT @ 20%)

The Lewmar NTR range of cars are popular for cruising and racing yachts. The modular system suits any configuration and larger sheaves result in efficient rope handling.

Please see the Lewmar Cars Selection Guide below if you are unsure of the size you need.

(Please note we have used the abbreviation 'CL' for Control Line.)

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Product Information

NTR Range Features

  • Broad range - suitable for craft from 6m (20ft) - 30m (100ft)
  • Re-circulating ball bearing cars and slide rod cap options
  • Short cars for radiused tracks and long cars for compact multiple block attachment
  • Two style of car links for short and standard length cars
  • Modular system creates multiple options and creative solutions
  • Ball bearing control line options on size 2 and 3
  • Lock-on alloy plate cam plate extrusions on size 1 and 2 end stops
  • Cam cleat on car available in size 1 and 2
  • Surface mounted end stops eliminate leakage
  • Mainsheet kits provide a complete system in one package


Lewmar Size 1 NTR Genoa Cars Specification

Lewmar NTR size 1 cars run on the corresponding size of Lewmar track which is 23mm in width.

Car Working
Load Limit
Length Width Weight
  kg lb mm in mm  in  g oz
Short car with tow point 600 1320 107 4 3/4 71 2 3/4 521 18.3
Becket 900 1980 162 6 3/8 71 2 3/4 577 20.3
Single control line sheave & becket 900 1980 162 6 3/8 71 2 3/4 566 19.9
Single control line sheave 900 1980 162 6 3/8 71 2 3/4 560 19.8
Double control line sheave 900 1980 162 6 3/8 71 2 3/4 566 19.9


Lewmar Car Selection Guide

The selection guide is designed for be used as a quick reference only. Calculations are based on the average modern cruising yacht. Sail area, different rigs, heavy or light displacement, multihull or monohull, are all factors which affect a yacht's specifications. Loadings should be obtained from the designer and matched to the safe working load of the hardware. Please contact us if you have any questions regarding the correct hardware for your boat.
