Lewmar - Ocean Self-Tailing Winch Spares (Size 62ST)

Lewmar - Ocean Self-Tailing Winch Spares (Size 62ST)

Lewmar



Manufacturer #:  48000017

£38.99    (Inc. UK VAT @ 20%)(£32.49 Exc. VAT)

As with any precision engineered assembly, Lewmar winches need regular maintenance to operate at peak efficiency. Without this attention, permanent damage and premature wear can result.

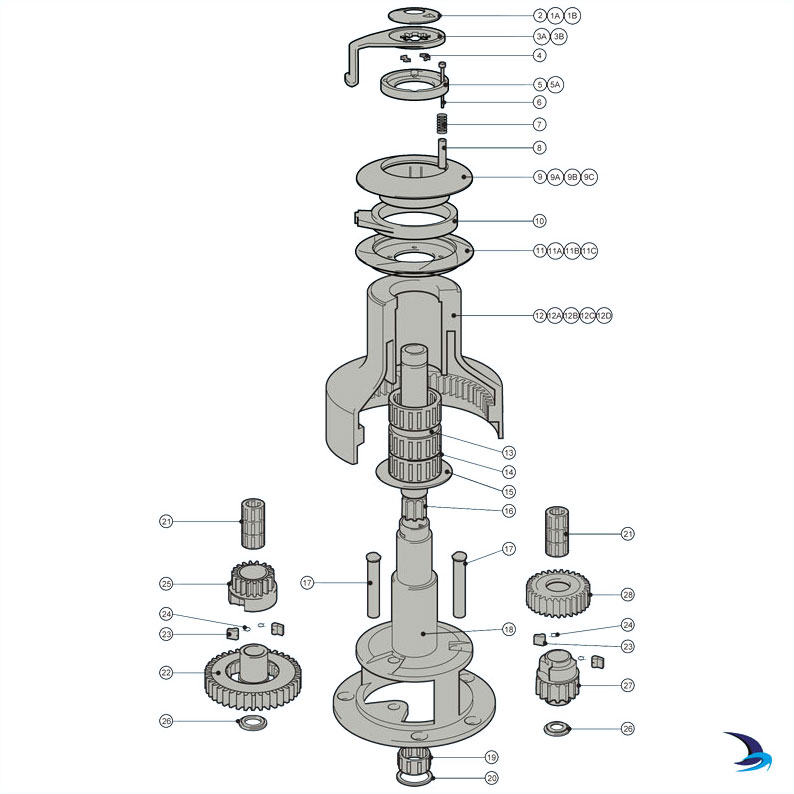

Lewmar winches are simple to dismantle and are designed for easy maintenance. The exploded view drawing shows how the component parts can be removed easily from each winch.

Please note that these spares are for Ocean winches from 1992 onwards. If your winch is an older model then please call us on +44(0) 1243 375774 and we will try to help you identify your winch.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Winch Service Notes

For satisfactory long term performance and product life these winches must be given the routine and full maintenance procedure described below.

  • Monthly – All Lewmar winches should be hosed down with fresh water then lightly oiled and greased.
  • Two or three times during active sailing season – All Lewmar winches should be stripped, cleaned and lubricated.
  • At the end of each sailing season or before starting the new season – All Lewmar winches should be completely stripped, cleaned, thoroughly checked for damage, lubricated and reassembled as detailed in the service manual.

Size 62ST spares kit includes the following -

  • 2 x 16-77ST Ocean collet
  • 4 x Standard pawl (large)
  • 4 x Standard pawl spring (small)
  • 1 x 50/54 Washer
  • 1 x Flanged washer
  • 1 x O-ring 49.6 ID x 2.4 section
  • 1 x UR1685 Circlip Spirolox-Plain
  • 1 x O-ring, 48 x 1.5 Nitrile 70


Item Description Part Number No in Winch
1a Chrome top cap 62AST/62CST/62CCST 45000700 1
1b Bronze top cap 62BST/62BBST 45000701 1
2 'O' ring (fitted in item 1a/1b) B6061 1
3a Chrome feeder arm 62AST/62CST/62CCST 45000803 1
3b Bronze feeder arm 62BST/62BBST 45000804 1
4 Collet 45000102 2
5 Spring retainer (black) 45000795 1
5a Spring retainer (grey) 45000725 1
6 M6x55 socket head cap screw B0756 4
7 Spring 45000512 4
8 Spacer 45000713 4
9 Upper crown assembly (black) 45000785 1
9a Upper crown (grey) 62AST/62BST/62CST 45000705 1
9b Bronze upper crown assembly 62BBST 48058000 1
9c Chrome upper crown assembly 62CCST 48058001 1
10 Stripper ring (grey) 45000708 1
11 Lower crown (black) 45000789 1
11a Lower crown (grey) 62AST/62BST/62CST 45000709 1
11b Bronze lower crown assembly 62BBST 48058005 1
11c Chrome lower crown assembly 62CCST 48058006 1
12 Drum alloy (black) 45000884 1
12a Drum alloy 62AST 45000814 1
12b Drum bronze 62BST/62BBST 45000816 1
12c Drum chrome 62CST/62CCST 45000815 1
12d Drum stainless steel 62SST 45000870 1
13 Spacer 15000404 1
14 Roller bearing assembly 15044121 3
15 Drum washer 45000534 1
16 Main spindle 45000818 1
17 Gear spindle 45000624 2
18 Centre stem 45000817 1
19 Roller bearing assembly (fitted in item 18) 15000019 1
20 Circlip (fitted in item 18) B2092 1
21 Roller bearing assembly 15000017 6
22 Ratchet gear 45000720 1
22a Ratchet gear 45000851 1
23 Pawl 1264/8 4
24 Pawl spring 1260/7 4
25 Pawl gear 45000719 1
26 Flanged washer 15000646 2
27 Pawl gear 45000821 1
28 Ratchet gear 45000822 1

NOTE:

To convert to an all bronze or all chrome winch the following parts are required -

9b + 11b = 48058022

9c + 11c = 48058023

9b/9c/11b/11c are all assembled components NOT available separated.
