Lewmar - Ocean Self-Tailing Winch Spares (Size 66ST 2 Speed)

Lewmar - Ocean Self-Tailing Winch Spares (Size 66ST 2 Speed)

Lewmar
  (1 Review)



Manufacturer #:  48000018

£93.99    (Inc. UK VAT @ 20%)(£78.33 Exc. VAT)

As with any precision engineered assembly, Lewmar winches need regular maintenance to operate at peak efficiency. Without this attention, permanent damage and premature wear can result.

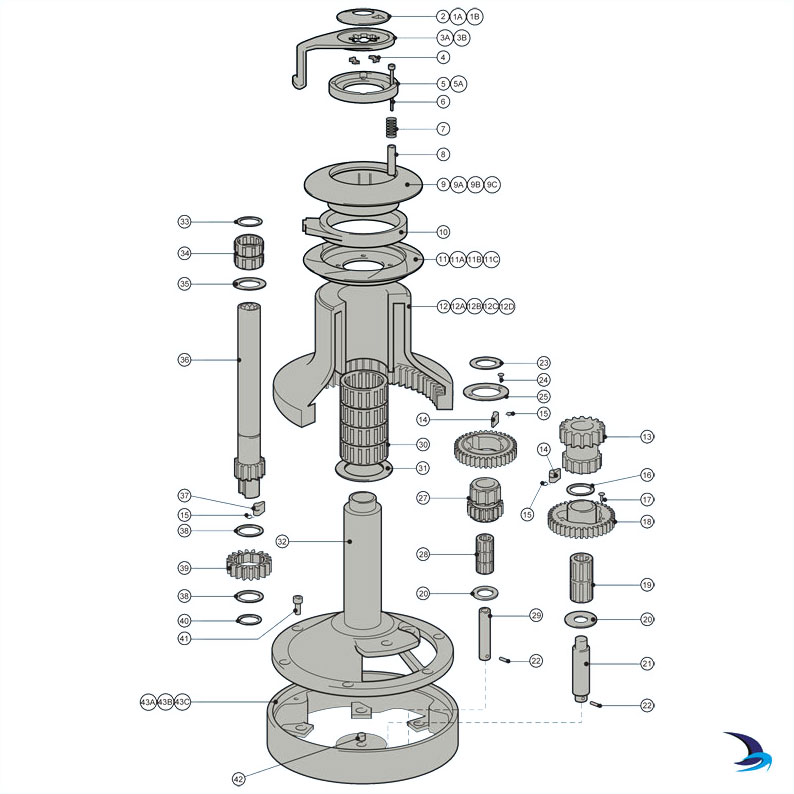

Lewmar winches are simple to dismantle and are designed for easy maintenance. The exploded view drawing shows how the component parts can be removed easily from each winch.

Please note that these spares are for Ocean winches from 1992 onwards. If your winch is an older model then please call us on +44(0) 1243 375774 and we will try to help you identify your winch.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
Service
14 March 2016  |

First of all the company was able to source very specific parts for older winches, but they then held them until i was ready to take delivery.
A great service.

Was this helpful to you?  Yes  /  No

1 of 1 people found this review helpful.

Product Information

Winch Service Notes

For satisfactory long term performance and product life these winches must be given the routine and full maintenance procedure described below.

  • Monthly – All Lewmar winches should be hosed down with fresh water then lightly oiled and greased.
  • Two or three times during active sailing season – All Lewmar winches should be stripped, cleaned and lubricated.
  • At the end of each sailing season or before starting the new season – All Lewmar winches should be completely stripped, cleaned, thoroughly checked for damage, lubricated and reassembled as detailed in the service manual.

Size 66ST 2 Speed spares kit includes the following -

  • 2 x 16-77ST Ocean collet
  • 4 x Standard pawl (large)
  • 4 x Standard pawl spring (small)
  • 1 x 50/54 Washer
  • 1 x Flanged washer
  • 1 x O-ring 49.6 ID x 2.4 section
  • 1 x UR1685 Circlip Spirolox-Plain
  • 1 x O-ring, 48 x 1.5 Nitrile 70


Item Description Part Number No in Winch
1a Chrome top cap 66AST/66CST/66CCST 45000700 1
1b Bronze top cap 66BST/66BST 45000701 1
2 'O' ring (fitted in item 1a/1b) B6061 1
3a Chrome feeder arm 66AST/66CST/66CCST 45000903 1
3b Bronze feeder arm 66BST/66BBST 45000904 1
4 Collet 45000102 2
5 Spring retainer (black) 45000995 1
5a Spring retainer (grey) 45000925 1
6 M6 x 65 stainless steel socket head cap screw B0841 5
7 Spring 45000912 5
8 Spacer 45000913 5
9 Upper crown (black) 45000985 1
9a Upper crown (grey) 66AST/66BST/66CST 45000905 1
9b Bronze upper crown assembly 66BBST 48066000 1
9c Chrome upper crown assembly 66CCST 48066001 1
10 Stripper ring (grey) 45000908 1
11 Lower crown (black) 45000989 1
11a Lower crown (grey) 66AST/66BST/66CST 45000909 1
11b Bronze lower crown assembly 66BBST 48066005 1
11c Chrome lower crown assembly 66CCST 48066006 1
12 Drum alloy (black) 45000984 1
12a Drum alloy 66AST 45000914 1
12b Drum bronze 66BST/66BBST 45000916 1
12c Drum chrome 66CST/66CCST 45000915 1
12d Drum stainless steel 66SST 48066013 1
13 Ratchet gear 45000920 1
14 Pawl 1264/8 5
15 Pawl spring 1260/7 7
16 Washer 45000965 1
17 Fir tree retainer B2233 3
18 Pawl gear 45000919 1
19 Roller bearing assembly 15000018 2
20 Washer 15000247 2
21 Gear spindle 15000239 1
22 3/16" x 3/4" spirol pin B1501 2
23 Washer 15000719 1
24 M5 x 12 stainless steel countersunk posidrive screw B0543 2
25 Retainer 15000023 1
26 Pawl gear 45000922 1
27 Ratchet gear 45000921 1
28 Roller bearing assembly 15000017 3
29 Gear spindle 15001587 1
30 Roller bearing assembly 15044121 4
31 Drum washer 15000287 1
32 Centre stem 45000917 1
33 Circlip B2086 1
34 Roller bearing assembly 15000019 2
35 Washer 15000024 1
36 Main spindle 45000918 1
37 Pawl 1260/8 2
38 Spacer 15000303 2
39 Ratchet gear 45000926 1
40 Circlip B2075 1
41 M10 x 20 stainless socket head cap screw B0691 6
42 Buffer 15000723 1
43a Base (grey) 66AST/66CST 45000930 1
43b Base (chrome) 66CCST 45000931 1
43c Base (bronze) 66BST/66BBST 45000932 1

NOTE:

  • When converting to all bronze, base 43a should be changed to 43c
  • When converting to all chrome, base 43a should be changed to 43b

To convert to an all bronze or all chrome winch the following parts are required -

9b + 11b = 48066022

9c + 11c = 48066023

9b/9c/11b/11c are all assembled components NOT available separated.
