Lewmar - Ocean Winch Spares (Size 7)

Lewmar - Ocean Winch Spares (Size 7)

Lewmar

Winch Spare:

Article Number:

Price:  CALL
(Inc. VAT @ 20%)
+
Lewmar - Gear GreaseLewmar - Gear Grease
Lewmar - Race LubeLewmar - Race Lube

As with any precision engineered assembly, Lewmar winches need regular maintenance to operate at peak efficiency. Without this attention, permanent damage and premature wear can result.

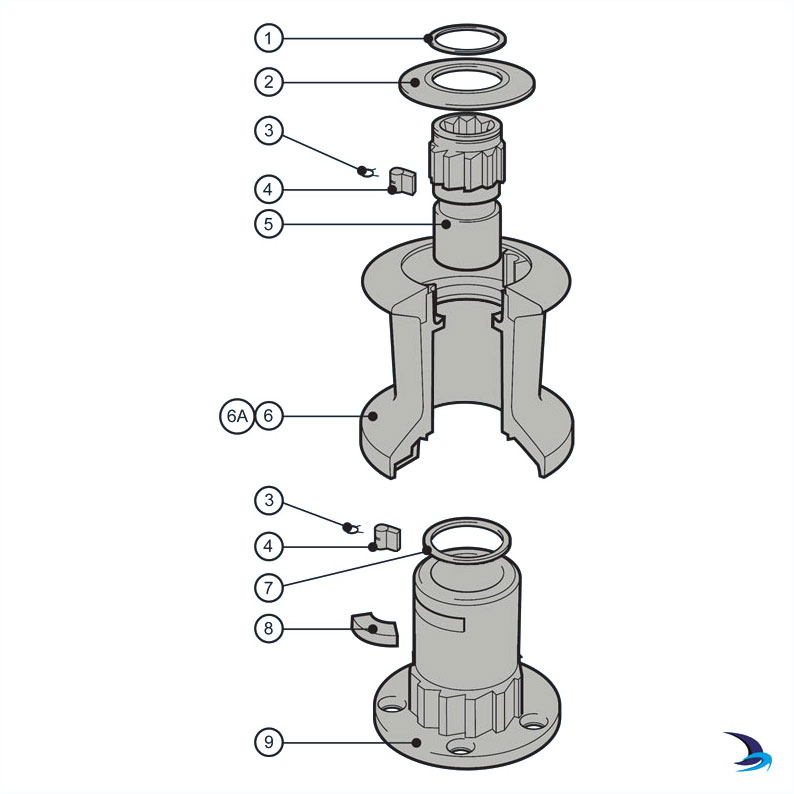

Lewmar winches are simple to dismantle and are designed for easy maintenance. The exploded view drawing shows how the component parts can be removed easily from each winch.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Product Information

Winch Service Notes

For satisfactory long term performance and product life these winches must be given the routine and full maintenance procedure described below.

  • Monthly – All Lewmar winches should be hosed down with fresh water then lightly oiled and greased.
  • Two or three times during active sailing season – All Lewmar winches should be stripped, cleaned and lubricated.
  • At the end of each sailing season or before starting the new season – All Lewmar winches should be completely stripped, cleaned, thoroughly checked for damage, lubricated and reassembled as detailed in the service manual.

Size 7 spares kit includes the following -

  • 4 x standard small pawls and springs
  • 1 x key
  • 1 x circlip

Please note that these spares are for Ocean winches from 1992 onwards. If your winch is an older model then please call us on +44(0) 1243 375774 and we will try to help you identify your winch.



Item Part description Part no. Quantity in winch

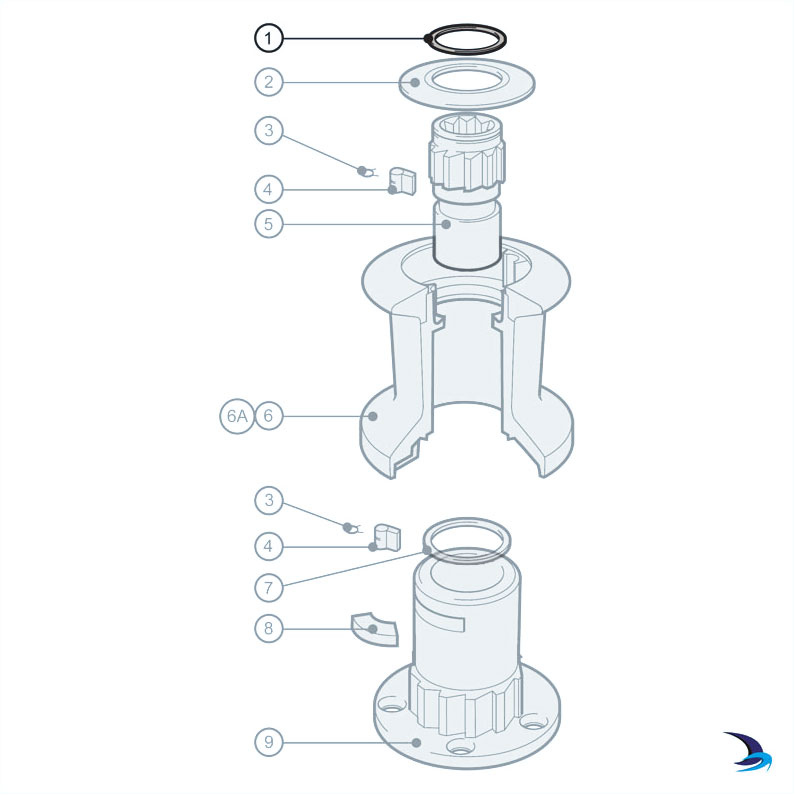

1 Circlip B2075 1

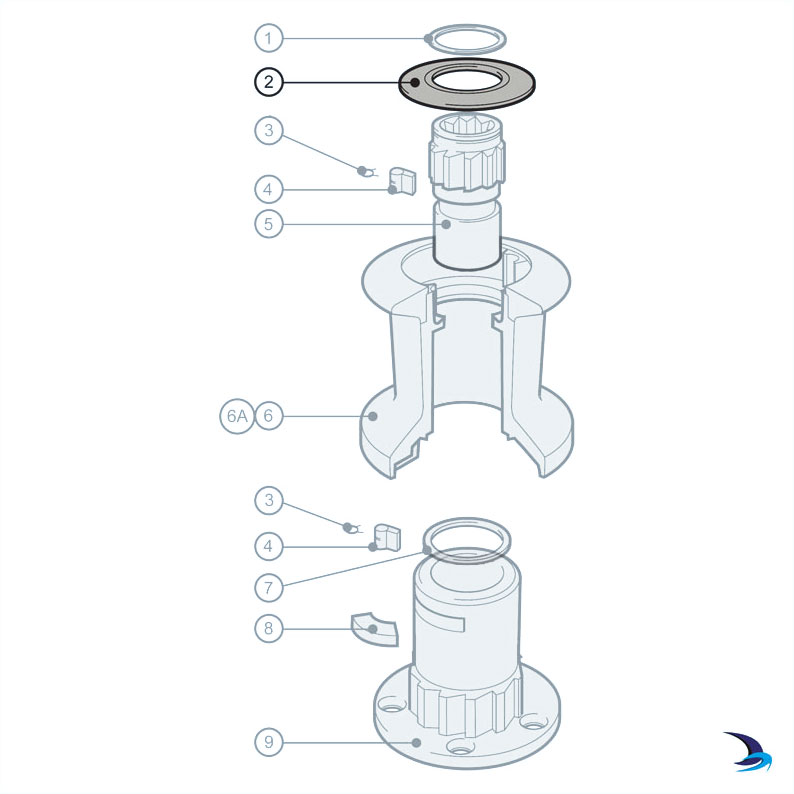

2 Top cap 45001000 1

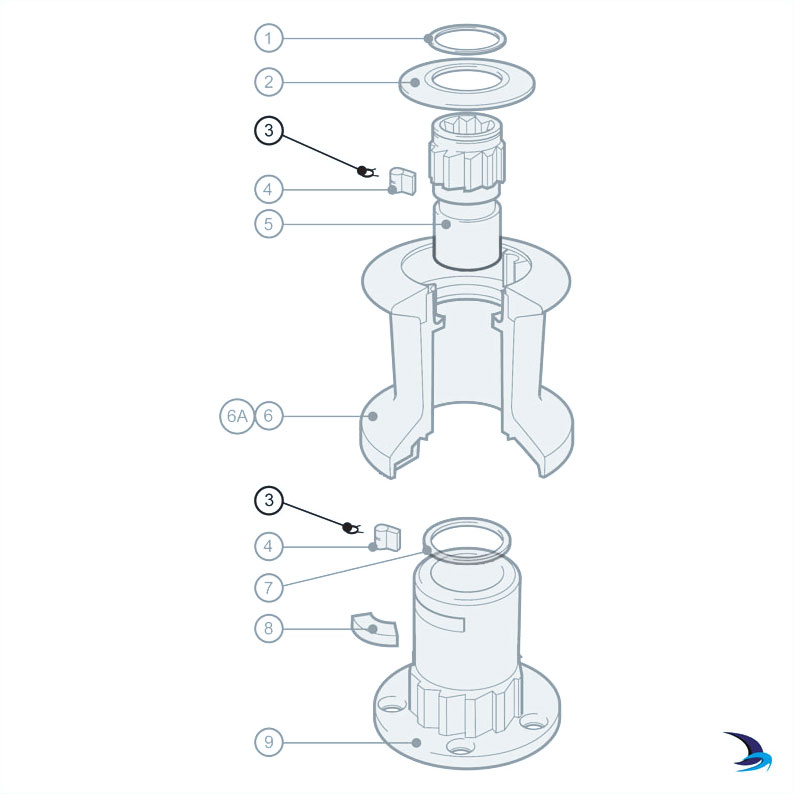

3 Pawl spring 1260/7 4

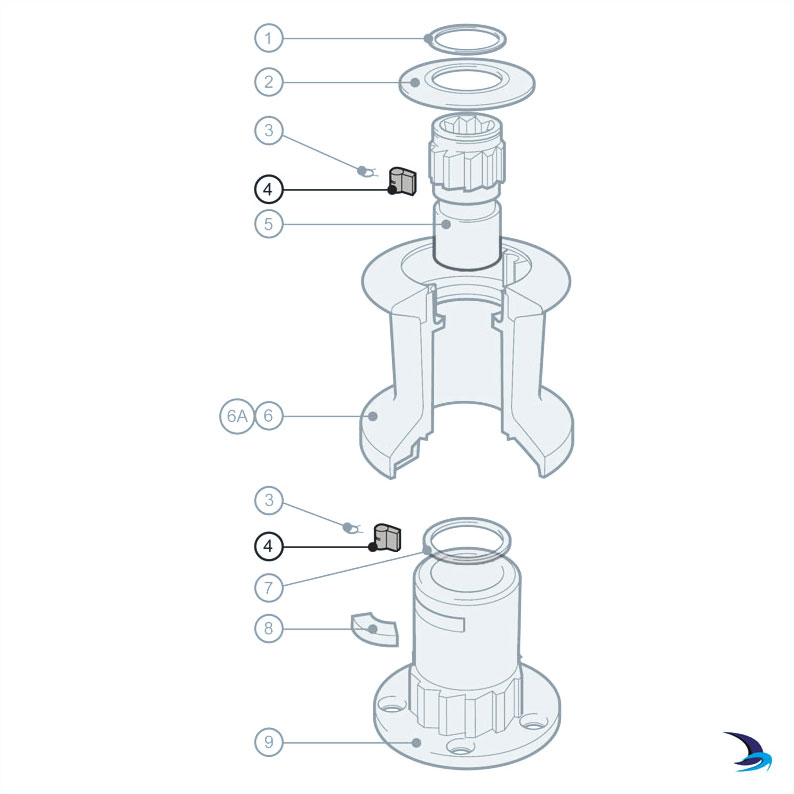

4 Pawl 1260/8 4

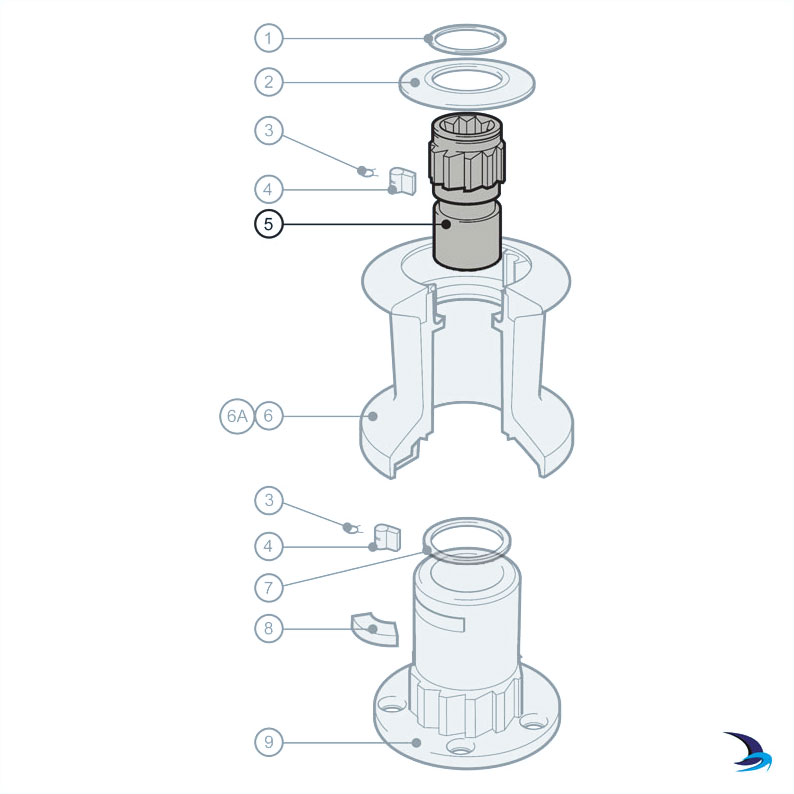

5 No 6/7 spindle (grey) 45001018 1

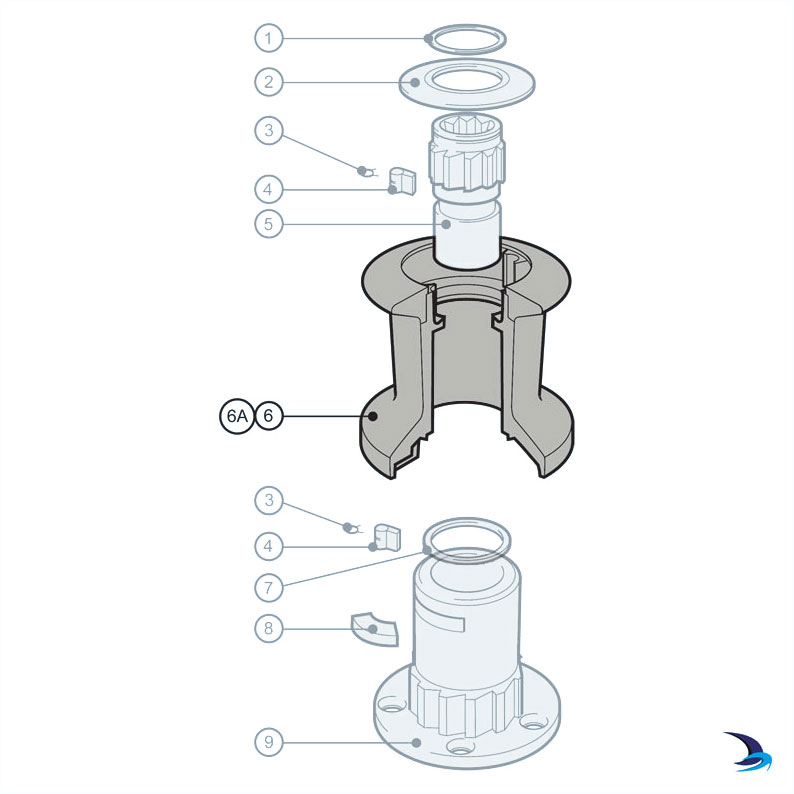

6 Drum alloy (black) 45001113 1
6a Drum alloy (grey) 45001114 1
6b Drum bronze 15000661 1
6c Drum chrome 15000650 1

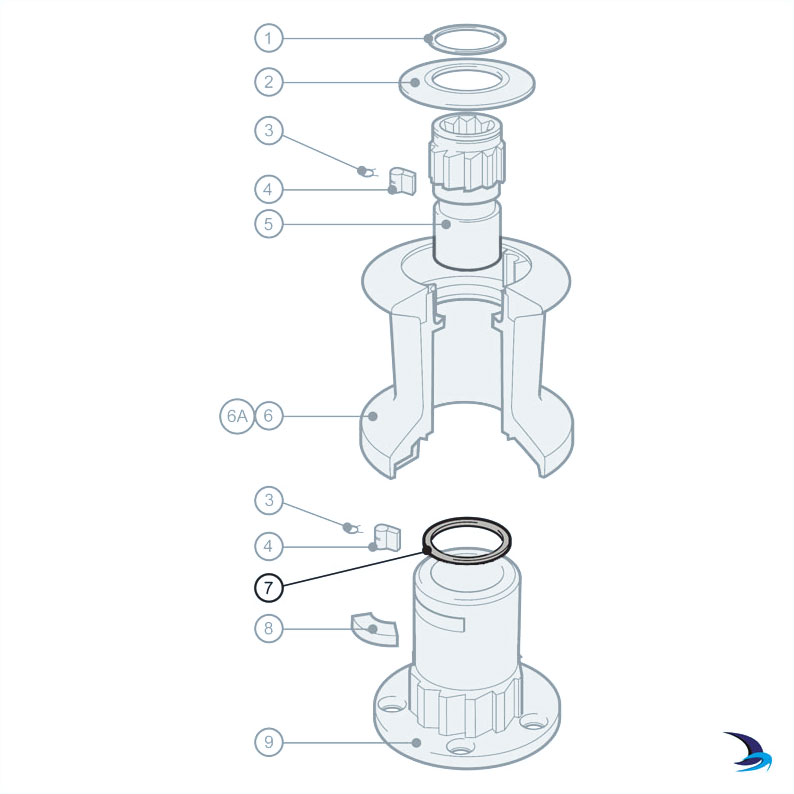

7 Washer 15006004 1

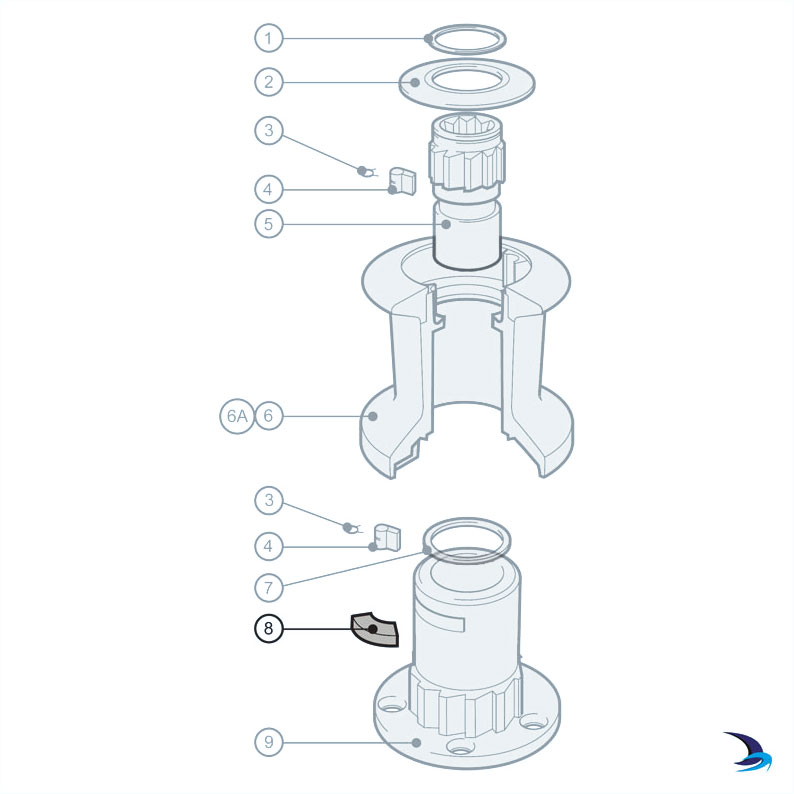

8 Key 15006005 1

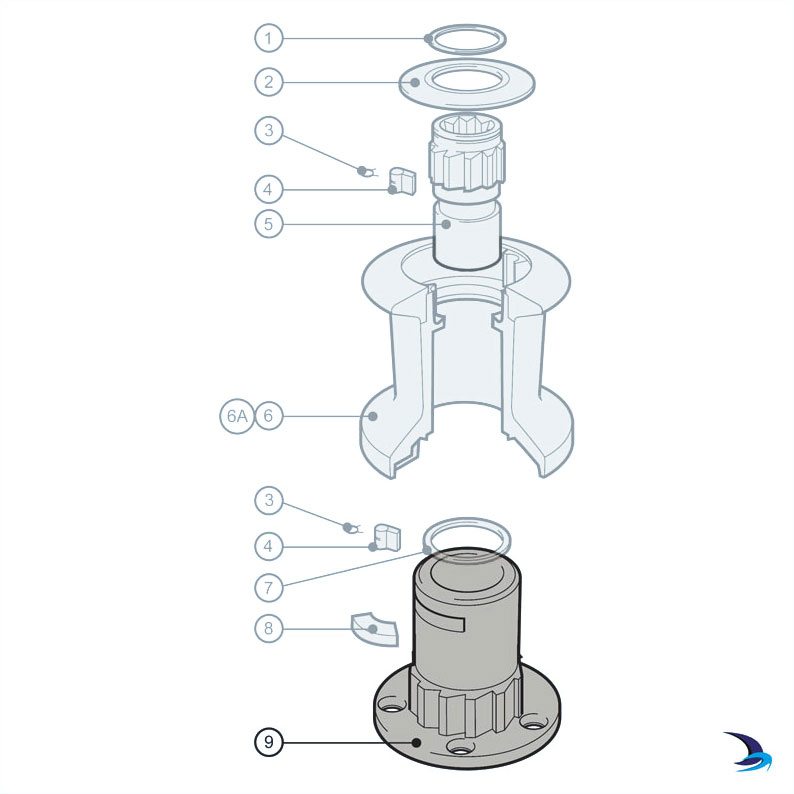

9 Centre stem 15000143 1

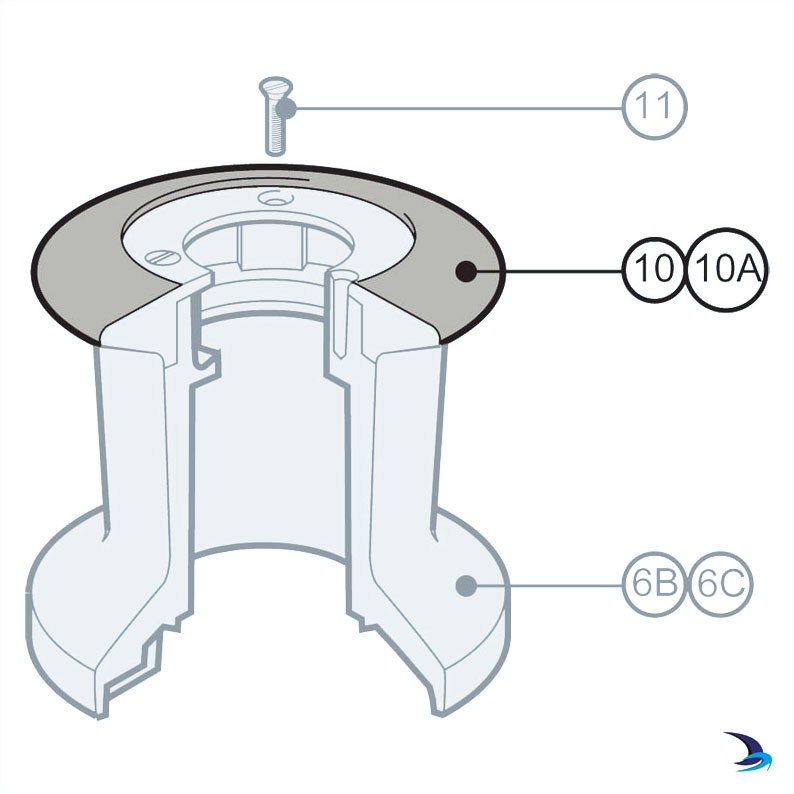

10 No 7b & 7c crown (grey) 45001109 1
10a Crown (black) 45001108 1

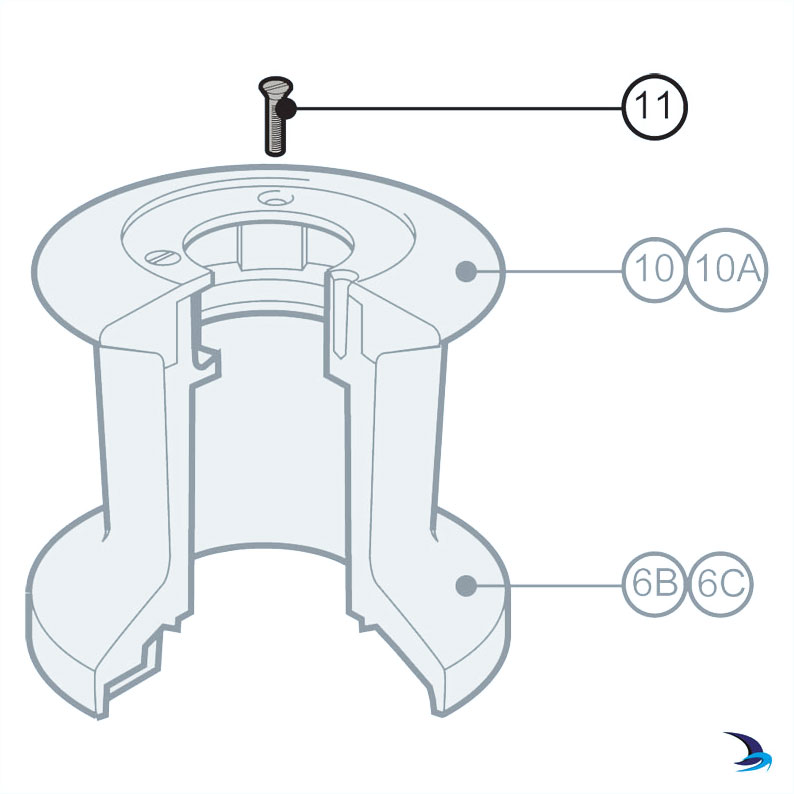

11 M5 x 12mm long posidrive 7b &7c - CSK HD screw 15000527 3
