Lewmar - Pilot hatches

Lewmar - Pilot hatches
 Lewmar - Pilot hatchesLewmar - Pilot hatches

Lewmar

Pilot hatch:

Article Number:  30211300

Price:  £649.99
RRP:  £726.82
Save:  £76.83
(Inc. VAT @ 20%)
+

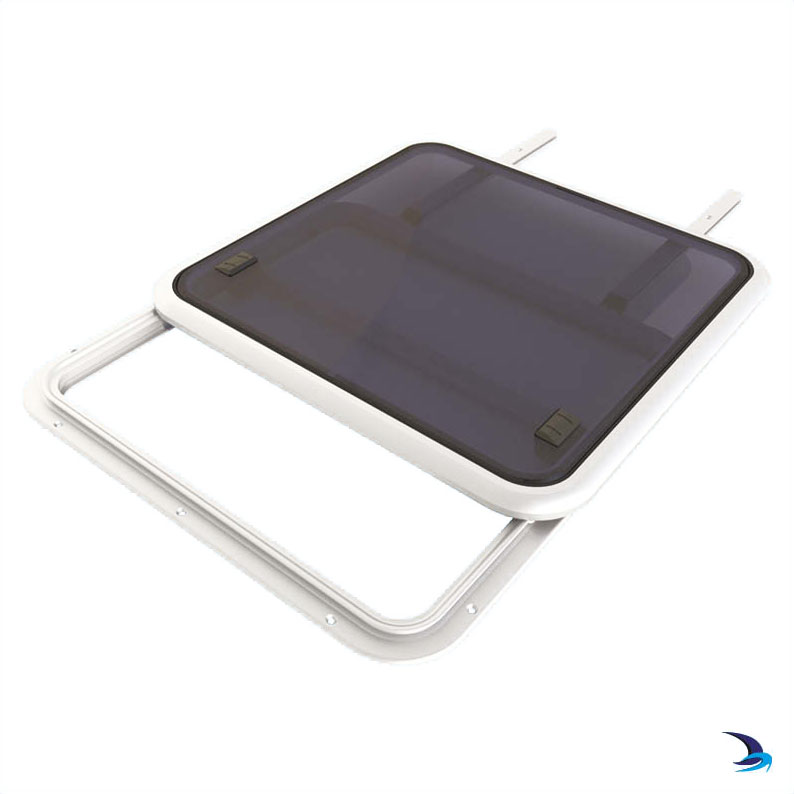

The Lewmar Pilot Hatch is a sliding hatch styled to match the Low and Medium Profile hatches.

This hatch is designed for use on the wheelhouse or cockpit canopy of a power craft.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Product Information

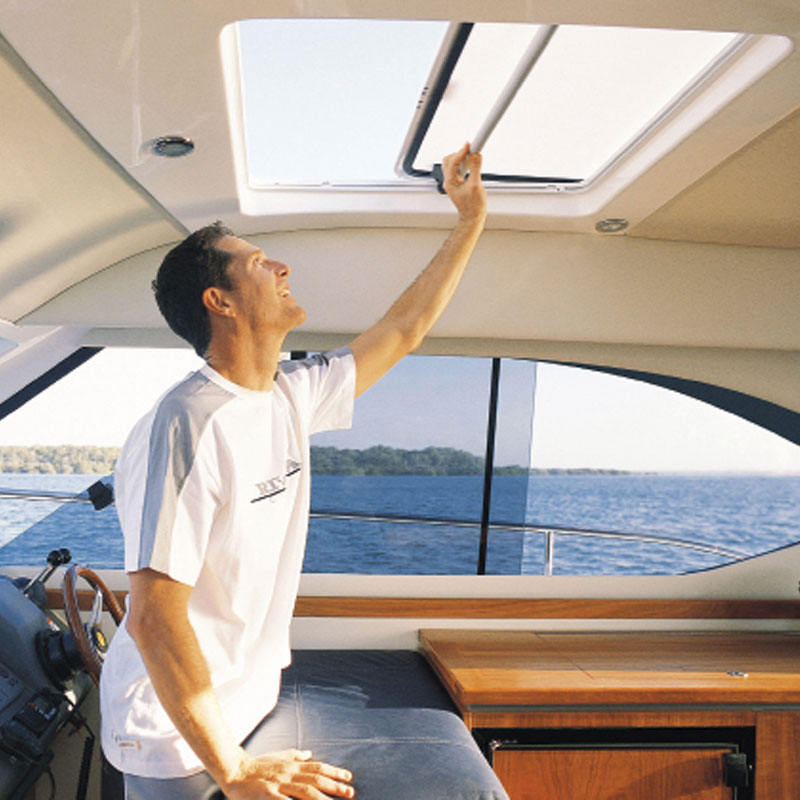

The hatch opens up enclosed steering positions, allowing the helm and crew to experience the sunshine and fresh air on fine days. Unlike a hatch with a hinged lid, the handle on the Pilot Hatch never moves out of reach or requires lifting from a difficult angle when the hatch is fully open. The lid is moved using a single handlebar that also rotates to seal down the hatch. When full ventilation is not required, the lid can also be secured with a 5cm opening.

The Pilot hatch is only suitable for use on wheel houses and cockpit canopies, it is not suitable for use on normal decks and coachroof applications.

The Pilot hatch cannot be operated from the outside.


Pilot hatches are compliant with the RECREATIONAL CRAFT DIRECTIVE 94/25/EC and conform to the following standards or publications:

ISO / DIS 12216.2 (E)

Pilot hatches are CE Approved for Category A, Areas 3 & 4 in all sizes.

By its design this equipment is suitable for use in areas where the above directive applies, provided that its integration or built-in or assembly be correctly reaslied by the installer to the manufacturers specifications and information provided for in the equipment manual.



Lewmar - Pilot hatches

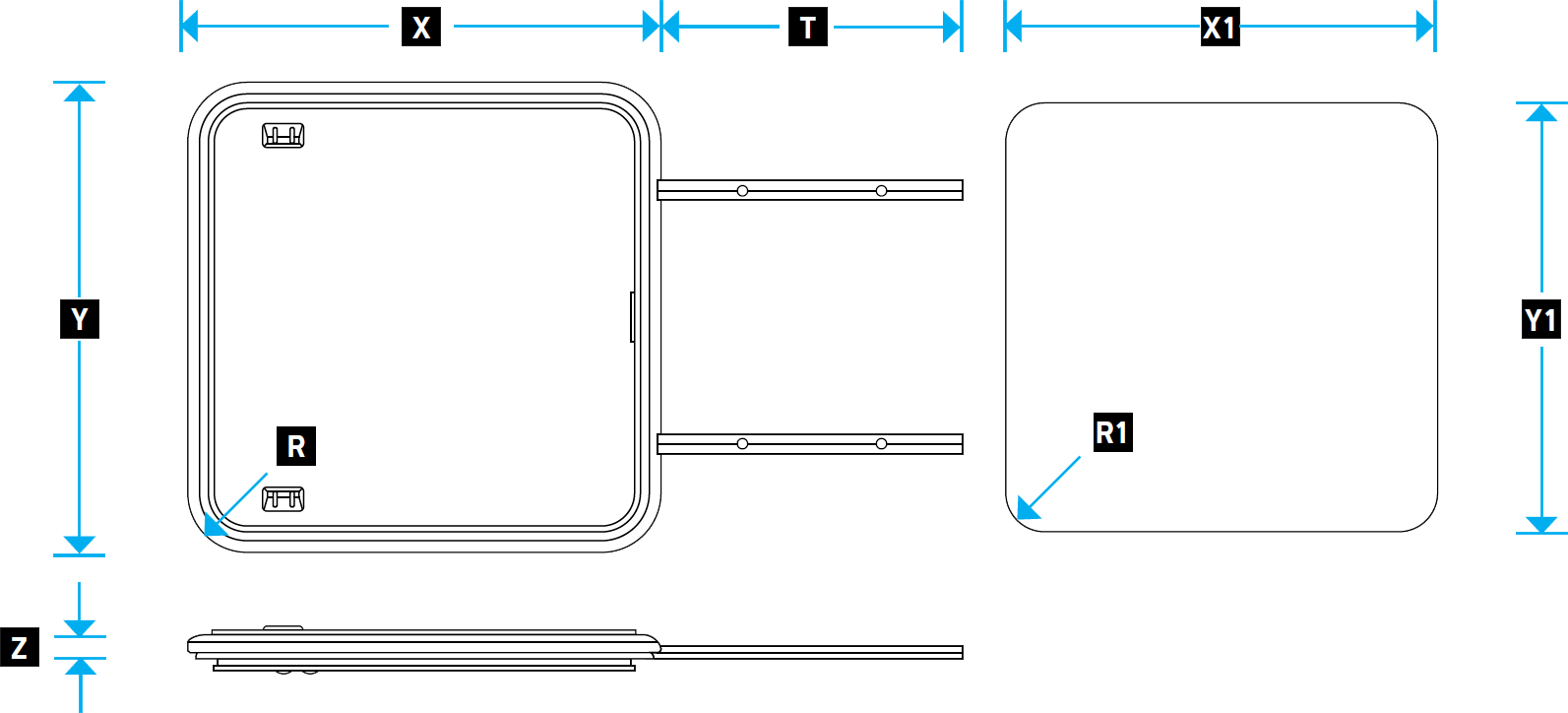

Size Overall size Cut-out size*
Width
(X)
Height
(Y)
Depth
(Z)
Track length Width
(X 1)
Height
(Y 1)
Radius
(R 1)
40 495mm 491mm 29mm 284mm 421mm 421mm 42.5mm
60 581mm 577mm 29mm 373mm 507mm 507mm 42.5mm
70 701mm 697mm 29mm 486mm 627mm 627mm 42.5mm
80 844mm 790mm 29mm 638mm 770mm 720mm 42.5mm

Lewmar Hatch & Portlight Fitting Guide (PDF)
