Lewmar - Replacement Portlight Acrylics for Bavaria Yachts

Lewmar - Replacement Portlight Acrylics for Bavaria Yachts

Lewmar

Bavaria Portlight:

Article Number:  361602999

Price:  £182.99
RRP:  £183.80
Save:  £0.81
(Inc. VAT @ 20%)
+

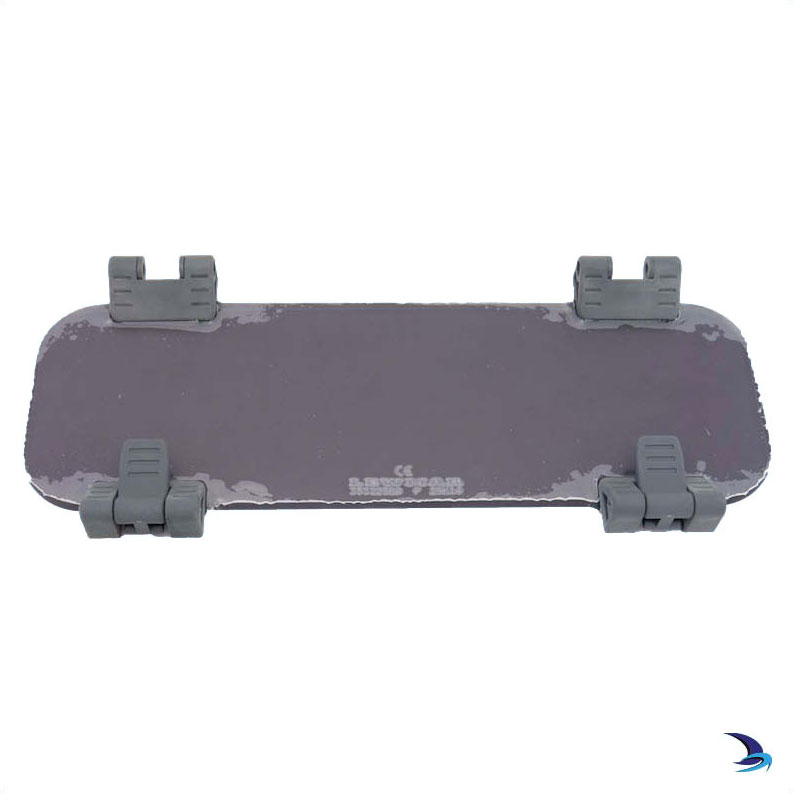

Replacement acrylics/lenses are available for Lewmar New Standard Portlights fitted to Bavaria Yachts. They are not available for fixedlights. See below identification information if you need help identifying your portlight. These sizes are unique to Bavaria.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Average Rating (2 Reviews):
Write a Review and share your opinions!

Rating:
service
Sunday, 1 July 2018  |

excellent service by ocean chandlery

Was this helpful to you?  Yes  /  No

This review has not been appraised.


Rating:
Great service
Friday, 2 December 2016  |

One of the very few companies that give fantastic service

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Style Overall Size (mm) Cut-out Size (mm)
Width Height Width Height
Bavaria Short Portlight 323 176 303 156
Bavaria Long Portlight 690 188 670 168
Bavaria Barrel Portlight 693 247 673 227
 Bavaria Double Barrel Portlight 1,113 258 1,093 238


Old Standard or New Standard Portlight?

New Standard Portlights superseded the old style in the later part of 1997, and they can be identified by the type of window closure.

Old Standard New Standard
New Standard Portlight Handle Old Standard Portlight Handle

Mark 1 or Mark 2 New Standard?

From 1997 to June 2000 the New Standard Portlight was made with hinges and handle catches fixed to the frame with a pressing/staking process. These are the Mark 1 Portlights.

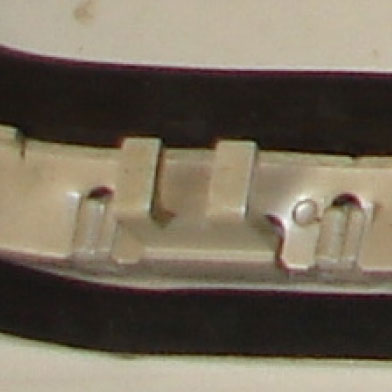

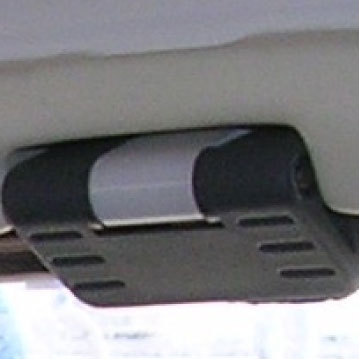

Staked catch Staked hinge

In June 2000 the portlight was changed to use screwed on catches and hinges, these are the Mark 2 models. The hinges and handle catches sometimes have packers under them to control the seal compression.

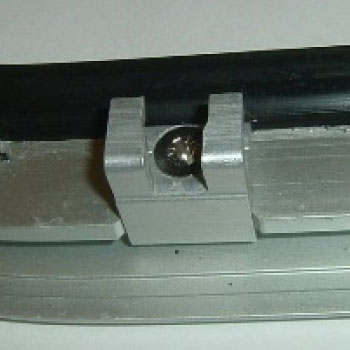

Screwed catch Screwed hinge

In 2008 the hinges were changed from using M4 fastenings as hinge pins to M5.

If you have screwed hinges and catches with M4 or M5 fastenings you need to purchase a Mark 2 Acrylic.

If you have M4 fastenings you will need to use the supplied replacement hinge kit to swap out the M4 hinges on your existing frame in order to fit the new lens. Please note that if you have a Bavaria acrylic with M4 fixings you will need to purchase this kit as they are not supplied.

Unfortunately, replacement acrylics are not available for Mark 1 New Standard Portlights.

If you are uncertain whether or not your portlights are Mark 1 or Mark 2, please contact us.
