Lewmar - Replacement Low Profile Hatch Acrylics

Lewmar - Replacement Low Profile Hatch Acrylics

  (4 Reviews)


Manufacturer #:  361050900

£153.99    (Inc. UK VAT @ 20%)(£128.33 Exc. VAT)

Replacement acrylics/lenses are available for Lewmar Low and Medium Profile hatches. See our hatch identification information below to help you identify your hatch.

New acrylics are supplied complete with new seal pre-mounted, plus new handles and friction lever cap.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Please add the two numbers

Average Rating (4 Reviews):
Write a Review and share your opinions!

Easy replacement
18 August 2020  |

Received items in good condition and on time,my first time replacing the window but easy
Would recommend to anyone who needs to replace do it your self.

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Very satisfied
22 August 2017  |

High quality item, prompt attentive service.

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Exelent service
06 September 2016  |

Super service and knowledge!

Was this helpful to you?  Yes  /  No

This review has not been appraised.

posting to Holland
05 September 2016  |

Very fast delivery at reasonable price

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Product Information

Replacing your hatch acrylic is easy - simply remove the lid, unscrew the frame and pull apart, the old acrylic will drop out and you can reassemble with your new acrylic.

Please note that depending on the age and condition of your hatch, it is not uncommon for the Joining Inserts to break as the frame pulls apart. We recommend having a replacement to hand so you do not get caught out halfway through the job. We will happily refund any unused Joiners.

Lewmar Hatch Identification

Distinguishing between Lewmar Low profile and Medium profile hatches

These two variants look alike but have differing hatch frame thicknesses.

  • Low profile hatch lids are 22mm thick
  • Medium profile hatch lids are 27mm thick

Distinguishing between Mk 1 and Mk 2 hatches

The design of Lewmar Low and Medium profile hatches changed from Mk1 to Mk2 between July and December 2000, so if you are certain your hatch was constructed before or after this time then you should know which design you have.

If you are uncertain or require confirmation, then there are a few ways to check.

  • Roll pin.  Mk 1 hatches (left) have a visible roll pin (marked in the red circle), on the underside of the lid near the hinge, Mk 2 hatches (right) do not.

  • Lens code.  All Low and Medium profile hatches have a lens code, which is embossed on the underside of the lid next to the handle. You will have to pull the seal back to reveal the lens code.

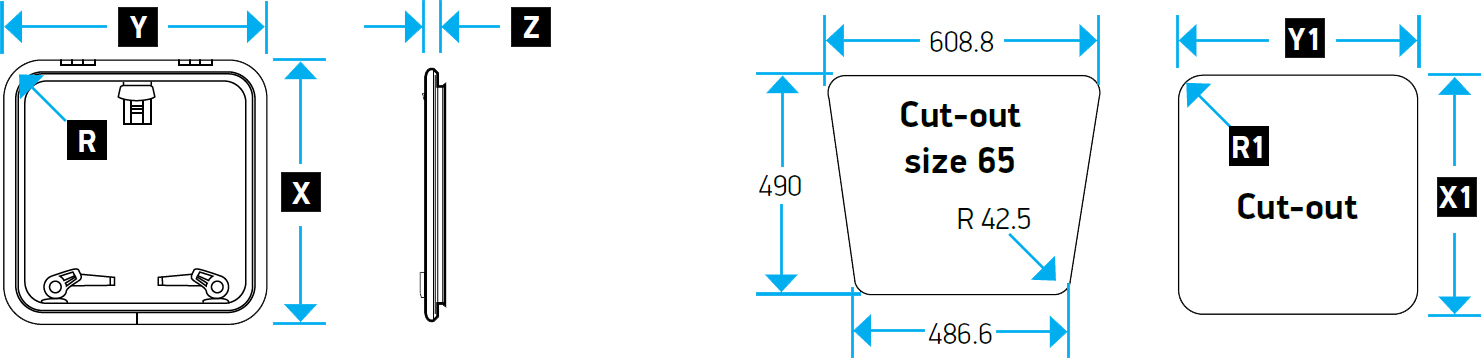

Lewmar Low Profile Hatch Specifications

Size Hatch overall size Hatch cut-out size
Width (Y) Height (X) Width (Y1) Height (X1) Radii (R1)
Size 00 281mm 281mm 211mm 211mm 42.5mm
Size 03 246mm 301mm 176mm 231mm 42.5mm
Size 10 330mm 330mm 260mm 260mm 42.5mm
Size 20 272mm 417mm 202mm 347mm 42.5mm
Size30  397mm 527mm 327mm 457mm 42.5mm
Size 40 491mm 491mm 421mm 421mm 42.5mm
Size 41 246mm 491mm 176mm 421mm 42.5mm
Size 44 512mm 512mm 442mm 442mm 42.5mm
Size 50 447mm 577mm 377mm 507mm 42.5mm
Size 54 462mm 577mm 392mm 507mm 42.5mm
Size 60 577mm 577mm 507mm 507mm 42.5mm
Size 65 560mm 675mm - - -

Removing the Lid of your Low or Medium Profile hatch

Removing the frame to release the acrylic (& replace seal)

How to find your lens code
