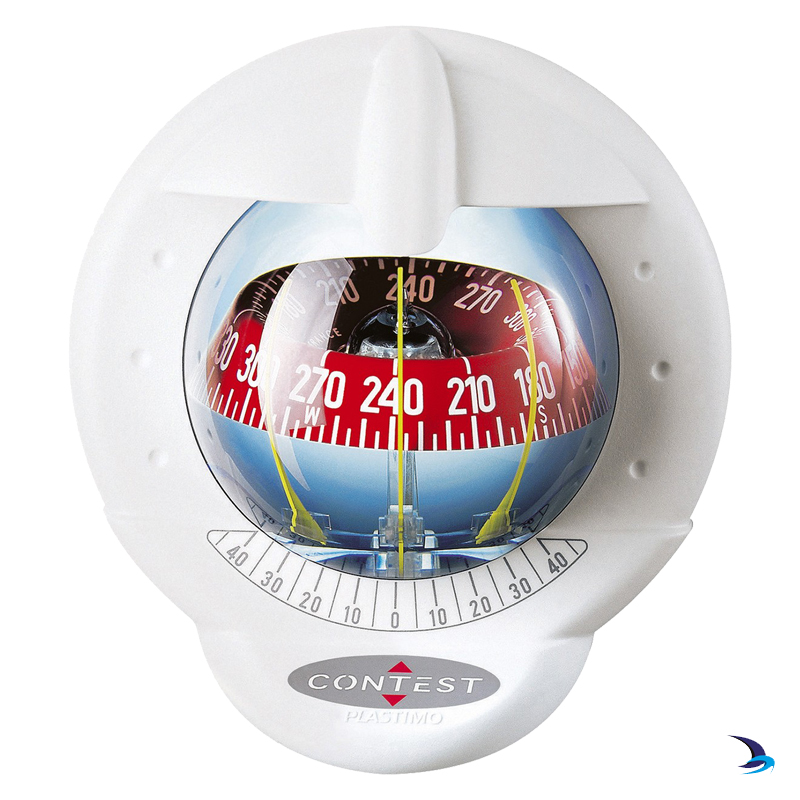

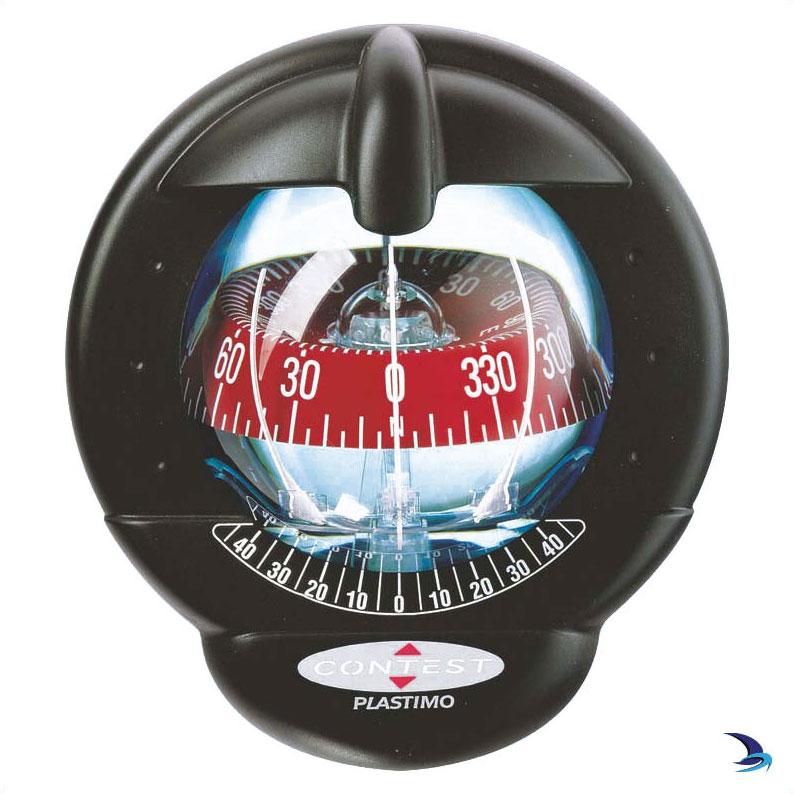

Plastimo - Contest® 101 Compass

Plastimo - Contest® 101 Compass
Plastimo - Contest® 101 CompassPlastimo - Contest® 101 CompassPlastimo - Contest® 101 CompassPlastimo - Contest® 101 Compass

Plastimo

Colour:
Mounting:
Card:

Manufacturer #:  64423

Price:  £139.99
RRP:  £151.51
Save:  £11.52
(Inc. VAT @ 20%)
+

The No. 1 sailboat compass worldwide: double reading, large crisp card and great looks in the cockpit. The Contest 101 is the benchmark-compass in the Plastimo range.

When Plastimo invented the double reading compass, it was a major innovation which allowed sailors to follow their course from the cockpit and the cabin.

The Contest® 101 goes a step further:  its exclusive mounting possibilities on any bulkhead - whatever the thickness - and its aesthetics allow the Contest® 101 to adapt perfectly to today's yachts, both in terms of engineering and glamorous design.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Plastimo Contest 101 Compass Features

Lighting
  • Bulb is integrated in the front flange, thus spreading the illumination evenly over dome and card, preventing eye strain and fatigue at night.
  • Easy access to the light bulb from the front of the compass.
Watertight construction
  • One-piece moulded flange and front dome.
  • Viton® diaphragm with extreme expansion and retraction capacity: compensated the fluctuations in fluid volume caused by the differences in temperature and atmospheric pressure, thus preventing the formation of bubbles.
Materials
  • All parts are fully UV-ray treated.
  • Scratch resistant dome.
3 lubber lines
  • For dependable readings even when steering windward.
Double reading
  • From both cockpit and cabin.
Anti-theft design
  • Thanks to moulded-in sunken head screws.
Compensation
  • Easy access to compensation box from the front of the compass.
Installation
  • Exclusive installation design allows the compass to fit any bulkhead, vertical or inclined up to 25° front tilt.
    • either by screwing from the cockpit side.
    • or by screwing from the cabin side, as an anti-theft security.
  • Fits any bulkhead thickness.
    • Bulkhead of standard thickness (up to 40mm): the compass is secured with threaded rods.
    • Thick (40mm +) or double bulkhead: the compass is secured with screws on both sides of the bulkhead.
  • Supplied with back flange for neat installation from cabin side.
  • Simply swap them without any new hole and without any tooling - The Contest® 101 has the same mounting footprint as the Contest® 100.


Plastimo Contest 101 Compass Specifications

Boat size Sailing boats up to 9m (30') in length
Double reading From cockpit to cabin
Compass card Double graduation: horizontal and vertical
Conical card, graduated every 5°
Apparent 100mmØ
Heading numerals every 30°
Mounting Comes as standard in a bulkhead version (vertical or 10 - 25° inclined bulkhead)

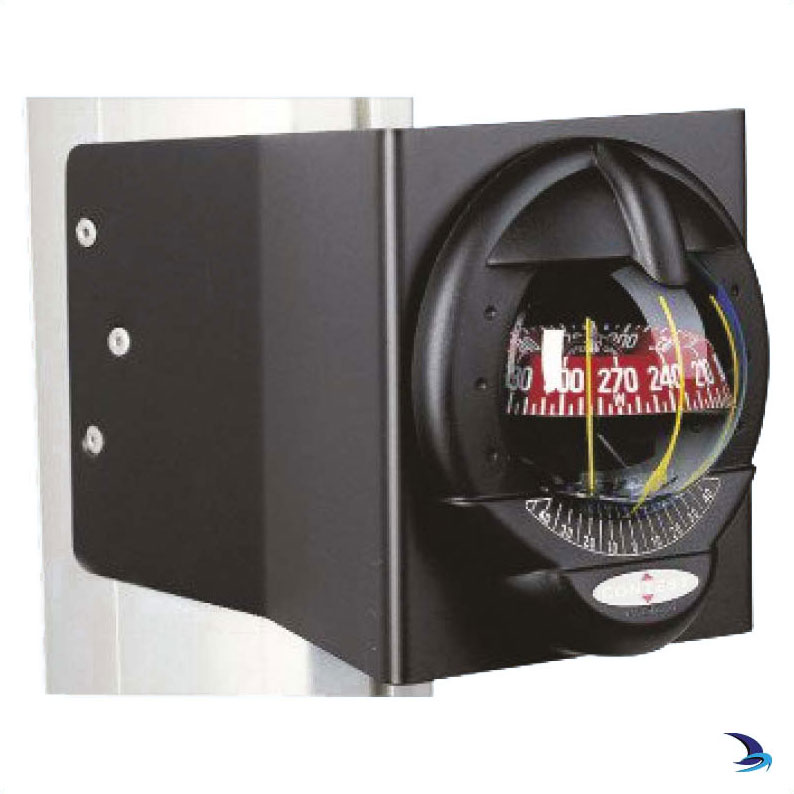

Can be mast mounted with the addition of optional mast-mounting kit
Lubber lines 3 lubber lines at 45°
Heelmeter Graduated every 10°
Compensation Optional, compensation tool not included
Lighting 12v DC
Red lighting on black and white cards
White lighting on red cards.
Supplied with Protection cover
Drilling template
Homologation ISO 613 compliant

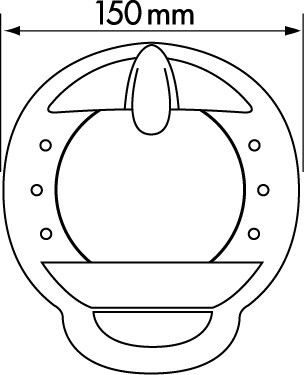

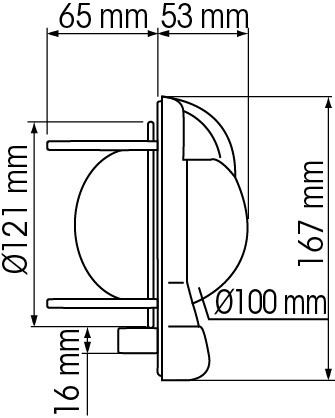

Plastimo Contest 101 Compass Drilling Template
