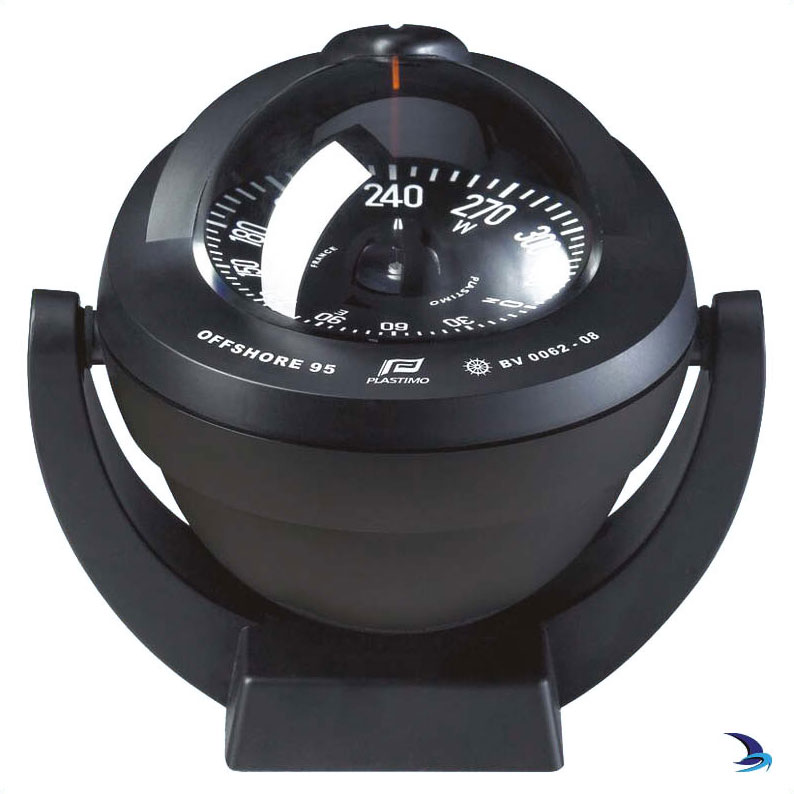

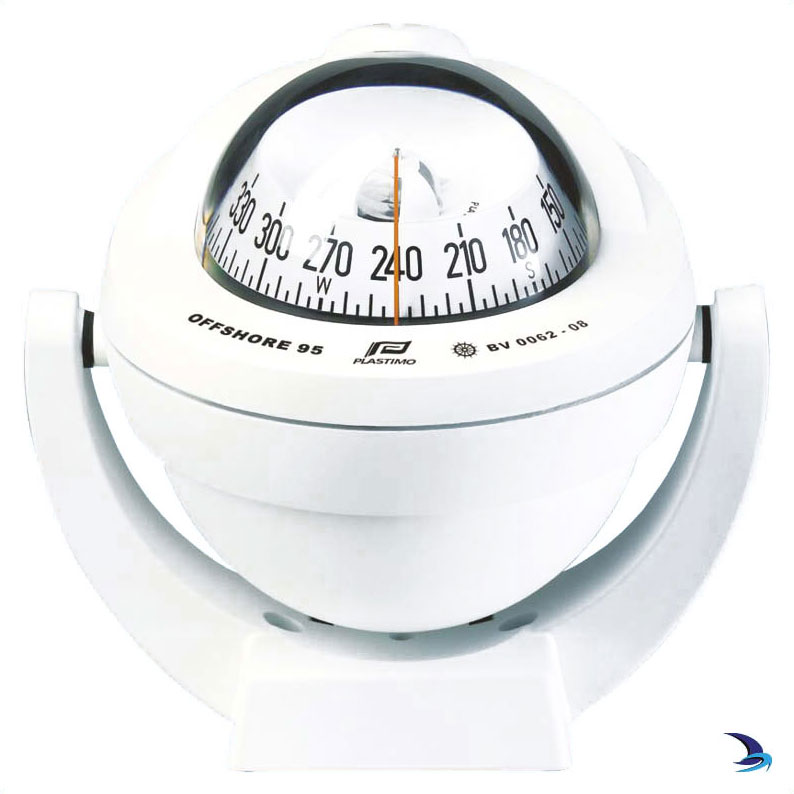

Plastimo - Offshore® 95 Compass

Plastimo - Offshore® 95 Compass
Plastimo - Offshore® 95 CompassPlastimo - Offshore® 95 CompassPlastimo - Offshore® 95 CompassPlastimo - Offshore® 95 CompassPlastimo - Offshore® 95 CompassPlastimo - Offshore® 95 Compass

Plastimo

Colour:
Mounting:
Card:

Manufacturer #:  65736

Price:  £83.99(Inc. VAT @ 20%)
+

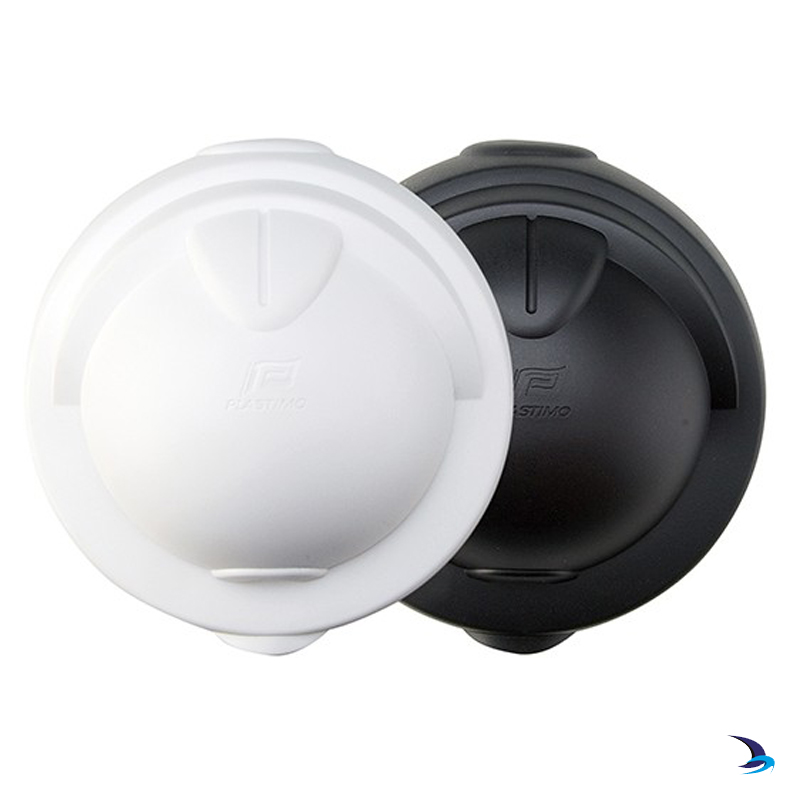

Plastimo - Protective Covers for Mini-Contest®, Offshore® 95 & Olympic® 95 CompassPlastimo - Protective Covers for Mini-Contest®, Offshore® 95 & Olympic® 95 Compass

The Plastimo Offshore® 95 Compass is ideal for power boats, from 6m - 10m (19 - 33') in length.

  • Flushmount on horizontal dashboard: compact design, interchangeable with Offshore 90 and most compasses of equivalent size.
  • Bracket: broad and sturdy bracket base absorbs vibrations. Mounting can be done whatever the angle, provided that the compass and card unit remain horizontal at all times. Bracket-mount compass can also be removed when fitted with clip-plate.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Plastimo Offshore 95 Compass Features

Installation

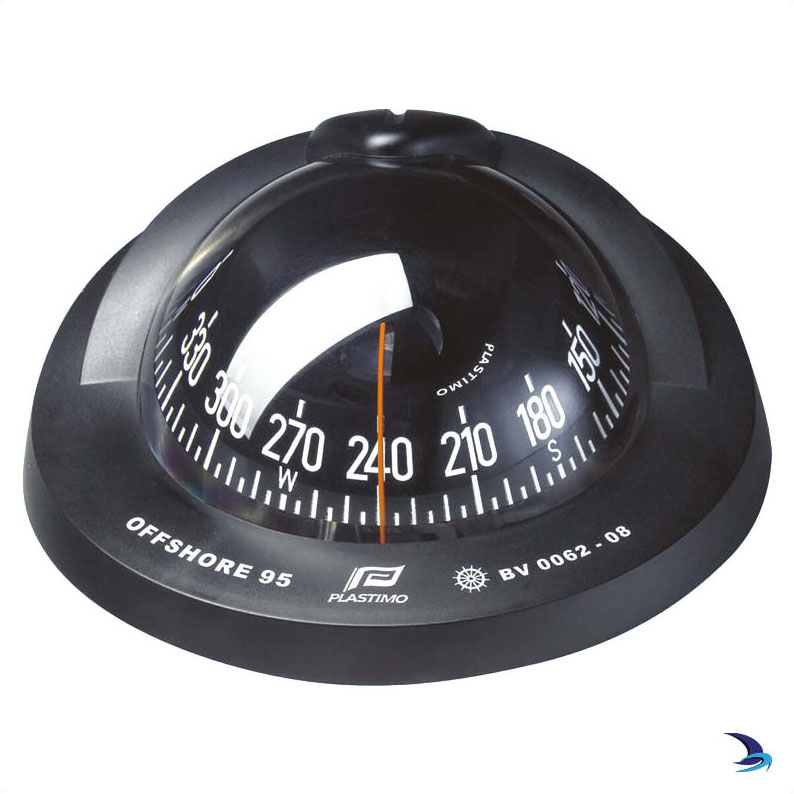

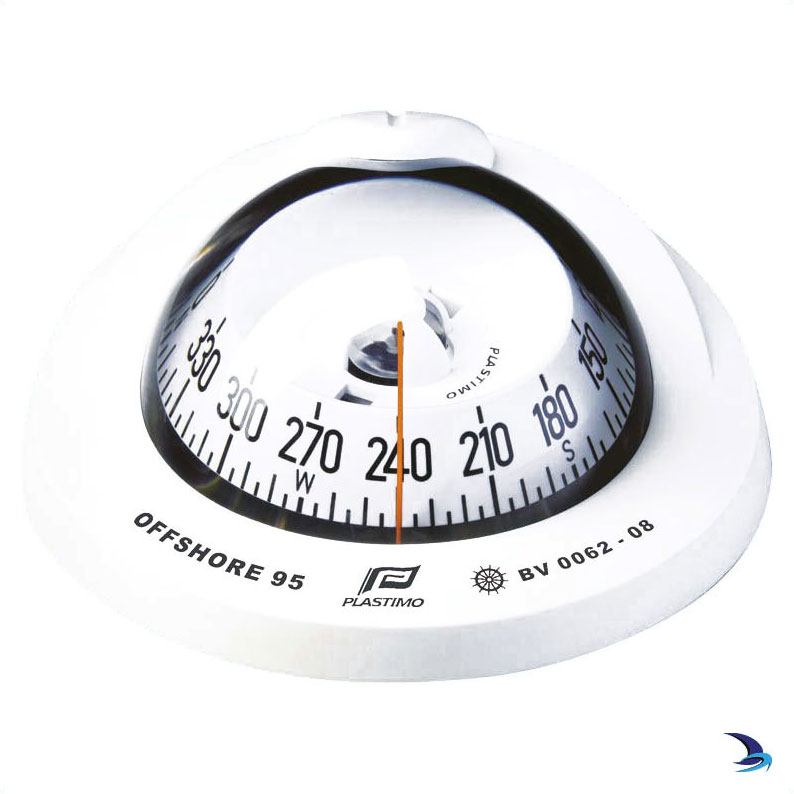

  • Flushmount on horizontal surfaces: compact design, interchangeable with Offshore® 90 compasses and others of equivalent sizes.
  • Bracket: the broad and sturdy bracket base absorbs the vibrations.  Mounting can be done whatever the angle, provided that the compass and card unit remain horizontal at all times.  Bracket-mount compasses can also be removed when fitted with a clip-plate.

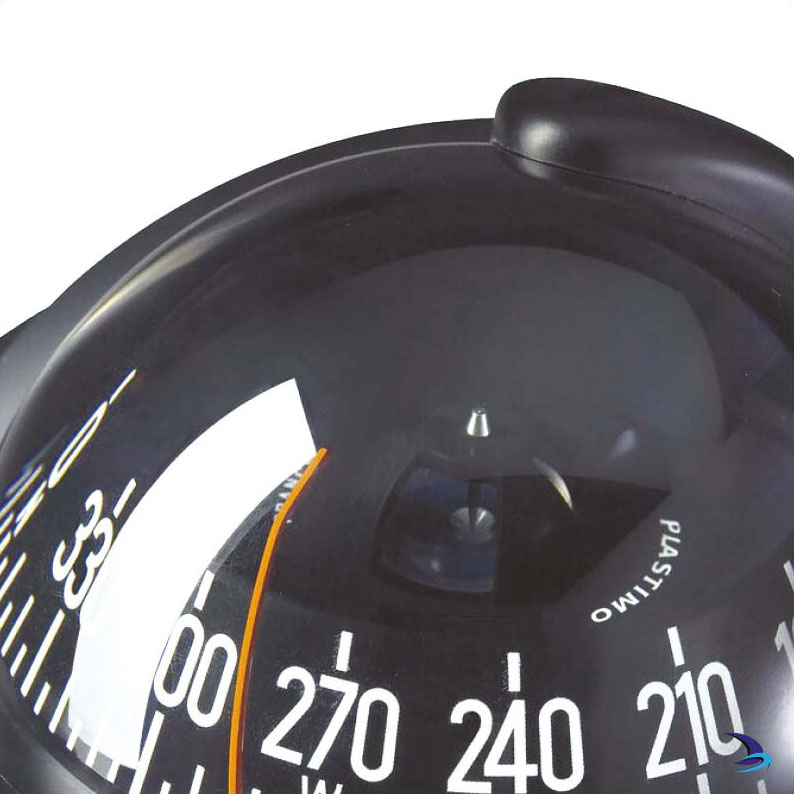

Card
  • Outstanding legibility under all weather and light conditions for optimum comfort and accurate readings.
  • Perfect stability of conical or flat card, 81mm Ø apparent.
  • Graduation every 5°.
Watertight construction
  • One-piece moulded flange and bowl.
  • Viton® diaphragm with extreme expansion and retraction capacity: compensated the fluctuations in fluid volume caused by the differences in temperature and atmospheric pressure, thus preventing the formation of bubbles.
  • Lighting integrated in the bowl.
  • Mounded-in sunken head screws.
Materials
  • All parts are fully UV-ray treated.
  • Scratch resistant dome.
Lighting
  • The bulb is integrated in the bowl, thus spreading the illumination evenly and preventing eye strain and fatigue at night.

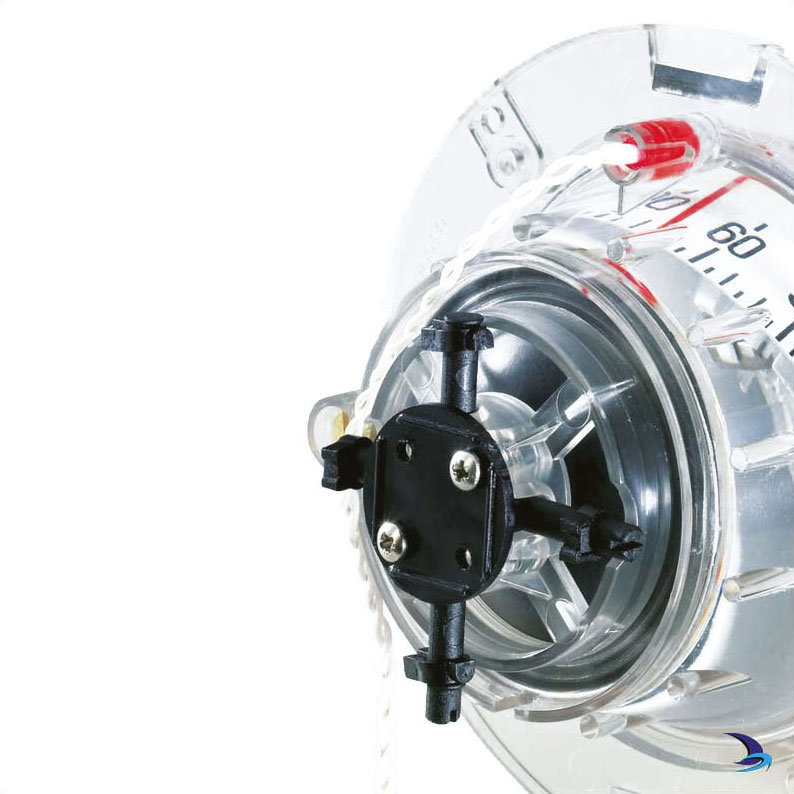

Access to compensation or lighting
  • Extremely easy access to compensation or lighting with unique flange-clip system.
  • Compensation can be adjusted from the outside with no need to open the compass on the bracket version.


Plastimo Offshore 95 Compass Specifications

Boat size Powerboats from 6 - 10m (19 - 33') in length.
Compass card Conical or flat card graduated every 5°.
Apparent every 81mmØ.
Heading numerals every 30°.
Mounting Flushmount on a horizontal surface.
With a bracket: mounted on a horizontal or inclined surface.  Compass is removable thanks to a clip-plate.
Resistance to vibrations and hull pounding Magnetic cell equipped with the unique "Vibration Absorber" system.
Lubber line 1 lubber line, red for instant recognition
Compensation Supplied as standard.
Lighting 1 x 12-24V LED included
Supplied with Clip-plate, screws and drilling template.
Homologation ISO 613 compliant.

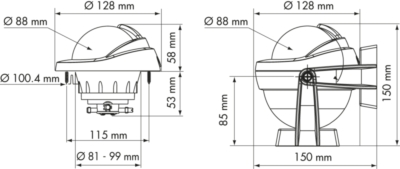

Plastimo Offshore 95 Compass Drilling Template
