Spinlock - PXR Cam Cleats

Spinlock - PXR Cam Cleats


£33.99    (Inc. UK VAT @ 20%)RRP:  £34.68Save:  £0.69 (2%)(£28.33 Exc. VAT)

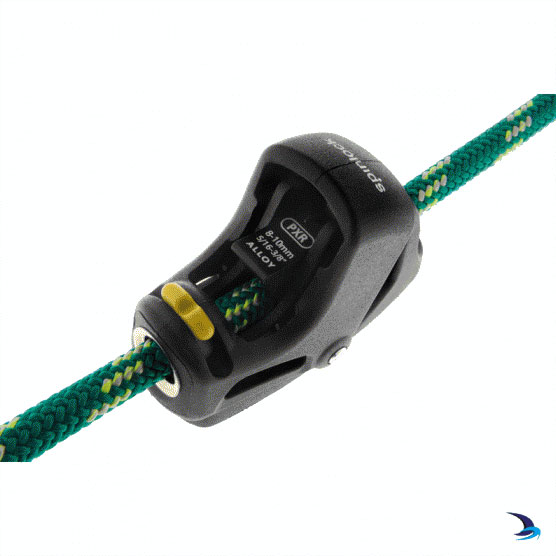

The Spinlock PXR cam cleats are the easiest cleats to release under load.

Compact roller action cam cleat for easy release of high performance control lines.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Spinlock PXR Cam Cleat Features

  • Fast precise control for hand tensioned lines
  • Roller action ensures easy release under high load
  • Hard anodised alloy cam and base
  • Ideal for high performance lines
  • Micro size for small diameters
  • Three stage release control switch
  • Ideal for single line spinnaker hoist systems
  • Resists accidental re-cleating


  • Lines: 2mm - 6mm (3/32" - 1/4")
  • Loads up to 140kg (308lbs)


  • Lines: 8mm - 10mm (5/16" - 3/8")
  • Loads up to 200kg (440lbs)

Retro Fit 'T' - Matched hole centres allow direct replacement of traditional cam cleats with PXR

PXR0206/T - 27mm (1 1/16”) hole centres - for upgrading dinghy control line cam cleats

PXR0810/T - 38mm (1 1/2”) hole centres - for upgrading main sheet swivel cleats and traveller systems on dinghies, keelboats and yachts, and upgrading cam cleats on downhauls, vang and backstay controls

Deck Swivel ‘SW’

  • PXR0206/SW for single cleat control of jib sheets and dinghy vangs. Preferred by dinghy builders for single line spinnaker hoist systems
  • PXR0810/SW for bigger boat swivel cam cleat control applications
  • Same footprint as traditional swivel cam cleats

Vertical Pivot 'VP' (2-6mm version only)

  • Pivoting sheave and cleat with ultra compact design
  • Mount centrally for feeding control lines out to the sides
  • Mount under boom for outhaul and gnav controls
  • Mount at mast base for catamaran downhauls and vangs
  • Easily detached
  • Accepts Harken sheave ref: H415

Mast Bracket

Mast bracket available for PXR0206 and PXR0810


Weights and Fasteners


PXR0206 - 43g (1.5oz)

PXR0206/SW - 77g (2.7oz)

PXR0206/T - 53g (1.9oz)

PXR0206/VP - 97g (3.4oz)

PXR0810 - 84g (2.9oz)

PXR0810/SW - 124g (4.3oz)

PXR0810/T - 101g (3.5oz)


PXR0206 - 2 x M4 (5/32") CSK Head (not supplied)

PXR0206/SW - 3 x M5 (3/16") CSK Head (not supplied)

PXR0206/T - 2 x M4 (5/32") CSK Head (not supplied)

PXR0206/VP - Bracket mount

PXR0810 - 2 x M5 (3/16") CSK Head (not supplied)

PXR0810/SW - 3 x M5 (3/16") CSK Head (not supplied)

PXR0810/T - 2 x M5 (3/16") CSK Head (not supplied)


Support Material

Spinlock PXR Cam Cleat Installation Instructions

PXR0206 Drill Guide

PXR0206/SW Drill Guide

PXR0206/T Drill Guide

PXR0206/VP Drill Guide

PXR0810 Drill Guide

PXR0810/SW Drill Guide

PXR0810/T Drill Guide
