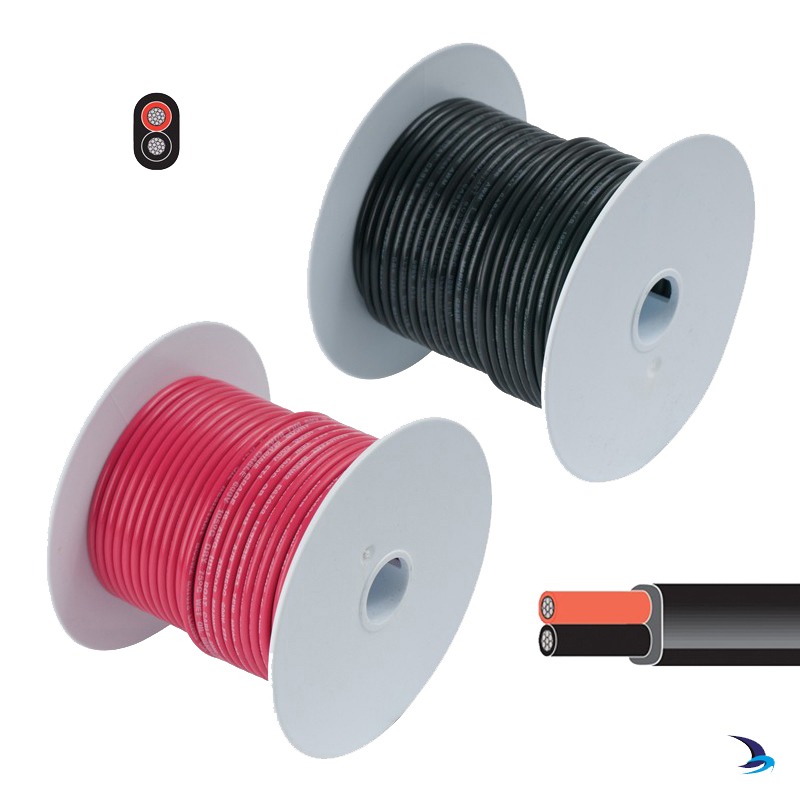

Tinned Cable Two Core Flat 2.5mm2 100m Reel

Tinned Cable Two Core Flat 2.5mm2 100m Reel


£259.99    (Inc. UK VAT @ 20%)(£216.66 Exc. VAT)

Low voltage, high performance wiring cable.

Manufactured to ISO 6722-1:2011 (Class B)

Tinned copper conductors PVC sheathed 70°C

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Tinned Cable Features

  • Tinned copper conductors provide excellent resistance to corrosion
  • Good resistance to petrol, diesel, lubricating oils, diluted acid and moisture
  • Hard grade PVC insulation offers good resistance to abrasion and cut though
  • Suitable for use at temperatures -40ºC to +105ºC with excursions up to 120ºC
  • Suitable for 12V and 24V systems (maximum 60V)
  • Manufactured in accordance with ISO 6722-1:2011 (Class B)
  • Cables are printed with the specification on the insulation

Tinned Cable Two Core Flat Specifications

Conductor Cross Section Conductor Specification Current Rating Overall Cable Diameter
1.5 mm2 2 x 21/0.30 mm 21.0 amps 3.5 x 5.8 mm
2.5 mm2 2 x 35/0.30 mm 29.0 amps 3.9 x 6.7 mm
