TruDesign - 90 Degree Hose Tail Male 19mm 3/4'' BSP

TruDesign - 90 Degree Hose Tail Male 19mm 3/4" BSP

TruDesign

Manufacturer #:  90372

£4.69    (Inc. UK VAT @ 20%)(£3.91 Exc. VAT)

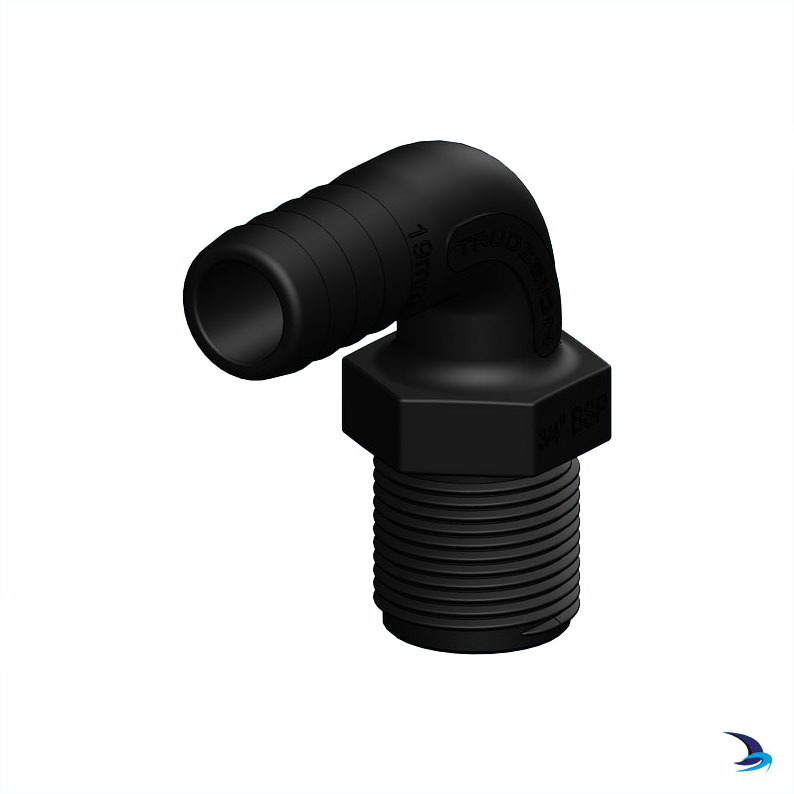

TruDesign Long Thread 90° Tails are designed to screw into the range of Ball Valves but can also be used in many applications. Moulded in glass-reinforced nylon composite these Tails are also suitable for use in contact with petrol and diesel fuels. TruDesign Tails eliminate the corrosion and electrical bonding problems associated with metallic fittings. Tail fittings are designed for twin hose clamps, and to not crush under high load conditions.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Tru-Design Hose Tail Features

  • Manufactured from a glass-reinforced nylon composite - High strength and light weight
  • Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion
  • Chemical resistant - Unaffected by diesel, petrol, and chemicals
  • UV resistant - Will not degrade or discolour with ultraviolet light from the sun
  • High quality surface finish - Will not discolour with green film as similar bronze fittings do
  • BSP (parallel) threads - Universal compatibility to other TruDesign Ball Valve, threaded fittings, and other marine components
  • Large operating temperature range - Suitable for all marine environments, from -20°C to +100°C

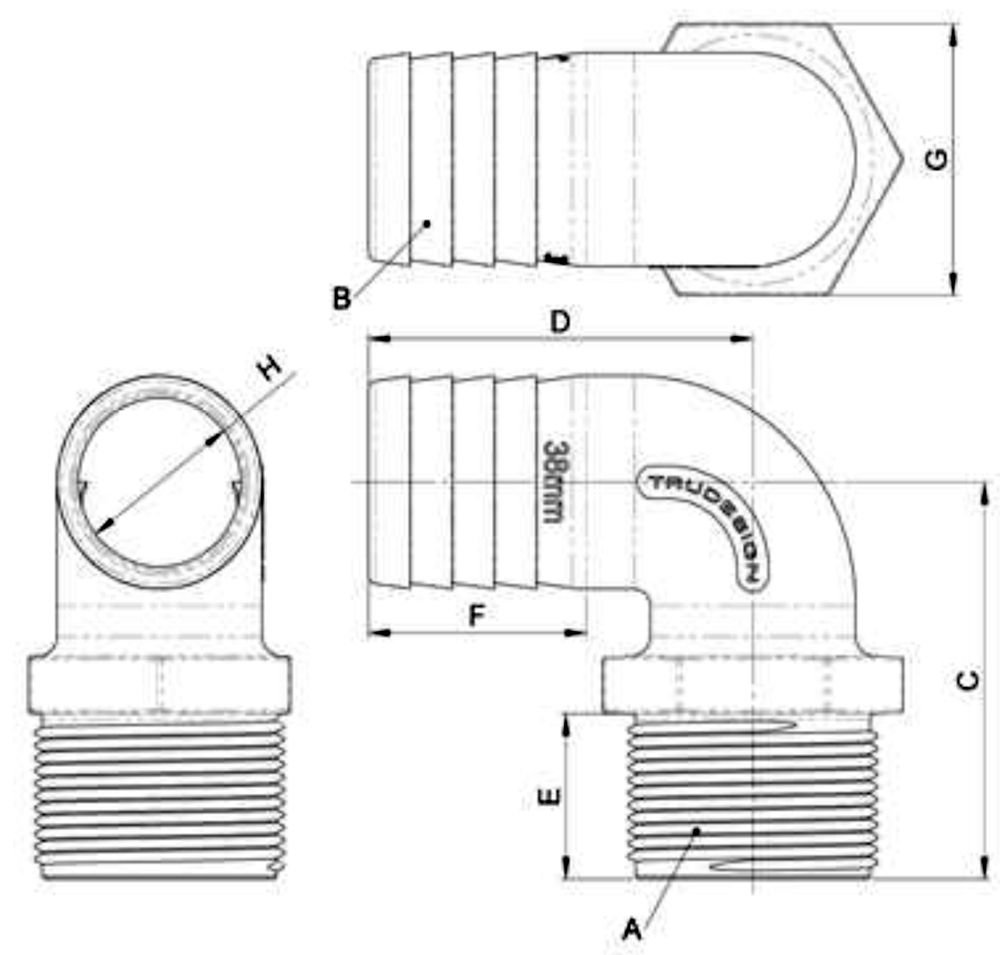

Tru Design 90° Hose Tail Specifications

A B C D E F G H
Thread size Tail size Length Length Thread length Tail length Hex size AF Minimum internal Ø
1/2" 13mm 51mm 44mm 25mm 31mm 25mm 8mm

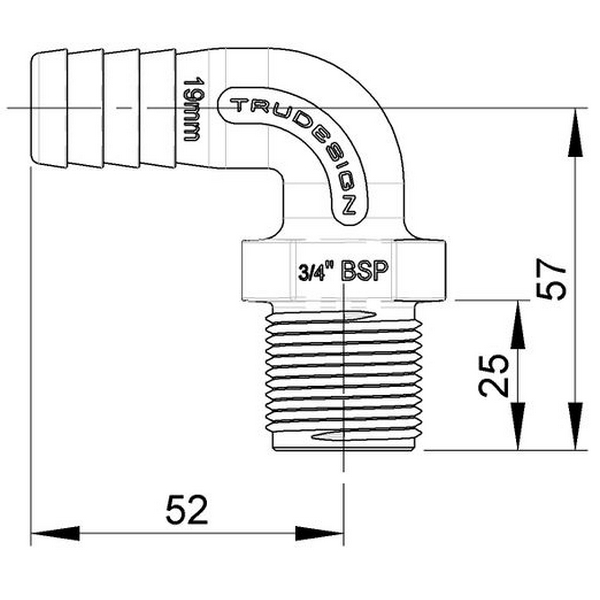

3/4" 19mm 57mm 52mm 25mm 31mm 30mm 13mm
1" 25mm 66mm 65mm 30mm 41mm 35mm 19mm
1 1/4" 32mm 70mm 71mm 30mm 41mm 44mm 25mm
1 1/2" 38mm 73mm 73mm 30mm 41mm 50mm 31mm
2" 50mm 75mm 73mm 30mm 41mm 62mm 43mm
1/2" 16mm 51mm 50mm 25mm 31mm 25mm 10mm
1" 28mm 66mm 65mm 30mm 41mm 35mm 21mm
1 1/4" 38mm 73mm 73mm 30mm 41mm 44mm 31mm
2" 38mm 73mm 73mm 30mm 41mm 62mm 31mm
