TruDesign - Straight Hose Tail Male Unequal 28mm 1'' BSP

TruDesign - Straight Hose Tail Male Unequal 28mm 1" BSP

TruDesign

Manufacturer #:  90640

Price:  £2.89    (£2.41 Exc. VAT)

TruDesign Tails are moulded from a glass-reinforced nylon composite. High strength, high-modulus glass fibres within the nylon composite provides dramatic strength, stiffness, toughness, and dimensional stability. TruDesign Tails eliminate the corrosion and electrical bonding problems associated with metallic fittings. Tail fittings are designed for twin hose clamps and to never crush.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Tru-Design Hose Tail Features

  • Manufactured from a glass-reinforced nylon composite - High strength and light weight
  • Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion
  • Chemical resistant - Unaffected by diesel, petrol, or chemicals
  • UV resistant - Will not degrade or discolour with ultraviolet light from the sun
  • High quality surface finish - Will not discolour with green film as similar bronze fittings do
  • BSP (parallel) treads - Universal compatibility to TruDesign Ball Valves, threaded fittings, and other marine components
  • Large operating temperature range - Suitable for all marine environments, from -20°C to +100°C

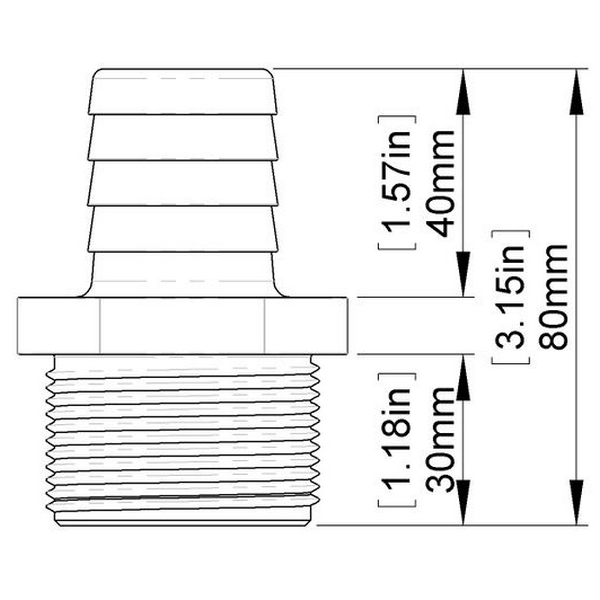

TruDesign Straight Male Hose Tail Specifications

A B C D E F G
Thread size Tail size Overall length Thread length Tail length Hex size AF Minimum internal Ø
1/2" 13mm 63mm 24mm 31mm 25mm 9mm
3/4" 19mm 63mm 24mm 31mm 30mm 13mm
1" 25mm 80mm 30mm 40mm 35mm 19mm
1 1/4" 32mm 80mm 30mm 40mm 44mm 24mm
1 1/2" 38mm 80mm 30mm 40mm 50mm 29mm
2" 50mm 93mm 30mm 50mm 62mm 40mm
3" 75mm 137mm 42mm 80mm 89mm 66mm
1/2" 16mm 62mm 24mm 30mm 25mm 11mm
3/4" 22mm 63mm 24mm 31mm 30mm 15mm
1" 28mm 80mm 30mm 40mm 35mm 20mm
1 1/4" 38mm 92mm 30mm 50mm 62mm 29mm
1 1/2" 32mm 80mm 30mm 40mm 50mm 24mm
2" 38mm 80mm 30mm 40mm 50mm 24mm
3" 64mm 137mm 42mm 80mm 90mm 55mm





Frequently Asked Questions

  • Fitting sanitary hose to hose tails
    Use a hair drier to heat up the end of the hose or immerse the end of the hose in hot water. Both these methods will soften the hose sufficiently to enable it to be pushed on. Care must be taken with the heat of the hair drier and any solvents that could ignite. Remember to always use 2 stainless steel hose clamps on all hoses that are in an under water or close to an under water position.
  • Identification of threads BSP or NPS?
    Tru-Design manufacture these marine fittings with two types of threads: BSP British Standard Pipe for the European market. NPS National pipe straight for the US market. Each threaded fitting will have either a B for BSP or N for NPS. If no marking is visible, it will be BSP.
