Wichard - Captive Pin Long D Shackles

Wichard - Captive Pin Long D Shackles

Wichard

Size:

Manufacturer #:  1411

Price:  £8.99(Inc. VAT @ 20%)
+

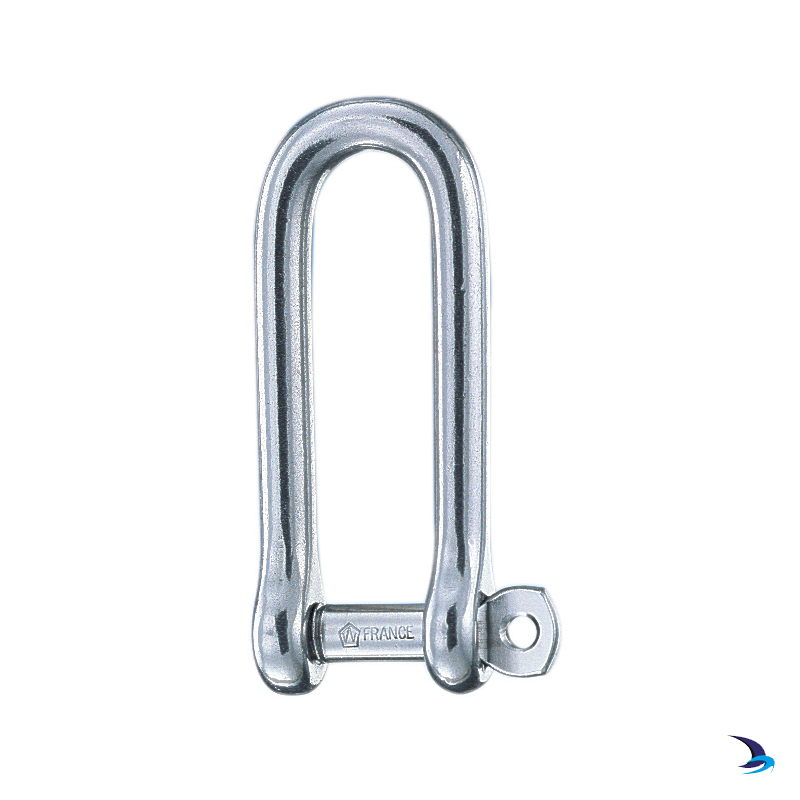

Captive pin long D shackle forged in grade 316L stainless steel

The pin is connected to the body at all times even when opened so there is no risk of losing it. The pin is locked into an indentation so cannot work loose due to vibrations.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Features

  • Outstanding working and breaking loads
  • Safer as the shackle can be operated single handed as there is no risk of dropping the pin

Applications

  • Standard shackle applications requiring more length
  • Attachment applications: blocks, head...

Material

  • Grade 316L stainless steel


Captive Pin Long D Shackle Specifications

Part no. Length Material Ø Working load Break load Weight
1411 31mm 4mm Ø 320kg 1,000kg 12g
1412 39mm 5mm Ø 480kg 1,500kg 24g
1413 46mm 6mm Ø 680kg 2,200kg 40g
1414 62mm 8mm Ø 1,000kg 3,600kg 92g
1415 78mm 10mm Ø 1,520kg 5,200kg 176g
