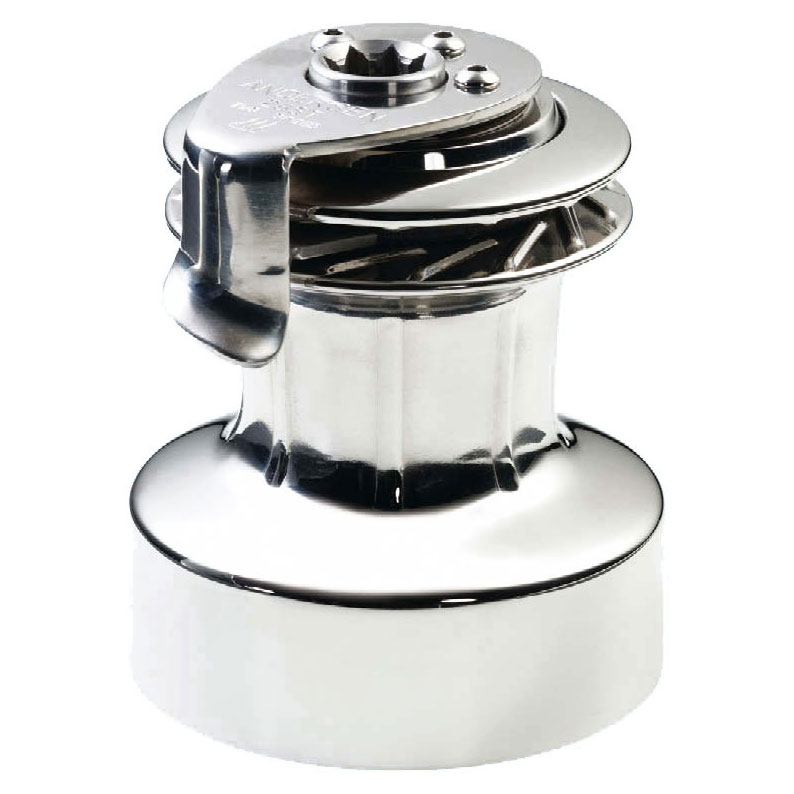

Andersen - Full Stainless Self-Tailing Winches

Andersen - Full Stainless Self-Tailing Winches

Andersen

Winch size:

Article Number:  RA2012010000

Price:  £450.00
RRP:  £521.99
Save:  £71.99
(Inc. VAT @ 20%)
+

Full Stainless Steel - Beyond Good Looks.

This is a prerequisite for the yachtsman who places honour in making his yacht look its best. Andersen Full Stainless© is beauty at work, enhancing the unique image of your boat and the sheer pleasure of beholding it. A synthetic cap and base are replaced with stainless steel parts, transforming the winch into an aesthetic statement.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
ST Winch
Wednesday, 9 August 2017  |

The Andersen winch is a work of art, very well put together and even looks good before it is mounted on the coach roof of the boat.

Was this helpful to you?  Yes  /  No

This review has not been appraised.

Product Information

All Andersen Winches© feature stainless steel Power Rib© drums that ensure a smooth surface and a corrosion-free winch that is built to last. Andersen Self-Tailing Winches© extend the service life of your sheets and halyards and the winch itself, since the Power Rib and the smooth surface of the drum require fewer turns compared to other winches. In addition, the self-tailing device is designed to accommodate a number of different of sheet and halyard sizes — enabling the winch to serve many different purposes and providing you with a range of products to choose from, no matter what you sail. A special option for Andersen Winches is a choice of having your own winch titanium-coated whichever matches your boat. This means that the surface of your Andersen Winch will never show wear and tear.

Power ratio is the mechanical advantage of the winch. The pull of the winch is based on the power ratio and not just on the physical size of the winch or the diameter of the drum. The power ratio is used to determine the load the winch may handle.



Model Weight Dimensions Line Ø Gear ratios Power ratios
12 ST FS Single speed 2.6kg 70mm drum Ø
115mm base Ø
130mm height
8mm (min)
14mm (max)
Ratio 1 - 1.3:1 Ratio 1 - 9.5:1
18 ST FS Single speed 3.2kg 70mm drum Ø
120mm base Ø
136mm height
8mm (min)
14mm (max)
Ratio 1 - 2.6:1 Ratio 1 - 18.8:1
28 ST FS 2 speed 3.9kg 70mm drum Ø
125mm base Ø
151mm height
8mm (min)
14mm (max)
Ratio 1 - 1.3:1
Ratio 2 - 4:1
Ratio 1 - 9.5:1
Ratio 2 - 28.6:1
34 ST FS 2 speed 4.1kg 70mm drum Ø
125mm base Ø
151mm height
8mm (min)
14mm (max)
Ratio 1 - 1.3:1
Ratio 2 - 4.7:1
Ratio 1 - 9.5:1
Ratio 2 - 33.8:1
40 ST FS 2 speed 4.9kg 75mm drum Ø
152mm base Ø
174mm height
8mm (min)
14mm (max)
Ratio 1 - 1.3:1
Ratio 2 - 6:1
Ratio 1 - 8.9:1
Ratio 2 - 40:1
46 ST FS 2 speed 7.8kg 89mm drum Ø
180mm base Ø
209mm height
8mm (min)
14mm (max)
Ratio 1 - 2.8:1
Ratio 2 - 8.4:1
Ratio 1 - 15.7:1
Ratio 2 - 47.1:1
50 ST FS 2 speed 7.8kg 89mm drum Ø
180mm base Ø
209mm height
8mm (min)
14mm (max)
Ratio 1 - 2.8:1
Ratio 2 - 8.8:1
Ratio 1 - 15.7:1
Ratio 2 - 49.3:1
52 ST FS 2 speed 10.3kg 100mm drum Ø
200mm base Ø
228mm height
8mm (min)
16mm (max)
Ratio 1 - 3.2:1
Ratio 2 - 10.5:1
Ratio 1 - 16.2:1
Ratio 2 - 52.5:1
58 ST FS 2 speed 16kg 115mm drum Ø
230mm base Ø
257mm height
8mm (min)
18mm (max)
Ratio 1 - 3.7:1
Ratio 2 - 13.1:1
Ratio 1 - 16:1
Ratio 2 - 57.1:1
62 ST FS 2 speed 16kg 115mm drum Ø
230mm base Ø
257mm height
8mm (min)
18mm (max)
Ratio 1 - 3.7:1
Ratio 2 - 14.4:1
Ratio 1 - 16:1
Ratio 2 - 62.6:1
68 ST FS 2 speed 24.5kg 140mm drum Ø
280mm base Ø
280mm height
10mm (min)
18mm (max)
Ratio 1 - 5.8:1
Ratio 2 - 18.8:1
Ratio 1 - 20.7:1
Ratio 2 - 67.1:1
72 ST FS 2 speed 24.5kg 140mm drum Ø
280mm base Ø
280mm height
10mm (min)
18mm (max)
Ratio 1 - 5.8:1
Ratio 2 - 20.3:1
Ratio 1 - 20.7:1
Ratio 2 - 72.6:1
78 ST FS 2 speed 49kg 170mm drum Ø
320mm base Ø
375mm height
16mm (min)
22mm (max)
Ratio 1 - 7:1
Ratio 2 - 26.7:1
Ratio 1 - 20.6:1
Ratio 2 - 78.4:1
110 ST FS 2 speed 72.5kg 250mm drum Ø
395mm base Ø
426mm height
16mm (min)
25mm (max)
Ratio 1 - 10.2:1
Ratio 2 - 56.1:1
Ratio 1 - 20.3:1
Ratio 2 - 112.3:1
