Barton





Manufacturer #:  95400

£14.49    (Inc. UK VAT @ 20%)(£12.08 Exc. VAT)
  Size 1 Size 2 Size 3
Sheave Ø: 30mm 35mm 45mm
Sheave width: 11mm 11mm 13mm
Max rope Ø: 8mm 8mm 10mm
SWL: 280kg 400kg 400kg
Break load: 560kg 800kg 800kg
Max rolling load: 200kg 280kg 280kg

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

For lines up to 10mm diameter. Available with plain or ball bearing sheaves. A robust range of stainless steel blocks with a multitude of uses on all types of sailing boats.

Highly polished side plates with flared cheeks prevent the possibility of chafing the line whilst giving added strength. These are ideal for use on dinghies and dayboats for kicking straps or wherever a compact and powerful rope tackle is required.



Size 1 stainless steel - Single blocks
Block type Part number Length Weight

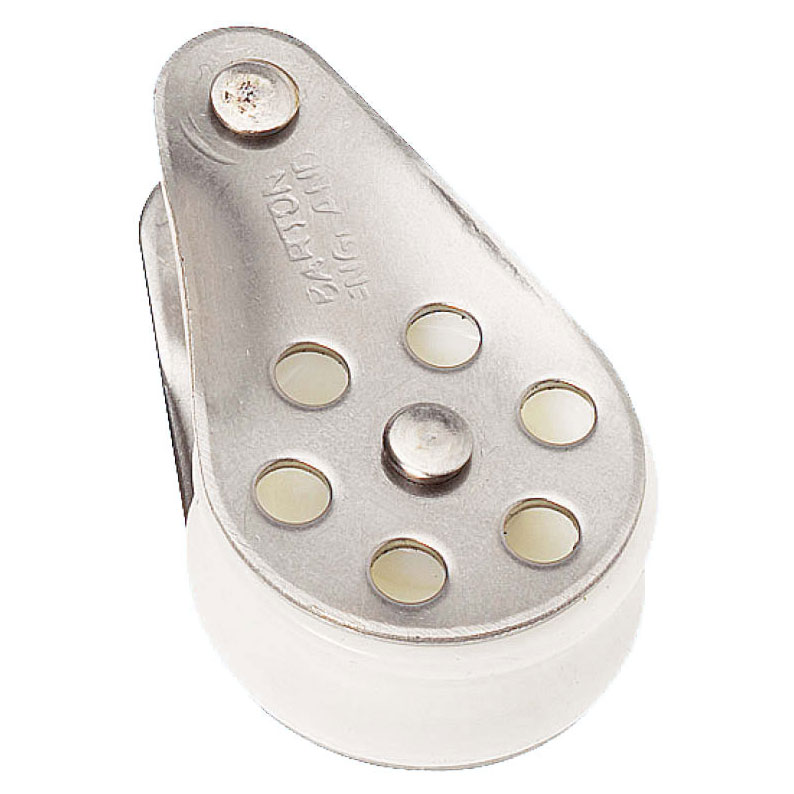

Single - block Plain sheave
Ball bearing sheave
95100
95400
50.00mm Plain sheave
Ball bearing sheave
34g
32g
Single - block + becket Plain sheave
Ball bearing sheave
95101
95401
67.00mm Plain sheave
Ball bearing sheave
45g
43g

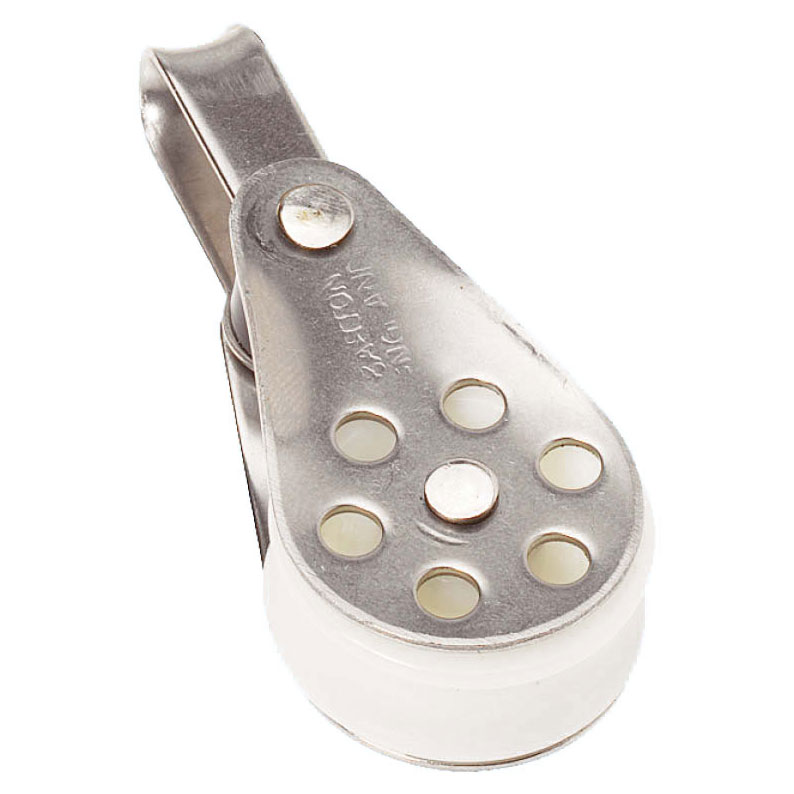

Single - fixed eye Plain sheave
Ball bearing sheave
95102
95402
68.00mm Plain sheave
Ball bearing sheave
39g
37g
Single - fixed eye + becket Plain sheave
Ball bearing sheave
95103
95403
85.00mm Plain sheave
Ball bearing sheave
48g
46g
Single - swivel Plain sheave
Ball bearing sheave
95104
95404
86.00mm Plain sheave
Ball bearing sheave
53g
51g

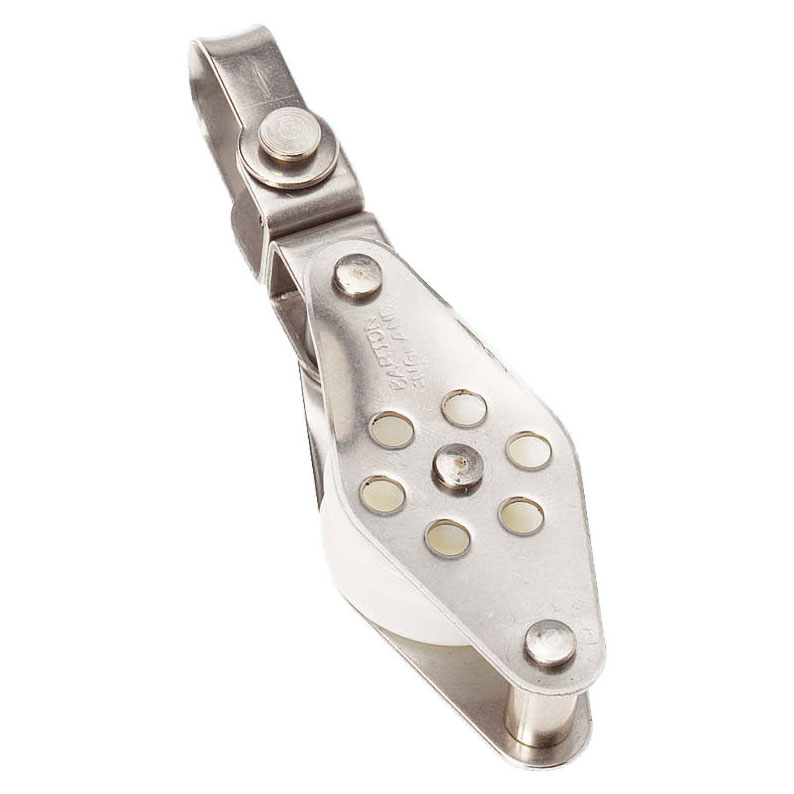

Single - swivel + becket Plain sheave
Ball bearing sheave
95105
95405
100.00mm Plain sheave
Ball bearing sheave
63g
61g
Size 1 stainless steel - Double blocks
Block type Part number Length Weight
Double - fixed eye Plain sheave
Ball bearing sheave
95120
95420
68.00mm Plain sheave
Ball bearing sheave
60g
54g

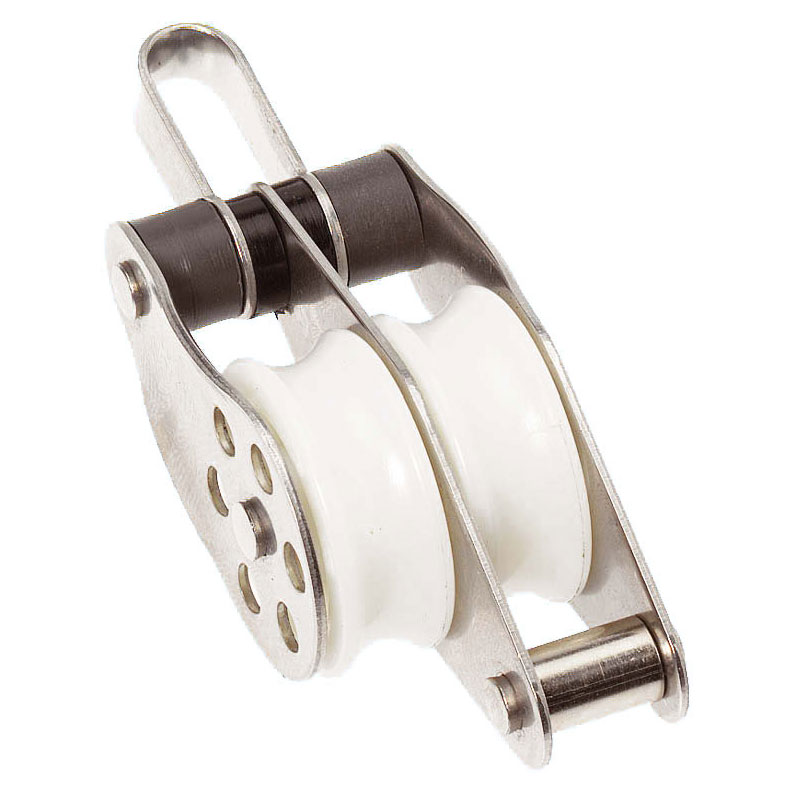

Double - fixed eye + becket Plain sheave
Ball bearing sheave
95121
95421
85.00mm Plain sheave
Ball bearing sheave
70g
66g
Double - swivel Plain sheave
Ball bearing sheave
95122
95422
83.00mm Plain sheave
Ball bearing sheave
76g
72g

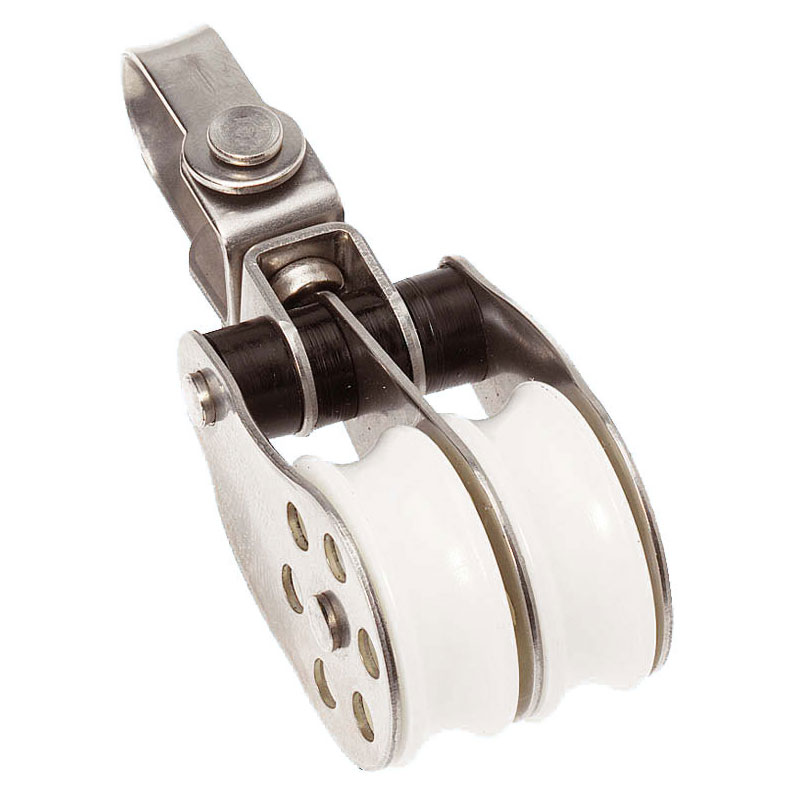

Double - swivel + becket Plain sheave
Ball bearing sheave
95123
95423
100.00mm Plain sheave
Ball bearing sheave
86g
82g
Size 1 stainless steel - Triple blocks
Block type Part number Length Weight
Triple - fixed eye Plain sheave
Ball bearing sheave
95130
95430
68.00mm Plain sheave
Ball bearing sheave
82g
76g
Triple - fixed eye + becket Plain sheave
Ball bearing sheave
95137
95437
85.00mm Plain sheave
Ball bearing sheave
93g
87g

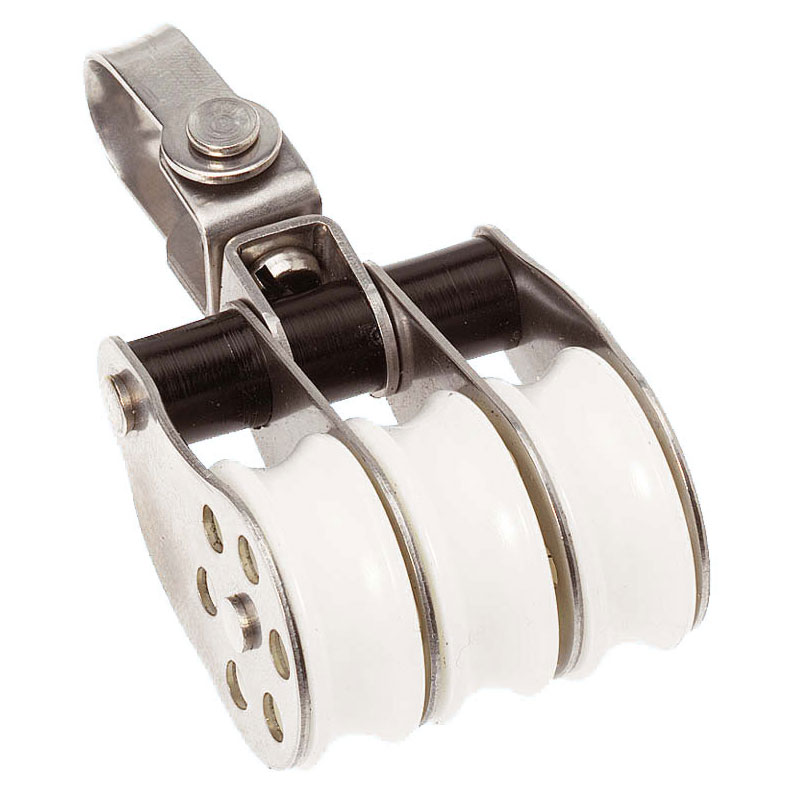

Triple - swivel Plain sheave
Ball bearing sheave
95138
95438
83.00mm Plain sheave
Ball bearing sheave
99g
93g
Triple - swivel + becket Plain sheave
Ball bearing sheave
95139
95439
100.00mm Plain sheave
Ball bearing sheave
109g
103g
Size 2 stainless steel - Single blocks
Block type Length Length Weight
Single - block Plain sheave
Ball bearing sheave
95200
95500
61.00mm Plain sheave
Ball bearing sheave
45g
45g
Single - block + becket Plain sheave
Ball bearing sheave
95201
95501
84.00mm Plain sheave
Ball bearing sheave
60g
60g
Single - fixed eye Plain sheave
Ball bearing sheave
95202
95502
76.00mm Plain sheave
Ball bearing sheave
48g
48g
Single - fixed eye + becket Plain sheave
Ball bearing sheave
95203
95503
99.00mm Plain sheave
Ball bearing sheave
63g
63g
Single - swivel Plain sheave
Ball bearing sheave
95204
95504
96.00mm Plain sheave
Ball bearing sheave
63g
63g
Single - swivel + becket Plain sheave
Ball bearing sheave
95205
95505
119.00mm Plain sheave
Ball bearing sheave
79g
79g
Size 2 stainless steel - Double blocks
Block type Part number Length Weight
Double - fixed eye Plain sheave
Ball bearing sheave
95220
95520
76.00mm Plain sheave
Ball bearing sheave
77g
77g
Double - fixed eye + becket Plain sheave
Ball bearing sheave
95221
95521
98.00mm Plain sheave
Ball bearing sheave
92g
92g
Double - swivel Plain sheave
Ball bearing sheave
95222
95522
95.00mm Plain sheave
Ball bearing sheave
92g
92g
Double - swivel + becket Plain sheave
Ball bearing sheave
95223
95523
116.00mm Plain sheave
Ball bearing sheave
107g
107g
Size 2 stainless steel - Triple blocks
Block type Part number Length Weight
Triple - fixed eye Plain sheave
Ball bearing sheave
95230
95530
75.00mm Plain sheave
Ball bearing sheave
105g
105g
Triple - fixed eye + becket Plain sheave
Ball bearing sheave
95231
95531
97.00mm Plain sheave
Ball bearing sheave
120g
120g
Triple - swivel Plain sheave
Ball bearing sheave
95232
95532
97.00mm Plain sheave
Ball bearing sheave
121g
121g
Triple - swivel + becket Plain sheave
Ball bearing sheave
95233
95533
117.00mm Plain sheave
Ball bearing sheave
136g
136g
Size 3 stainless steel - Single blocks
Block type Length Length Weight
Single - block Plain sheave
Ball bearing sheave
95300
95600
80.00mm Plain sheave
Ball bearing sheave
61g
64g
Single - block + becket Plain sheave
Ball bearing sheave
95301
95601
112.00mm Plain sheave
Ball bearing sheave
80g
83g
Single - fixed eye Plain sheave
Ball bearing sheave
95302
95602
93.00mm Plain sheave
Ball bearing sheave
71g
74g
Single - fixed eye + becket Plain sheave
Ball bearing sheave
95303
95603
124.00mm Plain sheave
Ball bearing sheave
94g
97g
Single - swivel Plain sheave
Ball bearing sheave
95304
95604
107.00mm Plain sheave
Ball bearing sheave
87g
90g
Single - swivel + becket Plain sheave
Ball bearing sheave
95305
95605
139.00mm Plain sheave
Ball bearing sheave
107g
110g
Size 3 stainless steel - Double blocks
Block type Part number Length Weight
Double - fixed eye Plain sheave
Ball bearing sheave
95320
95620
93.00mm Plain sheave
Ball bearing sheave
112g
118g
Double - fixed eye + becket Plain sheave
Ball bearing sheave
95321
95621
124.00mm Plain sheave
Ball bearing sheave
136g
142g
Double - swivel Plain sheave
Ball bearing sheave
95322
95622
107.00mm Plain sheave
Ball bearing sheave
129g
135g
Double - swivel + becket Plain sheave
Ball bearing sheave
95323
95623
139.00mm Plain sheave
Ball bearing sheave
149g
155g
Size 3 stainless steel - Triple blocks
Block type Part number Length Weight
Triple - fixed eye Plain sheave
Ball bearing sheave
95330
95630
93.00mm Plain sheave
Ball bearing sheave
153g
162g
Triple - fixed eye + becket Plain sheave
Ball bearing sheave
95331
95631
124.00mm Plain sheave
Ball bearing sheave
185g
194g
Triple - swivel Plain sheave
Ball bearing sheave
95332
95632
167.00mm Plain sheave
Ball bearing sheave
135g
144g
Triple - swivel + becket Plain sheave
Ball bearing sheave
95333
95633
139.00mm Plain sheave
Ball bearing sheave
167g
176g
