Cobra - F57 Fixed VHF Marine Radio
Cobra - F57 Fixed VHF Marine RadioCobra - F57 Fixed VHF Marine RadioCobra - F57 Fixed VHF Marine Radio

Cobra - F57 Fixed VHF Marine Radio

Cobra Electronics

Manufacturer #:  MR-F57EU

Price:  £139.99
RRP:  £149.99
Save:  £10.00
   (£116.66 Exc. VAT)

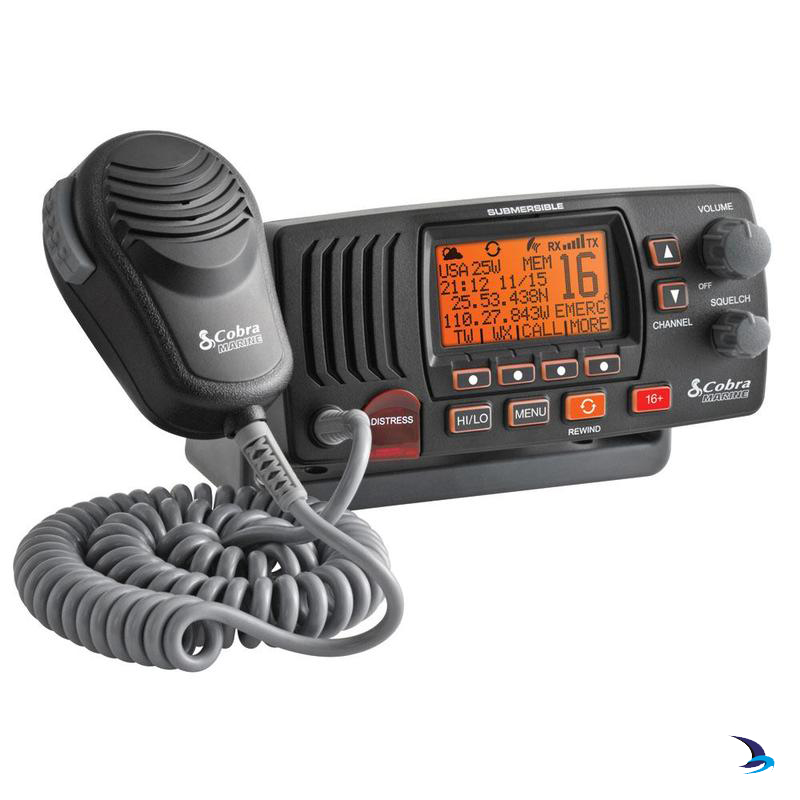

Cobra Electronics 25 Watt Fixed Marine Radio in Black

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Cobra F57B VHF Marine Radio Features

  • (DIGITAL SELECTIVE CALLING) Compliant with the latest specifications for Class-D VHF Radios. Digital Selective Calling allows you to send a distress signal at the touch of a button or exchange position information with other boats or stations.
  • DSC features on this Class-D radio include; A Dedicated Channel 70 (DSC Channel) Receiver, GPS Position Display Capability, Illuminated Distress Button, Easy MMSI Entry, Position Send and Request, Position Input Reminder, Coast Guard DSC Check Capability, etc.
  • 1 OR 25 WATTS Dual output power for short and long communication.
  • International, U.S.A. Canada Channels Allows operation on any of the three (3) different channel maps established for these areas.
  • REWIND-SAY-AGAIN Replay missed calls. Automatically records the last 20 seconds of incoming radio transmissions. Handy when in noisy conditions.
  • RADIO CHECK Checks battery voltage when transmitting, RF power output, and antenna output.
  • INSTANT CHANNEL 16 Instant access to channel 16 for emergency situations.
  • GPS CAPABILITY Plug-and-Play using the new C.P.S. (Cobra Positioning Systems) external GPS. No other connections required. You can send your position information in case of emergency, or exchange position information with other boats.
  • DUAL WATCH Monitors two (2) channels at once - Channel 16 and one (1) user selected channel.
  • SCAN / MEMORY SCAN Scan all channels to find conversations in progress, or scan channels placed into memory. CHANNEL NAMES Friendly VHF channel names under the channel number.
  • SIGNAL STRENGTH METER Shows the strength of incoming signal.
  • ILLUMINATED KEYS Allows high visibility of keys. ILLUMINATED LCD DISPLAY: Large Allows high visibility of display.
  • NOISE CANCELLING MICROPHONE Blocks background noise.
  • External Speaker and PA Speaker Connect an external speaker and a PA (Public Address) speaker.
  • NMEA IN AND OUT NMEA in for GPS input. NMEA output to display other vessels and their information transmitted by DSC on your chart plotter.
  • SUBMERSIBLE Meets JIS8/IPX8 standards; Submersible for 30 minutes in 1.5 meter deep water.
  • EXTERNAL ALARM INPUT Senses the alarm from your chart plotter and uses the speaker on the radio to amplify the alarm for way point arrival, MOB, etc.
  • ATIS Capable of operating within the Automatic Transponder Identification System. ATIS includes data at the end of a transmission for station identification.


Cobra F57B VHF Marine Radio Specifications

General Specifications
MODULATION 5 kHz MAX
INPUT VOLTAGE 13.8 VDC
CURRENT DRAIN Stand-by 200 mA / Receive 300 mA
TRANSMIT 5 A @ High Power // 1 A @ Low Power
TEMPERATURE RANGE -20ºC to 60ºC
UNIT DIMENSIONS 159 mm x 57 mm x 180 mm
UNIT WEIGHT 1100 g



Receiver Specifications
FREQUENCY RANGE 156.050 to 163.275 MHz
RECEIVER TYPE Double Conversion Super-Heterodyne
SENSITIVITY 20 dB Quieting 0.35 uV 12 dB Sinad 0.30 uV
AF OUTPUT 4 Watts @ 8 Ohms



Receiver Specifications
FREQUENCY RANGE 156.025 to 157.425 MHz RF
OUTPUT POWER 1 or 25 Watts
SPURIOUS EMISSIONS -75 dB @ High Power -72 dB @ Low Power
MICROPHONE TYPE Electret Microphone
IMPEDANCE 2000 Ohms
FREQUENCY STABILITY +/-10 ppm
NOISE 50 dB

INCLUDED ACCESSORIES: Flush & Surface Mount Kit - Easy installation of radio in or on almost any flat surface. GPS Interface Cable Allows connection of a GPS receiver or NMEA 0183 devices.
