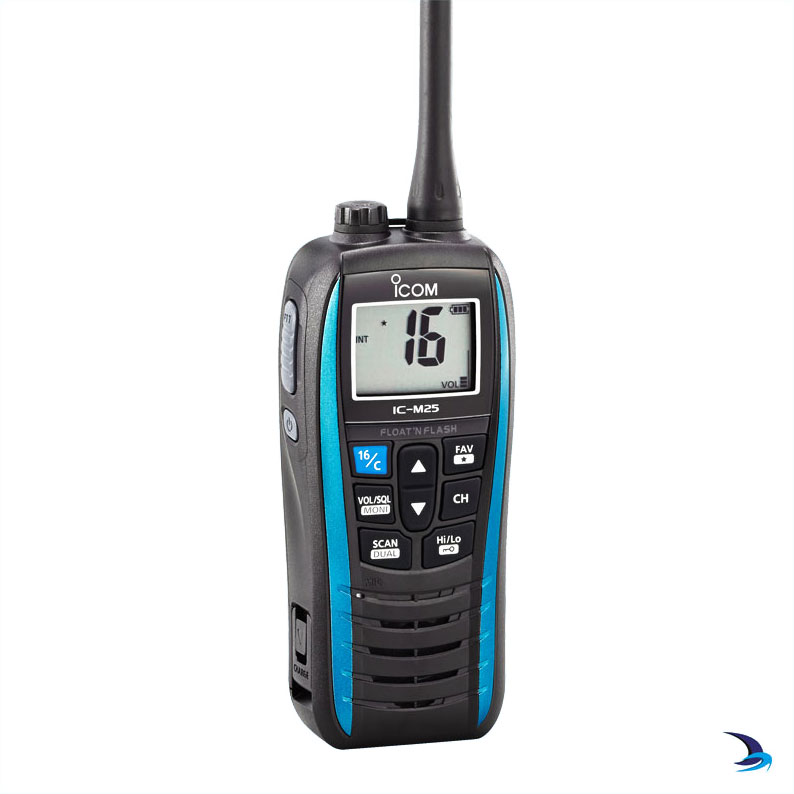

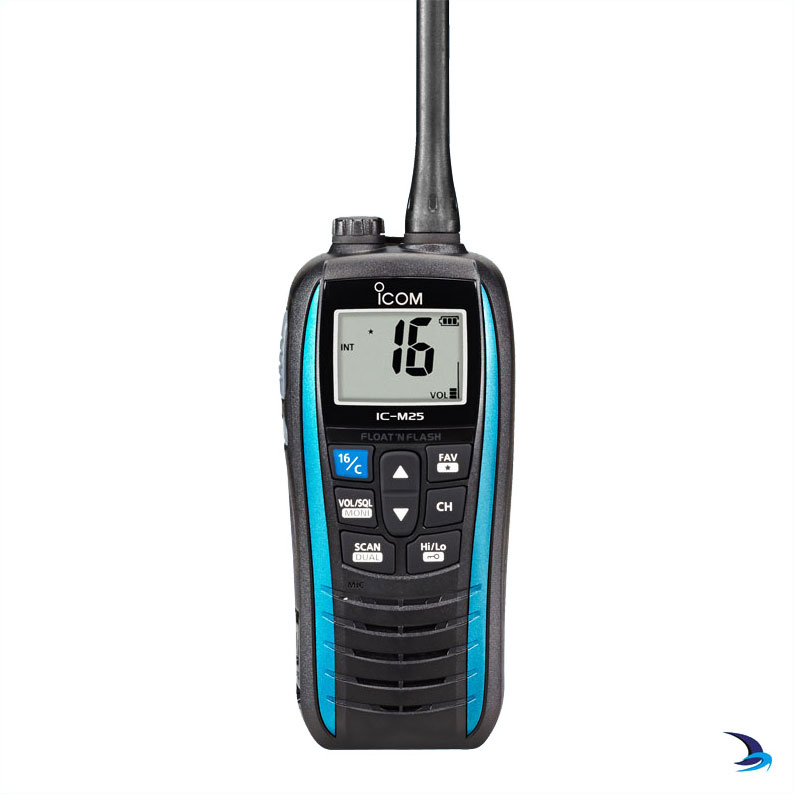

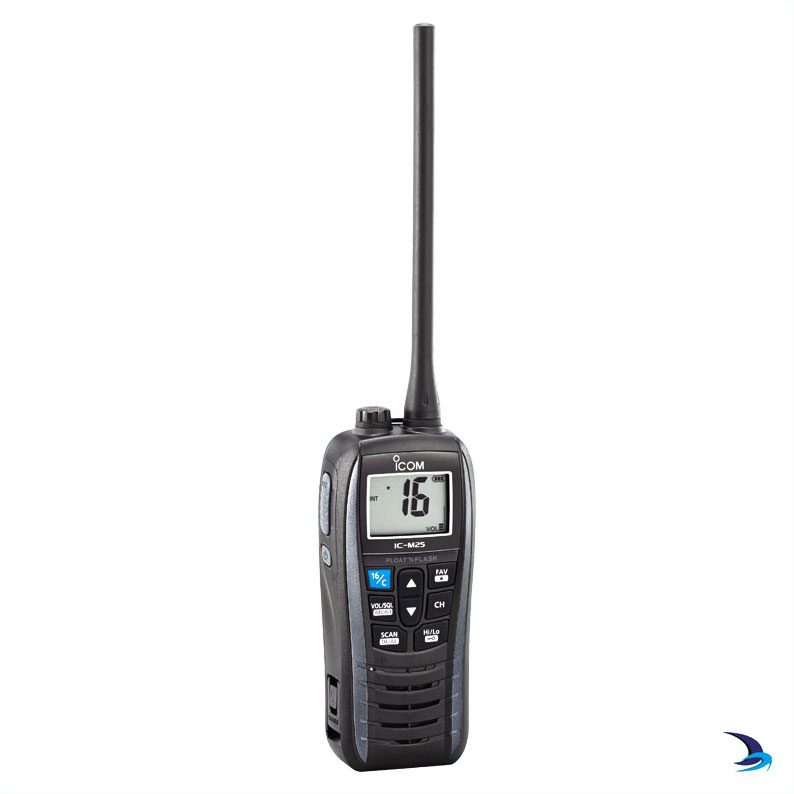

Icom - IC-M25 buoyant VHF marine radio

Icom - IC-M25 buoyant VHF marine radio
 Icom - IC-M25 buoyant VHF marine radioIcom - IC-M25 buoyant VHF marine radio

Icom

Colour:

Manufacturer #:  IC-M25

Price:  £139.95
RRP:  £164.95
Save:  £25.00
(Inc. VAT @ 20%)
+

Sporting an elegant slim design, this new model has the lightest body in the market for a floating VHF radio at just 220g. New for an Icom, this new radio has a tidy USB connector for convenient charging from a variety of electronic devices!

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:
*
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
IC M25
Thursday, 23 June 2016  |

Good product and great service from sea teach, who kept me well informed of delivery progress at all stages, which was very prompt - will use again.

Was this helpful to you?  Yes  /  No

1 of 1 people found this review helpful.

Product Information

Slim, lightweight, easy to use
The IC-M25 is extremely lightweight, weighing only 220g. Its 30.5mm slim body is extremely comfortable to handle. Large LCD display and laser cut, curved shape buttons are well laid out and provide simple and straightforward operation. In fact, the IC-M25 LCD screen is 30% larger than its predecessor, the IC-M23, allowing you to clearly see the channel number and status icons.

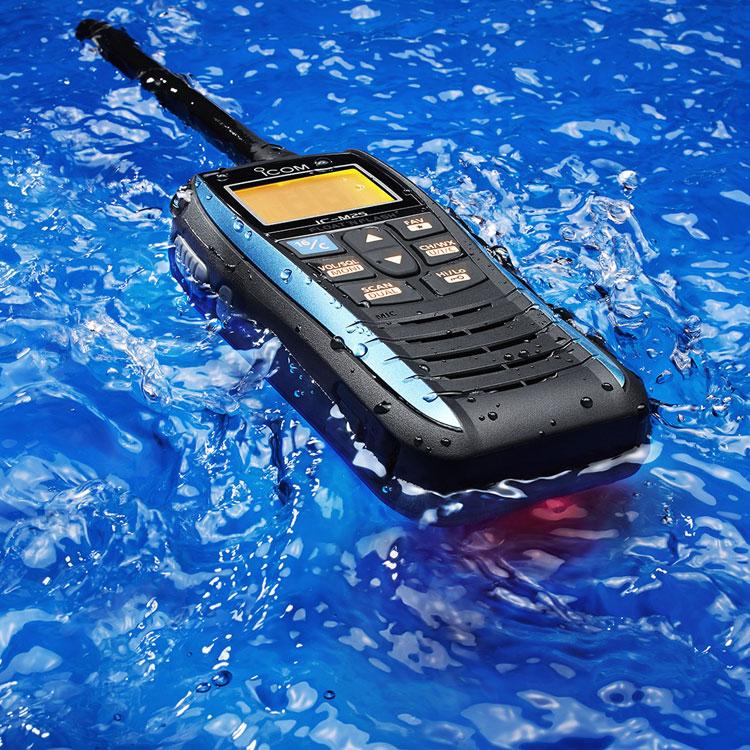

Buoyant with flashing red LED
The IC-M25 floats when dropped in water. Not only does the LCD and key backlight on the front panel flash, but also the red LED light blinks through the rear panel showing the place of the radio so that it can be easily retrieved. The IC-M25 also floats even when the optional HM-213 microphone is attached.

11 hours long battery life
The built-in 1500mAh lithium-ion battery provides 5 Watts of transmit power and allows 11 hours (approximate) of long operation*. * Typical operation with Tx (Hi): Rx: standby=5:5:90

USB charging
The IC-M25 has a Micro-B USB connector and can be charged with the supplied AC adaptor, BC-217 in 3 hours (approx.). Third party USB charger products such as cigarette lighters or mobile battery for charging smart phones, tablets or digital cameras may be used with the IC-M25*.
* The IC-M25 accepts 5V/1A (Max.) input. Use of third party products is not guaranteed.

550mW audio output and optional speaker microphone
The IC-M25 provides a powerful 550mW (12 Ohm load) audio output and received voice can be heard loud and clear. The Volume loud and mute functions offer quick adjustment of the volume level by holding the VOL/SQL button and pushing the ▲ or ▼ button. The optional HM-213 waterproof speaker microphone provides extra convenience for leisure users.



  • IPX7 waterproof construction (1m depth of water for 30 minutes)
  • 4-step battery life indicator
  • Dual/Tri-watch functions
  • Instant access to Ch 16 or programmable call channel
  • Quick channel selection with the Favourite channel function
  • Monitor function for noise squelch control with VOL/SQL button
  • Auto scan function
  • LCD auto backlighting
  • AquaQuake draining function

Supplied Accessories:

  • USB Charger BC-217SE*
  • Belt clip, MB-133
  • Hand strap
  • Antenna, FA-SC59V

*May differ depending on version.



General
Frequency range

Tx - 156.025-157.425MHz

RX- 156.050-163,275MHz

Usable Channels INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM)
Power supply voltage 3.7V DC nominal
Current drain (at 3.7v DC)

Tx High - 2.3A
RX (Internal SP/ External SP) - 300mA/200mA (Max. audio)

Operating temperature range -20°C to +60°C
Antenna impendence 50Ω
Dimensions

56.6 x 134.2 x 30.5 mm (WxHxD; projections are not included)

Weight (approx.) 220g (with FA-SC59V, MB-133)
Transmitter
Output Power 5W (approx)/1W
Maximum frequency deviation   ±5.0KHz
Frequency stability ±10ppm
Spurious emissions -68dBc typical
Adjacent Ch. power 70dB
Residual modulation 40dB
Receiver
Sensitivity 0.25μV typical (at 12dB SINAD)
Squelch sensitivity 0.25μV typical (at threshold)
Adjacent Channel selectivity 70dB
Spurious response 70dB
Intermodulation 70dB
Audio output power (at 10% distortion) Internal SP: 550mW typical (12Ω load at 1kHz)
External SP: 300mW (4Ω load)
Ingress Protection Standard
Waterproof IPX7 (Waterproof protection)
