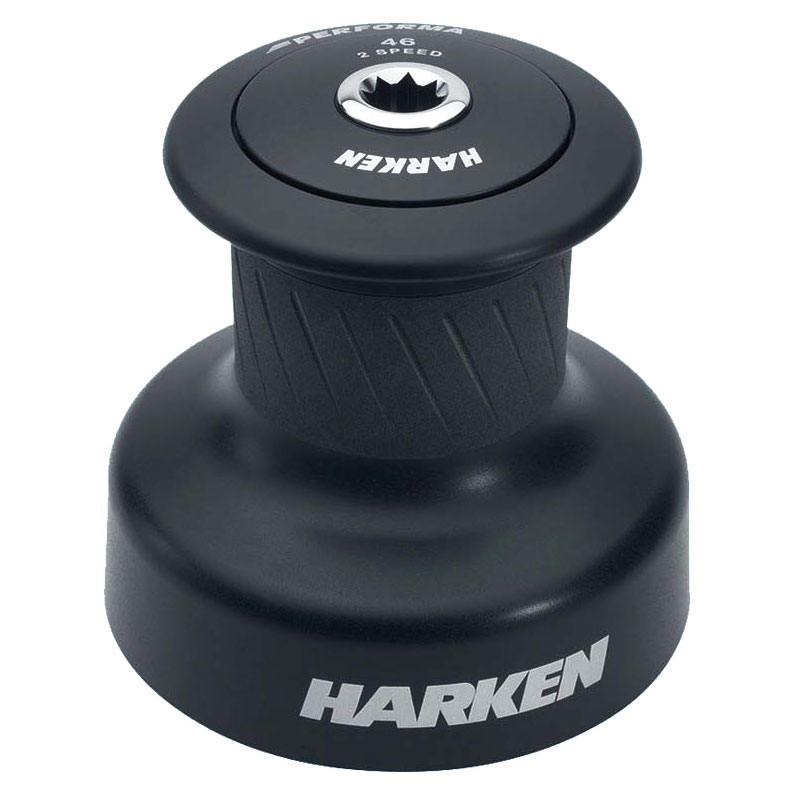

Harken - Performa™ Plain-Top Winches

Harken - Performa™ Plain-Top Winches

Harken



Manufacturer #:  20.2PTP

Price:  £579.99
RRP:  £683.39
Save:  £103.40
   (£483.33 Exc. VAT)

Harken Performa winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fiber racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. Use plain-top winches on sportboats where sails require frequent trimming.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Harken Perfoma Plain-Top Winch Specifications

Size Drum Ø (D) Base Ø (B) Height Ø (H) Weight Line Entry Height (LE) Fastener Circle Fasteners Gear Ratio Power Ratio
20.2PTP 73mm 137mm 128mm 2kg 61mm 110mm 5 x M6 1 - 1
2 - 2.76
1 - 6.95
2 - 19.20
35.2PTP 80mm 149mm 148mm 3.1kg 79mm 123mm 5 x M6 1 - 2.13
2 - 5.65
1 - 13.50
2 - 35.90
40.2PTP 80mm 157mm 153mm 3.5kg 82mm 123mm 5 x M6 1 - 2.13
2 - 6.28
1 - 13.50
2 - 39.90
46.2PTP 100mm 184mm 179mm 5.1kg 90mm 150mm 5 x M8 1 - 2.30
2 - 9.17
1 - 11.70
2 - 46.50
50.2PTP 110mm 195mm 190mm 5.9kg 97mm 150mm 5 x M8 1 - 2.40
2 - 10.90
1 - 11.10
2 - 50.40


Harken Winch Selection Guide

Definitions

I Height of the foretriangle measured from the top of the highest sheave to the sheerline
I2 Height of the staysail halyard above deck
J Base of the foretriangle measured from the front of the mast to the intersection of the forestay and deck
J2 Base of the staysail triangle
P Luff length of the mainsail
E Foot length of the mainsail
Winch
Size
Genoa Mainsail Staysail Spinnaker
  Sheet Halyard End-boom
Mainsheet
Halyard Reef Halyard Sheet Halyard Topping Lift/
Foreguy

Max sail area 100%
foretriangle (IxJx0.5)
Max I
4:1 sheet max sail
area (PxEx0.5)
Max P
Max P
Max I2
Max sail area
(IxJx1.8)
Max I
Max I
6 7 m2 7.6 m - 7.6 m 10.4 m 7.6 m 46.5 m2 7.6 m 10.7 m
8 10.5 m2 11 m 14 m2 9.8 m 12.2 m 11.3 m 74 m2 11 m 13.4 m
16* 14.5 m2 12.8 m 21 m2 11.6 m 14 m 12.8 m 91 m2 12.8 m 15.2 m
20 14.5 m2 12.8 m 21 m2 11.6 m 14 m 12.8 m 91 m2 12.8 m 15.2 m
32* 21 m2 14.6 m 30 m2 13.1 m 16.2 m 14.6 m 105 m2 14.6 m 17 m
35 21 m2 14.6 m 30 m2 13.1 m 16.2 m 14.6 m 105 m2 14.6 m 17 m
40 35 m2 16.5 m 38 m2 14.9 m 17.4 m 16.5 m 115 m2 16.5 m 18.6 m
44* 31.5 m2 19.5 m 52 m2 18 m 20.7 m 19.5 m 130 m2 19.5 m 22.2 m
46 34 m2 21 m 58 m2 19.5 m 22.2 m 21 m 142 m2 20.7 m 23.8 m
48* 36 m2 22.2 m 65 m2 20.7 m 23.8 m 22.2 m 162 m2 22.5 m 25 m
50 36 m2 22.2 m 65 m2 20.7 m 23.8 m 22.2 m 162 m2 22.5 m 25 m
53* 40 m2 23.5 m 72 m2 22.2 m 25.9 m 23.5 m 182 m2 24 m 27.4 m
60 49 m2 25 m 79 m2 24.4 m 28 m 25 m 204 m2 25.9 m 29.9 m
70 55 m2 26.2 m 93 m2 25.9 m 29.6 m 26.2 m 279 m2 27.7 m 33 m
74* 88 m2 30.5 m 125 m2 31.1 m - - - 32 m -
80 88 m2 30.5 m 125 m2 31.1 m - - - 32 m -

*Available in stainless steel, all-chrome, or bronze only. Material availability varies by winch size. Contact us to request quote and lead time.
