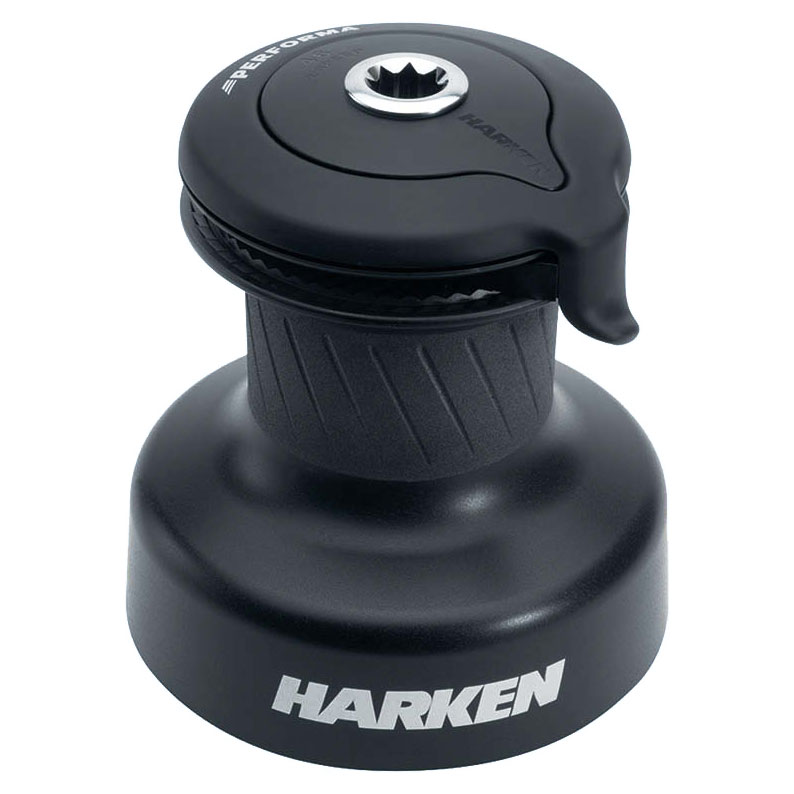

Harken - Performa™ Self-Tailing Winches

Harken - Performa™ Self-Tailing Winches

Harken



Manufacturer #:  20STP

Price:  £529.99
RRP:  £597.03
Save:  £67.04
   (£441.66 Exc. VAT)

Harken Performa winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fiber racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes.

All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
*
*
Please add the two numbers

Be the first to Write a Review for this item!

Product Information

Harken Perfoma Winch Features

Maximum holding power for high-tech line

  • Sandblasted drums and ribs optimized for halyard and sheeting applications using small-diameter, high-strength line.

Trim and ease sails quickly and easily

  • Patented angle of ribs drives line wraps down when easing to keep them on area of drum that provides best control.
  • Transfer high loads to the winch with fewer wraps.

High-strength, lightweight

  • Lightweight aluminum drum features an integrated skirt.
  • High-strength composite roller and ball thrust bearings reduce friction under load.
  • Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.

Power-grip jaws shaped for easy line entry, optimum hold

  • Narrow composite jaws ensure superior holding power on small-diameter, high-strength line.
  • Lower jaw adjusts under line pressure; accepts a variety of line sizes.
  • Teeth grip evenly with or without load.

Adjustable stripper arm integrated into winch top for safer operation

  • Stripper arm completely covers rotating winch top, preventing fingers and clothing from catching in moving parts.
  • Adjusts to multiple positions after the winch is mounted to optimize line exit.
  • Shaped to smoothly feed line in and out of self-tailing jaws.

Simple to install, easy maintenance

  • Patented mounting system for fast, one-person installation without removing drum.
  • Snap-fit design keeps bearings captive when drum is removed for maintenance.
  • Easy to disassemble for service on deck; socket, washer, and screw-top snap-fit together for mistake-free reassembly.
  • Composite roller bearings don’t require lubrication.


Harken Perfoma Winch Specifications

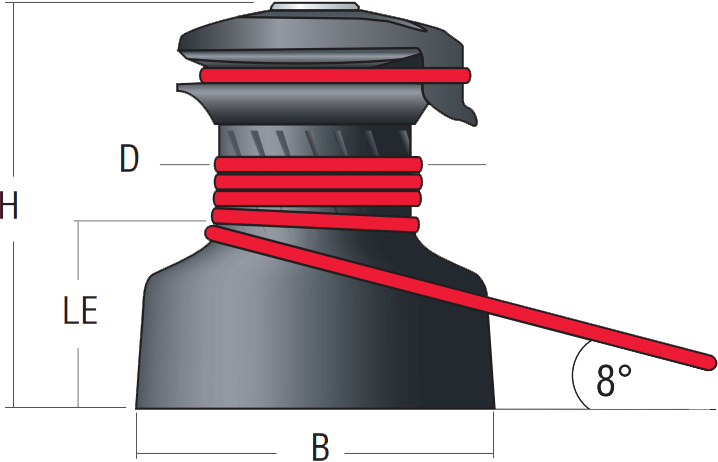

Size Drum Ø (D) Base Ø (B) Height Ø (H) Weight Line Entry Height (LE) Line Ø Fastener Circle Fasteners Gear Ratio Power Ratio
20STP 73mm 137mm 148mm 2.4kg 61mm 6mm min
12mm max
110mm 5 x M6 2.76 19.20
35.2STP 80mm 149mm 170mm 3.6kg 79mm 8mm min
12mm max
123mm 5 x M6 1 - 2.13
2 - 5.65
1 - 13.50
2 - 35.90
40.2STP 80mm 157mm 175mm 3.8kg 82mm 8mm min
12mm max
123mm 5 x M6 1 - 2.13
2 - 6.28
1 - 13.50
2 - 39.90
46.2STP 100mm 184mm 202mm 5.2kg 90mm 8mm min
14mm max
150mm 5 x M8 1 - 2.30
2 - 9.17
1 - 11.70
2 - 46.50
50.2STP 110mm 195mm 212mm 6kg 97mm 8mm min
14mm max
150mm 5 x M8 1 - 2.40
2 - 10.90
1 - 11.10
2 - 50.40
50.3STP 110mm 195mm 212mm 6.8kg 97mm 8mm min
14mm max
150mm 5 x M8 1 - 1
2 - 2.40
3 - 10.90
1 - 4.62
2 - 11.10
3 - 50.40
60.2STP 120mm 236mm 246mm 10.2kg 116mm 8mm min
16mm max
204mm 6 x M8 1 - 4.80
2 - 14.40
1 - 20.30
2 - 61.00
60.3STP 120mm 236mm 253mm 11.7kg 116mm 8mm min
16mm max
204mm 6 x M8 1 - 2.20
2 - 4.80
3 - 14.40
1 - 9.20
2 - 20.30
3 - 61.00
70.2STP 130mm 240mm 256mm 11.3kg 115mm 10mm min
16mm max
205mm 6 x M8 1 - 5.70
2 - 18.50
1 - 22.00
2 - 72.00
70.3STP 130mm 240mm 264mm 12.8kg 115mm 10mm min
16mm max
205mm 6 x M8 1 - 2.30
2 - 5.70
3 - 18.50
1 - 9.00
2 - 22.20
3 - 72.00
80.2STP 175mm 287mm 320mm 21.2kg 164mm 10mm min
18mm max
233mm 8 x M10 1 - 9.94
2 - 32.12
1 - 28.85
2 - 93.24
80.3STP 175mm 287mm 327mm 22.7kg 164mm 10mm min
18mm max
233mm 8 x M10 1 - 2.76
2 - 9.94
3 - 32.12
1 - 8.01
2 - 28.85
3 - 93.24


Harken Winch Selection Guide

Definitions

I Height of the foretriangle measured from the top of the highest sheave to the sheerline
I2 Height of the staysail halyard above deck
J Base of the foretriangle measured from the front of the mast to the intersection of the forestay and deck
J2 Base of the staysail triangle
P Luff length of the mainsail
E Foot length of the mainsail
Winch
Size
Genoa Mainsail Staysail Spinnaker
  Sheet Halyard End-boom
Mainsheet
Halyard Reef Halyard Sheet Halyard Topping Lift/
Foreguy

Max sail area 100%
foretriangle (IxJx0.5)
Max I
4:1 sheet max sail
area (PxEx0.5)
Max P
Max P
Max I2
Max sail area
(IxJx1.8)
Max I
Max I
6 7 m2 7.6 m - 7.6 m 10.4 m 7.6 m 46.5 m2 7.6 m 10.7 m
8 10.5 m2 11 m 14 m2 9.8 m 12.2 m 11.3 m 74 m2 11 m 13.4 m
16* 14.5 m2 12.8 m 21 m2 11.6 m 14 m 12.8 m 91 m2 12.8 m 15.2 m
20 14.5 m2 12.8 m 21 m2 11.6 m 14 m 12.8 m 91 m2 12.8 m 15.2 m
32* 21 m2 14.6 m 30 m2 13.1 m 16.2 m 14.6 m 105 m2 14.6 m 17 m
35 21 m2 14.6 m 30 m2 13.1 m 16.2 m 14.6 m 105 m2 14.6 m 17 m
40 35 m2 16.5 m 38 m2 14.9 m 17.4 m 16.5 m 115 m2 16.5 m 18.6 m
44* 31.5 m2 19.5 m 52 m2 18 m 20.7 m 19.5 m 130 m2 19.5 m 22.2 m
46 34 m2 21 m 58 m2 19.5 m 22.2 m 21 m 142 m2 20.7 m 23.8 m
48* 36 m2 22.2 m 65 m2 20.7 m 23.8 m 22.2 m 162 m2 22.5 m 25 m
50 36 m2 22.2 m 65 m2 20.7 m 23.8 m 22.2 m 162 m2 22.5 m 25 m
53* 40 m2 23.5 m 72 m2 22.2 m 25.9 m 23.5 m 182 m2 24 m 27.4 m
60 49 m2 25 m 79 m2 24.4 m 28 m 25 m 204 m2 25.9 m 29.9 m
70 55 m2 26.2 m 93 m2 25.9 m 29.6 m 26.2 m 279 m2 27.7 m 33 m
74* 88 m2 30.5 m 125 m2 31.1 m - - - 32 m -
80 88 m2 30.5 m 125 m2 31.1 m - - - 32 m -

*Available in stainless steel, all-chrome, or bronze only. Material availability varies by winch size. Contact us to request quote and lead time.
