Index Marine - Cable Glands (DG Plastic)

Index Marine

Colour:
Cable gland:

Article Number:  A1-DG8P

Price:  £7.49(Inc. VAT @ 20%)
+

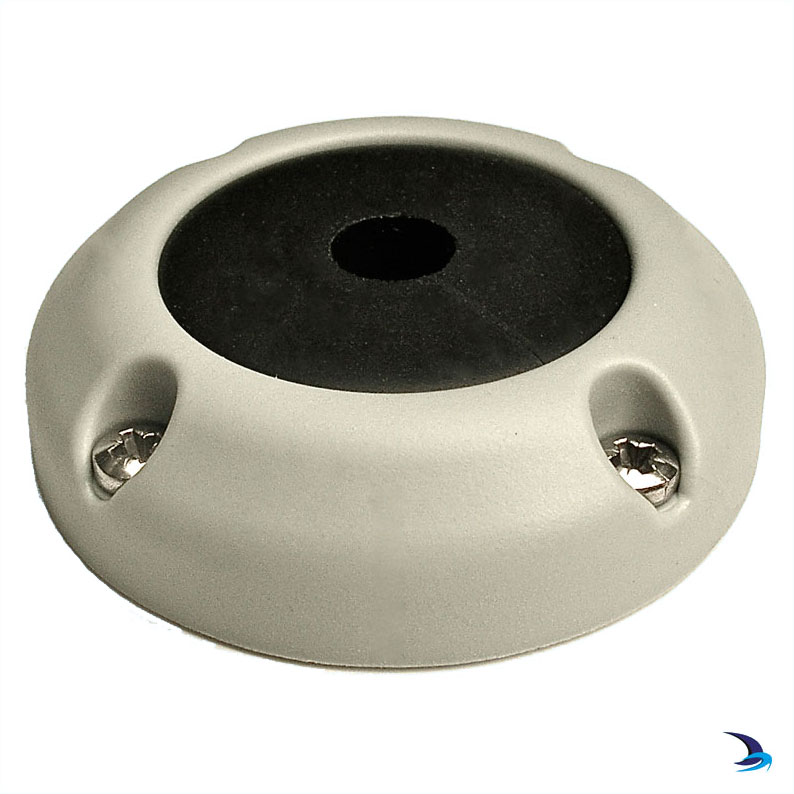

The DG series plastic cable glands are made from UV stable nylon. They are available in an aperture range of 8 - 40mm and have an attractive, low profile shape.  The range has passed independent rigorous dust and waterproof testing and rated IP68.

Each unit is supplied with clear fitting instructions and A4 stainless steel fixings.  DG deck glands are easy to fit and do not require the removal of fitted connectors when installing.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Average Rating (2 Reviews):
Write a Review and share your opinions!

Rating:
deck seal
Saturday, 6 February 2016  |

arrived on time good product very pleased

Was this helpful to you?  Yes  /  No

This review has not been appraised.


Rating:
No blanking cover
Tuesday, 12 January 2016  |

I have used various index marine cable glands of the old style so first one of the new type. I like the more rounded design. I would have given it 5 stars but it now does not have a blanking cover included for when you remove the wires when the mast is down. The old ones I had came with one. Can't use the bung as it has holes in it. I think this Index Marine should seriously consider including these again.

Was this helpful to you?  Yes  /  No

0 of 1 people found this review helpful.

Product Information

Model Max Cable Size Max Connector Size Features Dimensions
DG 8P 6mm 8mm Preformed bungs included for pass-through cable sizes 2-6mm. 12 x 35mmØ
DG 20P 14mm 21mm User drills cable holes - allows multiple cables of different sizes to pass through. Drill holes must be a min of 8mm from the edge of the bung and 6mm from other drill holes. 19 x 49mmØ
DG 21P 8mm 21mm 3 preformed bungs included for pass-through cable sizes 4-8mm. (No drilling required) 19 x 49mmØ
DG 22P 14mm 21mm 3 preformed bungs included for pass-through cable sizes 9-14mm. (No drilling required) 19 x 49mmØ
DG 30P 25mm 31mm User drills cable holes - allows multiple cables of different sizes to pass through. Drill holes must be a min of 8mm from the edge of the bung and 6mm from other drill holes. 19 x 60mmØ
DG 40P 36mm 41mm User drills cable holes - allows multiple cables of different sizes to pass through. Drill holes must be a min of 8mm from the edge of the bung and 6mm from other drill holes. 19 x 70mmØ
DG 45P 15mm 41mm 1 preformed bung included for pass-through cable sizes 12-5mm. (No drilling required) 19 x 70mmØ
