Kohlhoff- Loop® Blocks

Kohlhoff- Loop® Blocks
Kohlhoff- Loop® BlocksKohlhoff- Loop® BlocksKohlhoff- Loop® Blocks

Kohlhoff

Bearing:
Loop® Block:

Article Number:  LB45-3

Price:  £149.95(Inc. VAT @ 20%)
+

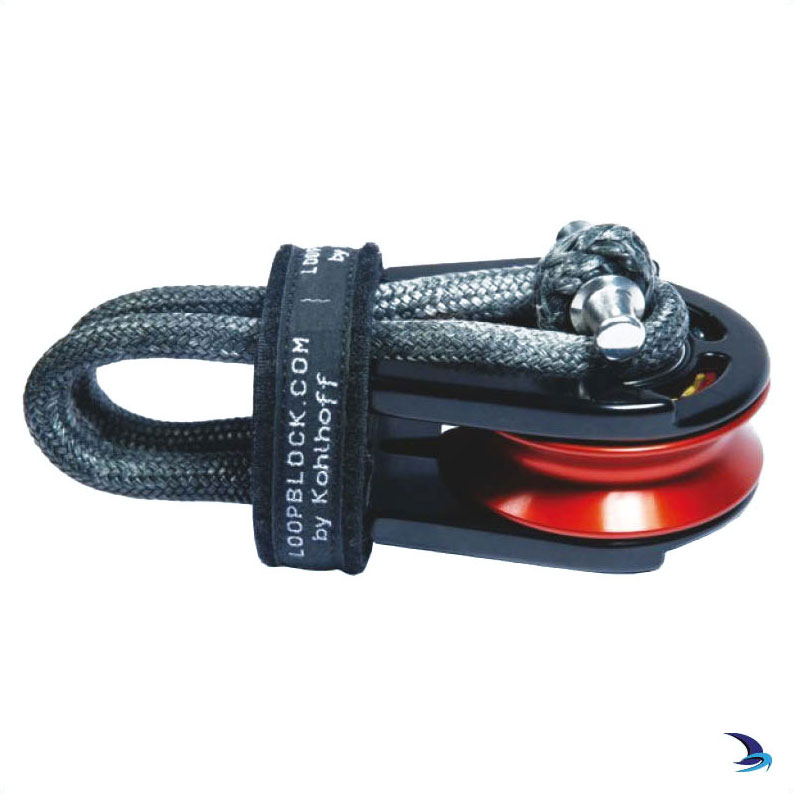

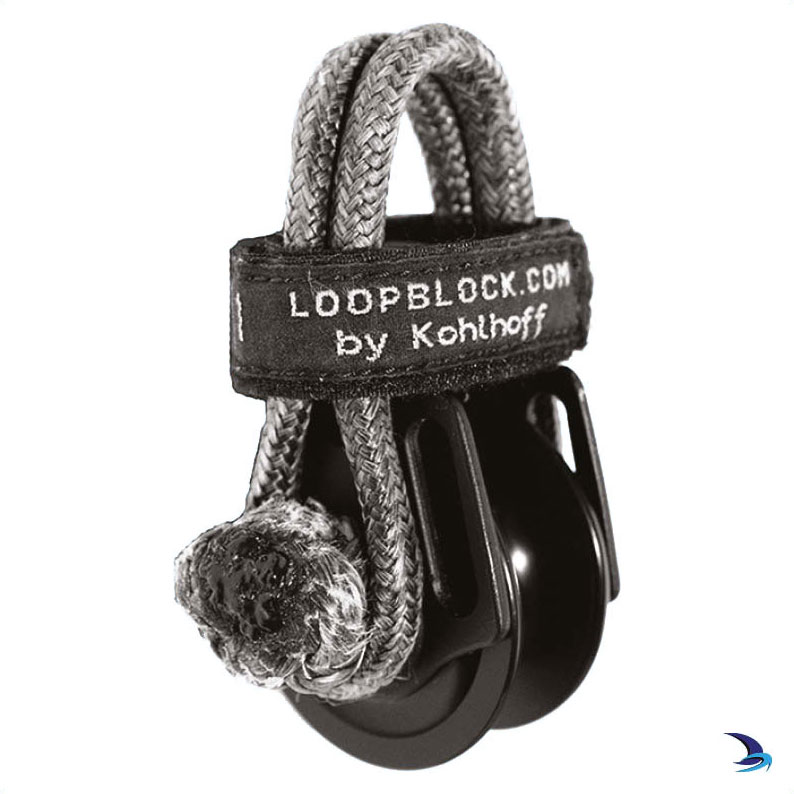

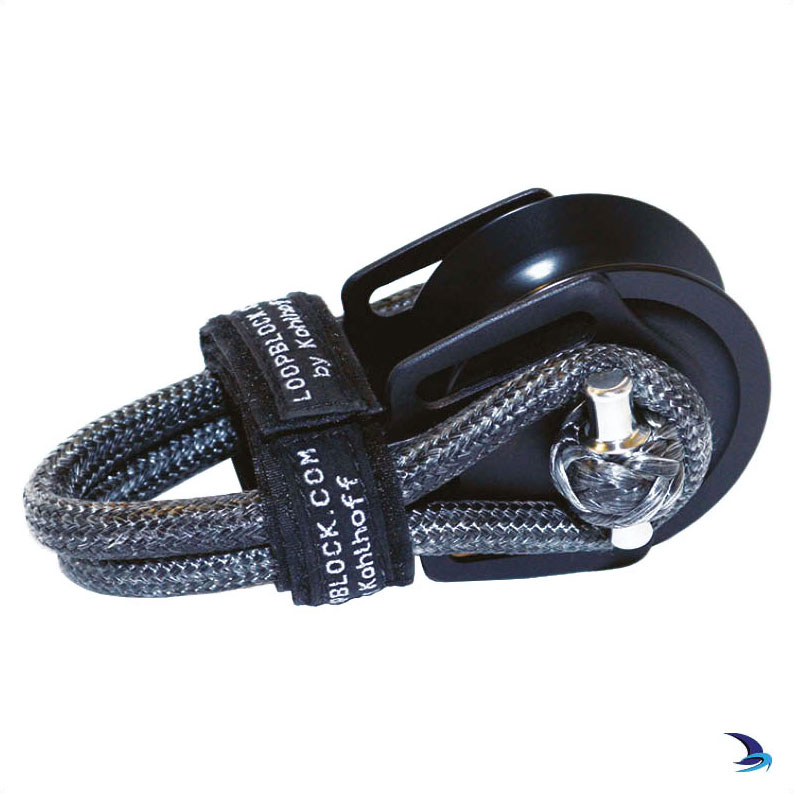

Kohlhoff Loop® Blocks are compact and lightweight multi-purpse snatch blocks fastened with a loop.  The short standard loop minimises the damage to deck, hull or superstructure.  Longer loops are available to extend the range of use and allow the block to swivel.  Due to its construction the loops always remain easy to unfasten even after full loading.

Kohlhoff Loop® Blocks are weight saving, compact sized and easy to use.

We're currently unable to show live stock information on our website, so if you need delivery fast we strongly recommend checking availability first. Simply fill out the form below and we'll get back to you, or call us on +44 (0)1243 375774 for an immediate answer.

*
Quantity Required:
Article Number:
*
E-mail Address:

Be the first to Write a Review for this item!

Product Information

Kohlhoff Loop® Blocks are available with plain bearings or ball bearings.  The ball bearing blocks in fact have a two stage bearing.  At lower loads the ball bearing minimises friction, at higher loads the plain bearing comes into effect.  The loops are covered with extra Dyneema® to provide a smooth surface and to increase the abrasion resistance.  They are terminated by a diamond knot or a pin.



Plain Bearing Blocks

Product No. Loop® Block Sheave Weight Rope Diameter MWL
LB45-3 45 with Knot Acetal 88 g up to 12 mm Ø 1,500 kg
LB60-3 60 with Knot Acetal 206 g up to 16 mm Ø 3,000 kg

Ball Bearing Blocks

Product No. Loop® Block Sheave Weight Rope Diameter MWL
LB45BB-4 45 with Pin Acetal 96 g up to 12 mm Ø 1,500 kg
LB45NN-4REEF 45 with Longer Loop Pin Acetal 96 g up to 12 mm Ø 1,500 kg
LB60BB-4 60 with Pin Alloy 243 g up to 16 mm Ø 3,000 kg
LB60BB-4REEF 60 with Longer Loop Pin Alloy 243 g up to 16 mm Ø 3,000 kg
LB80BB-3 80 with Knot Alloy 608 g up to 22 mm Ø 5,000 kg

Torlon Needle Bearing Blocks

Product No. Loop® Block Sheave Weight Rope Diameter MWL
LB60NB-4 60 with Needle Bearing and Pin Alloy
(red anodised)
266 g up to 12 mm Ø 2,000 kg
